Heavy duty connector

Heavy duty connectors are essential components used in various industrial and commercial applications to ensure reliable electrical and signal connections in harsh environments. These connectors are designed to withstand extreme conditions such as high temperatures, mechanical stress, dust, moisture, and chemical exposure. Their robust construction and versatility make them indispensable in sectors like manufacturing, transportation, energy, and automation.

Materials For Heavy Duty Connectors

The materials used in the construction of heavy duty connectors are carefully selected to ensure durability, reliability, and performance in demanding conditions. Key materials include:

1. Housings and Casings

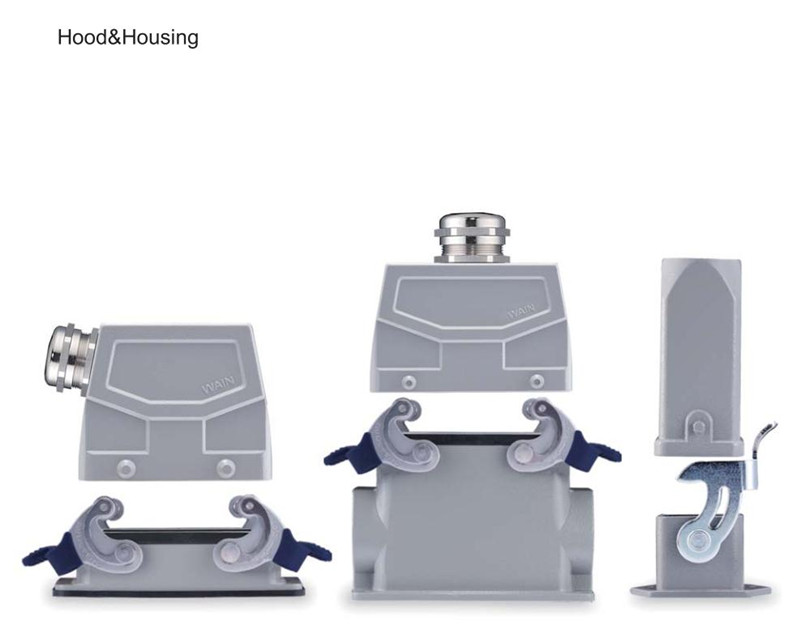

The housings or casings of heavy duty connectors are typically made from high-strength materials to provide mechanical protection and environmental sealing. Common materials include:

Aluminum: Known for its lightweight and excellent corrosion resistance, aluminum is often used for connector housings in outdoor and marine applications.

Zinc Die-Cast: This material offers good durability and is cost-effective for many industrial applications.

Thermoplastic: High-performance plastics such as polycarbonate or glass-filled nylon are used for their excellent electrical insulation properties, impact resistance, and resistance to chemicals and UV radiation.

2. Contacts and Pins

The electrical contacts and pins within the connectors are crucial for ensuring reliable electrical connections. These components are typically made from:

Copper Alloys: Copper and its alloys (such as brass and bronze) are widely used due to their excellent electrical conductivity and ease of manufacturing.

Silver or Gold Plating: To enhance conductivity and resistance to corrosion, contacts are often plated with precious metals like silver or gold.

3. Seals and Gaskets

To protect against dust, moisture, and other environmental factors, seals and gaskets are used in connectors. These are usually made from:

Silicone Rubber: Known for its flexibility and resistance to extreme temperatures.

Nitrile Rubber: Offers good oil and chemical resistance, making it suitable for industrial applications.

EPDM (Ethylene Propylene Diene Monomer): Provides excellent weather resistance, making it ideal for outdoor applications.

4. Insulating Materials

Insulating materials are used to prevent electrical shorts and ensure safe operation. These materials include:

Thermoplastics: Used for their high dielectric strength and thermal stability.

Thermosetting Plastics: Such as phenolic resins, which offer excellent heat resistance and mechanical strength.

Application of Heavy Duty Connectors

Heavy duty connectors are used in a wide range of applications across various industries due to their robustness and reliability. Some common uses include:

1. Industrial Automation and Control

Heavy duty connectors are extensively used in industrial automation systems to connect sensors, actuators, control units, and other components. Their reliability ensures continuous operation in environments with high levels of vibration, dust, and moisture.

2. Transportation

In the transportation industry, these connectors are used in vehicles, trains, ships, and aircraft to connect electrical systems, control units, and communication devices. They are designed to withstand the mechanical stress and environmental exposure typical of these applications.

3. Energy and Power Generation

Heavy duty connectors play a critical role in power generation and distribution systems. They are used in wind turbines, solar panels, and other renewable energy systems to ensure reliable power transmission even in harsh outdoor conditions.

4. Construction Machinery

Construction equipment such as excavators, bulldozers, and cranes rely on heavy duty connectors for their electrical and electronic systems. These connectors must be durable enough to handle the rough and demanding environment of construction sites.

5. Marine and Offshore

In marine and offshore applications, connectors must resist corrosion from saltwater and withstand high pressures. Heavy duty connectors are used in navigation systems, communication equipment, and power distribution on ships and offshore platforms.

6. Telecommunications

Telecommunication systems, including base stations and data centers, use heavy duty connectors for their reliability and ability to maintain signal integrity in adverse conditions.

7. Military and Aerospace

The military and aerospace industries require connectors that can operate under extreme conditions, such as high G-forces, extreme temperatures, and exposure to chemicals. Heavy duty connectors are used in a wide range of applications from communication systems to avionics.

Advantages of Heavy Duty Connectors

Heavy duty connectors offer numerous advantages that make them suitable for use in demanding environments. These advantages include:

1. Durability and Longevity

One of the primary benefits of heavy duty connectors is their durability. They are designed to withstand mechanical stress, impact, and abrasion, which ensures a longer service life even in harsh conditions.

2. Environmental Resistance

Heavy duty connectors provide excellent protection against environmental factors such as dust, moisture, chemicals, and UV radiation. This makes them ideal for outdoor and industrial applications where exposure to such elements is common.

3. High Current and Voltage Capacity

These connectors are capable of handling high currents and voltages, making them suitable for power-intensive applications. This capability ensures reliable power transmission and reduces the risk of electrical failures.

4. Ease of Installation and Maintenance

Heavy duty connectors are designed for easy installation and maintenance. Many connectors feature modular designs, allowing for quick assembly and disassembly. This reduces downtime and maintenance costs in industrial settings.

5. Versatility

The versatility of heavy duty connectors allows them to be used in a wide range of applications across various industries. They can accommodate different types of cables, signals, and power requirements, making them highly adaptable.

6. Safety

Safety is a critical consideration in the design of heavy duty connectors. They often include features such as locking mechanisms, sealing, and insulation to prevent accidental disconnections, short circuits, and other hazards.

7. Signal Integrity

Heavy duty connectors are designed to maintain signal integrity even in environments with high levels of electrical noise and interference. This ensures reliable communication and data transmission in critical applications.

8. Customization

Manufacturers offer a range of customization options for heavy duty connectors, including different housing materials, contact configurations, and sealing options. This allows users to select connectors that meet their specific requirements.
FAQ

1. What are heavy duty connectors?

Answer: Heavy duty connectors are robust electrical connectors designed to ensure reliable electrical and signal connections in harsh environments. They are built to withstand extreme conditions such as high temperatures, mechanical stress, dust, moisture, and chemical exposure, making them suitable for industrial and commercial applications.

2. What materials are used to manufacture heavy duty connectors?

Answer: Heavy duty connectors are typically made from high-strength materials including aluminum, zinc die-cast, and high-performance thermoplastics for housings and casings. The contacts and pins are often made from copper alloys with silver or gold plating to enhance conductivity and corrosion resistance. Seals and gaskets are usually made from silicone rubber, nitrile rubber, or EPDM to provide environmental protection.

3. In which industries are heavy duty connectors commonly used?

Answer: Heavy duty connectors are widely used in various industries, including industrial automation and control, transportation (automotive, aerospace, marine), energy and power generation, construction machinery, telecommunications, and military applications. Their robustness and reliability make them suitable for environments where durability is critical.

4. What are the main advantages of using heavy duty connectors?

Answer: The main advantages of heavy duty connectors include their durability, environmental resistance, high current and voltage capacity, ease of installation and maintenance, versatility, safety features, and the ability to maintain signal integrity in harsh conditions. These connectors are also highly customizable to meet specific application requirements.

5. How do heavy duty connectors ensure environmental protection?

Answer: Heavy duty connectors use a combination of durable housing materials and sealing technologies to protect against dust, moisture, chemicals, and other environmental factors. Seals and gaskets made from materials like silicone rubber and EPDM ensure that the connectors are well-protected and maintain their performance in harsh conditions.

6. Can heavy duty connectors handle high current and voltage levels?

Answer: Yes, heavy duty connectors are designed to handle high currents and voltages, making them suitable for power-intensive applications. This capability ensures reliable power transmission and reduces the risk of electrical failures in demanding environments.

7. Are heavy duty connectors customizable?

Answer: Yes, heavy duty connectors are highly customizable. Manufacturers offer various options for housing materials, contact configurations, sealing methods, and other features. This allows users to select connectors that meet their specific electrical, mechanical, and environmental requirements.

8. What should be considered when selecting a heavy duty connector?

Answer: When selecting a heavy duty connector, consider factors such as the environmental conditions (temperature, moisture, chemical exposure), electrical requirements (current and voltage levels), mechanical stress, compatibility with existing systems, size and weight constraints, and regulatory compliance. It is important to choose a connector that meets the specific needs of the application.

9. How do heavy duty connectors ensure safety?

Answer: Heavy duty connectors are designed with safety in mind, featuring locking mechanisms, secure seals, and high-quality insulating materials to prevent accidental disconnections, short circuits, and other hazards. These features help ensure safe operation even in demanding conditions.

10. What are some common applications of heavy duty connectors in transportation?

Answer: In transportation, heavy duty connectors are used in vehicles, trains, ships, and aircraft to connect electrical systems, control units, and communication devices. They are designed to withstand mechanical stress, vibration, and environmental exposure typical of transportation applications, ensuring reliable performance and safety.
