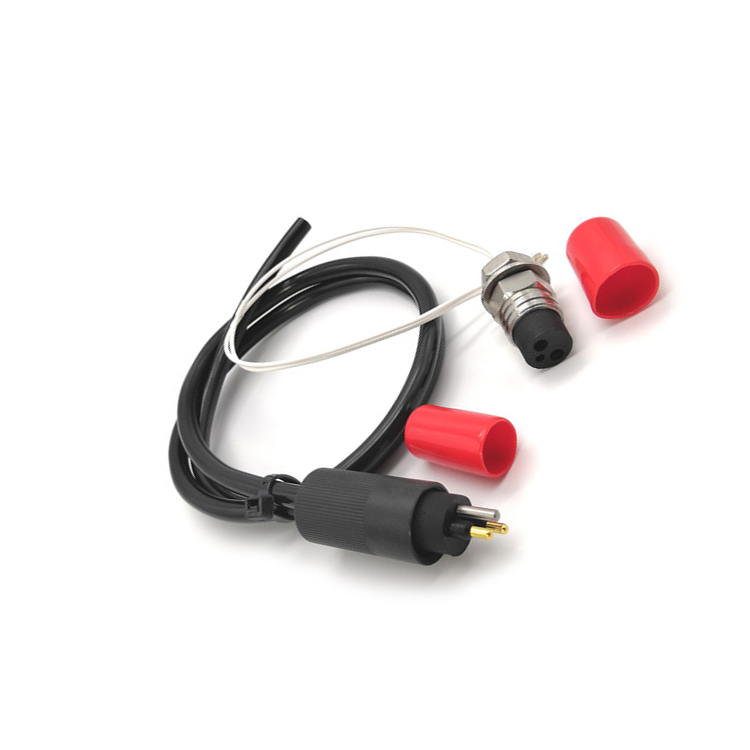

Selecting the right Subconn underwater electrical connector is a critical decision that can make or break your subsea project. Whether you're operating an ROV, deploying oceanographic sensors, or building underwater instrumentation, the connector is often the weakest link in the system. A failure here can lead to costly downtime, data loss, and even the complete loss of equipment. Subconn connectors are an industry standard known for their robustness and reliability. But with a range of options available, how do you choose the perfect one for your specific application? This guide will walk you through the five key decision factors to ensure your connections are as dependable as the depths they endure.
Table of Contents:
1. Pin Configuration: Mapping Your Electrical and Signal Needs
2. Pressure Rating: How Deep Will You Go?
3. Shell Material: The Battle Against Corrosion
4. Electrical Performance: More Than Just Pin Count
5. Cable and Outlet Considerations: Completing the System
1. Pin Configuration: Mapping Your Electrical and Signal Needs
The first and most crucial step is defining your connection requirements. Subconn connectors are available with a variety of pin counts to suit different purposes.
1) Low Pin Count (3 to 6 pins): Ideal for simple power transmission or basic signal lines. Common in underwater lights, thrusters, and low-complexity sensors.
2) Medium to High Pin Count (7 to 12+ pins): Necessary for systems requiring multiple power lines, analog signals, or serial communication protocols like RS-232/485. Essential for complex sensors, cameras, and ROV control systems.
3) Mixed Power/Signal: Plan your pinout carefully, separating high-current power lines from sensitive low-voltage signals to prevent interference.
Action: Create a detailed list of every wire that needs to pass through the bulkhead, specifying its function (e.g., 24V power, 5V sensor signal, ground).
2. Pressure Rating: How Deep Will You Go?
The immense pressure of the deep ocean is the primary environmental challenge. Choosing a connector with an insufficient pressure rating will result in failure and flooding.
1) Standard Options: Subconn connectors typically come in several pressure ratings. Common ratings include 3,000 psi, 5,000 psi, and 10,000 psi.
2) Calculate Your Safety Margin: Always select a connector rated for a depth greater than your maximum operating depth. Factor in a safety margin of at least 1.5x to account for pressure spikes or unexpected conditions. A 3,000 psi connector is generally suitable for depths up to approximately 2,000 meters, but always check the manufacturer's specifications.
3) Glass-Sealed vs. Epoxy-Potted: For extreme depths and high reliability, glass-sealed versions offer superior performance and long-term stability compared to epoxy-potted alternatives.
3. Shell Material: The Battle Against Corrosion
The material of the connector shell determines its ability to withstand harsh saltwater environments.
1) Brass with Nickel Plating: This is the standard and most cost-effective option. It provides excellent corrosion resistance for most applications. However, in highly abrasive environments or with frequent mating/de-mating, the plating can wear off, exposing the brass to corrosion.
2) Stainless Steel (e.g., 316): The premium choice for maximum durability and corrosion resistance. Stainless steel is essential for long-term seafloor deployments, frequently handled connectors, and use in brackish or chemically aggressive waters. While more expensive, it eliminates the risk of plating wear.
4. Electrical Performance: More Than Just Pin Count
Don't just count the pins; understand their capabilities.
1) Current and Voltage Rating: Each pin has a maximum current and voltage rating. Ensure your power requirements fall well within these limits. High-power applications (like thrusters) may require multiple pins to be combined to carry the necessary current.
2) Insulation Resistance: A high insulation resistance is critical to prevent signal leakage and crosstalk between pins, especially for sensitive analog measurements.
3) Impedance Control: For high-frequency digital signals, you may need specialized connectors designed to maintain a specific impedance and minimize signal degradation.
5. Cable and Outlet Considerations: Completing the System
The connector is only half of the equation. You must also select the appropriate cable outlet and cable type.
1) Cable Outlet Options:
Straight: Standard choice for most applications.
90-Degree Elbow: Useful in tight spaces where cable routing is constrained.
2) Cable Specification: The cable itself must be rated for underwater use, with a robust outer jacket, effective shielding against EMI/RFI, and the correct number of conductors. Using a substandard cable will undermine even the best connector.
Your Next Step: From Selection to Secure Connection
Choosing the right Subconn connector is a technical process, but you don't have to navigate it alone. Properly crimping and assembling these connectors requires the right tools and expertise to ensure a perfect, water-tight seal every time.
