Designing wire harnesses for harsh conditions and demanding environments requires a deep understanding of the specific challenges involved. Extreme temperatures, humidity, chemicals, mechanical stress, and electromagnetic interference are just a few factors that need to be considered. Addressing these factors early in the design process is critical to ensuring the reliability, safety, and durability of the wire harness.
01 High Temperature
Wire harnesses exposed to high temperatures are at risk for several issues that can affect their functionality and safety. Insulation materials can degrade, become brittle, crack, or even melt. This can cause short circuits or electrical failures. Conductors can expand due to the heat, potentially loosening connections and causing intermittent problems.
High temperatures accelerate chemical reactions that degrade materials and cause corrosion. In severe cases, overheating can cause flammable components to ignite, creating a fire risk. To address these issues, it is important to use heat-resistant materials and incorporate effective thermal management into the harness design.
Solution
1) Material:
Some examples of heat-resistant materials include polyimide (PI), polytetrafluoroethylene (PTFE), or cross-linked polymers that can withstand high temperatures (up to 400°C in aerospace).
2) Thermal Management:
Apply heat dissipation strategies such as using heat-resistant conduits, routing wiring away from heat sources, or incorporating thermal barriers.
02 Low Temperature
The main issue here is the brittleness that can develop in insulation materials, making them more susceptible to cracking or breaking under mechanical stress. This can result in exposed wires, increasing the risk of shorts or electrical failures. Cold temperatures can also cause materials to shrink, which can loosen connections, leading to unreliable performance or intermittent failures.
Some materials can lose flexibility, causing increased strain during movement or vibration, further exacerbating the risk of damage. To reduce these risks, it is important to use materials specifically designed to remain flexible and durable in cold environments.
Solution: Materials:
Suitable materials include silicones or fluoropolymers that remain flexible in cold environments. Make sure all materials, including connectors and insulators, are rated for the lowest possible temperatures expected.
03 Moisture and Water Exposure
Waterproof harnesses are essential in environments such as marine or industrial settings, which are exposed to high humidity, rain, and even direct immersion in water. Moisture can penetrate the wiring harness, causing shorts, corrosion of metal parts, and potential electrical failures. Saltwater, especially in marine environments, can significantly accelerate corrosion, posing an even more serious threat.
Solution
1) Material:
Use materials such as polyurethane (PUR) or neoprene as an outer jacket to provide a barrier against water intrusion.
2) Design:
For waterproof harnesses, cross-wrap the branches to ensure the harness remains fully covered. If using waterproof rubber grommets or through-hole rubber sleeves, the harness should be partially encapsulated first. Afterwards, the rubber grommets or sleeves should be securely wrapped around the harness using a double wrapping technique.

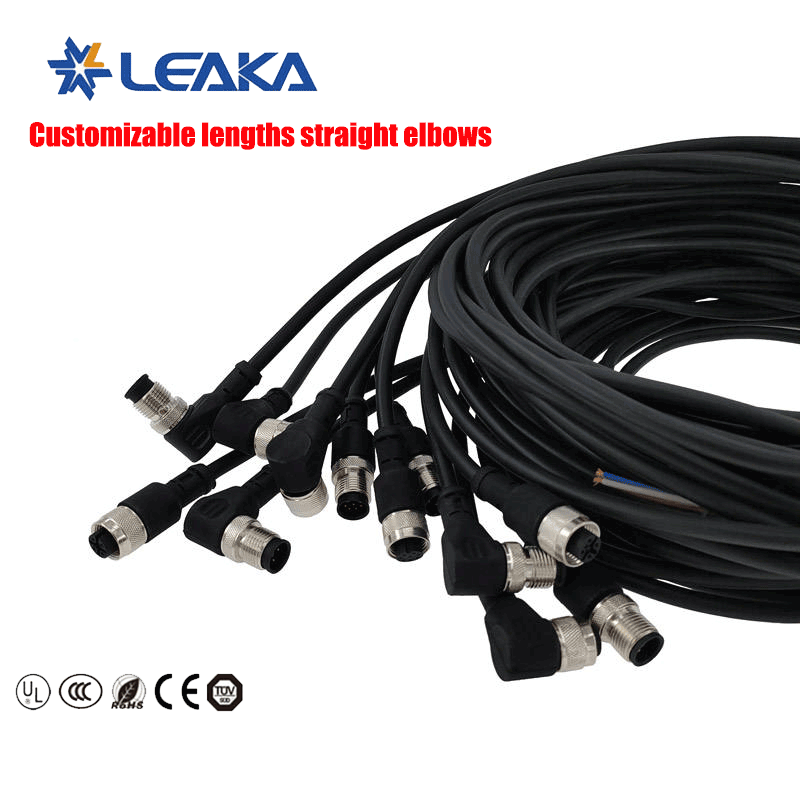

3) Connectors:
Choose sealed or overmolded connectors to prevent moisture from entering critical areas. Choose connectors with an IP67 rating or higher for high humidity or submersion environments.
