DIN rail terminal blocks are a crucial component in industrial wiring systems, providing secure and reliable connections for a range of applications. These blocks are designed to be mounted onto DIN rails, which are standard metal strips used for mounting industrial components in electrical panels or cabinets. In this article, we will introduce DIN rail terminal blocks from three aspects: material, classification, and application.
Material
DIN rail terminal blocks are made from a variety of materials, with the most commonly used being plastic and metal. Plastic terminal blocks are often made of durable, flame-resistant polycarbonate or polyamide materials. They are lightweight, cost-effective, and easy to install. Metal terminal blocks can be made from copper, brass, or steel alloys, offering excellent electrical conductivity and high mechanical strength.
Classification

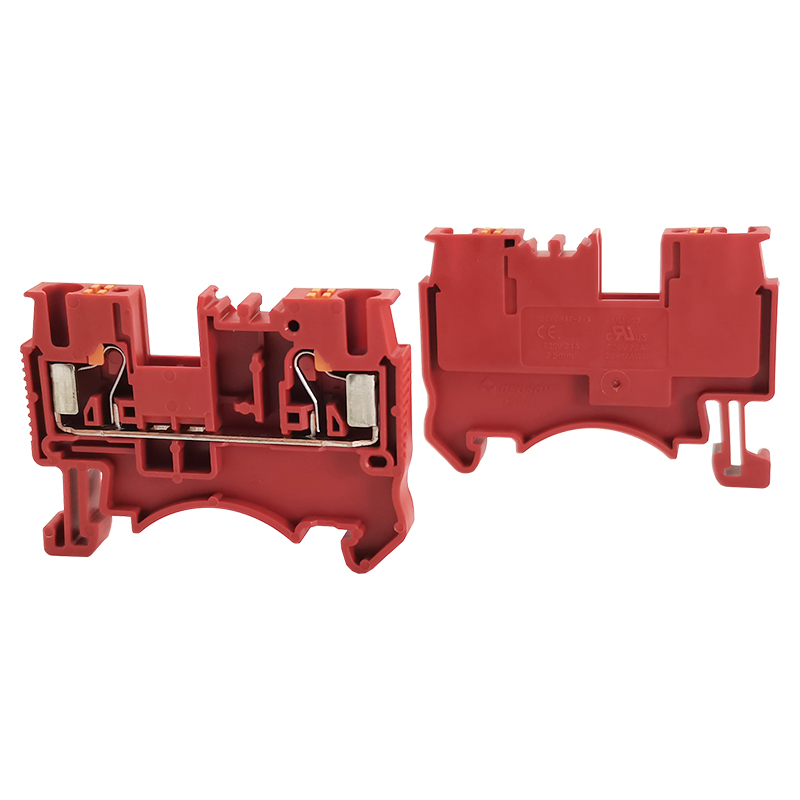

According to the mounting method, DIN rail terminal blocks can be divided into two categories - screw-type and spring-type. Screw-type terminal blocks feature a threaded screw that is used to clamp down on wires and create a secure connection. They are suitable for larger gauge wires and high current applications. Spring-type terminal blocks, on the other hand, utilize a spring clamp mechanism that allows for quick and easy wire insertion and removal. They are ideal for smaller gauge wires and applications that require frequent wire changes.
In terms of the number of connections, DIN rail terminal blocks can be classified as single-level, double-level, and triple-level terminal blocks. Single-level terminal blocks have one row of terminals, double-level terminal blocks have two rows, and triple-level terminal blocks have three rows.
Application
DIN rail terminal blocks are commonly used in a wide range of industries, including automation, energy, telecommunications, transportation, and more. They are often used for disconnecting, switching, and distributing electrical power or signal connections.
Due to their versatility and reliability, DIN rail terminal blocks are commonly used in applications such as:
- Control and automation systems
- Motor control centers
- Switchgear and panel boards
- Power distribution systems
- Renewable energy systems
- Signal and communication systems
In conclusion, DIN rail terminal blocks play an important role in industrial wiring systems by providing secure and effective connections for a range of applications. With their various materials, classifications, and applications, these blocks continue to be an essential tool for industrial engineers, electricians, and technicians.
