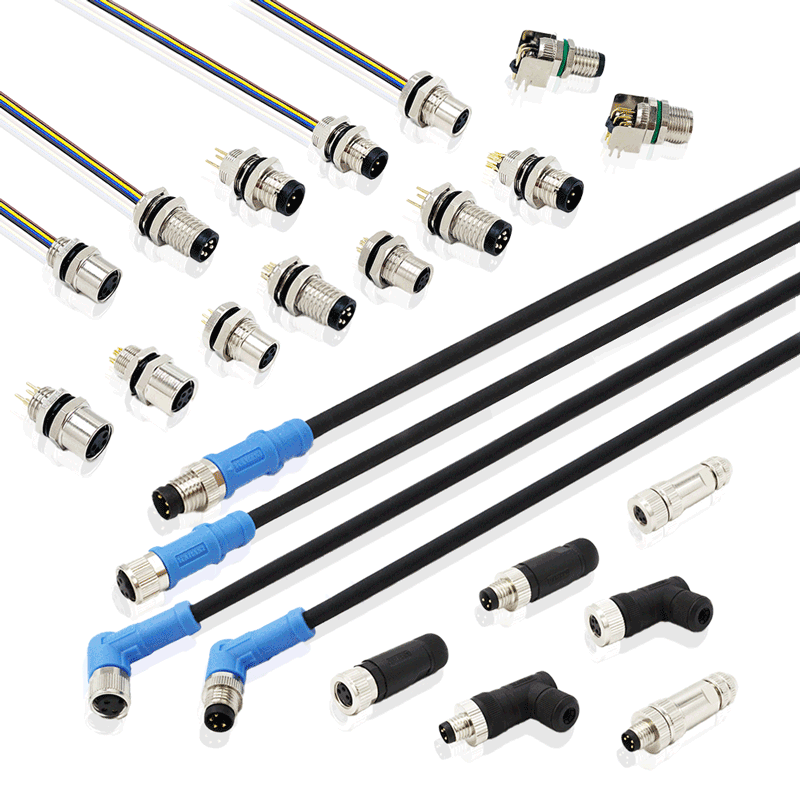

M8, M12, and M23 connectors are standardized circular connectors widely used in industrial automation for sensor and actuator connections, as well as for transmitting data and power. Each type has its own specific applications and characteristics, differing mainly in size, pin configuration, and current-carrying capacity.
M8, M12, and M23 connectors are standardized circular connectors widely used in industrial automation for sensor and actuator connections, as well as for transmitting data and power. Each type has its own specific applications and characteristics, differing mainly in size, pin configuration, and current-carrying capacity.
Pin Configuration: Typically 3 to 4 pins, but can have up to 8 pins in some configurations.
Current Capacity: Generally up to 4 A.
Voltage Rating: Usually around 30-60 V, depending on the application.
Application: Used primarily for connecting small sensors and actuators. Ideal for tight spaces due to their small size.
Typical Usage: Industrial automation, robotics, and instrumentation.
Pin Configuration: 3 to 12 pins.
Current Capacity: Generally up to 4-12 A, depending on the pin count and wire gauge.
Voltage Rating: Usually up to 250 V, depending on the application.
Application: Widely used in industrial environments for connecting sensors, actuators, and fieldbus systems. Known for their robustness and reliability in harsh conditions.
Typical Usage: Industrial automation, transportation systems, robotics, and machinery.
Pin Configuration: Typically 6 to 19 pins.
Current Capacity: Can carry up to 20 A, making them suitable for power applications.
Voltage Rating: Up to 630 V.
Application: Used for power and signal transmission in applications requiring high current and voltage. Suitable for demanding environments.
Typical Usage: Servo motors, heavy machinery, power distribution, and industrial automation.
Summary
Size and Thread Diameter:
M8: 8 mm
M12: 12 mm
M23: 23 mm
Pin Count:
M8: 3 to 8 pins
M12: 3 to 12 pins
M23: 6 to 19 pins
Current Carrying Capacity:
M8: Up to 4 A
M12: 4 to 12 A
M23: Up to 20 A
Voltage Rating:
M8: 30-60 V
M12: Up to 250 V
M23: Up to 630 V
Applications:
M8: Small sensors and actuators in tight spaces.
M12: Versatile for various industrial automation needs.
M23: High power and voltage applications, such as servo motors and heavy machinery.
These differences make each connector type suitable for specific roles in industrial and automation applications, ensuring reliable performance based on the demands of the system.
