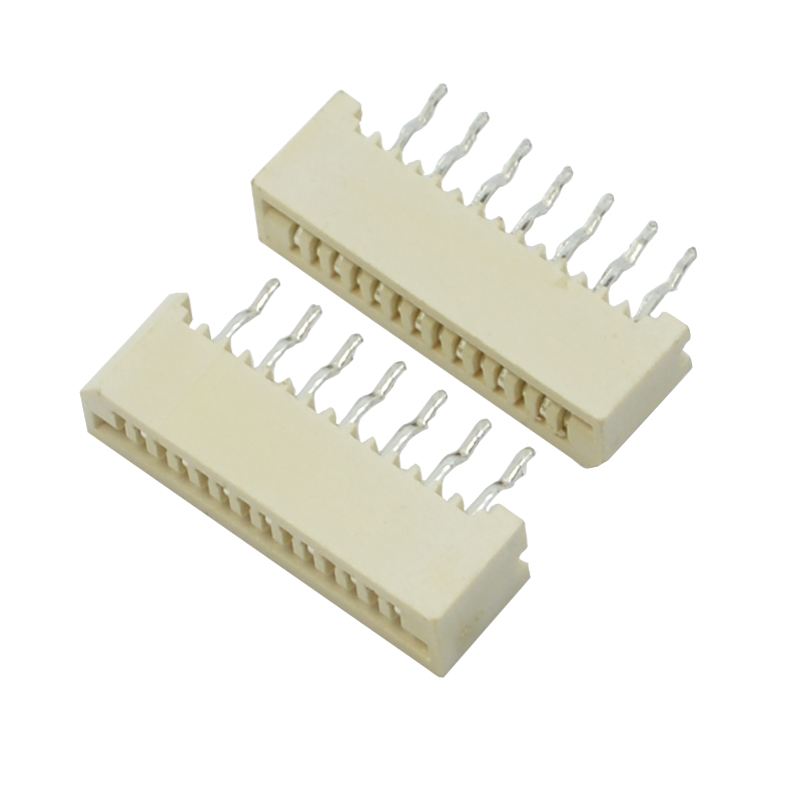

Surface mount connectors are electronic components used to connect circuit boards and other electronic devices. Unlike traditional connectors, surface mount connectors can be directly soldered on the surface of the circuit board without the need for holes to connect. This connection method is conducive to improving the wiring density and production efficiency of the circuit board and reducing the volume and weight of the circuit board.
The shape, size and number of pins of the surface mount connector can be customized according to different application scenarios. Common surface mount connectors include socket connectors, pin header connectors, snap-on connectors, etc. They are widely used in electronic products in various fields such as computers, communications, consumer electronics, medical equipment, and automobiles.
The role of surface mount connectors
The main function of surface mount connectors is to connect signals and power between circuit boards and other electronic devices. They are usually used in the following aspects:
1. Circuit board wiring:
Different circuit boards can be connected together to form a complete electronic system. These connectors are usually used to handle signal and power transmission between different circuit boards, as well as data exchange, etc.
2. Component connection:
Different electronic components such as chips, sensors, LEDs, etc. can be connected. This connection method can reduce the size and weight of electronic products and increase the wiring density of circuit boards.
3. Mechanical connection:
It can be used as a mechanical connector to fix electronic equipment in a mechanical structure. This connection method can improve the mechanical strength and stability of electronic equipment and prevent the equipment from loosening or vibrating during operation.
Generally speaking, surface mount connectors play a vital role in electronic products. They can connect various circuit boards and components, realize signal and power transmission, and improve mechanical strength and stability.
Surface mount connector types
There are many types of surface mount connectors, some common types include the following:
1. Socket Connector:
Pins are arranged in an array, usually used to connect flat wires or cables, such as hard disk interfaces, USB interfaces, etc.
2. Pin Header Connector:
Pins are usually arranged vertically, usually used to connect other electronic devices, such as modules, sensors, etc.
3. Latch Connector:
It is a connector that can be quickly connected, usually used to connect chassis and external devices, such as audio output, etc.
4. PCB Connector:
This is a connector used to connect circuit boards and other electronic devices, usually used to connect different circuit boards or components, such as audio output, etc.
5. Spring Connector:
Spring Connector uses springs to connect circuit boards and other electronic devices, usually used to connect LED lights, etc.
