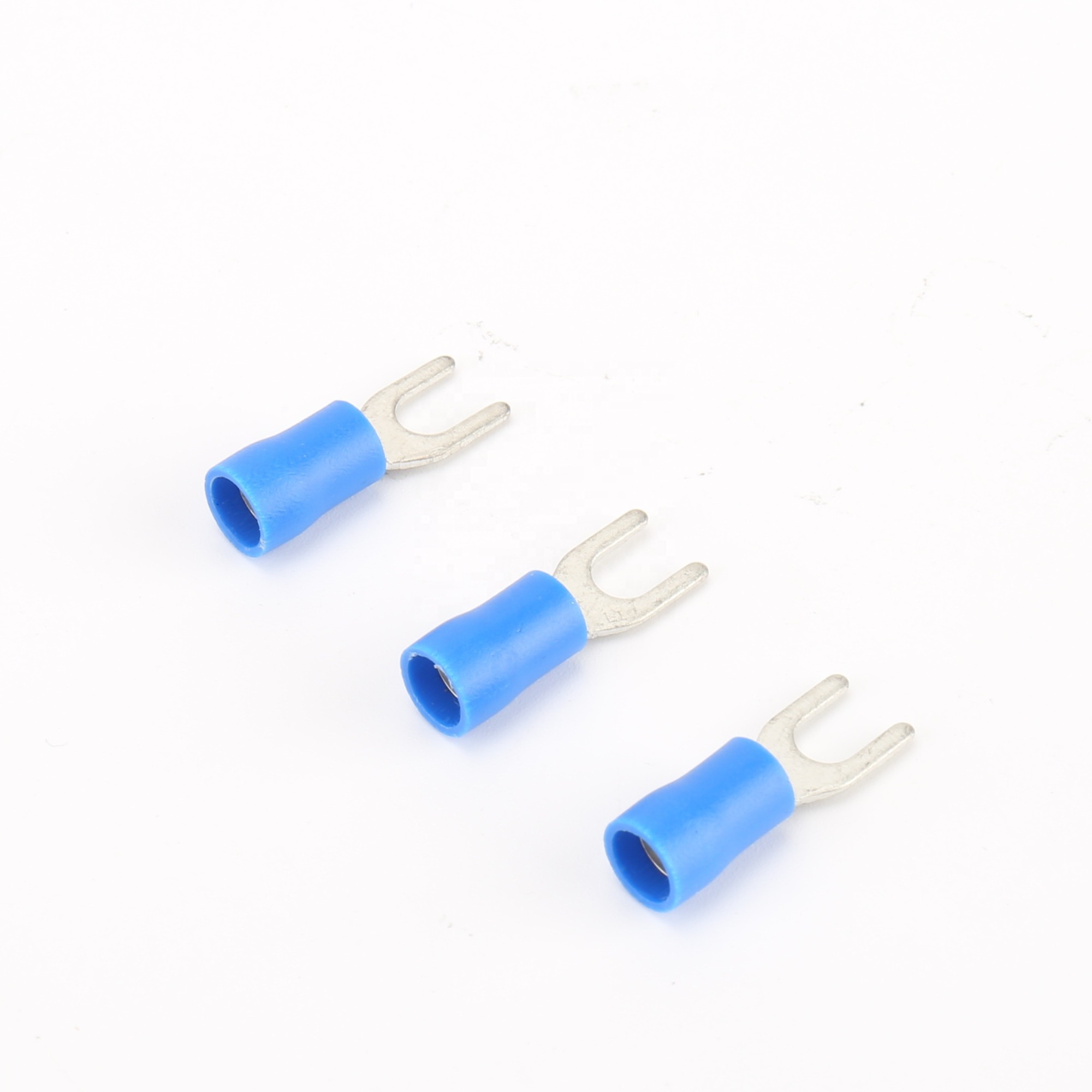

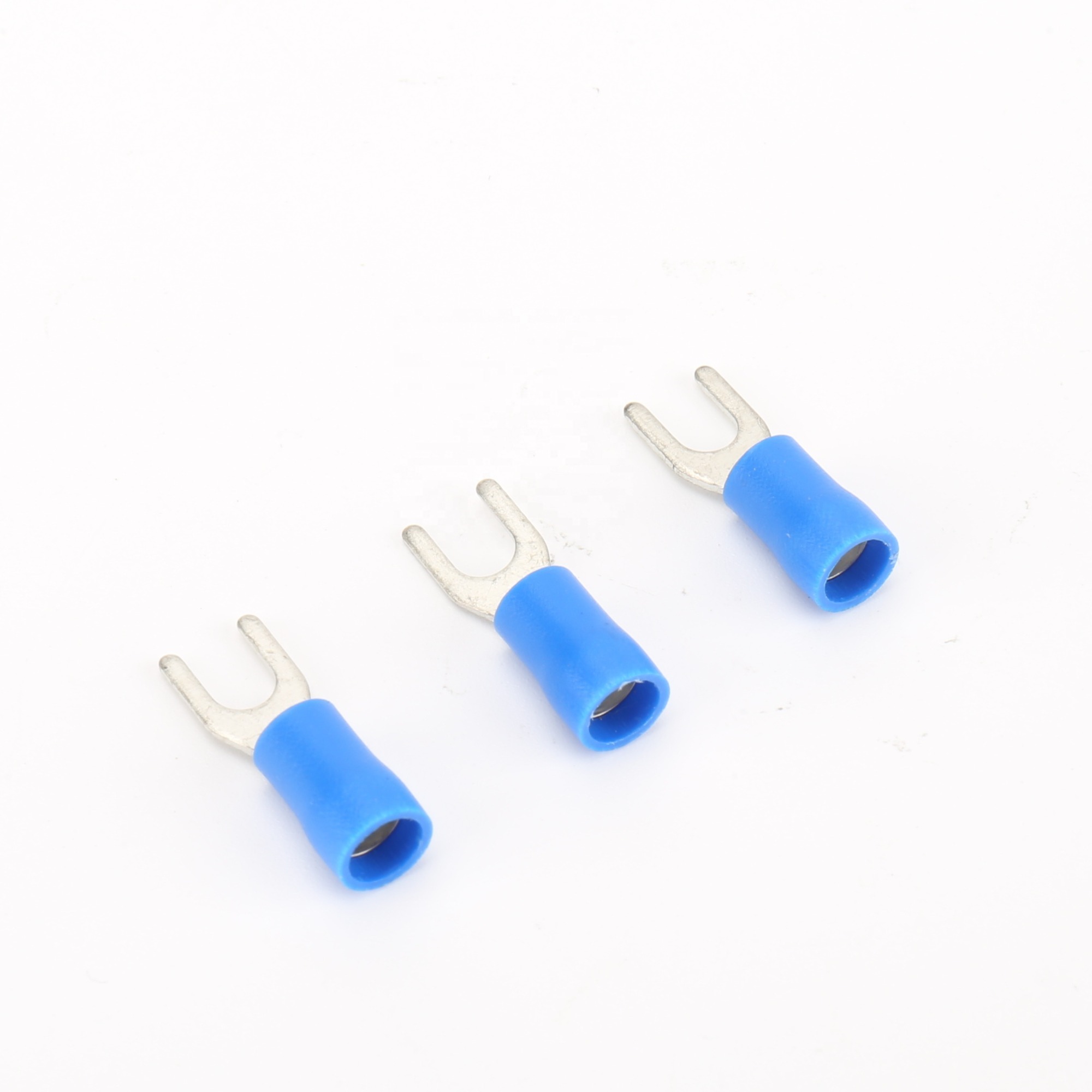

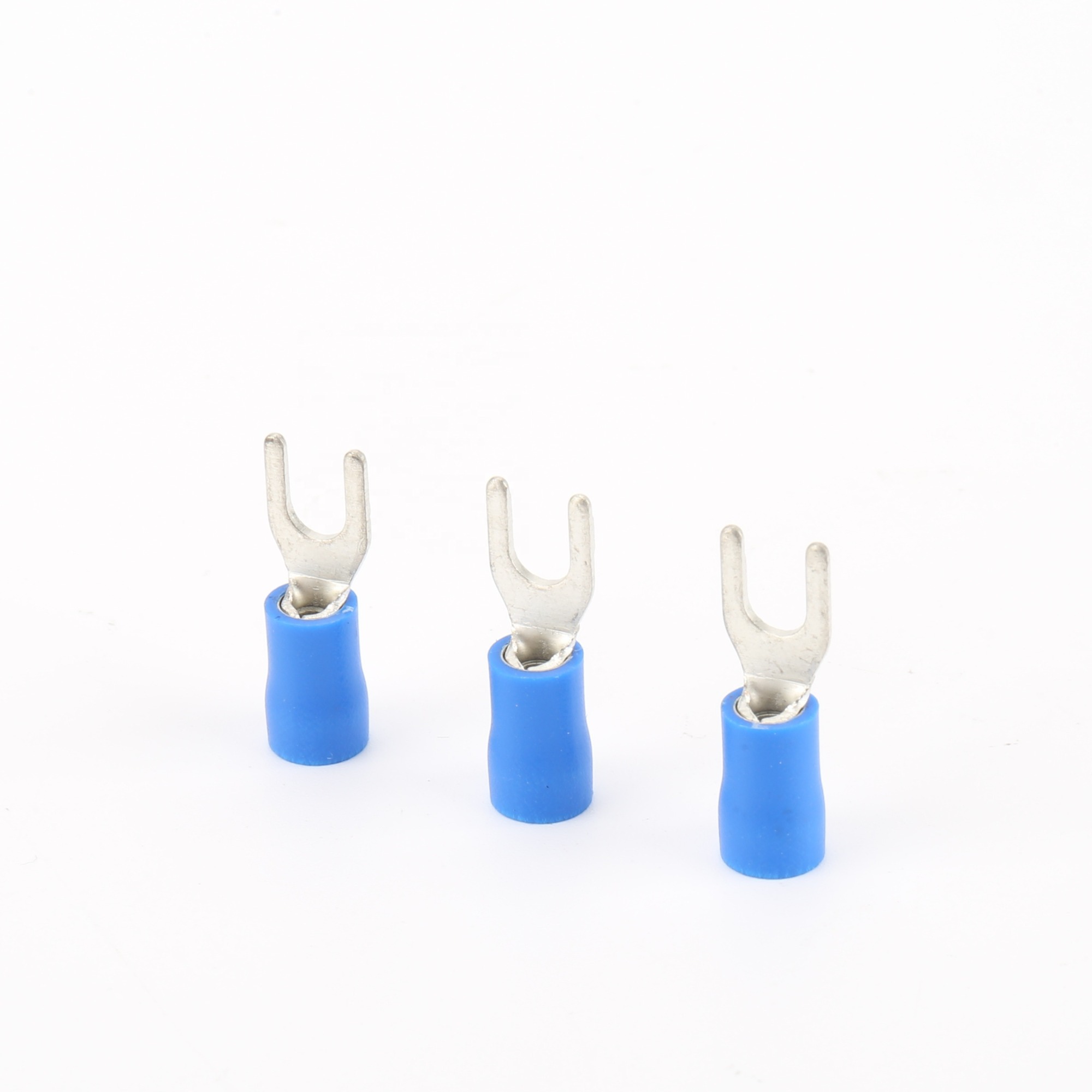

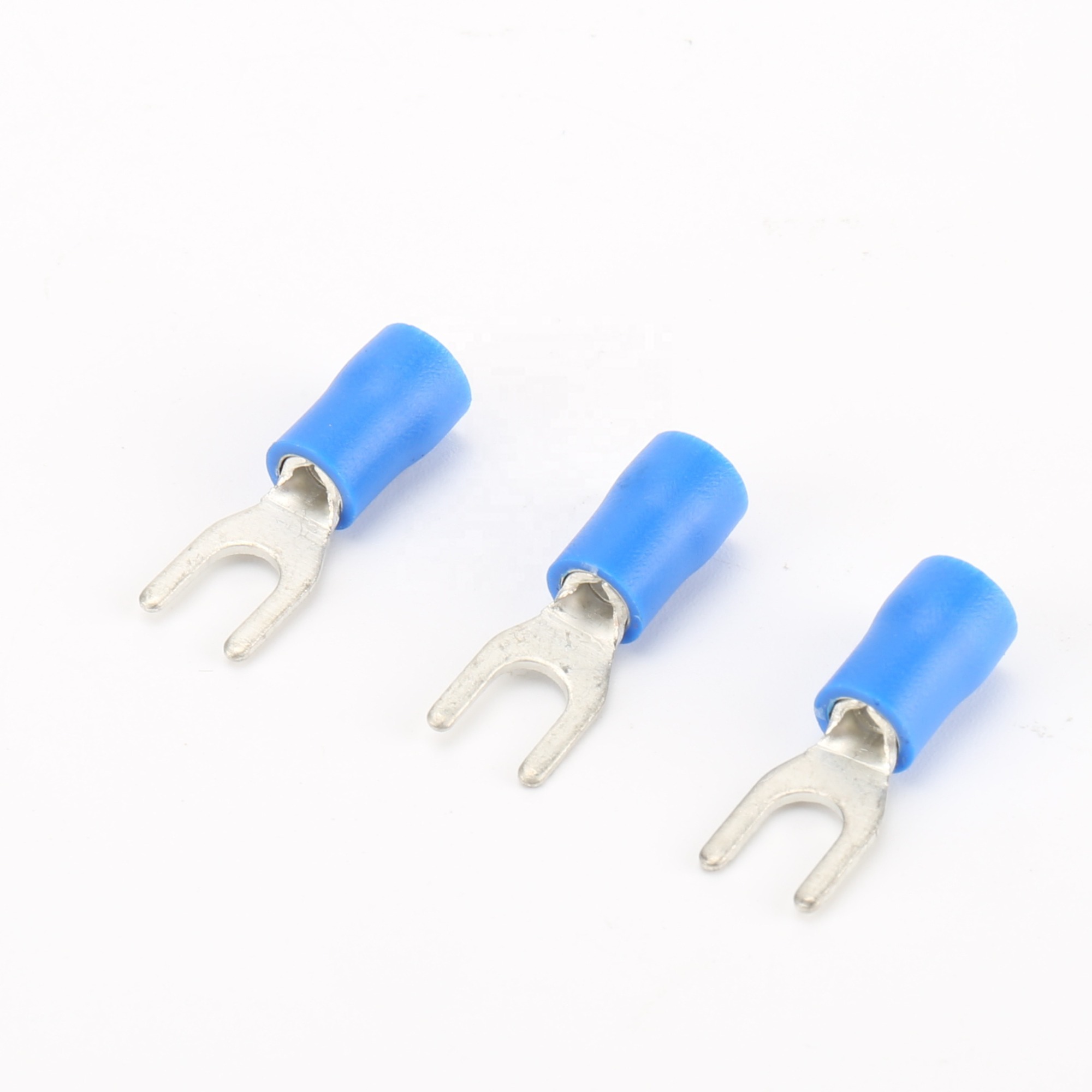

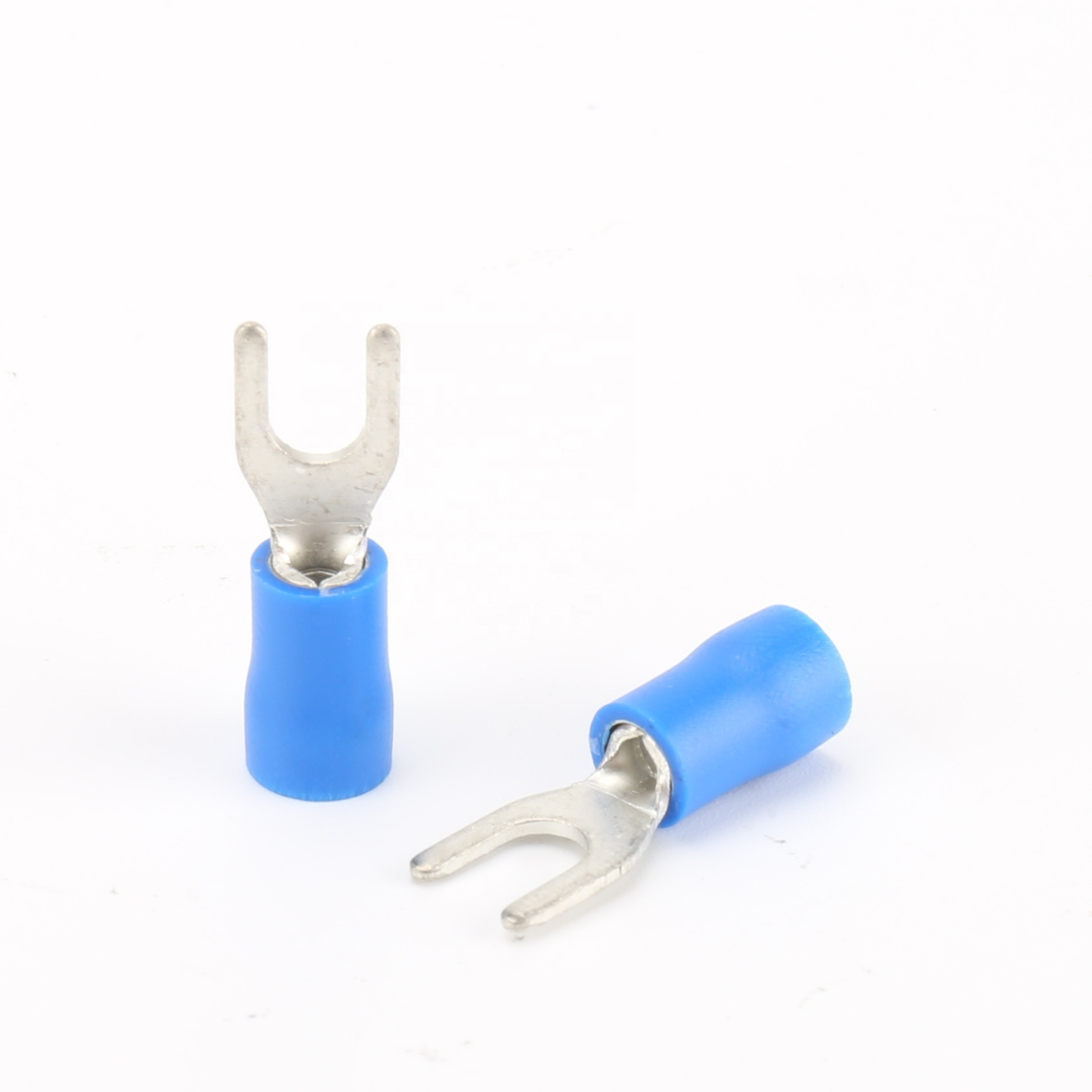

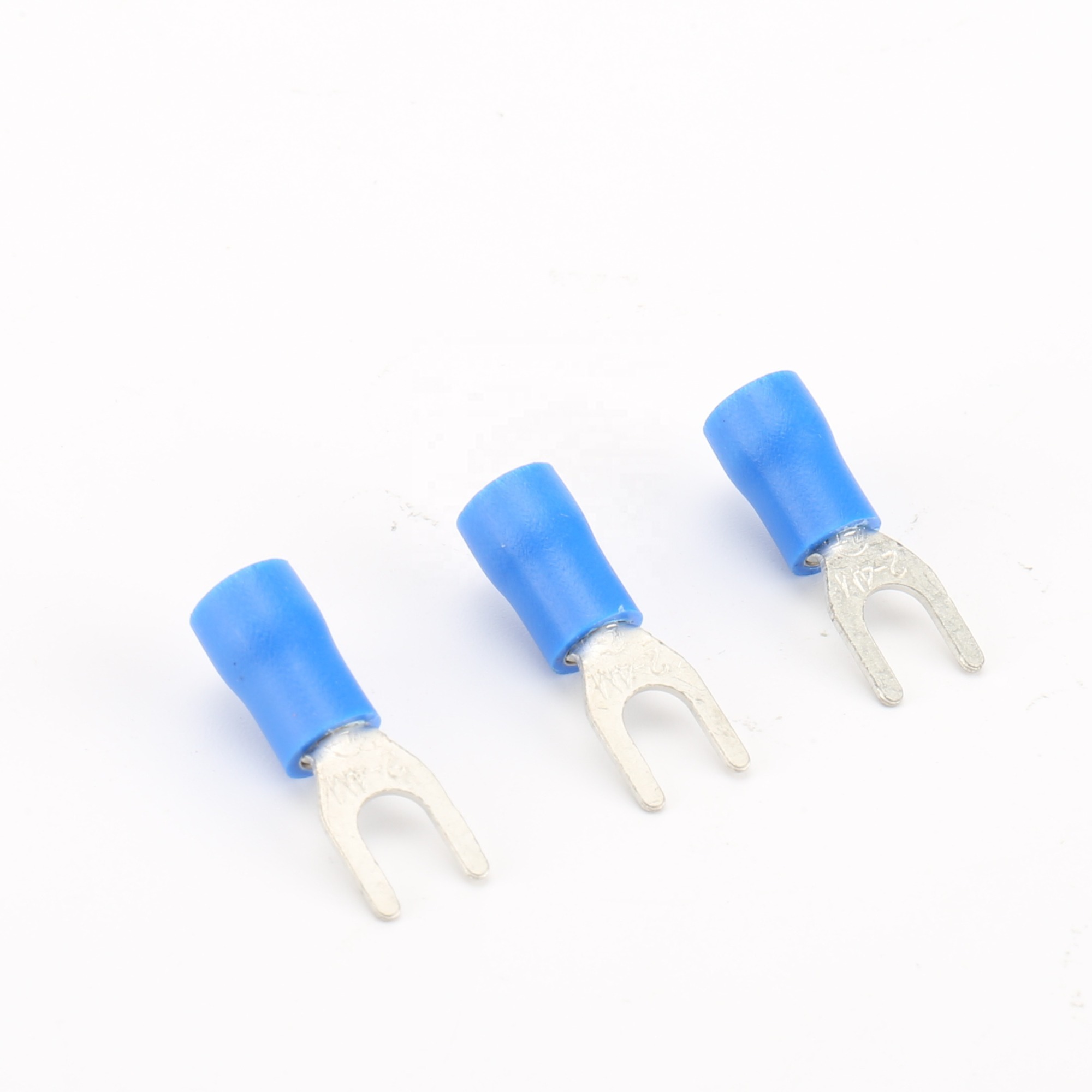

Products DescriptionFork lug, also known as double-plug terminals, use a fork-shaped structure design to achieve electrical connection through forks. It inserts the wire into the fork and forms a good electrical connection between the wire and the terminal through the action of screws or springs. Cable lug fork type are usually made of metal materials and have good electrical conductivity.
| Type |
Crimp Terminal |
| Color |
Blue/Yellow/Red |
| Lead Section |
0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current |
Imax=27A |
| Material |
Copper |
| Insulation |
PVC |
| Surface Treatment |
Matte tin plating |
| A.W.G |
22-16 AWG /16-14 AWG /12-10 AWG |
| Rated Voltage |
220V |
| Packaging Details |
100/500/1000pcs |
Product Advantages
Structural and System Integration Strengths
The design of this terminal block embraces modularity, enabling straightforward expansion and reconfiguration in large electrical systems. Its precision-engineered contact points along with the availability of a custom terminal block provide versatility in circuit design and installation. Our offering from leading terminal block manufacturers incorporates advanced insulation materials and mechanical locking systems that optimize safety and secure connections within high-density panel arrangements. These design elements collectively facilitate efficient spatial utilization and robust electrical continuity demanded by complex automation infrastructures.
Performance Reliability and User-Oriented Utility
From an operational perspective, this terminal block supplier ensures superior electrical contact stability and resistance to vibration and thermal stress. The product simplifies maintenance procedures through easily accessible terminal slots and clear labeling provisions, which reduce downtime and improve troubleshooting efficiency. Additionally, integration flexibility enables compatibility with various conductor types and sizes, accommodating the evolving needs of installation teams and engineers. This focus on usability and performance aligns with the expectations of technical procurement professionals aiming to maximize system uptime and lifecycle value.
Products Feature
Fork terminals are a commonly used electrical connection device. They are convenient, reliable and durable, and are widely used in the connection of electrical equipment and lines.
1. Structural features:
Fork terminals usually have a U-shaped or V-shaped plug with two curved arms, which enables them to easily clamp conductive parts such as wires or cables.
2. Installation convenience:
The fork terminal design enables them to quickly connect wires. When connecting or disconnecting, just loosen the screws and bolts without complete disassembly.
3. Wide application:
Fork terminals are widely used in household and industrial electrical equipment, such as sockets, switches, distribution boards and power tools.
4. Various models:
There are many models of fork terminals, including RV, SV, FDD, ST, UT and M, each of which is suitable for different current capacity and wire size.
Company Profile
FAQWhat wire sizes are compatible with the 16-14AWG Electrical Insulated Copper Fork Lugs?Our fork lugs support wire sizes from 22-16 AWG to 12-10 AWG, specifically tailored for 16-14AWG wires. This range accommodates cross-sections from 0.5 to 6 mm², ensuring compatibility with various electrical wiring applications requiring high reliability.
Can you customize terminal blocks or fork lugs for specific industrial needs?Yes, we offer custom production plans for terminal blocks and other connectors. Our R&D team works closely with you to meet your specifications, ensuring compatibility and performance according to your project requirements, including special insulation, plating, or dimensions.
How should I install these insulated copper fork lugs for optimal electrical contact?Our electrical insulated copper fork lugs are designed for quick and reliable installation with screws or spring mechanisms. Ensure the wire is properly stripped and inserted fully, then securely fasten the lug to the terminal block to maintain stable electrical contact and prevent loosening.
What logistics and packaging options do you provide for bulk orders of fork lugs?We supply fork lugs in packaging sizes of 100, 500, or 1000 pieces per order. This flexibility supports bulk purchases for manufacturing or maintenance projects. Our logistics capabilities ensure timely delivery of terminal block components worldwide, backed by quality assurance and order tracking.
