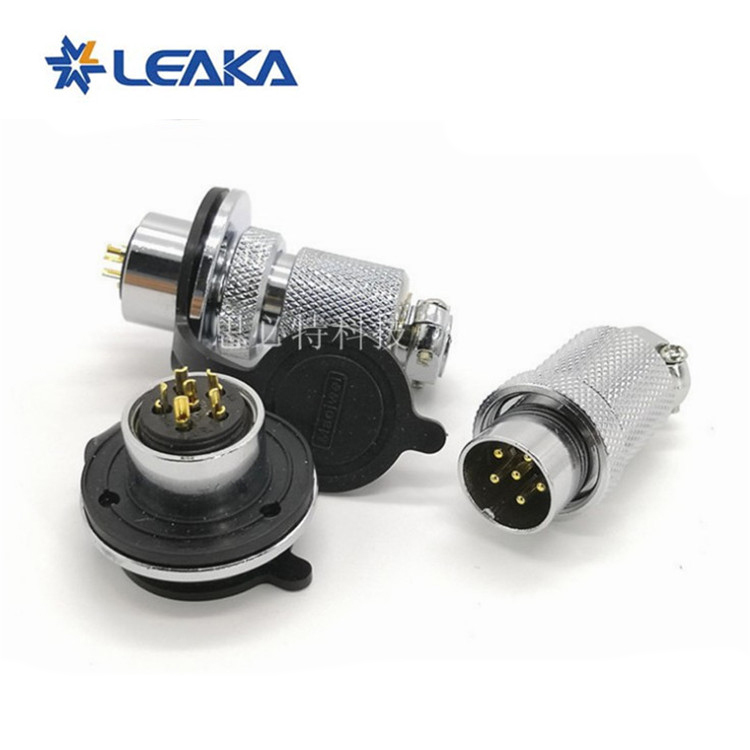

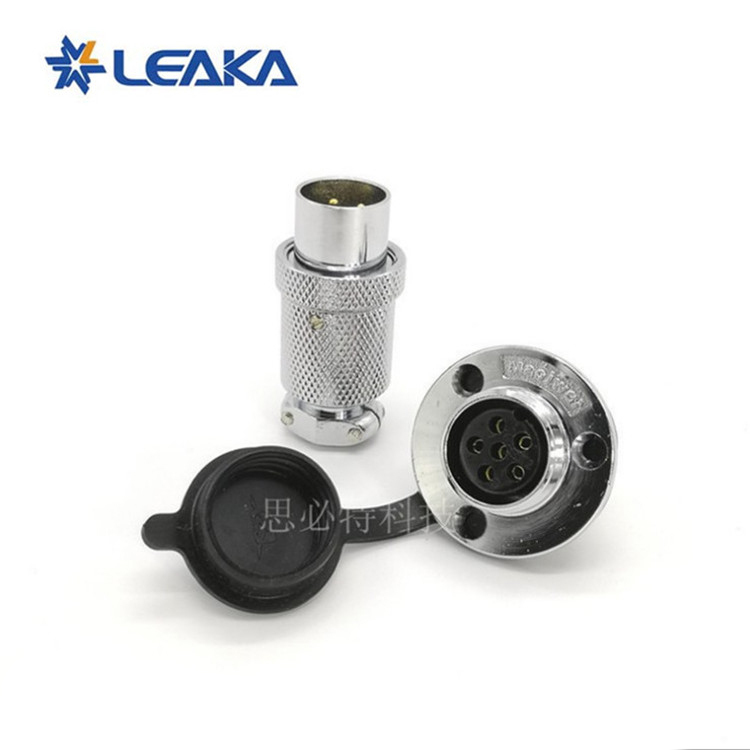

| Product name | 18MF GX18 circular male cable plug flange female socket cable install wall connector |
| Coupling | Threaded coupling |
| Shell material | Zinc alloy with nikelplate |
| Contact material | copper( silver/ gold plated) |
| Insert material | bakelite |
| Rated current/voltage | 30A-200V 16A-125V |
| Cable diameter | ≤ Ф 9.0mm |
| Assemble way | assemble board |
| Solder cup mouth aperture | 2mm, 1mm |
| Solder inter diameter | 2.5mm, 1.5mm |
| Operation limit voltage(AC.V.rms) | 200 |
| Mating cycle | 500 |
| Temperature | -20℃~+85℃ |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
