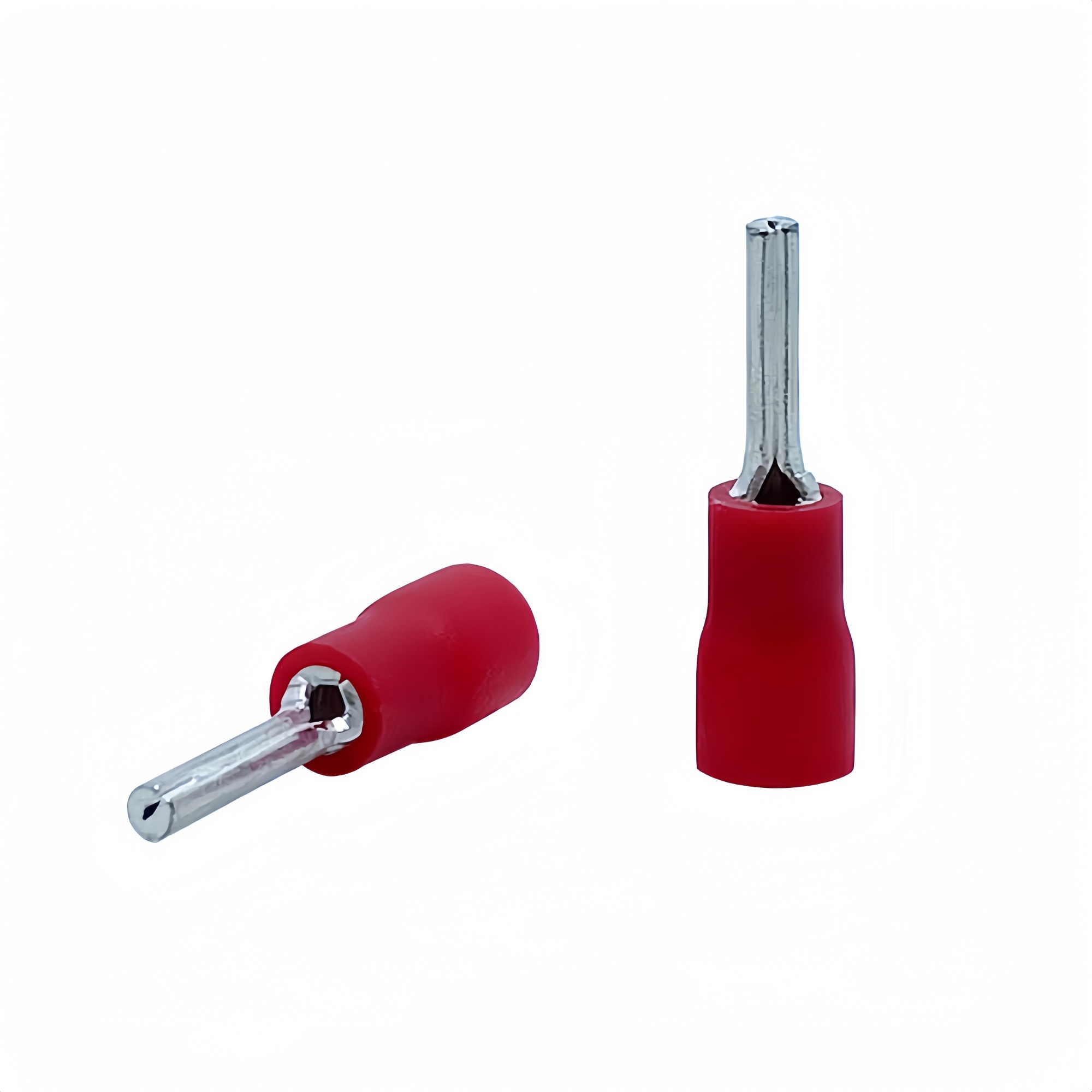

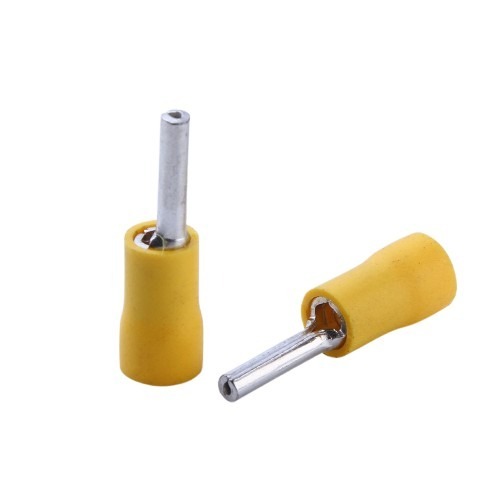

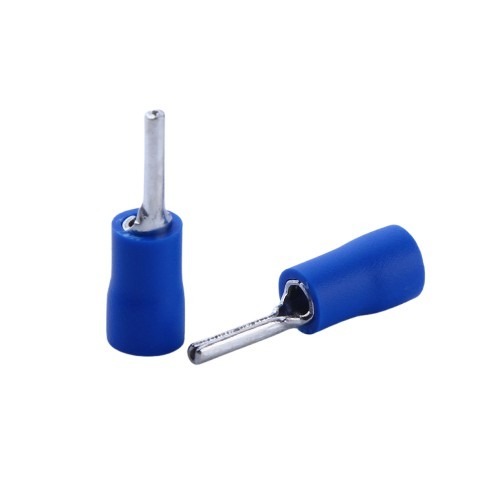

Products DescriptionThe pin-type cold-pressed terminal contains two keywords, "pin-type" and "cold-pressed".
"Pin-type" refers to the shape of the terminal, which is usually slender and sharp, similar to a needle. This shape helps to penetrate the insulation layer of the wire when connecting to ensure good electrical contact.
"Cold-pressed" means that when connecting the terminal and the wire, no heat source such as welding or heating is required, but the wire is fixed in the slot inside the terminal by applying pressure to establish a stable and reliable electrical connection. This cold-pressed connection technology is relatively simple and does not cause excessive thermal stress on the wire or terminal.
| Type |
Crimp Terminal |
| Color |

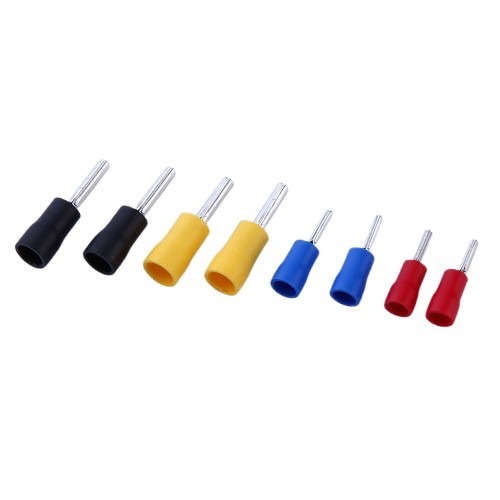

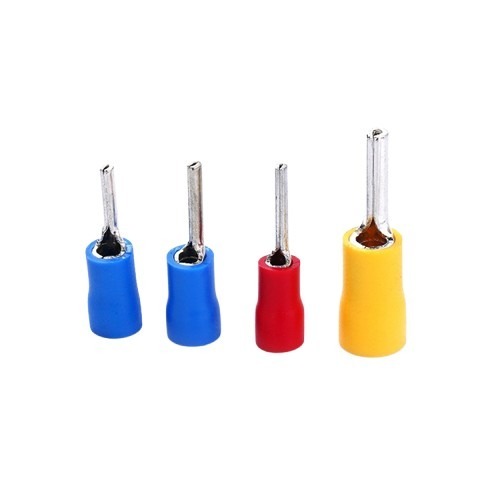

Blue/Yellow/Red |
| Lead Section |
0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current |
Imax=19A /Imax=27A /Imax=48A |
| Material |
Copper |
| Insulation |
PVC |
| Surface Treatment |
Matte tin plating |
| A.W.G |
22-16 AWG /16-14 AWG /12-10 AWG |
| Max. temperature resistance |
105℃ |
Products ApplicationWhen using pin-type cold-pressed terminals, it is usually necessary to use special tools (such as crimping pliers) to insert the wire into the slot of the terminal and apply sufficient pressure to ensure good electrical contact and mechanical strength between the terminal and the wire. This connection method is widely used in many industries and applications to provide reliable electrical connections and simplify the installation process.
1. Household appliances:
Play an important role in household appliances, such as refrigerators, washing machines, air conditioners, etc. They are used to connect power lines, sensor lines, etc. to ensure the normal operation and safe use of electrical appliances.
2. Automotive electronics:
In the automotive field, pin-type cold-pressed terminals are widely used in automotive electronic systems, including engine control units, dashboards, lighting systems, etc. They are used to connect wires, sensors, electronic modules, etc. to provide reliable electrical connections and signal transmission.
3. Industrial control:
They play an important role in industrial control systems and are used to connect various control devices, motors, sensors, etc. They can withstand vibration, temperature changes and other elements of the industrial environment to ensure stable electrical connections and control signals.
