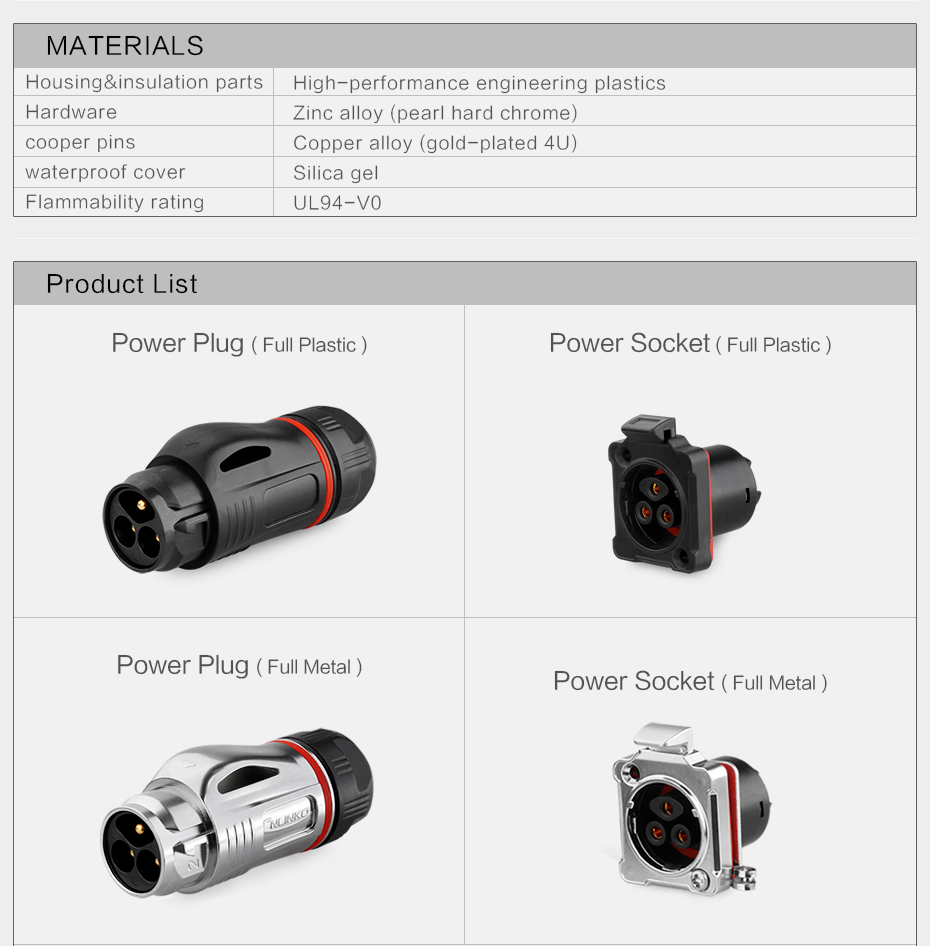

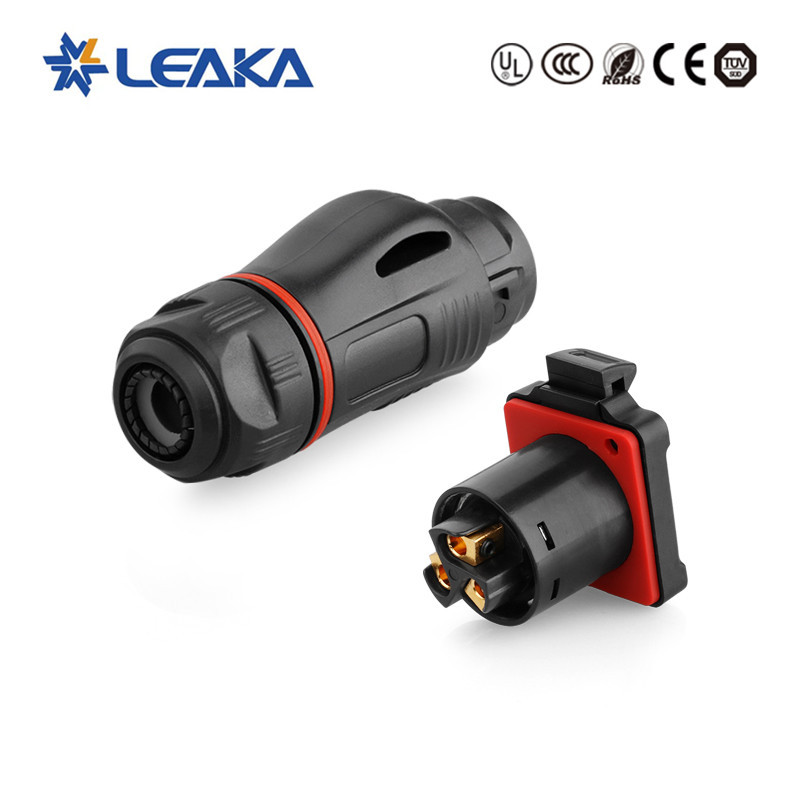

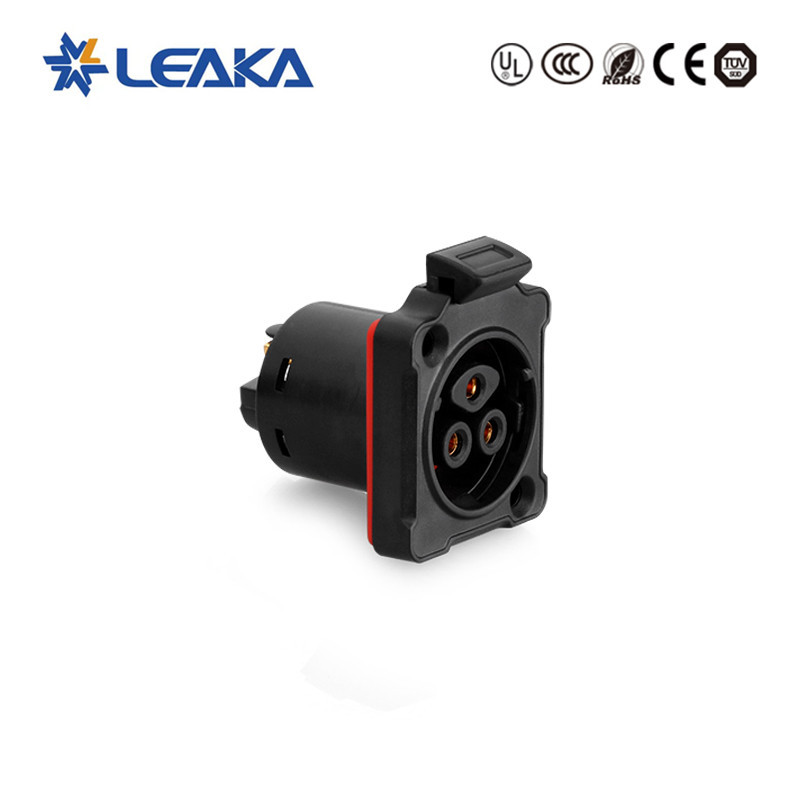

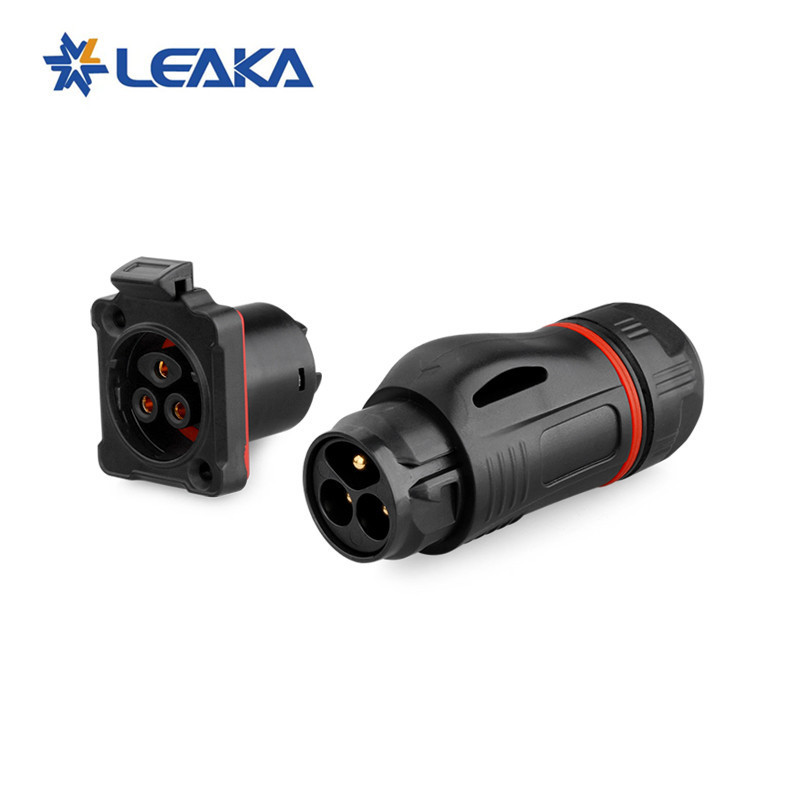

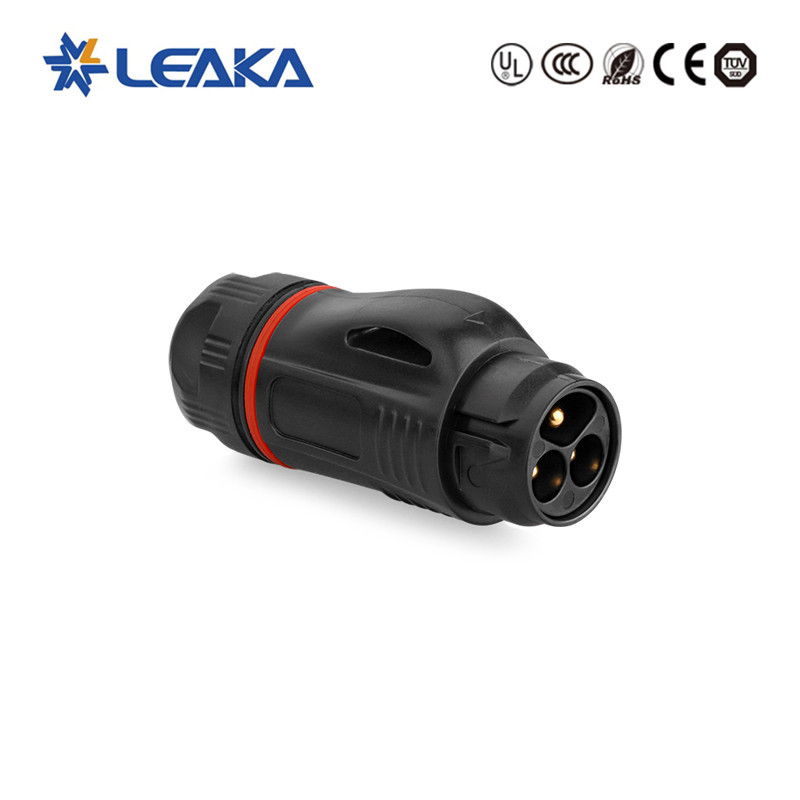

Waterproof outdoor electrical connections of BD series, including three pin power and RJ45 signal type, meet diversified application requirements.
All plastic and all metal structural design, strong applicability, complete electromagnetic and RF interference protection.
PBT material shell, stable electrical performance, high-strength compression resistance, high temperature resistance, explosion resistance and corrosion resistance.
Waterproof wire joiners are able to reach IP67 protection grade when connecting.
2. Product Specification
| Wire Specification | 2.5~4m㎡/14~12 AWG |
| Wire Diameter Range | 8~12mm |
| Rated Current | 25A |
| Working Voltage(AC) | 500V |
| Contact Resistance | ＜1mΩ |
| Protection Grade | IP67 |
| Temperature Range | -40℃~80℃ |

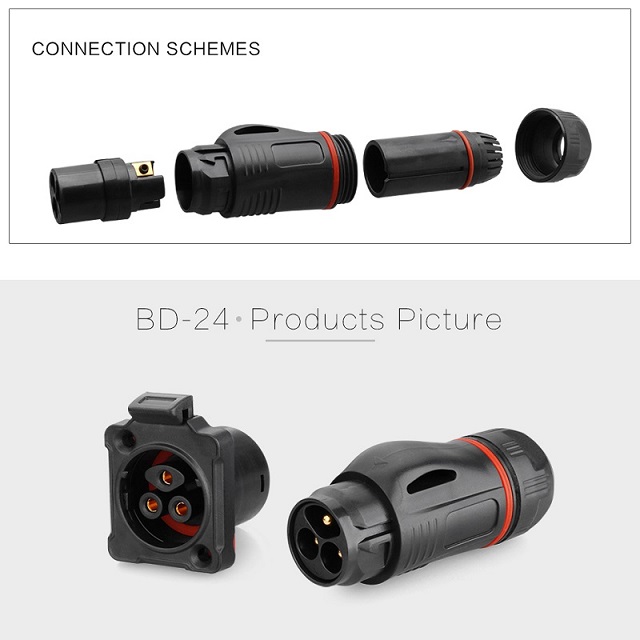

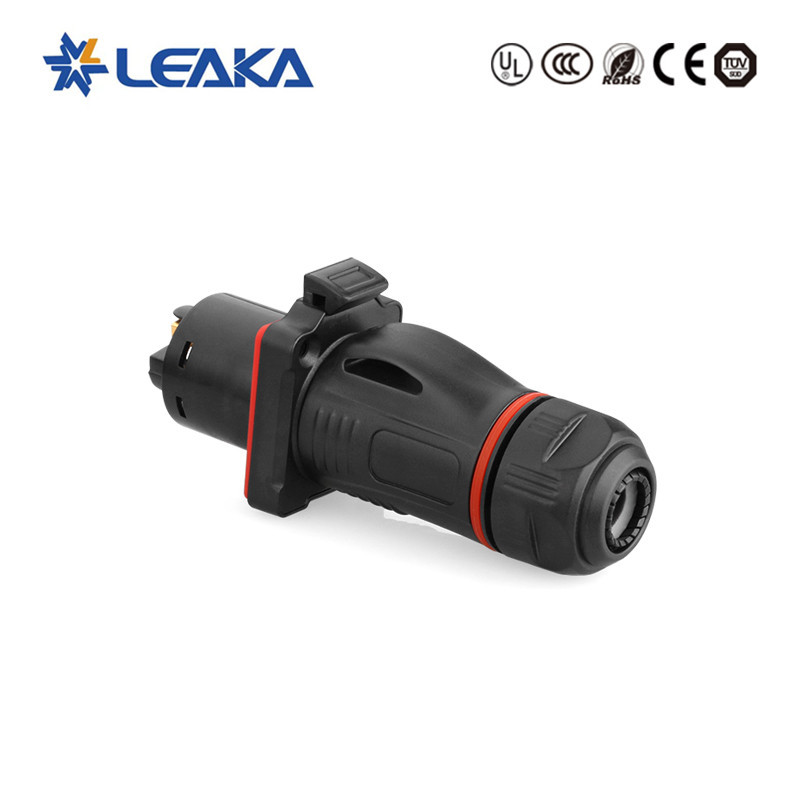

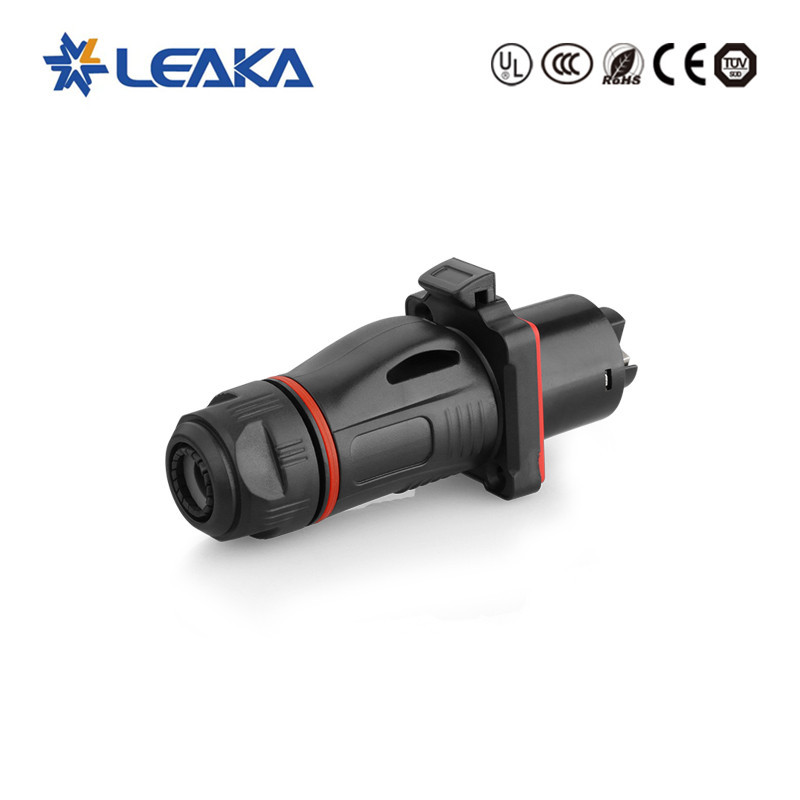

| Connection Mode | Quick Bayonet Connection |
| Termination | Soldering |
3. Company Profile
4. Express & Payment
5. Our Advantages
Connector products with high quality raw materials.
Years of experience in connector product customization can meet the specific needs of customers.
We provide free technical services on connector applications and problems.
Visit and introduce our factory free of charge.
We provide process design and verification free of charge.
We can guarantee delivery on time.
A specially assigned person shall closely follow up all orders and inform customers in time.
All after-sales service requests will be answered within 24 hours.
6. FAQ
