| Wire diameter range | Φ8mm~Φ12mm |
| Cable specification | 2.5m㎡ ~4m㎡ /14~12AWG |
| Current rating(A) | 25A |
| Voltage resistance | 500v |
| Contact resistance | <1.0mΩ |
| Insulation resistance | >500MΩ |

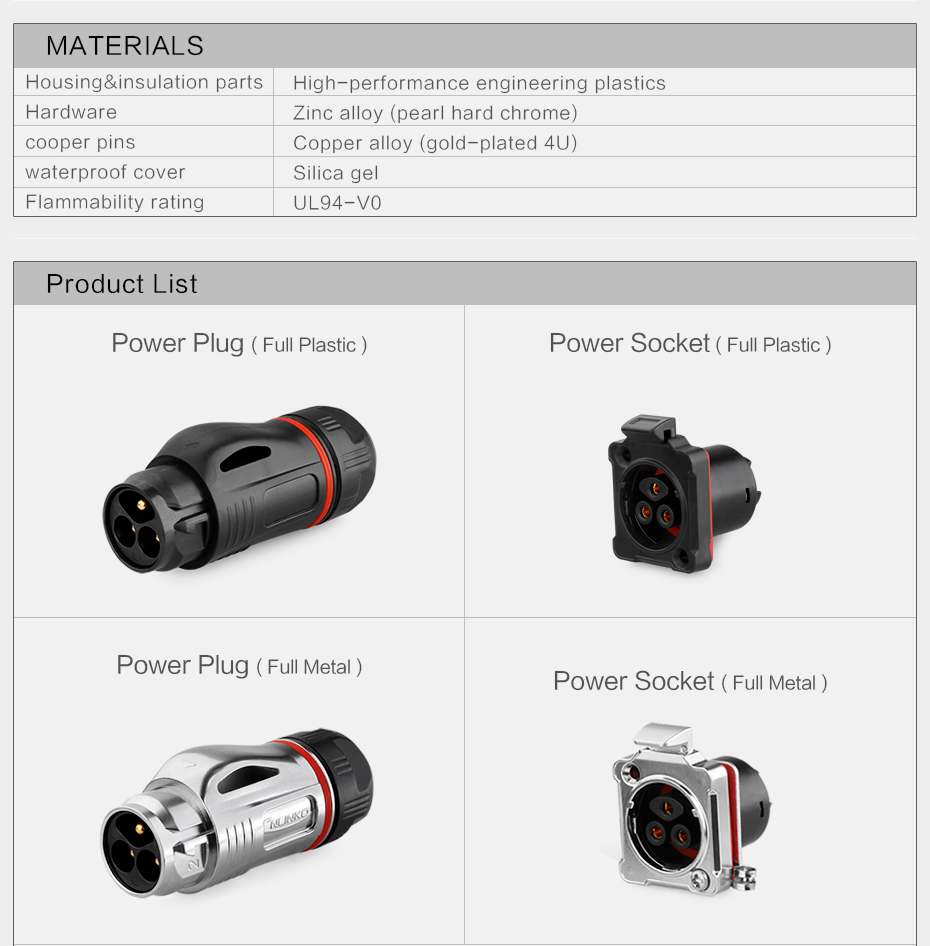

| Shell material | high performance engineering resins |
| Method of connecting cable | |
| Features | threaded locked system, high quality |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 50000 pcs per month |
| Mating cycle | >500 |
| Temperature | -40℃~+80℃ |
| IP rating | IP68 |
| Flame rating | UL94-V0 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
