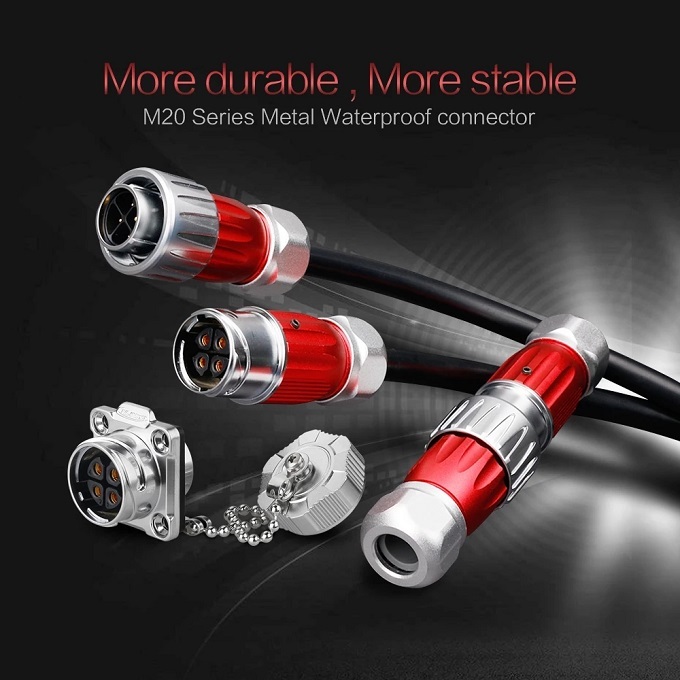

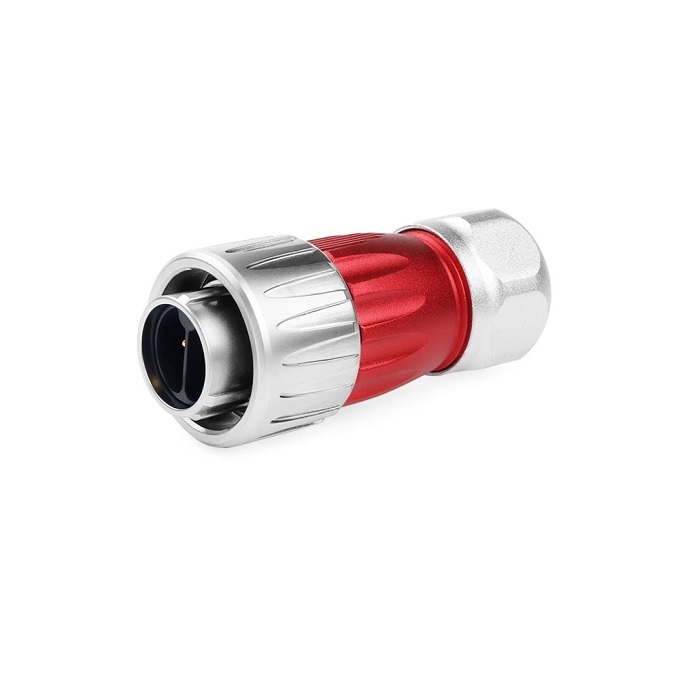

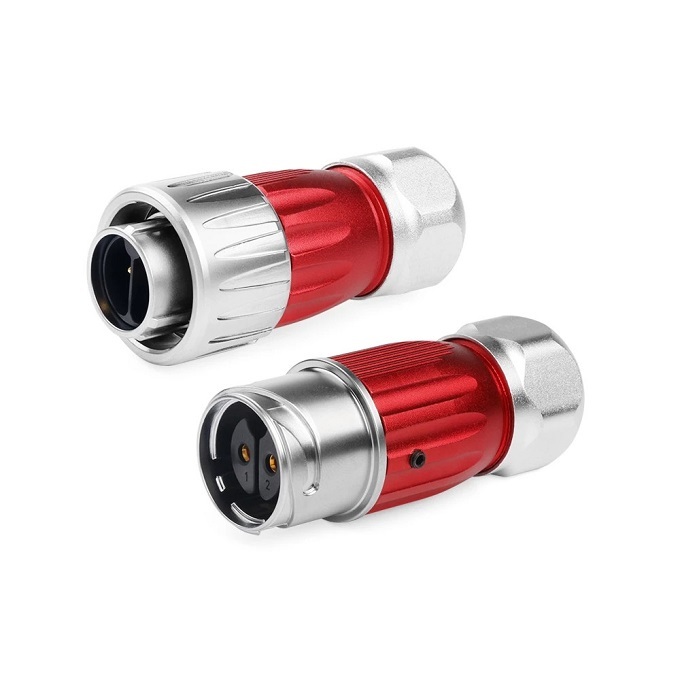

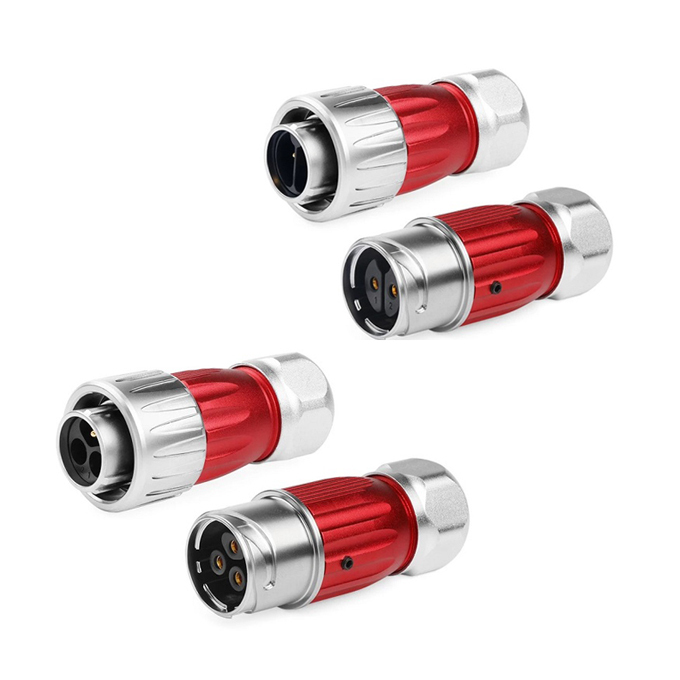

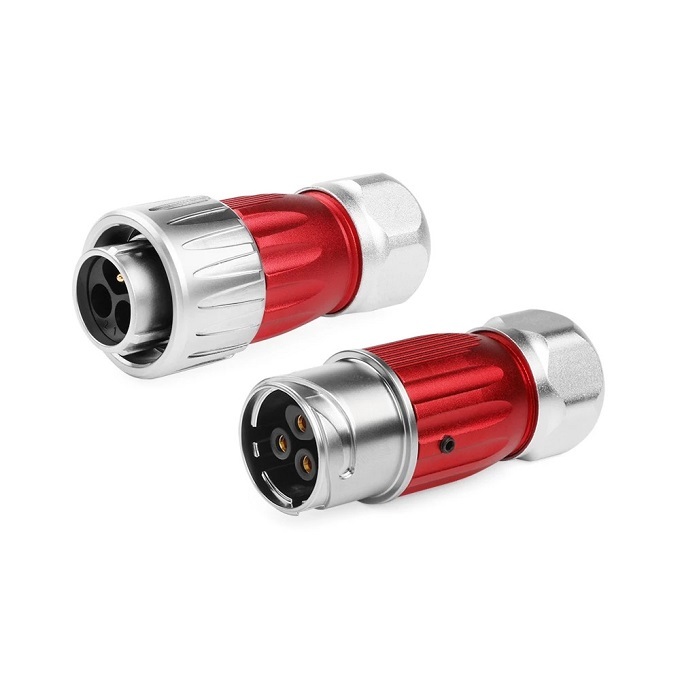

Wholesales Cnlinko DC Power Plug Socket Waterproof Metal Connector
1. Product Introduction Power connector
The connector uses military industry standard three-point screw locking;
Optional shell color to meet the needs of different environments;
Optional metal and silica gel dust cover to meet different use needs;
2-7PIN power supply, 9-12PIN signal is optional;
The product is in line with IP65/IP67 protection grade in connection state;
Waterproof quick connectors are widely used in LED displays, industrial equipment, lighting stage equipment and other different industry fields.
2. Product Specification Power waterproof connector
| Number of Contact | 2, 3, 4Pins | 5, 7Pins | 9, 12Pins |
| Wire Gauge | 14∽12AWG | 18∽16AWG | 26∽24AWG |
| Contact Diameter | Φ2.7 | Φ1.8 | Φ1 |
| Rated Current | 20A | 12A | 5A |
| Working Voltage | 500V | 500V | 400V |
| Contact Resistance | ＜1mΩ | ＜2mΩ | ＜5mΩ |
| Mating Cycle | ≥500 | ||
| Termination | Solder/Crimp | ||
| Coupling | Quick Bayonet Link | ||
| Shell, Insulating Parts | High Performance Engineering Plastics | ||
| Waterproof Circle | Silicone | ||
| Flame Resistant Grade | UL94-V0 | ||
3. Company Profile
4. Express & Payment
5. Our Advantages
We are an experienced factory;
We have a variety of connector products and industrial cables for you to choose from;
We can print your logo on the connector products;
We can customize colors and even styles according to your needs;
We can do OEM and ODM.
