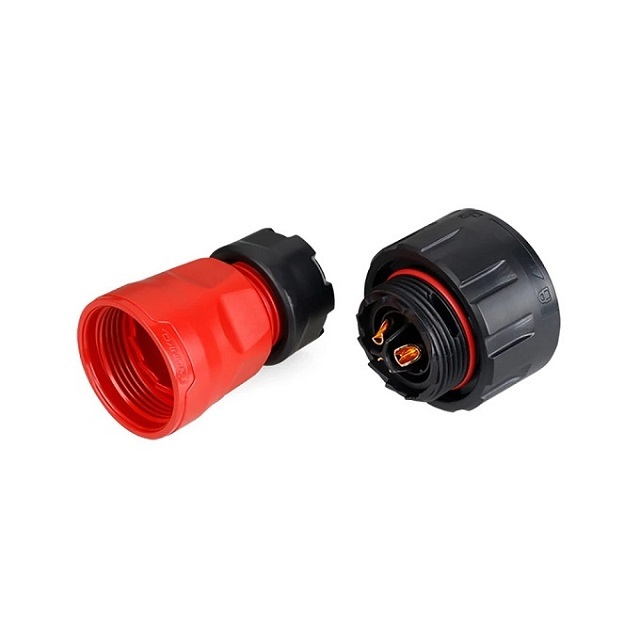

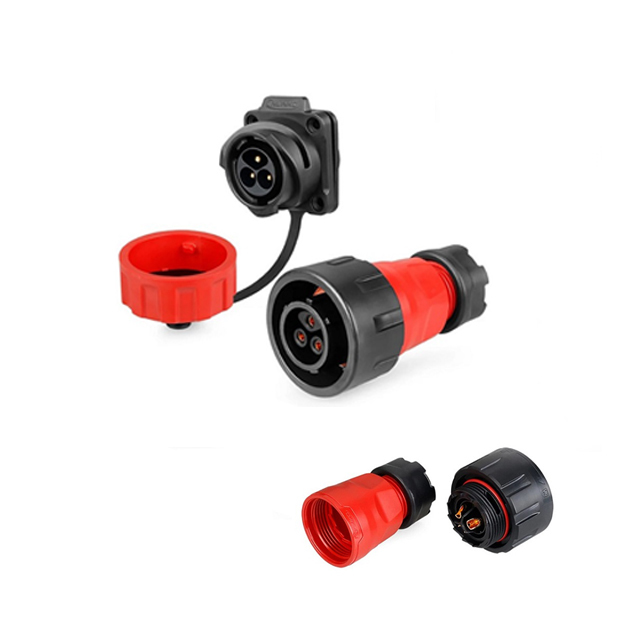

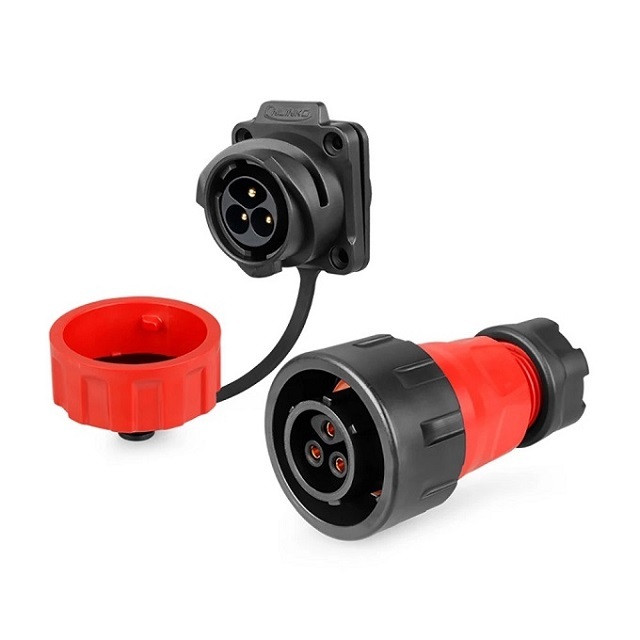

Cnlinko Explosion Resistance 500V Ym24 Power Waterproof Ip67 Connector
1. Product Introduction Power connector
The connectors' protective shell made of PBT has good fire resistance, compression resistance, explosion resistance and deformation resistance;
Gold plated contact, with high corrosion resistance and conductivity, can effectively deal with the temperature rise caused by current;
Fast snap connection, simple operation and convenient installation;
Dust cover design without working state;
The waterproof electrical fittings meets the protection grade of IP65 / IP67 when connected.
2. Product Specification waterproof cnlinko connector
| Number of Contact | 2, 3, 4Pins | 5, 7Pins | 9, 12Pins |
| Wire Gauge | 14~12AWG | 18~16AWG | 26~24AWG |
| Wire Diameter | Φ8~12mm | Φ8~12mm | Φ5.5~7mm |
| Rated Current | 20A | 12A | 5A |
| Working Voltage | 500V | 500V | 400V |
| Contact Resistance | <5mΩ | <2.5mΩ | <5mΩ |
| Shell, Insulation Material | High Performance Engineering Plastics | ||
| Flame Retardant Grade | UL94-V0 | ||
