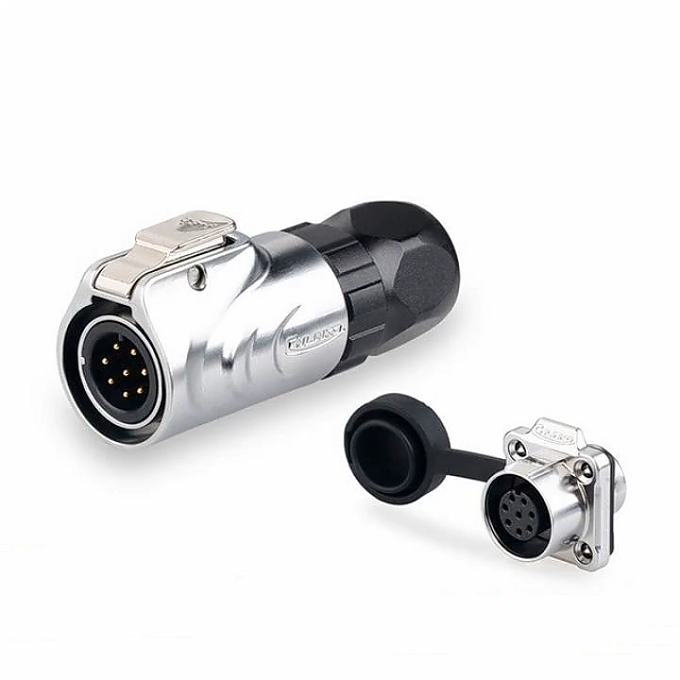

Custom Cnlinko LP-12 Plug Sockets Metal Power Bayonet Connector
1. Product Introduction
The design of multi-core power supply (2-8-core) is compatible with the requirements of industrial power supply at the same time;

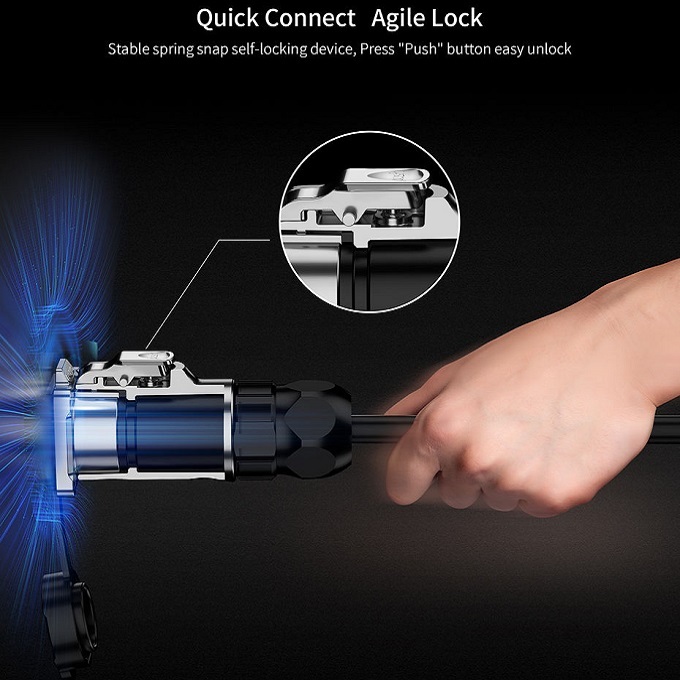

Spring snap design, locking and docking, safe and firm;Strong guidance, blind insertion can be realized, and humanized design in the real sense;
The optional connection mode of 3-core lock screw and welding fully meets the outdoor installation operation;
Gold plated contact, with high corrosion resistance and conductivity, can effectively deal with the temperature rise change of current;
Thermoplastic high temperature resistant plastic shell, stable electrical performance, high pressure and high temperature resistance;
Unique docking design, stable infinite line extension;

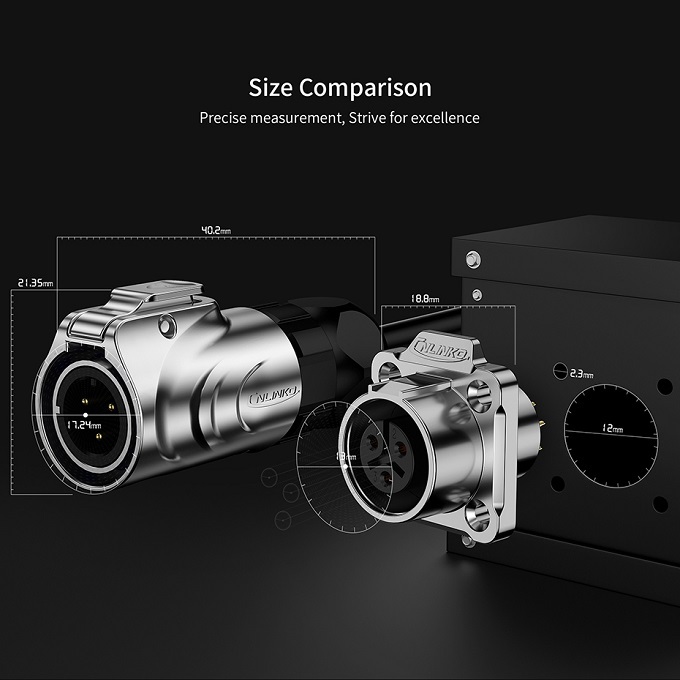

Flange four hole installation, stable and impeccable, threaded single hole seat installation, suitable for circular opening industrial installation;
2. Product Parameter

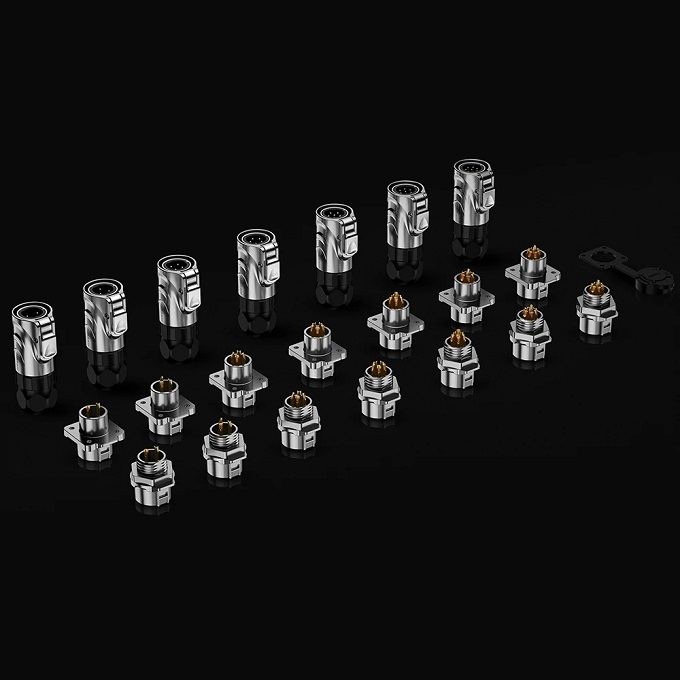

| Number of Contact | 2, 3, 4, 5Pins |
| Wire Gauge | ≤0.785m㎡ |
| Wire Diameter | Φ3-6mm |
| Rated Current | 5A |
| Working Volatge | 250V |
| Insulator Resistance | ＞500mΩ |
| Working Temperature | -40℃~80℃ |
| Coupling | Bayonet |
| Termination | Solder |
