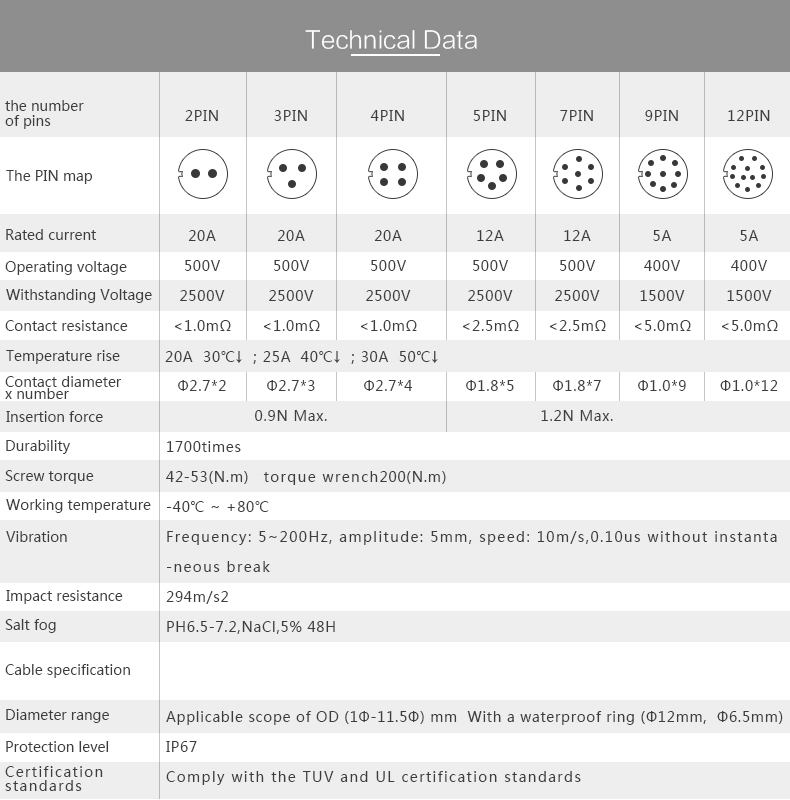

| Wire size | 2.5m㎡-4m㎡/ 14AWG-12AWG |
| Coupling |
Quick bayonet connection |
| Shell material | High performance engineering plastics, PBT material |
| Contact material | copper alloy(gold plating) |
| Rated current | 20A |
| Rated voltage | 500V |
| Insulation resistance | >500mΩ |
| Contact resistance | <1mΩ |
| Features |
safe and secure, easy operation, waterproof IP67 |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 50000 pcs per month |
| Mating cycle | >500 |
| Temperature | -40℃~+80℃ |
| IP rating | IP65/IP67 |
| Flame rating | UL94-V0 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
