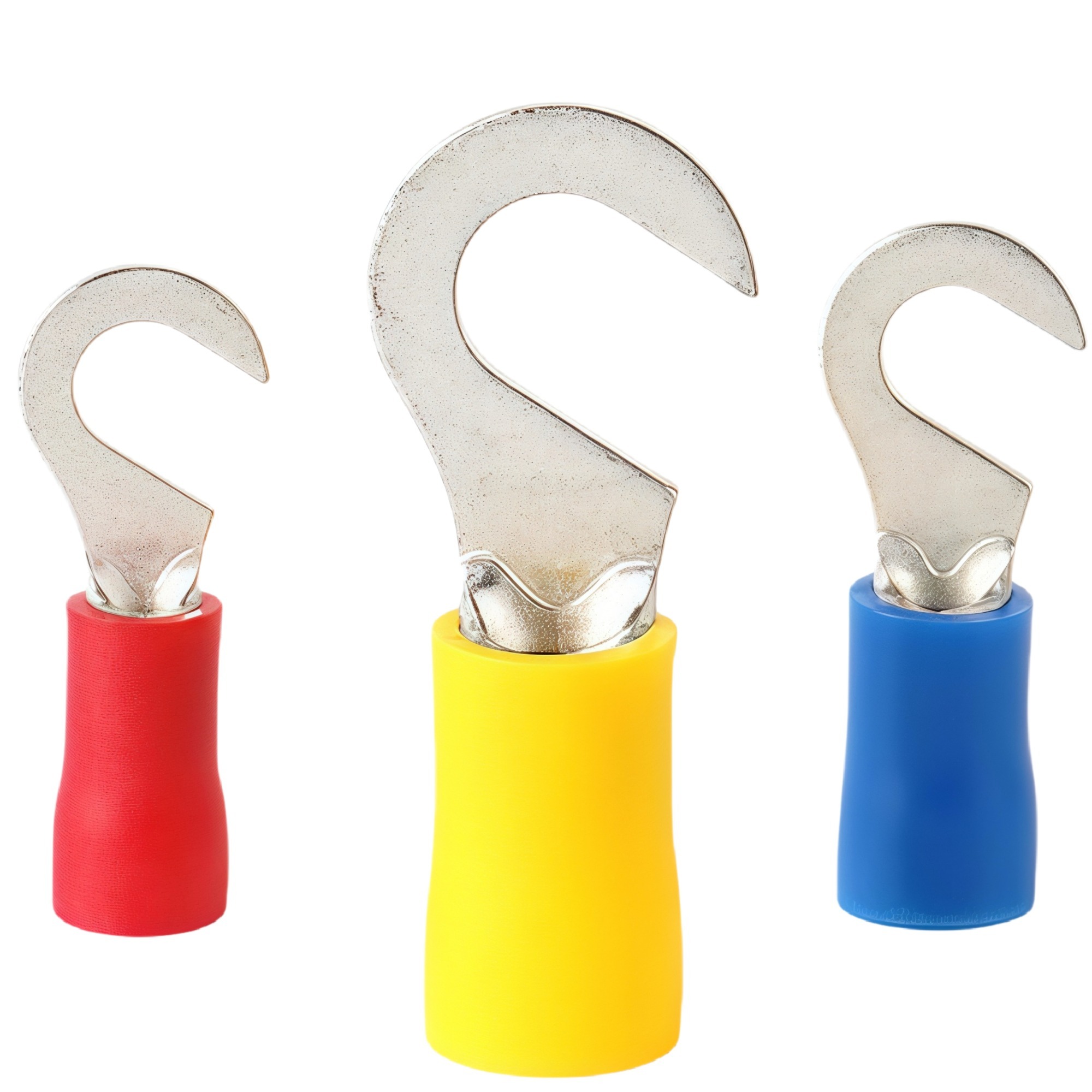

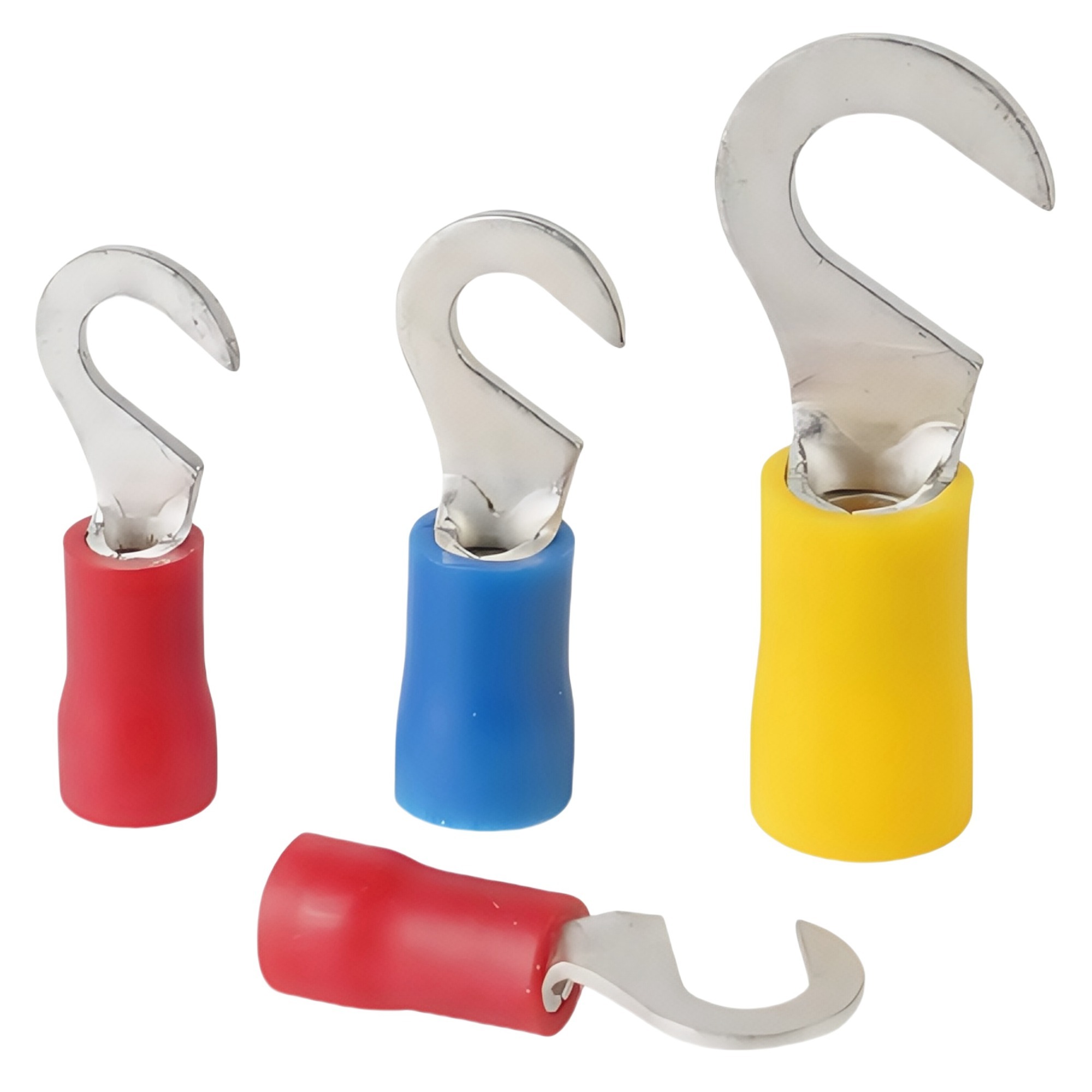

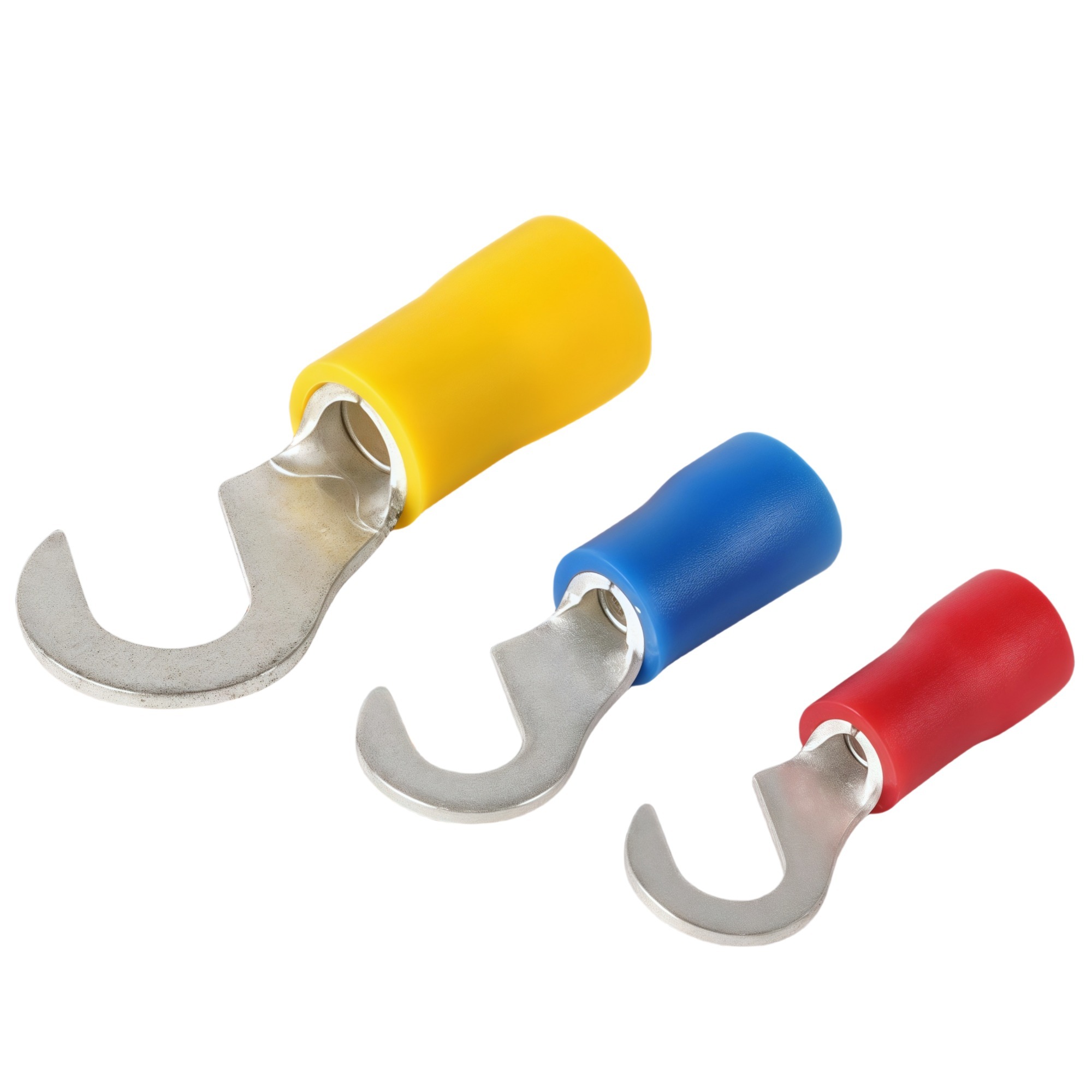

Products DescriptionInsulated terminals are used to facilitate the connection of wires. They are actually a piece of metal sealed in insulating plastic, with holes at both ends for inserting wires and screws for tightening or loosening. For example, two wires sometimes need to be connected and sometimes need to be disconnected. In this case, you can use terminals to connect them and disconnect them at any time without having to weld them or wrap them together. It is very convenient and quick.

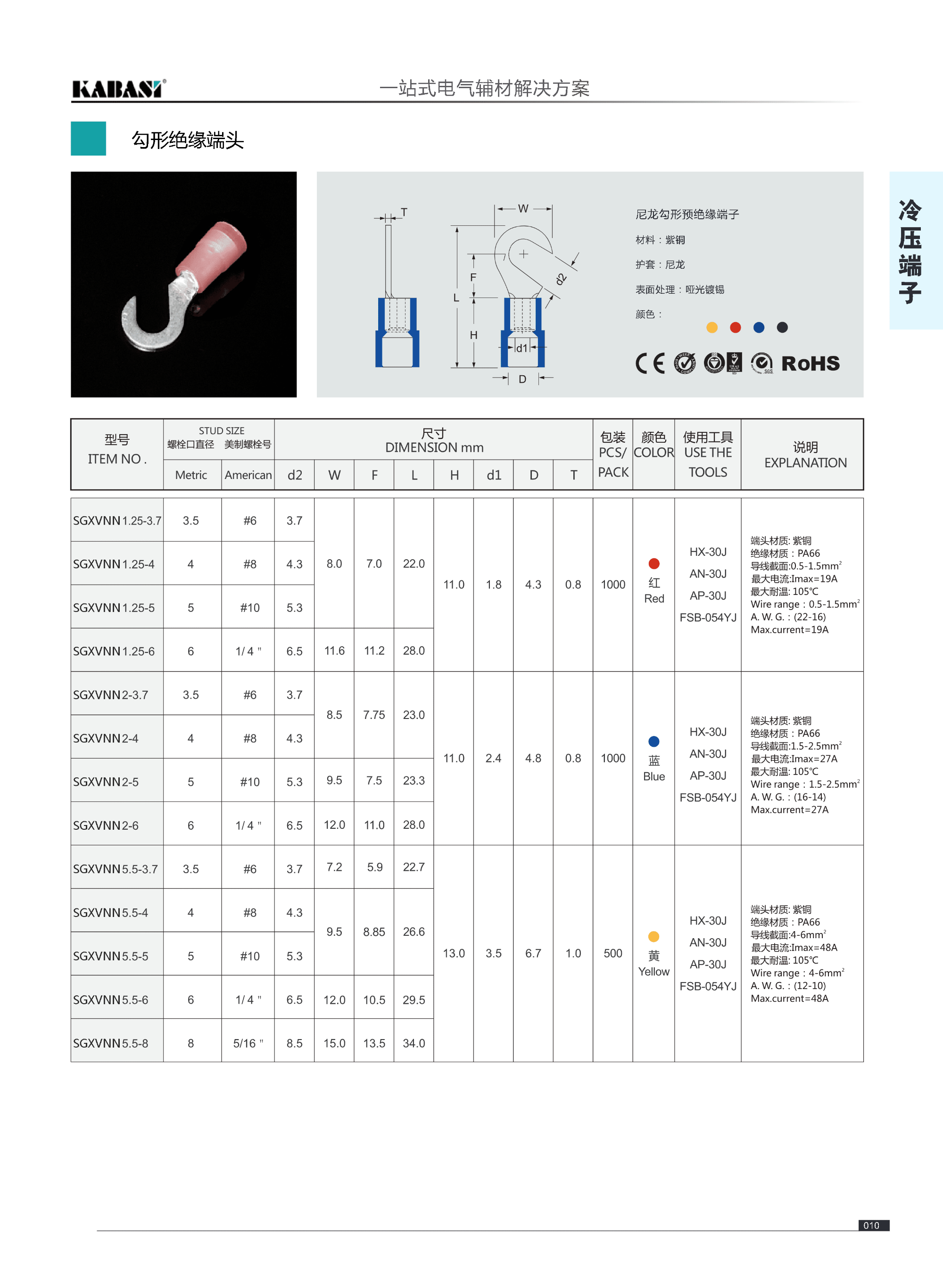

| Type |
Crimp Terminal |
| Color |
Blue/Yellow/Red |
| Lead Section |
0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current |
Imax=19A/Imax=27A/Imax=48A |
| Material |
Copper |
| Insulation |
PA66 |
| Surface Treatment |
Matte tin plating |
| A.W.G |
22-16 AWG /16-14 AWG /12-10 AWG |
| Rated Voltage |
220V |
| Max. temperature resistance |
105℃ |
Products Application
1. Building electrical:
In the electrical wiring of buildings, insulated terminals are used to connect various lighting, sockets and other electrical equipment to ensure the safety and stability of the electrical system.
2. Automotive industry:
In automotive electronic systems, insulated terminals are used to connect batteries, engines and other key components to ensure the normal operation of the car.
