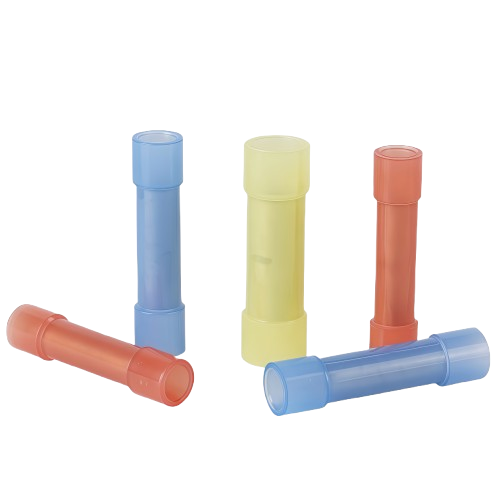

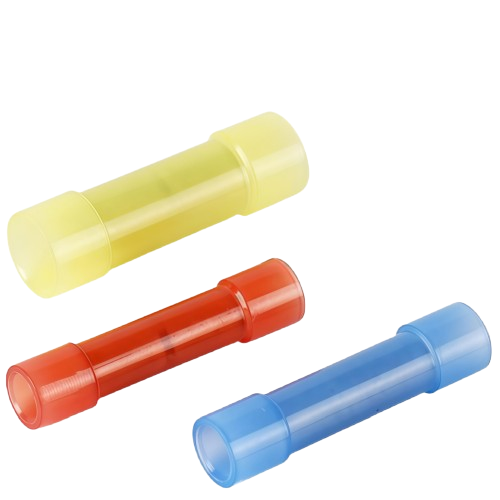

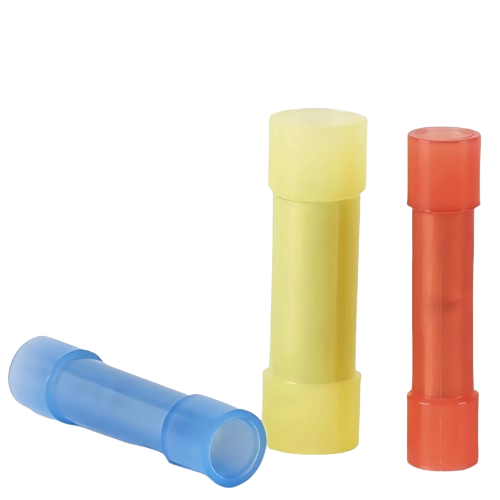

Products Description
1. Butt Splice Connector enhances conductivity and reliability
Custom-sized copper tubes are crimped with cold-press technology to ensure permanent fixation of wires, eliminating harness displacement while maintaining optimal electrical continuity. Multi-stage crimp profiles produce 360° uniform compression force, achieving <1mΩ contact resistance in high-current applications.
2. Butt Splice Connector has advanced insulation security
Injection molded nylon 6/6 composite sleeve (UL94 V-0 rated) provides:
- 5kV dielectric strength protection
- IP67-rated environmental sealing
- Abrasion-resistant mechanical shielding
This eliminates the fragility of traditional electrical tapes, reducing installation time by 60%, while preventing insulation degradation in wet/vibration conditions.

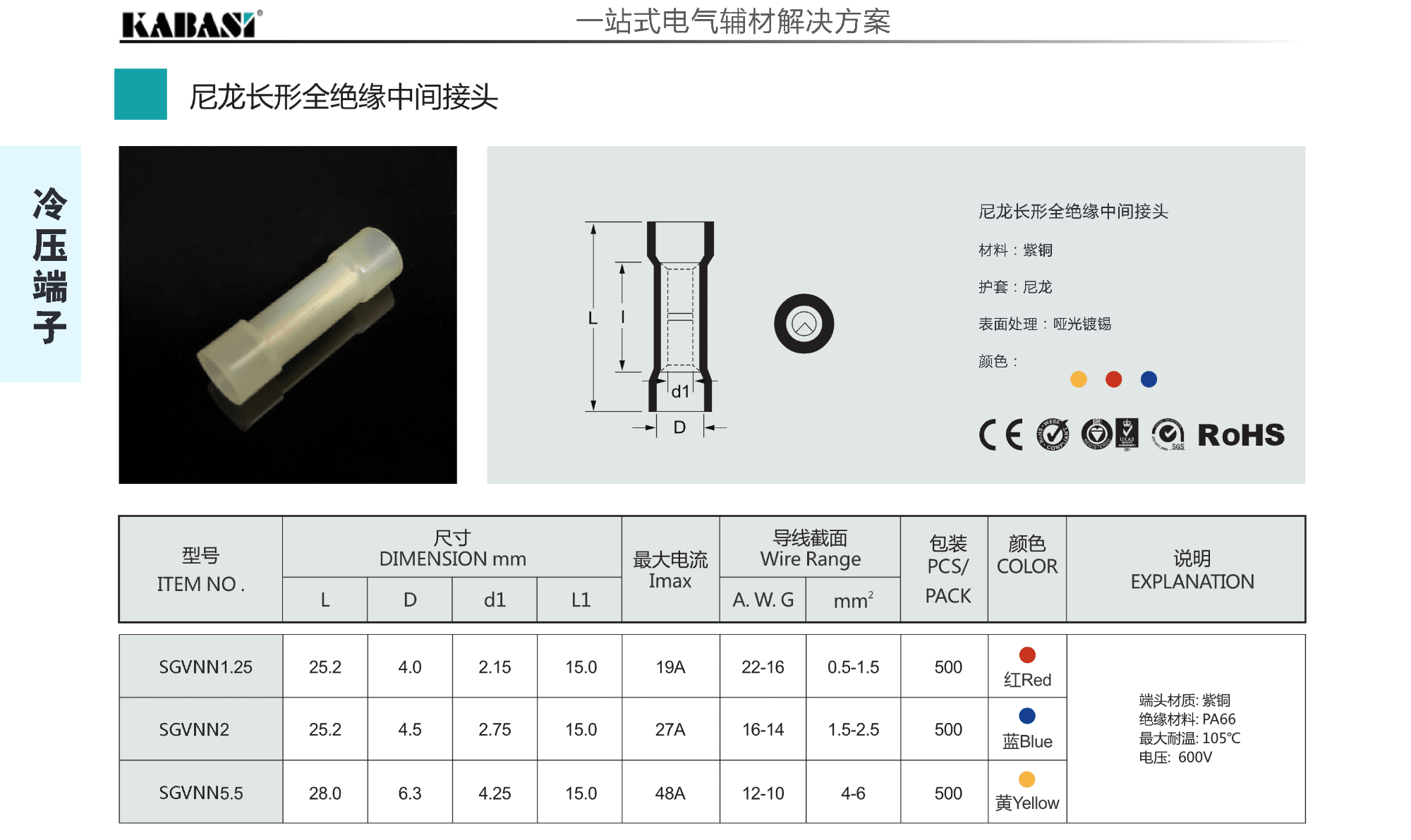

| Type |
Crimp Terminal |
| Color |
Blue/Yellow/Red |
| Lead Section |
0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current |
Imax=19A/Imax=27A/Imax=48A |
| Material |
Copper |
| Insulation |
PA66 |
| Surface Treatment |
Matte tin plating |
| A.W.G |
22-16 AWG /16-14 AWG /12-10 AWG |
| Rated Voltage |
600V |
| Max. temperature resistance |
105℃ |
1. Telecommunications
- In telephone and data communication lines, butt splice connectors are used to join wires to extend or repair the lines. They help maintain the integrity of the signal transmission and ensure clear communication.
- For network cabling in offices or buildings, these connectors can be used to connect Ethernet cables or other communication cables. They provide a quick and reliable way to establish connections between different sections of the cable network.
2. Marine Applications
- On boats and ships, butt splice connectors are used in the electrical systems for connecting wires in navigation lights, radio equipment and other marine electronics. They are designed to withstand the harsh marine environment, including moisture and vibration, to ensure the reliable operation of these devices.
- They are also used in the power distribution system of the ship to connect the wires from the generator to various electrical equipment and ensure the normal supply of electricity on the ship.
Company Profile

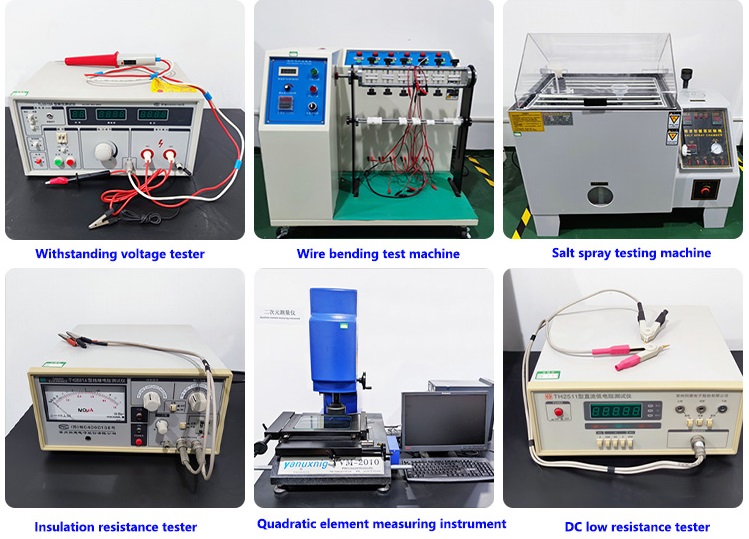

Testing Equipment
