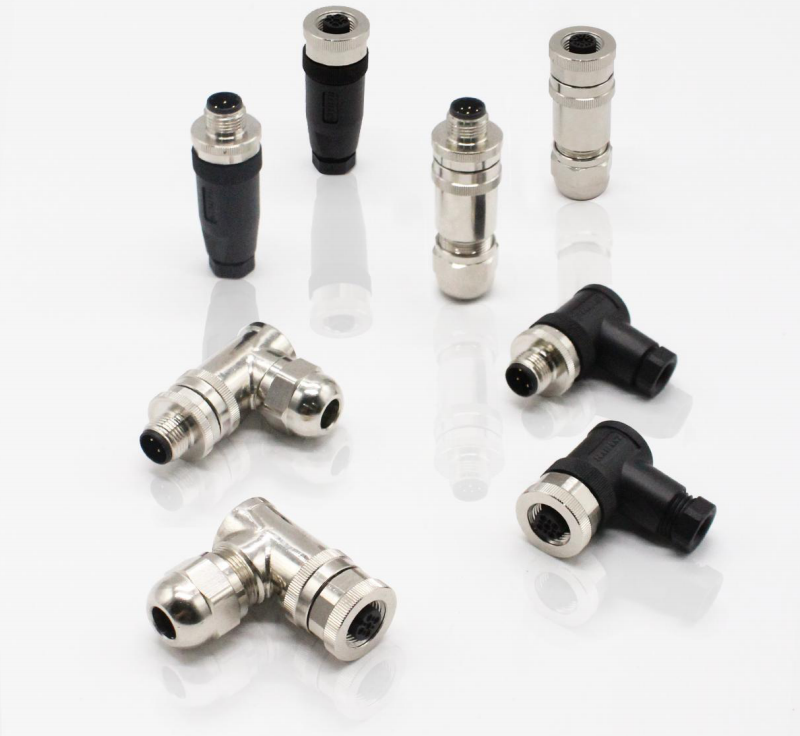

The Custom M12 Electrical Cable Wire Connector by leading circular connector manufacturers offers secure 12mm threaded coupling, multiple pin options, and customizable cable lengths, ideal for precise M12 connector manufacturers integration.
M12 connector is a type of circular connector that has found widespread use in various industries, including automation, transportation, and industrial machinery. The connector features a 12mm diameter threaded coupling designed to provide robust mechanical and electrical connections.
Types of M12 Connector
M12 connectors come in different types, depending on their intended application. Common types include power connectors, signal connectors, and hybrid connectors. Power connectors, as the name suggests, are designed primarily for transmitting electrical power while signal connectors are used to transmit low-voltage signals. Hybrid connectors combine both power and signal transmission capabilities, making them ideal for applications requiring both power and signal transmission.
Xiamen Leaka electrical equipment Co., Ltd. is a factory specialising in designing, manufacturing and producing kinds of connectors with complete production lines of M5/M8/M12/M16/M23/M7/8 and other kinds of connectors, and now the main M12 series has the following classifications:
M12 screw crimp series plastic shell, non-shielded get, with A,B,D Code type, Inset type straight elbow male and female, with 3 4 5 8 12pin options.
M12 screw crimp series metal shell, shielded type, with A,B,D Code type, Inset type straight elbow male and female, with 3 4 5 8pin options.
M12 Prefabricated Cable Harness Series
M12 Prefabricated Cable Harness Series, shielded and unshielded type, A,B,D,T,S,K,L Code type, Inset type straight elbow male and female, 3 4 5 8pin, Cable length default 1M, can be customised, cable type PUR, PVC, XO anti-soldering slag and so on.
M8/M12 dual ends/splitter series, there are A,B,D,X Code type, 3 4 5 8pin, Cable length default 1M, can be customised, cable type PUR, PVC, XO anti-solder slag.
M12 ethernet cable
M12 to RJ45T series, there are A,B,D,X Code type, 3 4 5 8pin, Cable length default 1M, can be customised, cable type PUR, PVC, Network cable Network cable type cat5e,cat6a.
M12 connector with LED serie
M12 connector with LED serie, A,B,D Code type, Insert type Straight bend male and female, LED lights have 2/3 beads, 3 4 5pin, Cable length default 1M, can accept custom, cable type PUR, PVC, XO anti-soldering slag.
M12 bulkhead connector
M12 Flange socket series, M12 panel mount connector A,B,D,X,T,S,K,L Code type, Insert type Board before and after the installation of straight bend male and female, board before and after the installation of PCB curved foot male and female, 3 4 5 8 12 17pin, wiring type LAU/PCB, with 0.2M wire length, mounting thread type M16/PG9.
Advantages of M12 Connector
M12 connectors offer several advantages over other types of connector systems. For one, the connectors are waterproof and dustproof, making them suitable for use in harsh environmental conditions. Their circular design also provides a secure mechanical and electrical connection, reducing the chances of accidental disconnection. In addition, the connectors are compact and lightweight, making them ideal for use in spaces with limited space.
Applications of M12 Connector
Thanks to their robustness, waterproofing, and dustproofing, M12 connectors are widely used in heavy industries such as automotive, transportation, and construction, where harsh environmental conditions are prevalent. They are also used in medical equipment, food processing, and other industries where hygiene and cleanliness are essential. In addition, M12 connectors are suitable for use in sensors, actuators, and other parts of automation systems, where secure electrical and mechanical connections are paramount.
In summary, M12 connectors are a type of circular connector that offers robust mechanical and electrical connections, waterproofing, dustproofing, and compactness. They come in different types and are widely used in various industries, including automotive, transportation, and industrial machinery. The connectors have proven to be reliable, safe, and efficient, making them an essential component in many industrial and automation systems.
Product Description
Functional Role and Intended Users of the Custom M12 Connector
Designed for engineers and procurement specialists seeking robust connectivity, the Custom M12 Electrical Cable Wire Connector provides a compact circular connector solution from established circular connector manufacturers. Its application scope covers industrial automation, machinery control, and sensor interfacing where reliable electrical contact is critical. This product supports system integrators requiring precise pin configurations and cable harness customization, ensuring compatibility with diverse equipment. The availability of both non-shielded plastic and shielded metal housings addresses electromagnetic compatibility requirements in various environments, thus meeting the operational demands faced by M12 connector manufacturers’ clientele.
Technical Specifications and Configurations of the M12 Connector
This M12 connector features a standard 12 mm diameter threaded coupling designed for secure, vibration-resistant mating. It supports versatile pin counts of 3, 4, 5, 8, and 12, with coding options A, B, and D, allowing fine-tuned signal and power arrangements. The product is offered in both straight and elbow male/female insertion types, facilitating flexible cable routing possibilities. Shielded metal shells provide enhanced EMI protection, while non-shielded plastic cases allow lightweight assembly. The cable length defaults to 1 meter but can be customized for tailored installations. Quality assurance follows ISO 9001:2015 standards, yielding high reliability for integration by system designers in coordination with circular connector manufacturers and M12 connector manufacturers.
Industry Applications and Integration Benefits
The Custom M12 Electrical Cable Wire Connector is widely employed in industrial automation, transportation systems, and process control for establishing durable wiring harnesses. Its waterproof and dustproof design ensures steadfast operation under harsh conditions, making it suitable for instrumentation panels, machine interfaces, and robotics. OEMs rely on this connector from trusted circular connector manufacturers for seamless panel mounting and cable connections, ensuring system robustness. The ability to customize pin configurations and cable lengths enhances adaptation across industry verticals, enabling M12 connector manufacturers to deliver tailored solutions that optimize installation space and maintain signal integrity in critical systems.
Product Advantages
Robust Design and Modular System Integration
The design of this Custom M12 connector emphasizes modularity and adaptability, incorporating standardized 12 mm threaded coupling to facilitate easy assembly and secure engagement. Options for plastic or metal housings cater to EMI shielding demands or cost-effective applications. The range of pin counts and coding types enables complex wiring configurations for diverse systems while maintaining interchangeability. Its compatibility with screw crimp and pre-fabricated harness assemblies supports streamlined manufacturing workflows. By collaborating with experienced circular connector manufacturers and M12 connector manufacturers, this product delivers a design that integrates efficiently within existing production lines and electrical architectures.
Exceptional Performance and Operational Ease
Performance excellence arises from reliable electrical contacts and durable environmental sealing, assuring consistent signal transmission and mechanical endurance. The product supports robust mating cycles and withstands vibration and moisture ingress, critical for industrial usage. Customizable cable lengths and configuration variants facilitate precise fitment, reducing installation errors and downtime. Users benefit from clear documentation and labeling provided by certified circular connector manufacturers, enabling straightforward system integration and maintenance. The combination of performance stability and flexible configurations underpins its application in complex, high-demand automation and control systems.
Use Scenarios
Industrial Automation Connectivity Challenges
Within industrial automation environments encompassing robotics, conveyors, and sensor networks, the Custom M12 Electrical Cable Wire Connector plays a vital role as a secure wiring interface. Operating under continuous vibration, exposure to dust, and variable temperatures, this connector ensures electrical stability and corrosion resistance via shielded metal construction and IP-rated sealing. The connector’s flexible pin configurations and cable harness options from leading circular connector manufacturers enable system integrators to tailor connections for specific machinery functions, streamlining maintenance and improving mean time between failure (MTBF). Its compliance with ISO 9001:2015 standards supports quality assurance in strict industrial workflows.
Transportation Systems with High Connectivity Demands
In transportation applications such as rail, automotive, or fleet management systems, reliable signal and power transmission is essential. The Custom M12 connector, offered by trusted M12 connector manufacturers, provides rugged durability against shock, vibration, and environmental contamination. Its compact form and customizable length serve as an ideal interface for sensors, actuators, and communication modules within vehicle electrical systems. The ergonomic design, coupled with multiple coding schemes and robust shell variants, supports compliance with transportation industry standards and facilitates straightforward integration with existing wiring harnesses. This enhances system uptime and serviceability within transportation operational frameworks.
What pin configurations and coding types do your Custom M12 Electrical Cable Wire Connectors support?
We offer the Custom M12 Electrical Cable Wire Connector with pin options of 3, 4, 5, 8, and 12 pins. Our connectors come in code types A, B, and D, including both plastic non-shielded and metal shielded shells, ensuring compatibility with diverse industrial applications and robust performance.
Can I customize the cable length or harness options for the M12 connectors?
Yes, the default cable length is 1 meter, but we provide custom lengths to fit your specific installation needs. Additionally, our pre-fabricated harness options, including screw crimp series, enable seamless integration within your custom cable assemblies and wiring harness systems.
Do your M12 connectors include shielding, and what shell materials are available?
Our Custom M12 connectors feature both shielded and non-shielded variants. The shielded versions use metal shells for enhanced electromagnetic interference protection, while non-shielded variants come with durable plastic shells. This flexibility supports varied environmental and signal integrity requirements.
How does Leaka ensure the quality and reliability of its circular connector products?
We strictly adhere to ISO 9001:2015 quality systems and use complete testing laboratories at our factory. Our engineering expertise as leading circular connector manufacturers guarantees each M12 connector manufacturer product delivers reliable electrical contacts and robust waterproof/dustproof performance in demanding environments.
