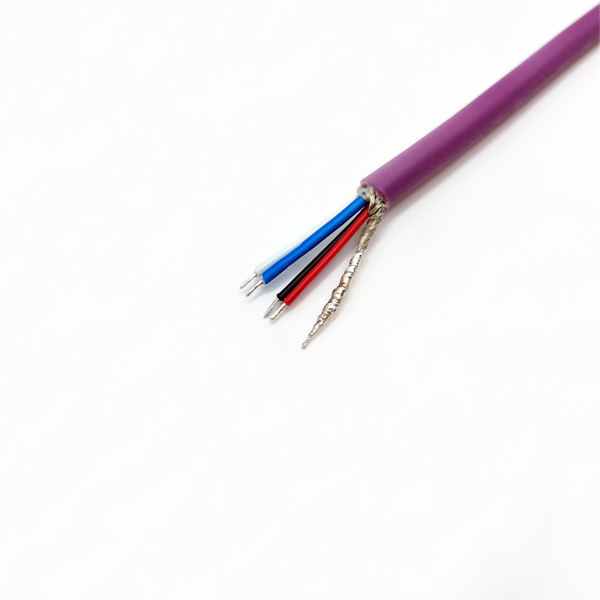

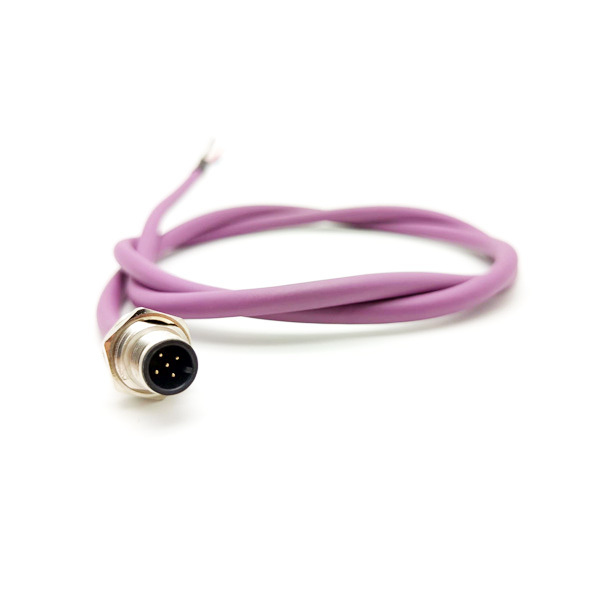

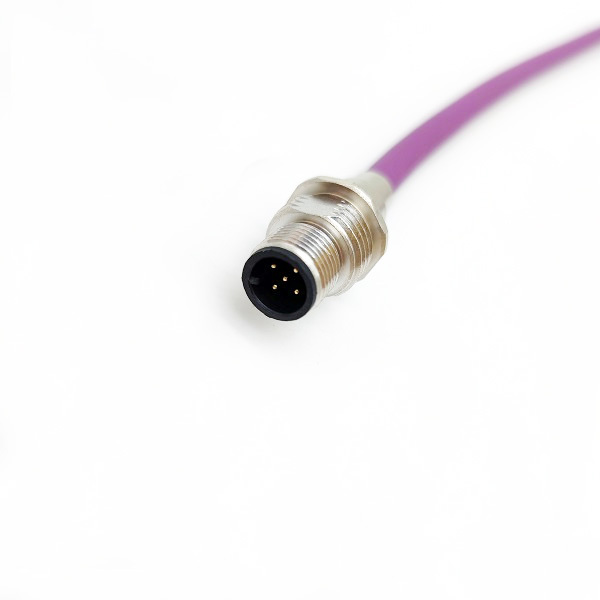

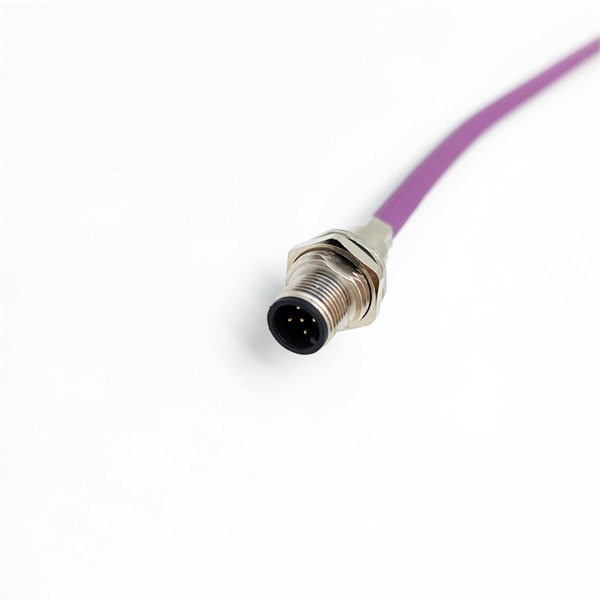

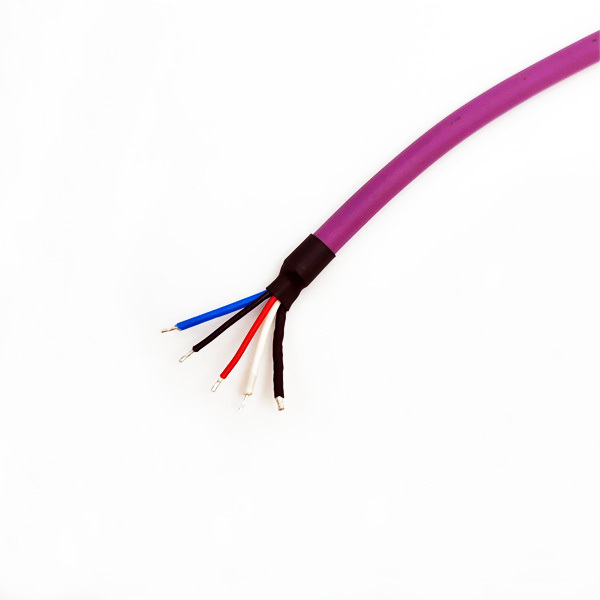

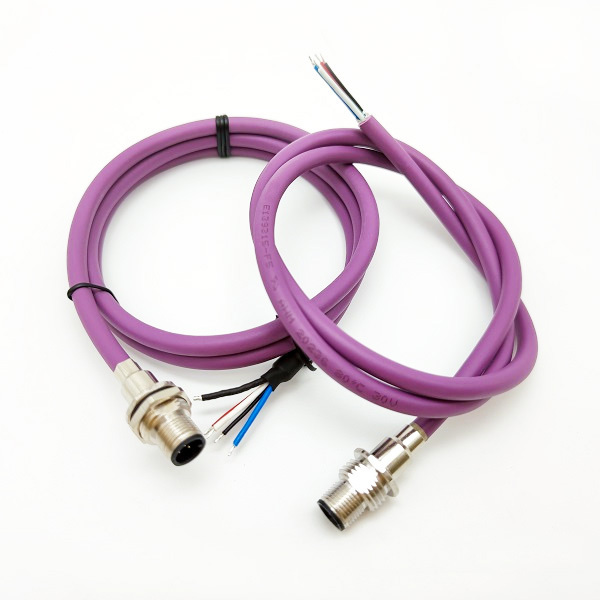

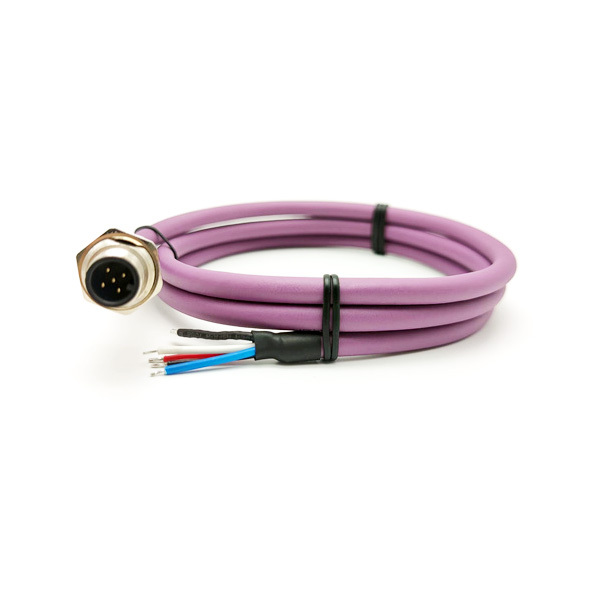

Custom wire length panel mount M12 wire connectors
1. Product Introduction M12 Bulkhead Connectors
M12 panel mounted sockets are die cast connectors suitable for use in enclosures or for custom wiring configurations. They are modular in design and have panel mounted functions, which help to keep the cables clean and orderly. They can be easily replaced in areas where cables are easily damaged or frequently replaced.
Threaded Coupling: M12 connectors feature a threaded coupling mechanism that ensures a secure and vibration-resistant connection, suitable for harsh industrial environments.
Panel Mounting: Designed for easy installation onto panels or enclosures, these connectors are equipped with a threaded body that enables them to be securely mounted on surfaces, providing a tidy and organized wiring layout.
Variety of Configurations: Available in various pin configurations, including 3-pin, 4-pin, 5-pin, 8-pin,12-pin,and more, to accommodate different signal and power requirements.
IP Rating: M12 connectors often come with IP67 or IP68 ratings, indicating their resistance to dust and water ingress, making them suitable for outdoor and harsh industrial environments.
2. Product Parameters Bulkhead Connectors m12
|
Contact Number |
3, 4, 5, 8, 12 Pin |
|
Contact Material |
Copper |
|
Cable Mtaerial |
PVC / PUR |
|
Manufacturing Process |
Injection Molding |
|
Rated Current |
3~5A |
|
Rated Voltage |
125~260V |
|
Cable Length |
1m or Customization |
|
Appplication |
Sensors and some other devices |
3.Companny Profile
Xiamen Leaka Electrical Equipment Co., LTD. is a high-tech enterprise with many years of experience in electrical connector industry. With a number of patents and authoritative certification, it provides you with green and environment-friendly high-quality connector products and supporting cable solutions, and is your reliable partner. Our professional R&D team can develop and customize appropriate products according to your special needs. We always put product quality first. In recent years, the company has introduced many advanced CNC lathes and built a professional connector and connection line testing laboratory, so that we can better control product quality.
Industrial circular connectors, energy storage connectors, watertight connectors, wiring terminals, and supporting cable harness components developed and produced by the company are favored by the market and have been sold nationwide and worldwide. With superior product performance and attractive product design, our products are widely used in high-end fields such as military, medical, film and television, navigation, surveying and mapping, aerospace, security, communications, automobile testing, etc., providing more timely, clearer and cost-effective product solutions for domestic and foreign equipment manufacturers.
4. Express & Payment
5. Why Choose Us!
We have our own factory, covering an area of 3500 square meters, with a total of 100 employees, to ensure the best quality control of connector products;
According to customer requirements, we can develop and produce different types of connector products;
Our driving force is -- customer satisfaction smile;
Our belief is ---- pay attention to every detail;
Our wish is ---- perfect cooperation.
Product Advantages
Design and Structural Precision for Industrial Needs
The structural design of custom wire length panel mount M12 connectors prioritizes modularity and ease of integration into panel-mounted systems. Their threaded coupling provides enhanced mechanical stability, preventing loose connections due to vibration or mechanical stress. The availability of shielded variants adds electromagnetic compatibility (EMC) resilience, a vital factor for shielded wiring environments in industrial automation. Manufactured under stringent controls by recognized industrial circular connector manufacturers, these connectors align with international IP67/IP68 standards, ensuring lasting protection against ingress of dust and liquids, key attributes for industrial-grade circular connectors.
Enhanced Performance and Operational Benefits
From a performance perspective, these connectors offer stable electrical contact with low resistance, supported by gold plating and precision manufacture enhancing signal integrity. Custom wire lengths reduce installation complexities and excess cable management, contributing to cleaner panel assemblies and reduced signal path losses. Their standardized pin configurations make selection and replacement straightforward, improving operational uptime and maintenance efficiency. Sourcing from proven m12 connector manufacturers ensures product consistency and reliability, critical for engineers and procurement professionals who demand dependable connectors for industrial environments.
Automation Industry Panel Mount Applications
In factory automation environments, where precise sensor and actuator connectivity is essential, custom wire length panel mount M12 connectors play a pivotal role. They enable the secure panel integration of proximity sensors, encoders, and control modules. The connectors’ IP67/IP68 ratings guarantee resistance to dust and water ingress typical of manufacturing floors, while the threaded coupling maintains stable electrical connections despite machinery vibrations. Their customizable cable lengths simplify cable routing within control cabinets, facilitating systematic wire management and reducing rework. By working closely with m12 connector manufacturers, automation integrators ensure compliance and compatibility with industry standards for industrial circular connectors.
Outdoor and Harsh Environmental Installations
Outdoor electrical enclosures and harsh environment installations often require connectors capable of withstanding extreme conditions. Custom wire length panel mount M12 connectors supplied by reputable industrial circular connector manufacturers fulfill these requirements, providing waterproof, dustproof, and vibration-resistant connectivity. Their shielded options protect sensitive instrumentation from electromagnetic interference, and their customizable wire lengths allow precise adaptation to installation constraints. These connectors integrate seamlessly with control panel assemblies for traffic infrastructure, renewable energy systems, and outdoor machinery, ensuring continuous, reliable operation throughout their service life despite exposure to demanding conditions.
What pin configurations are available for your panel mount M12 wire connectors?
We offer multiple pin configurations including 3, 4, 5, 8, and 12 pins to accommodate various signal and power requirements. These options ensure compatibility with a wide range of industrial circular connector applications for precise and reliable connections.
Can you customize the cable length for these M12 connectors?
Yes, we provide custom wire length options to fit your specific installation needs. Whether you require a standard 1m or a tailored cable length, our manufacturing process supports precise customization to minimize waste and optimize system integration.
What materials are used in your M12 connector products to ensure durability?
Our connectors feature copper gold-plated contacts for reliable conductivity and resistance to corrosion. The cable sheath is made of durable PVC or PUR materials, selected for flexibility and harsh environment tolerance, suitable for industrial settings requiring
robust wiring solutions.
How do you ensure the connectors meet industrial environmental standards?
Our M12 connectors are designed with threaded coupling mechanisms for vibration resistance and are available with shielding options for signal integrity. They meet IP67 and IP68 ratings, providing protection against dust and water ingress, crucial for outdoor and harsh environment applications.
