There are many benefits to using Weipu SP13 connectors in your industrial or technological application. One of the main advantages is the high reliability and durability of these connectors. They are built to withstand the tough conditions of industrial environments and will provide a secure and reliable connection for years to come.
Weipu SP13 connectors are also designed with safety in mind. These connectors are typically engineered to provide a secure and reliable connection while minimizing the risk of electrical arcing or other hazards that could potentially damage equipment or harm personnel.
They are typically rated for high voltage and current, and they are often equipped with features such as locking mechanisms, strain relief, and dust caps that provide an extra layer of protection.
They are available in various pin configurations and sizes, making it possible to find a connector that is tailor-made to your specific requirements.
| Contact Material | Copper |
| Shell Material | Nylon66 |
| Cable Material | PVC/PUR |
| Cable Length | 1.5m or Customization |
| Application | Medical, LED |
| Contact Number | IP68 |
| Mating Cycle | 500 Times |
| Type | SP13, SP17, SP21, SP29 |
| Model | 1 to 3 |
| MOQ | 10PCS |
Workshop Equipment
Xiamen LEAKA Electrical Equipment Co., Ltd., is a high-tech enterprise that develops, produces and sells connectors, wiring harnesses, electrical accessories and provides connection solutions. We have advanced and complete production equipment, testing equipment and experienced professional technical team. LEAKA is committed to creating a first-class brand in the world's industrial connection industry.
The electrical products of LEAKA series have fully introduced the most advanced concepts and processes in the world's electrical industry in the design and manufacturing process, and are designed and tested in strict accordance with international standards of various technical agreements. The company has successively launched a series of electrical accessories such as circular connectors, waterproof connectors, heavy-duty connectors, sensor connectors, photovoltaic connectors, corresponding wiring harnesses and cold-pressed terminals, nylon cable ties, cable glands, cable hoses, etc. , and can customize products according to customer needs, there are thousands of various combinations, widely used in machinery, marine, lighting, new energy, automation, hot runner, aviation, rail and other fields that require electrical, signal connection and data transmission.
1. We have our own factory, covering an area of 3500 square meters, with a total of 100 employees, to ensure the best quality control of connector products;
2. According to customer requirements, we can develop and produce different types of connector products;
3. Our driving force is -- customer satisfaction smile;
4. Our belief is -- pay attention to every detail;
5. Our wish is ---- perfect cooperation.
Functional Design Tailored for Industrial Integration

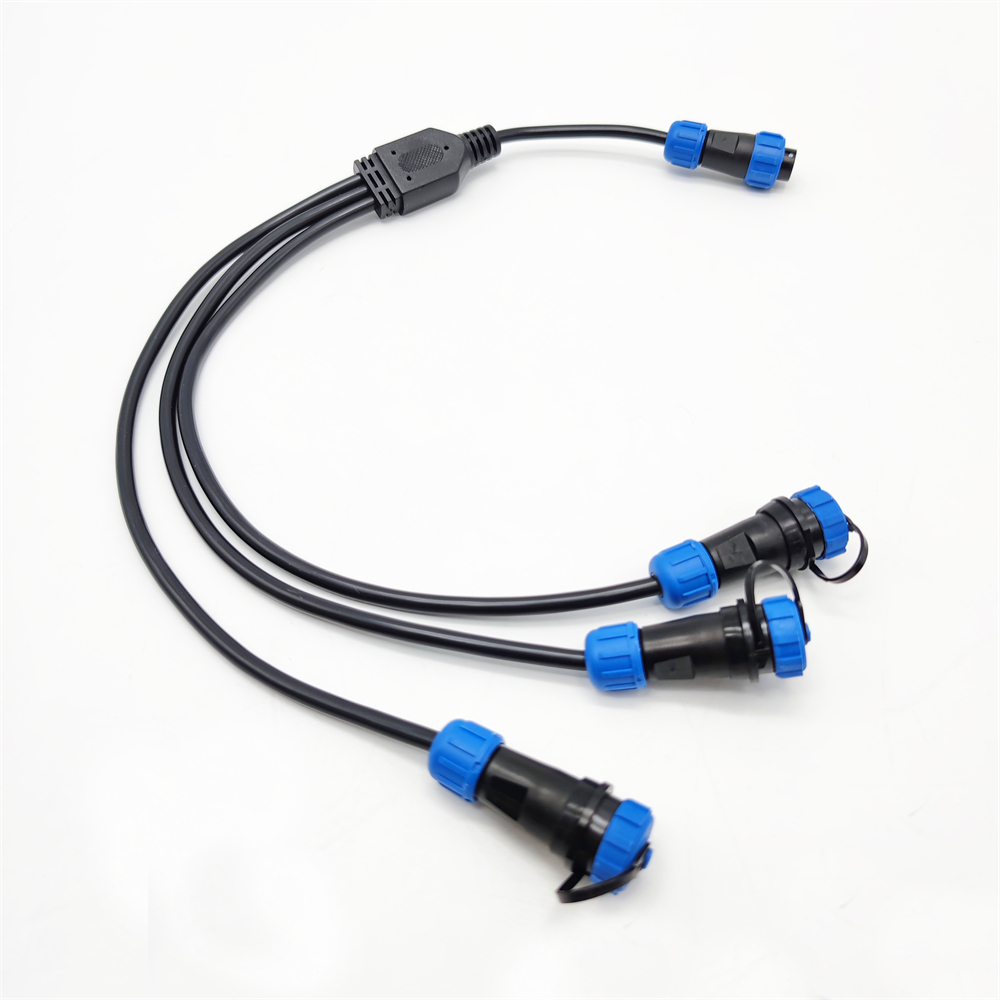

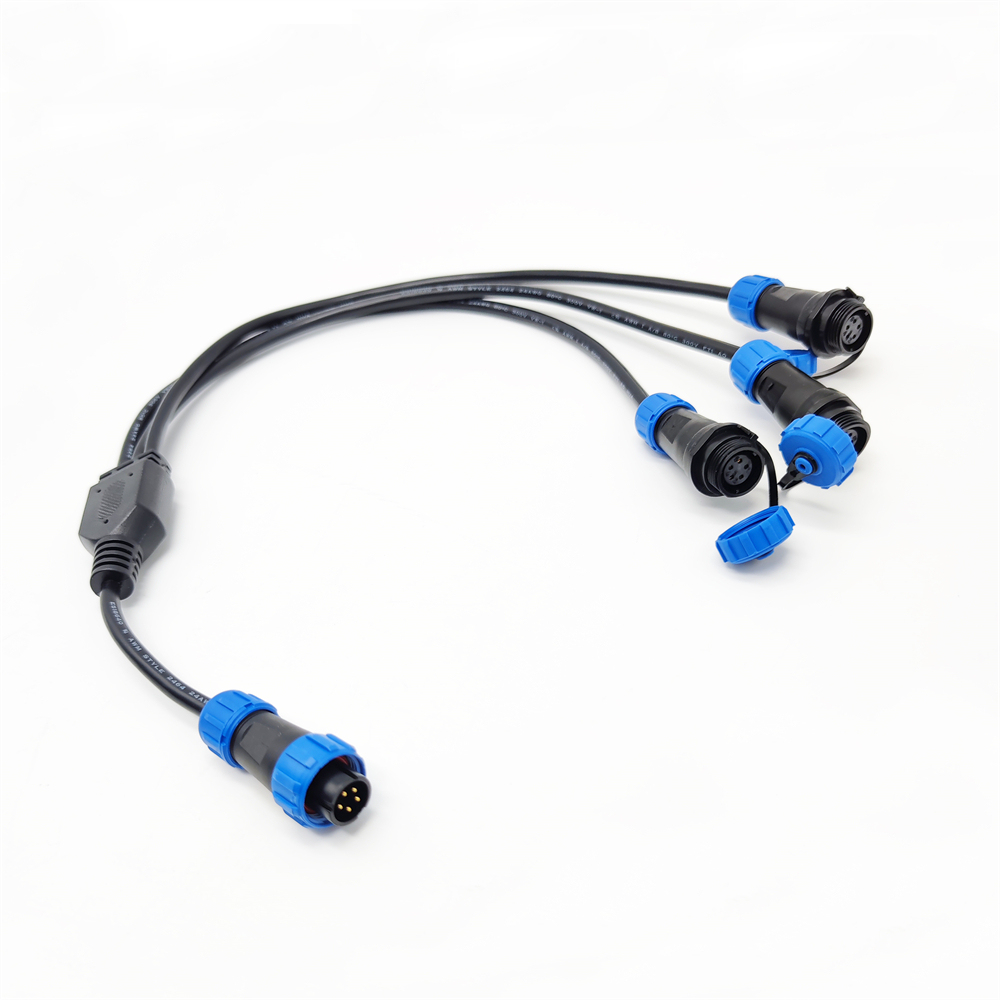

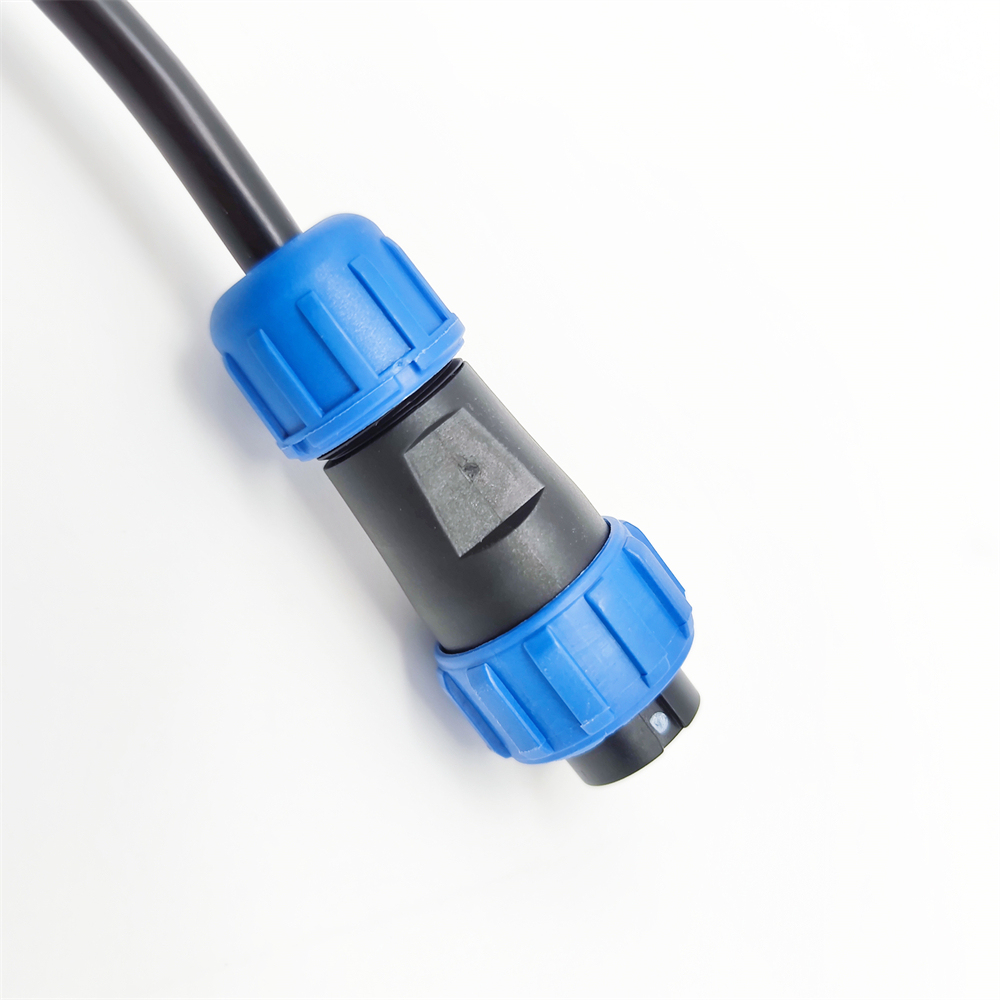

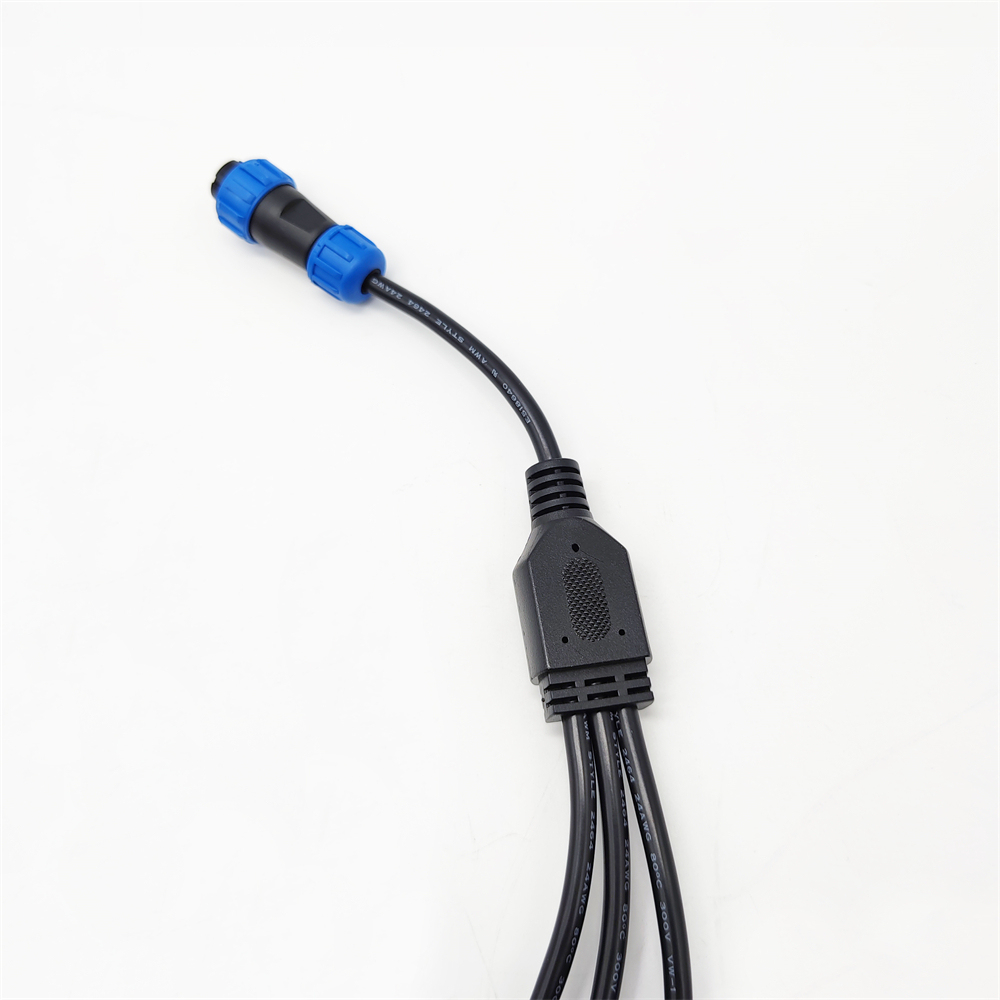

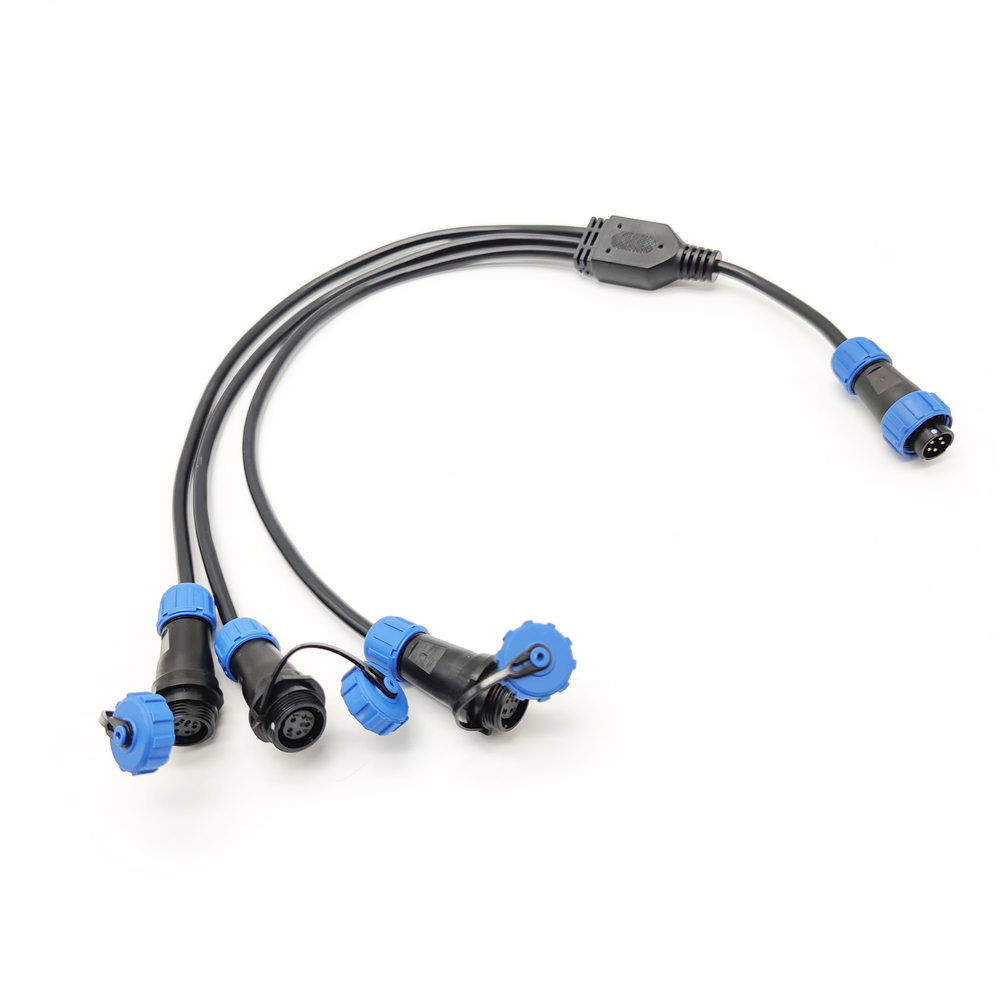

The Customized SP13 Connector 1 to 3 Wiring Harness is engineered for precise connection demands in industrial and technological sectors, serving electrical engineers, system integrators, and procurement specialists seeking dependable wiring harness solutions. Primarily targeted at applications requiring multi-wire connections with enhanced safety features, this product supports efficient distribution of electrical signals or power in complex systems. Its compatibility with the Weipu SP13 connector series enables integration into existing infrastructure, making it an essential component for businesses aiming to optimize wiring reliability while maintaining compliance with industrial standards. This custom wiring harness is offered in configurations suitable for diverse operational requirements and environmental challenges, positioning it as a versatile choice among wiring harness manufacturers.
Technical Specifications Ensuring Long-term Reliability
This wiring harness features high-grade components such as copper contacts and Nylon66 shells, providing robust electrical conductivity and mechanical protection. Designed for 1 to 3 wire connections, the harness supports various pin arrangements and is customizable in cable length and materials (PVC or PUR), meeting specific installation criteria. It exhibits an IP68 rating, ensuring waterproof and dustproof attributes suited for harsh environments. The locking mechanism and strain relief features safeguard against disconnections and mechanical strain, maintaining connection integrity through up to 500 mating cycles. Manufactured under strict quality control by Xiamen Leaka Electrical Equipment Co., Ltd., it aligns with international certifications, offering a secure and technically sound choice within the portfolio of professional wiring harness products.
Applications Across Medical, Lighting, and Automation Industries
This custom wiring harness solution is deployed in medical device assemblies requiring stable power and signal distribution, LED lighting systems needing multiplexed connections, and industrial automation setups demanding rugged and scalable wiring architectures. Its waterproof IP68 rating allows use in outdoor and moisture-exposed contexts, while its customization aspects enable fitment to specialized equipment like sensors and actuators. The product supports streamlined wiring layouts, enhancing maintenance efficiency and reducing downtime in complex electrical systems. By ensuring consistent and reliable electrical connections, it adds measurable value across sectors such as manufacturing, healthcare, and energy, delivering operational stability crucial for professional environments that prioritize safety and performance.
Product Advantages
Engineering-Driven Structural Excellence
The wiring harness from this manufacturer exhibits structural advantages through modular design and component adaptability. The integration of the Weipu SP13 connector system allows for seamless connection configurations, including 1 to 3 wire options, supported by tailor-made cable lengths and materials (PVC/PUR). Its durable Nylon66 shell and copper contact material elevate mechanical strength while providing corrosion resistance. The locking mechanism and strain relief system reduce risk of disconnection under vibration or movement, contributing to system integrity. These design characteristics conform to rigorous industrial and international standards, ensuring easy incorporation into existing electrical assemblies while maintaining high compatibility and system flexibility within professional custom wiring harness portfolios.
Optimized Performance and Practical Usability
Performance features center on the harness’s IP68 waterproof rating, which enables consistent operation in demanding environments prone to moisture and dust ingress. The high quality of materials and precise manufacturing ensure stable electrical conductivity for extended service life. User benefits include customizable cable configurations that facilitate tailored fitment to specific system layouts, minimizing installation complexity and downtime. The harness’s ease of mating and unmating within 500 cycles extends operational usability, while safety elements such as locking and strain relief improve working reliability. This combination of reliability, customization, and compliance enhances user value, addressing critical needs for secure and efficient electrical connectivity in complex industrial systems.
Use Scenarios
Robust Connector in Medical Equipment Power Systems
In healthcare environments, reliable electrical connections are paramount to patient safety and device performance. The Customized SP13 Connector 1 to 3 Wiring Harness serves as a critical component in medical equipment power and signal distribution systems, where it withstands frequent use and potential exposure to disinfectants. Its custom wiring harness design adheres to strict safety and durability standards, reinforcing stable operation in compact and sensitive devices. The waterproof IP68 rating supports use in controlled but variable conditions, while the locking mechanism prevents accidental disconnections. Integration into medical device wiring layouts ensures compliance with technical norms and contributes to seamless workflow by supporting consistent signal integrity and power delivery critical to clinical applications.
Efficient Wiring in Outdoor LED Lighting Installations
Outdoor lighting infrastructure demands connectors capable of resisting environmental stressors such as moisture, dust, and vibration. This product’s waterproof and durable characteristics make it suitable for LED lighting systems that require secure multiple wire connections. The harness facilitates efficient signal distribution and power splitting, while customizable cable length and material options allow adaptation to complex installation layouts. Its robust locking and strain relief systems safeguard connectors from inadvertent disengagement during maintenance or weather events. By offering an IP68 rating and multiple pin configurations, the harness supports integration into automated lighting controls, enhancing operational reliability and minimizing maintenance cycles typical in outdoor electrical applications.
What materials are used in the Customized SP13 Connector 1 to 3 Wiring Harness?
The wiring harness uses copper contact material for excellent conductivity, a Nylon66 shell for robustness, and PVC or PUR cable materials depending on customer choice. These materials ensure durability and safety suitable for industrial applications requiring a reliable wiring harness.
Can I order a customized wiring harness with specific cable lengths and connector configurations?
Yes, Xiamen LEAKA offers customization options for cable length, cable material (PVC or PUR), and pin configurations from 1 to 3 contacts to meet your exact project needs. This flexibility is a key feature among professional wiring harness manufacturers.
How should the Customized SP13 Connector wiring harness be installed for optimal performance?
Installation should ensure secure mating of SP13 connectors with locking mechanisms engaged and strain relief correctly applied to prevent wire tension. Proper sealing ensures the IP68 waterproof rating remains intact, essential for safety in harsh industrial or outdoor environments.
What is the typical delivery time for customized orders of the Customized SP13 Connector wiring harness?
Delivery times typically range from 2 to 4 weeks after order confirmation. This timeframe accounts for the customization process, quality testing, and compliance checks, ensuring you receive a professionally manufactured and tested custom wiring harness solution.
