Product Data
| Size |
H20*W15mm/H20*W20mm/H25*W20mm.........H100*W100mm |
| Color |

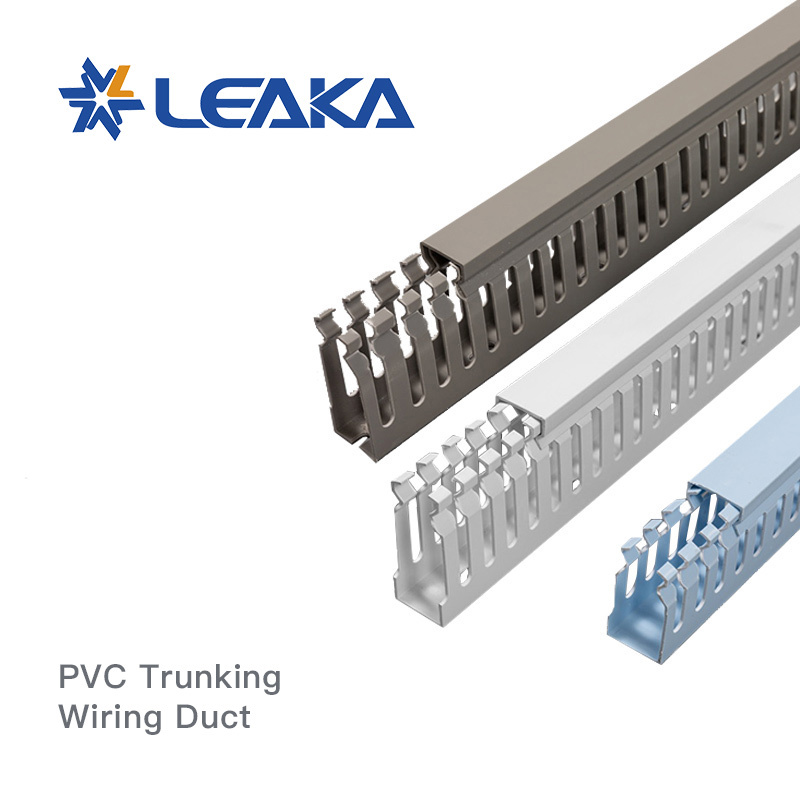

White/Blue/Gray |
| Voltage |
≤1200V |
| Working Temperature |
-20°C~+85°C |
| Material |
SG-5 PVC |
| Type |
Slotted |
| Structure |

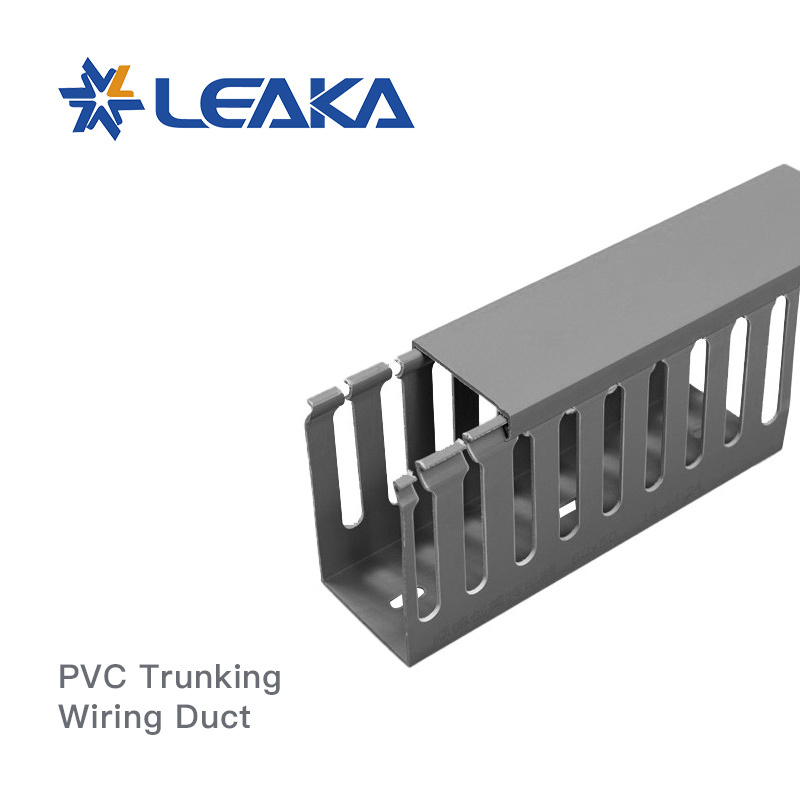

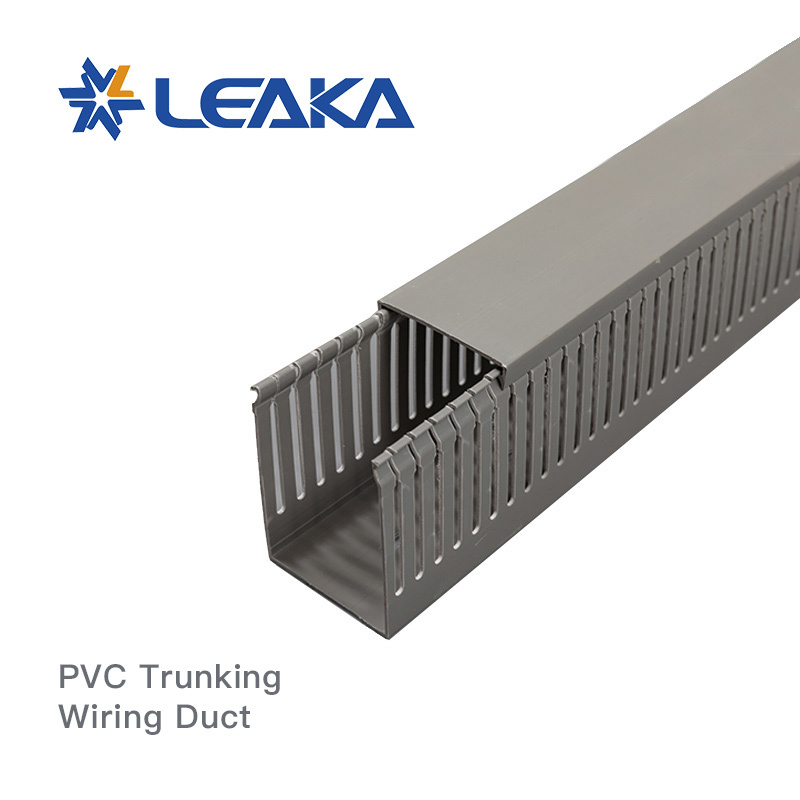

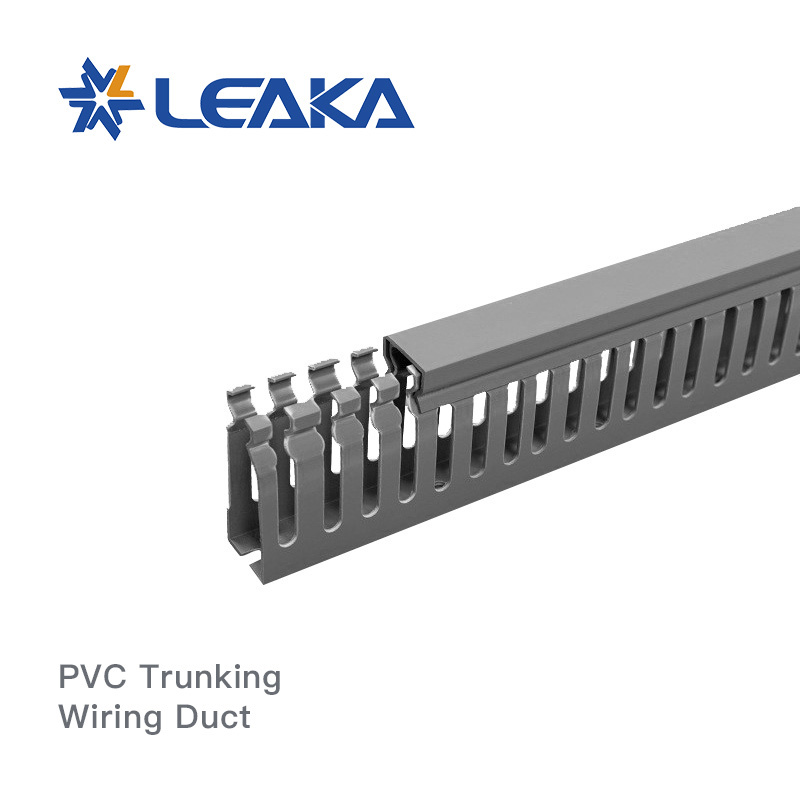

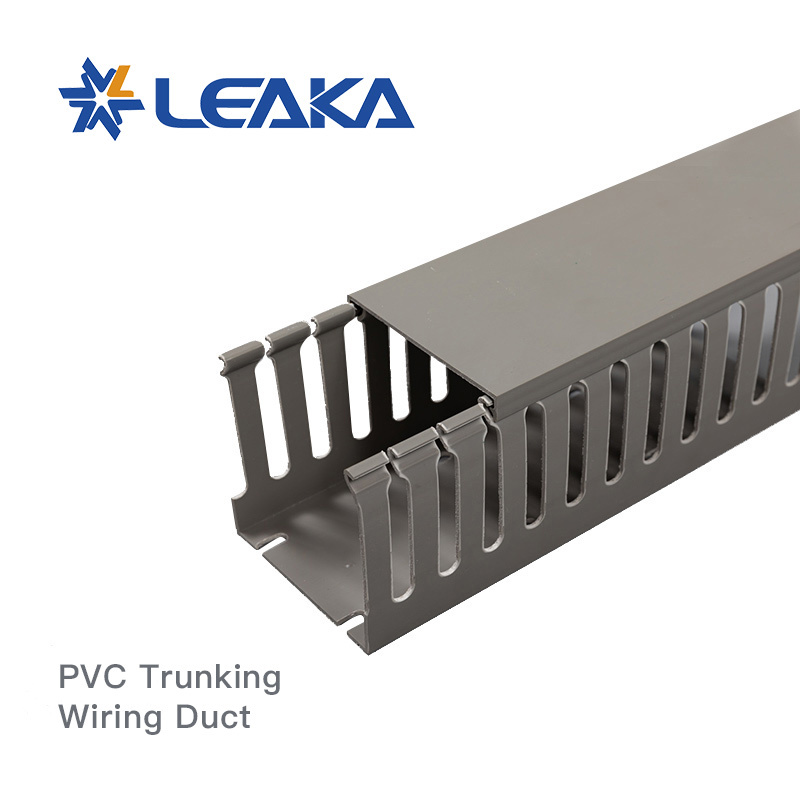

It consists of two parts: the bottom of the slot and the slot cover. Pre-cut slots along the sides and bottom for easy insertion/removal of cables. |
| Application |
Internal Wiring of Electrical Equipment |
| Storage |
Ventilation |
| MOQ |
100 meter |
- Selected Flame-Retardant PVC Material
Using insulating environmentally friendly flame-retardant PVC material as raw material, the wire groove teeth have good bending resistance, the joint surface is smooth, an the 90° groove is not easy to break.
Pre-cut openings (slots) along the sides and bottom for easy insertion removalof cables without disassembling the duct.
Snaps onto the base channel to enclose and protect cables.Combined with thebottom of the channel, it is not easy to slide off, preventing transportationvibration and sliding cover when installed vertically.
- Easy Installation and Disassembly
Sots are evenly spaced to allow flexiblity in cable routing and branch connections.The wires will not shake after being installed, preventing them from running out ofthe slots. The outlet holes are low, and assembly and disassembly aresimple,making wiring easy.
Smooth edges, no burrs to prevent cutting and scratching nearby wiring, the slotcover.is flush with the slot bottom, and the wire surface is smoother.
