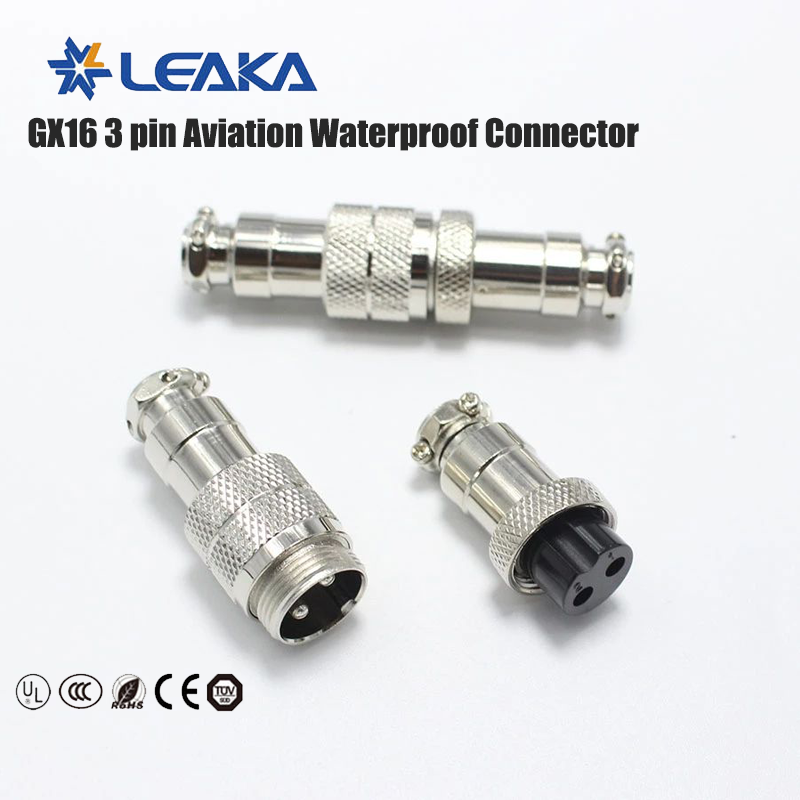

Wholesales 3pin 4pin 5pin 6pin 7pin male female 12mm circular aviation socket plug wire panel GX12 2 core connector
GX12 series connectors are suitable for aviation, high-speed railroad, ships and other equipment, electrical link wires and cables directly conduct each other, to improve the transmission efficiency and safety coefficient.
|
Cable diameter
|
≤ Ф 5.0mm
|
|

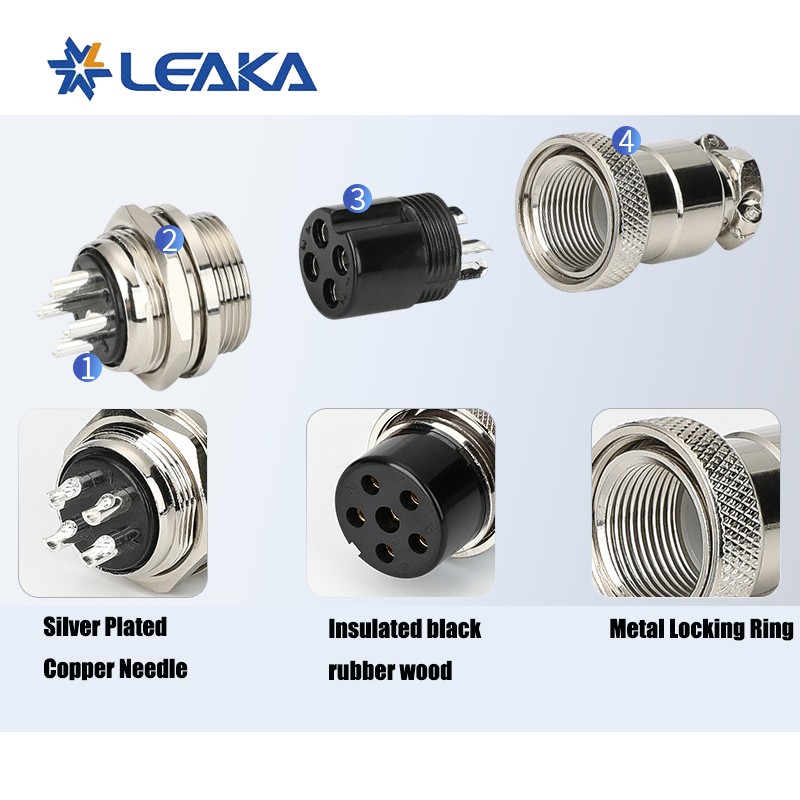

Shell material
|
Zinc alloy with nikelplate
|
|
Contact material
|
copper( silver/ gold plated)
|
|
Insert material
|
bakelite
|
|

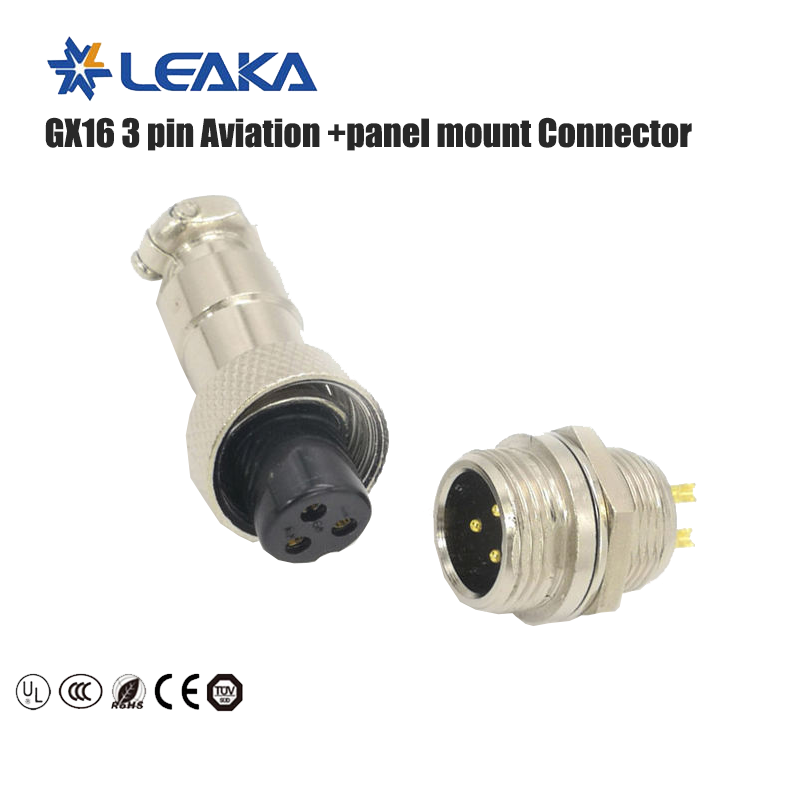

Assemble way
|
assemble board
|
|
Solder cup mouth aperture
|
0.8
|
|
Solder inter diameter
|
1.2
|
|
Rated current/voltage
|
5A-125V
|
|
Operation limit voltage(AC.V.rms)
|
200
|
|
Withstanding voltage( AC.V.rms) 1minute
|
1500
|
|
Insulation resistance (MΩ MIN) at DC 500V
|
1500
|
|
contact resistance (MΩ MAX.) at DC 1A
|
5
|
|
Mating cycle
|
500
|
|
MOQ
|
1 PCS sample offer
|
|
Places of origin
|
Xiamen,Fujian,China(Mainland)
|
|
OEM
|
Yes,we accept
|
|
Payment terms
|
100 % T/T,escrow,MasterCard credit card,e-Checking,Paypal,VISA
|
|
Delivery time
|
3-45 days depends on buying stock or OEM order
|

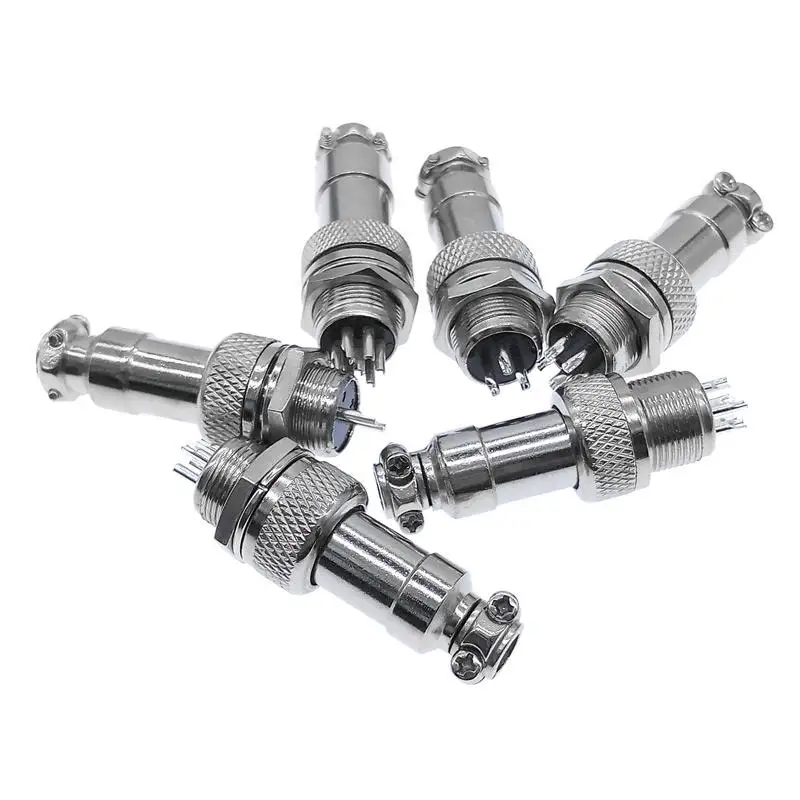

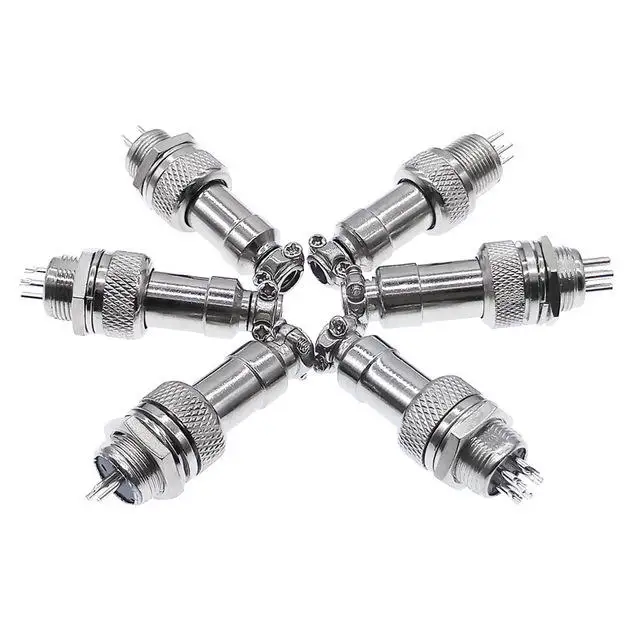

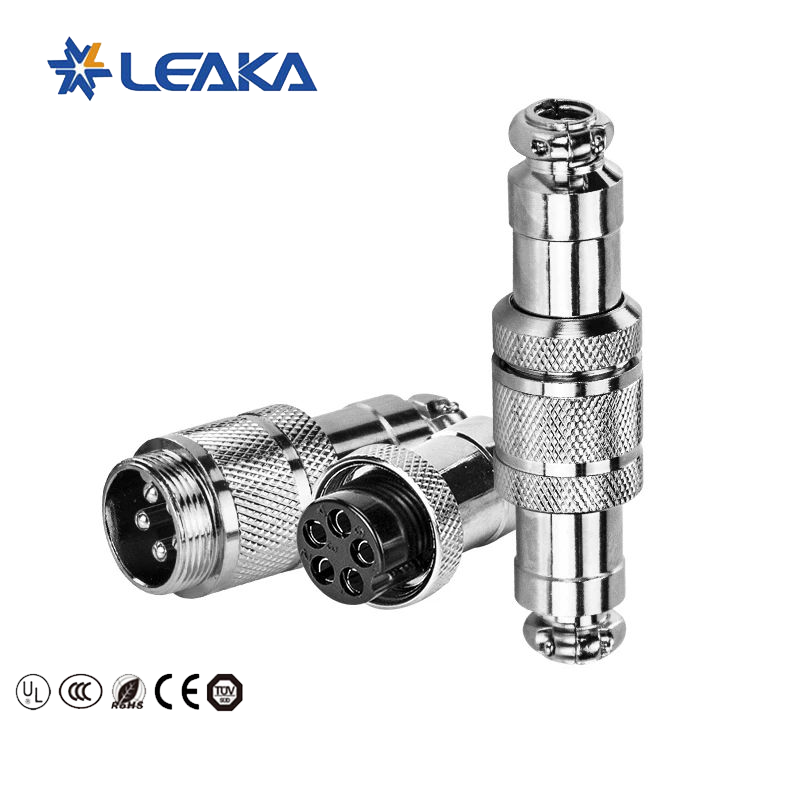

GX12 connector is a kind of round plug, its appearance is simple and beautiful, has strong waterproof, dustproof, shockproof performance, has been verified by many experiments, can withstand the more severe environmental conditions.Gx12 Avaition Connector Pcb has a number of series products, including 2-pin, 3-pin, 4-pin, 5-pin, 6-pin, 7-pin, 8-pin, 9-pin, 10-pin, 12-pin, 16-pin, 18-pin, 19-pin, 20-pin, 22-pin, 24-pin, 25-pin and so on.
Applications
GX12 connector has a wide range of applications, such as electrical equipment connection, radio frequency signal transmission, computer external equipment interface, aviation, marine, military, automotive and other industrial fields, as well as stage sound, lighting, film and television production and other cultural fields. Because of its small size and good sealing, it is widely popular.The application of GX12 connector in various fields makes it an indispensable part of modern industry.
Draw
Company Profile
Xiamen Leaka Electrical Equipment Co., LTD., founded in 2 0 1 5, and we have our own associated factory,which is an enterprise dedicated to the research, development and production of high-performance connectors and providing connectivity solutions.Our company is located in the No.101,Huizu Road,Haicang,Xiamen,Fujian,convenient transportation.Our company has a perfect quality management system, innovative r & D team, complete testing laboratory and enthusiastic service personnel, can provide customers with high quality products and competitive prices. Our main products include underwater connector,M5,M8,M12,M16,M19,M23 connector,push pull connector,aviation connector,circular connector, heavy duty connector and related wire harness products.Waterproof rating from IP65, IP67, IP68 to IP69K. which are widely used in industrial automation, sensors, Marine equipment, new energy, communication, lighting,LED display equipment, railway,and security and other fields. The company's products are made in strict accordance with international general standards and can be used interchangeably with major brand products,at the same time, we can also provide special customized services according to customer requirements. Our company has passed ISO9001:2015 quality system certification, and our products have passed a number of third-party certification. Our products are not only popular in China, but also exported to 56 countries and regions,received widespread praise.We warmly welcome customers from home and abroad to cooperate and create a better future.
We are a young team that already has considerable experience in the field of Electrical Connectors.
Richer Experience:Our products have been exported to more than 40 countries, such as Russia, Australia, USA, UK, Germany, Ukraine, Iran, Romania, Hungary, Mexico, Brazil, Chile, Canada, Spain, Colombia， etc. We have agents in the USA, Australia, Singapore, Kuwait, Russia.etc, so we can provide high service to our clients.
We focus on new product research and development, every year there are quite a lot of product patent certificates, innovation is our belief!
We have a professional team with technical knowledge and managerial experience. Our company has been through professional quality system certification, CE certification, SGS audit, TUV audit,So that we can guarantee the best quality of our products.
Various product testing equipment to ensure product quality, so that customers are more assured.
Our customers have a wider range of processing choices for transportation mode
By Express ( FedEx, UPS, DHL, TNT, EMS, etc... )
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
Disadvantage: Slow and you need to take the goods from your destination port by yourself.
FAQ :
Q2:Can you produce conveyor as our requirements?
Yes, OEM is available. We have professional team to do anything what you want from us.
Q3.Is the sample available?
Yes, we are providing free of samples are available for you to check the quality once confirmed after 1~2day.
Q4.Is there the products tested before shipping?
Yes, of course. All of our conveyor belt we all will has been 100%QC before shipping. We test every batch every day.
Q5.How your quality guarantee?
We have 100% quality guarantee to customers. We will be responsible for any quality problem.
Q6.Can we visit your factory before place the order?
Yes,Very welcome that must be nice to set up good relationship for business.
Q7.Can we be your agent?
Yes, welcome to cooperation with this. We have big promotion in the market now. For the details please contact with our overseas manager.
