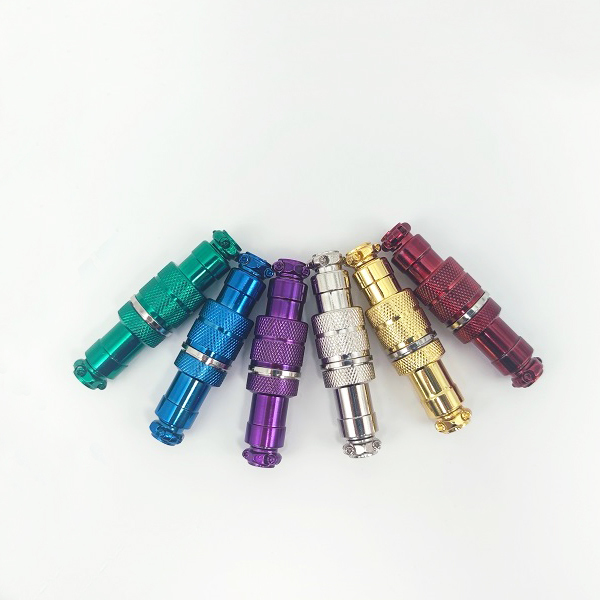

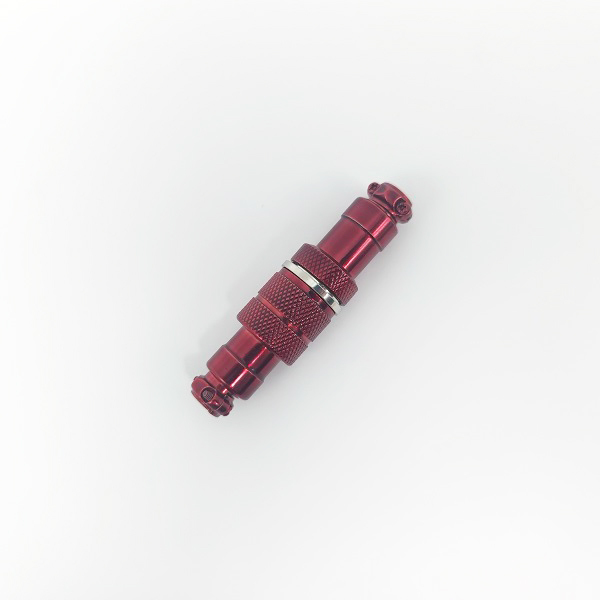

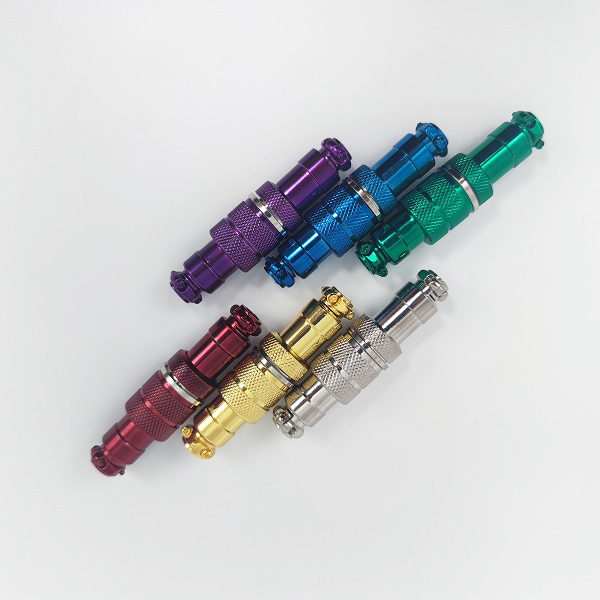

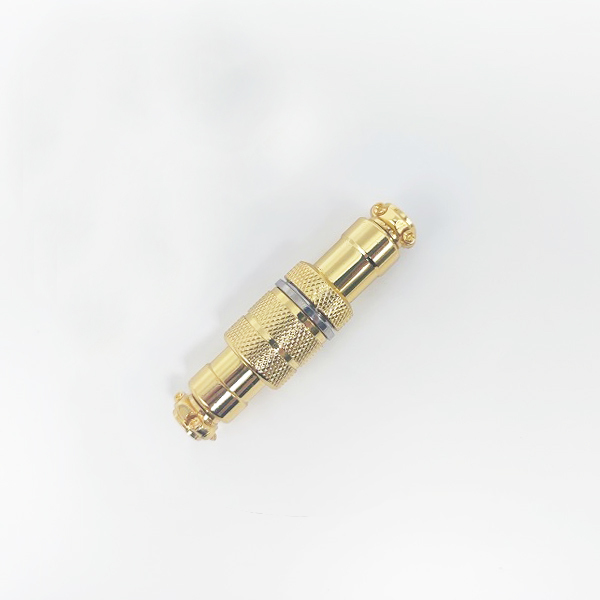

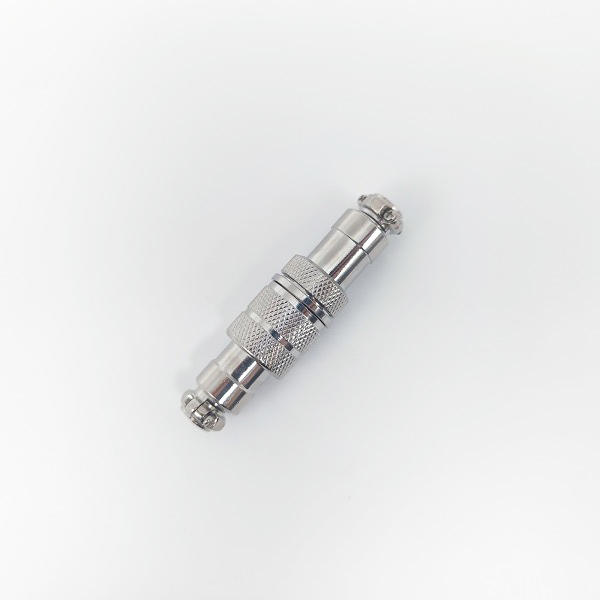

Customized GX16 4 Pin Aviation Connector for Keyboard
Parameter
Model Number:16M
Type:BNC
Application:Power
Gender:male and female
Pins:4pin
Product name: 4 pin GX16 4pin plug
Coupling:threaded coupling
Termination:solder
Cable diameter:φ7.5mm~φ8.5mm
Temperature Range:-20℃...+85℃
Shell material:zinc alloy with nikelplate
Insulation material:bakelite
Contact material:copper(silverplated/gold)
Mating cycle:500
|
No.of contacts |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Rated current/voltage |
10A/125V |
10A/125V |
10A/125V |
7A/125V |
5A/125V |
5A/125V |
5A/125V |
5A/125V |
5A/125V |
|
Operation limit voltage(AC.V.rms) |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
withstanding voltage(AC.V.rms)1 minute |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Insulation resistance at DC 500V |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
contact resistance AT DC 1A |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
|
Solder cup mouth aperture |
1.6 |
1.6 |
1.6 |
1.2 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
|
Solder inter diameter |
2.45 |
2.45 |
2.45 |
2 |
1.15 |
1.15 |
1.15 |
1.15 |
1.15 |
Features
Our GX16 Aviation Plug Keyboard Cable Connector use high quality zinc alloy shell,and widely use in industry field and DIY your keyboard.
As our GX12 our GX16 is die-casting and milling 2 steps.So our product of GX16 aviation plug will more shiny than others manufacturer’s GX16 aviation connector.
Advantage
We are experienced manufacturers, we have many connectors to choose
We can print your logo on our products
We can customize the color according to your request
We can make OEM and ODM
FAQ
Q: Are you trading company or manufacturer?
A: We are factory with over 10 years experience in connector industrial.
Q: Delivery time?
A: Generally 5-7 days for standard products within quantity of 10,000 pcs.
Q: Do you provide samples? is it free or charged
A: Free samples are always available for testing or quality evaluation purpose.
Q: What is your terms of payment?
A: Payment terms are flexible, T/T, Paypal, L/C, D/A, D/P, Western Union, Money Gram etc. And you can pay on Alibaba with your credit card.
Q: Is small order less than 100pcs accepted?
A: Yes, please contact with us, we will send you link for small order.
