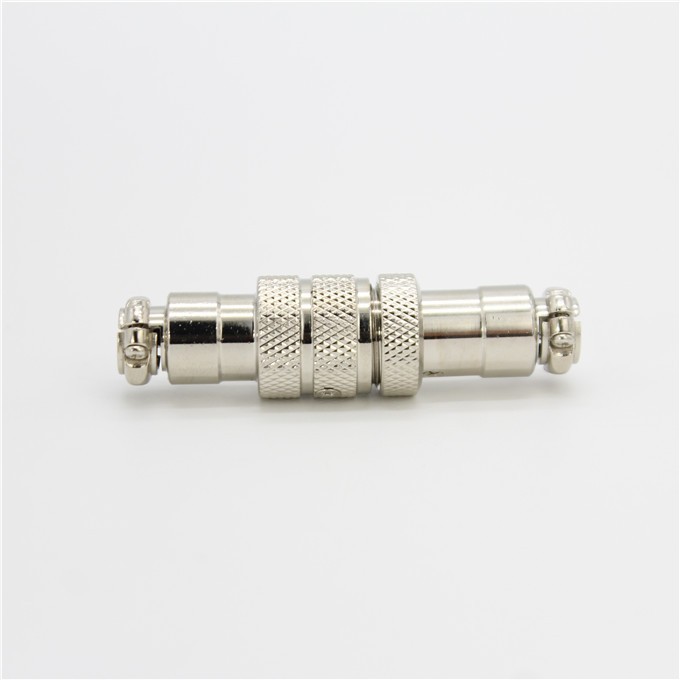

GX16 4 Pin Aviation Connector for Keyboard
The GX16 4 Pin Aviation Connector for Keyboard is a high quality connector that is widely used in keyboard manufacturing and various electronic devices. It is compact, robust and able to withstand high frequencies and voltages. This connector is highly reliable, secure, and not easily affected to ensure the smooth operation of your equipment.
Parameter of GX16 4 Pin
MOQ:100pcs Lead time:3-7 working days Place of Origin:Fujian, China
Brand Name:KABASI Model Number:16M Type:BNC
Application:Power Gender:male and female Pins:4pin
Product name: 4 pin GX16 4pin plug Coupling:threaded coupling
Termination:solder Cable diameter:φ7.5mm~φ8.5mm
Temperature Range:-20℃...+85℃ Shell material:zinc alloy with nikelplate
Insulation material:bakelite Contact material:copper(silverplated/gold)
Mating cycle:500
|
No.of contacts |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
|
Rated current/voltage |
10A/125V |
10A/125V |
10A/125V |
7A/125V |
5A/125V |
5A/125V |
5A/125V |
5A/125V |
5A/125V |
|
Operation limit voltage(AC.V.rms) |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
200 |
|
withstanding voltage(AC.V.rms)1 minute |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
Insulation resistance at DC 500V |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
1500 |
|
contact resistance AT DC 1A |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
5 |
|
Solder cup mouth aperture |
1.6 |
1.6 |
1.6 |
1.2 |
0.9 |
0.9 |
0.9 |
0.9 |
0.9 |
|
Solder inter diameter |
2.45 |
2.45 |
2.45 |
2 |
1.15 |
1.15 |
1.15 |
1.15 |
1.15 |
GX16 4 Pin Cable Aviation Connector for Keyboard is an essential component for keyboard manufacturing. As an intermediary device for mechanical and electrical connections, the connector has a significant impact on the quality of a keyboard.GX16 4 Pin Aviation Connector for Keyboard is a widely used connector in all kinds of keyboards, and its wide range of applications reflects a high degree of recognition for its excellent performance and reliability.
GX16 4 Pin Aviation Connector for Keyboard is highly practical and applicable. This connector can be applied to different types and specifications of keyboards, as well as to various other types of electrical equipment, such as computer motherboards, automobile parts, robots, etc. It has a wide range of specifications to meet the needs of different types of keyboards. It is available in a wide range of specifications to meet different needs and provide convenience to customers.
Furthermore, GX16 4 Pin Aviation Connector for Keyboard is very safe and stable. Adopting metal electrical contact parts, it can effectively prevent the risk of erroneous electric reverse connection and electrostatic interference of electronic devices while working, and the connection is highly accurate and not easy to fall off. Its shell material is flame-retardant PC plastic, which can be fireproof and withstand various harsh
DRAW
Company Profile
Automated production plant for GX16 4 Pin Aviation Connector
Logistics & Payment
We support sea freight, air freight, land freight, we will choose the cost-effective route according to your budget and requirements, support credit card, PayPal and other payment methods.
Features
Our GX16 Aviation Plug Keyboard Cable Connector use high quality zinc alloy shell,and widely use in industry field and DIY your keyboard.
As our GX12 our GX16 is die-casting and milling 2 steps.So our product of GX16 aviation plug will more shiny than others manufacturer’s GX16 aviation connector.
Advantage
We are experienced manufacturers, we have many connectors to choose
We can print your logo on our products
We can customize the color according to your request
We can make OEM and ODM
