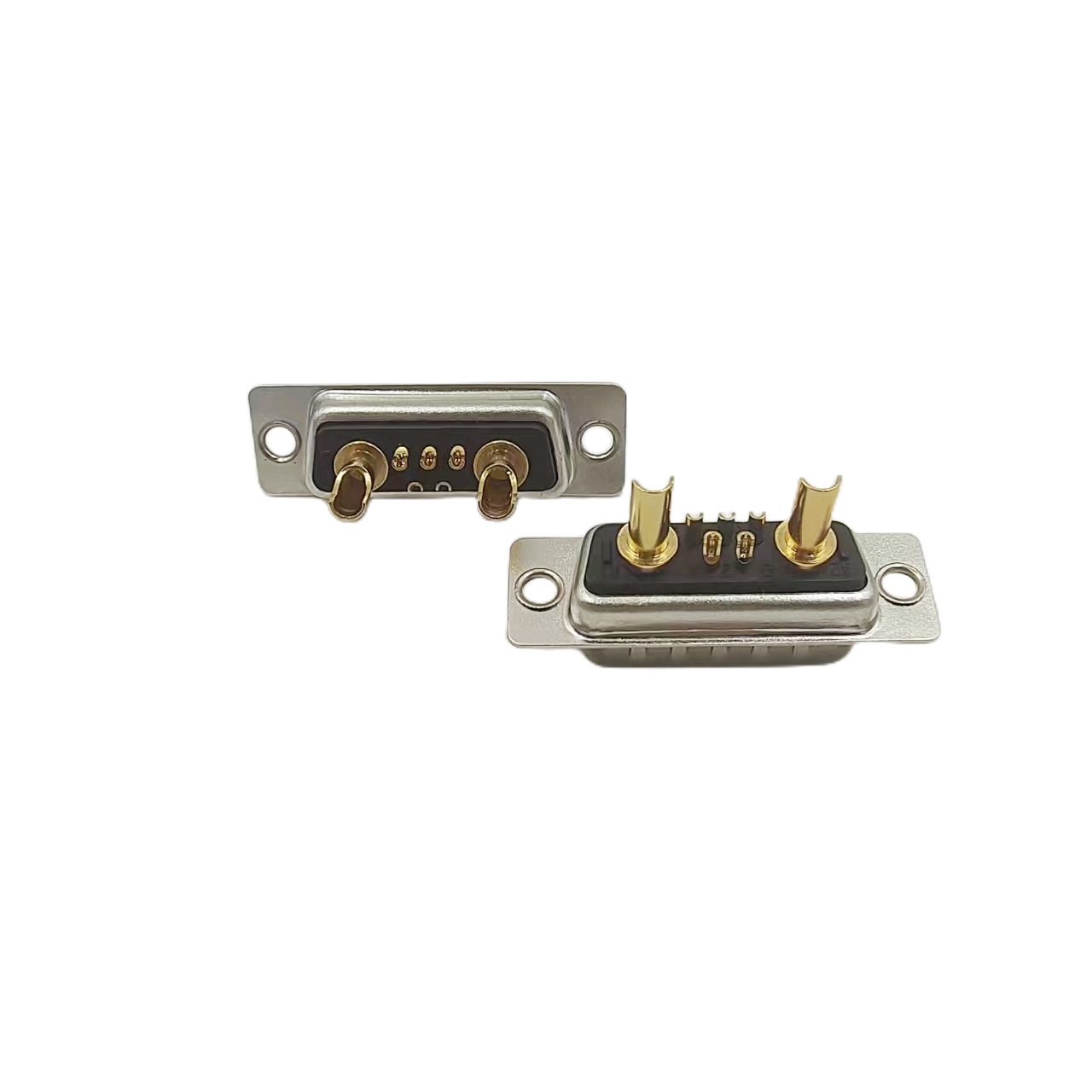

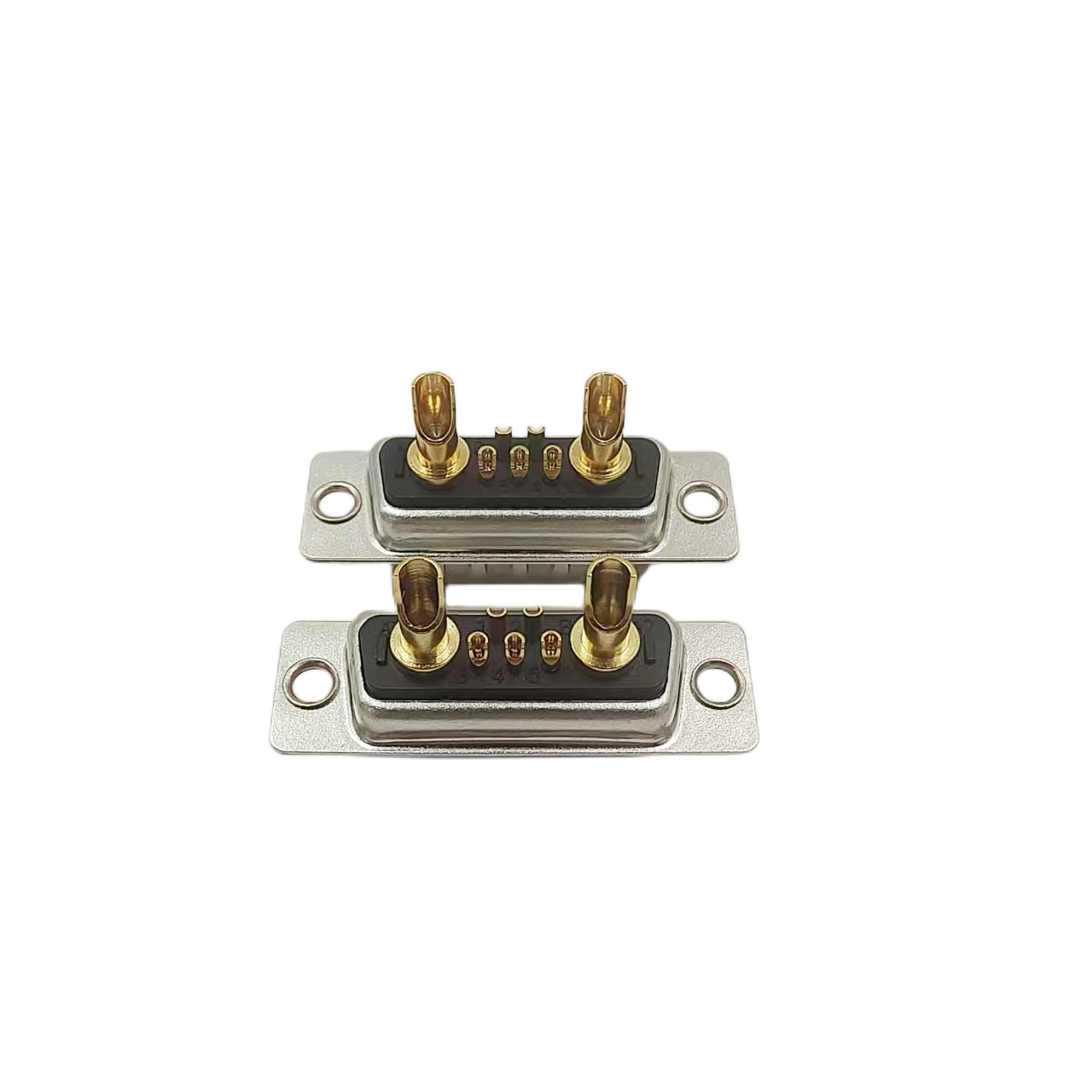

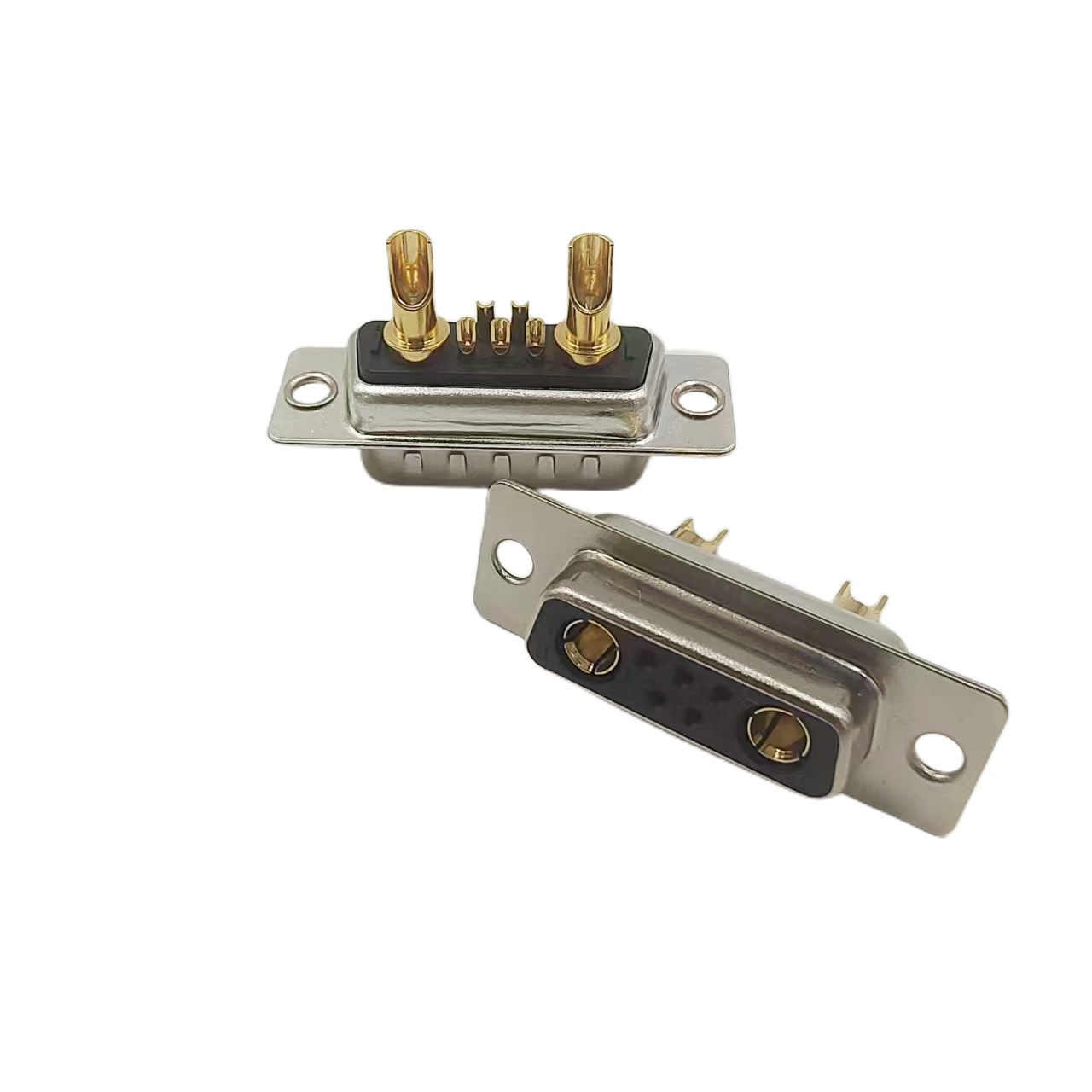

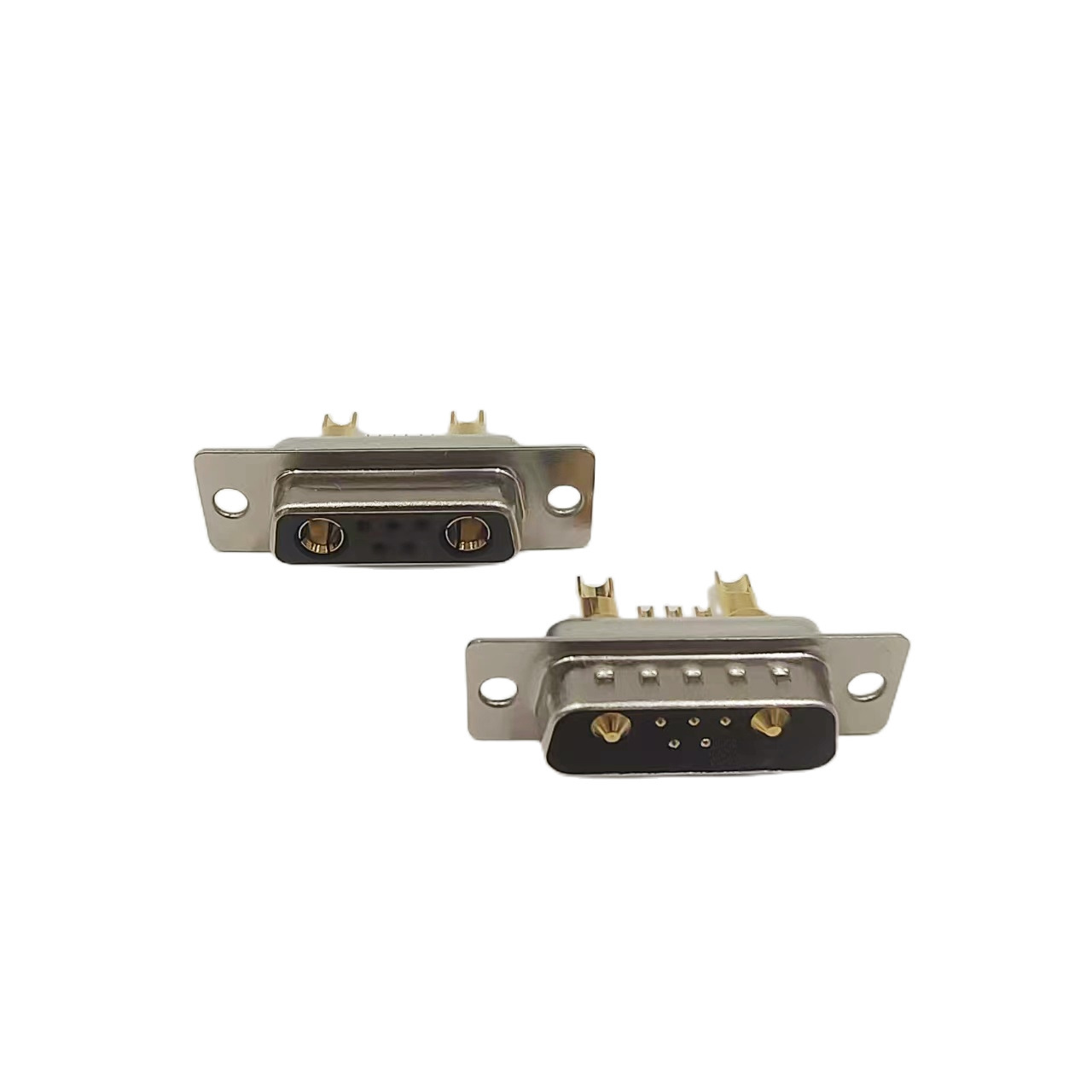

Product Description
D-Sub high current connector is an electrical connector widely used in high current transmission occasions. It has excellent conductivity and durability. It is usually composed of a metal shell and a plastic interior, which can effectively shield external electromagnetic interference. They are widely used in computer systems, television equipment, communications and other fields.
| Type |
Male-Pin/Female-Core |
| Connection method |
Welding Wire/ 90° Plug-in Board/ 180° Plug-in Board/ Pressure Row |
| Insulator Material |
PBT+Fiber30%, UL94V-0 |
| Shell Material |
Iron+Nickel Front and Tin Back (Salt Spray 24H) |
| Contact material |
Brass, Phosphor Copper (Customizable) |
| Working Temperature |
-55~+125℃ |
| Rated Current |
5A/10A/20A/30A/40A |
| Signal Transient Resistance |
≤10MOHM |
| Insulator Resistance |
1000VAC/1min at Sea Level |
| Insulation Resistance |
>5000MOHM |
| Coaxial Transient Resistance |
75 or 500HM |
| High Power Transient Resistance |
<2.7MOHM |
| Plug-in Force |
≤15.0KGF |
| Plug-in Times |
500 |
| Features |
High Hardness/ Not Easy to Rust or Deform/ Copper Gold-plated Shell/ Long Service Life |
| Application |
Computers/ Automobiles/ Communications/ Cabinets/ Aviation/ Industrial control equipment/ PCB Boards/ Power Cords/ Cables/ Game Consoles/ Large Equipment, etc. |
Product Features
1) High Current Carrying Capacity
The hollow tubular needle design supports up to 50A high current transmission, and can be mixed with signals, high voltage and optical fiber to meet the needs of high-density serial connection.
2) Electromagnetic Shielding and Protection
The metal shielding cover effectively reduces electromagnetic interference (EMI), and combined with the sealing design, it adapts to harsh environments (such as high temperature, high humidity, salt spray, etc.) to ensure signal transmission stability.
3) Durability and Compatibility
The large size and sturdy structure make it suitable for harsh scenes such as military and industry; it is also compatible with old equipment and can achieve safe and reliable connection through screw fixing.
4) Quick Installation and Maintenance
The push-in design simplifies the installation process and is easy to plug/disassemble; the large contact area and permanent crimping technology reduce contact resistance and reduce maintenance costs.
5) Diversified Application Scenarios
It is widely used in electric vehicles, UPS, medical equipment, industrial automation and other fields to meet the needs of different industries for efficient and reliable connections.
Company Profile
Certificates

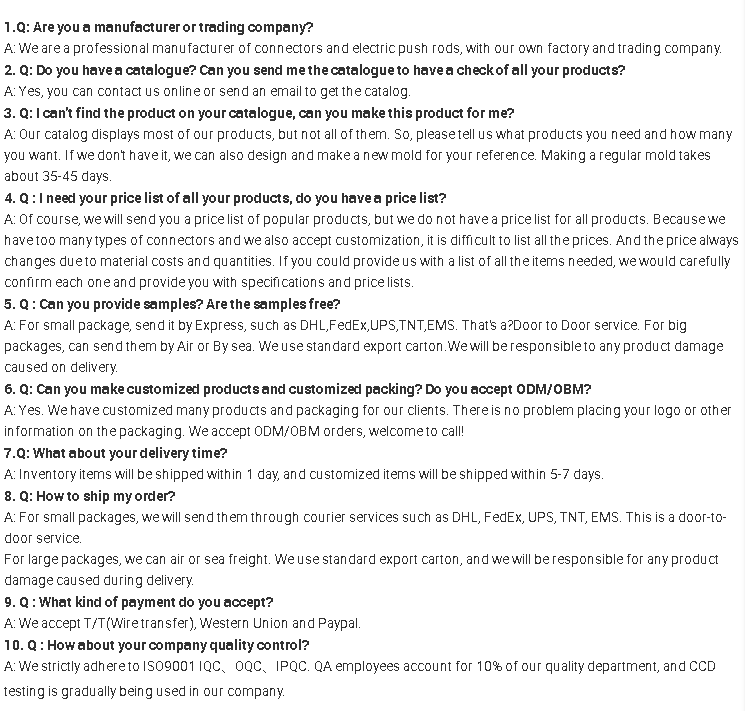

FAQ
