Services High Current High Voltage Battery Storage Terminal Plug
1. Product Introduction

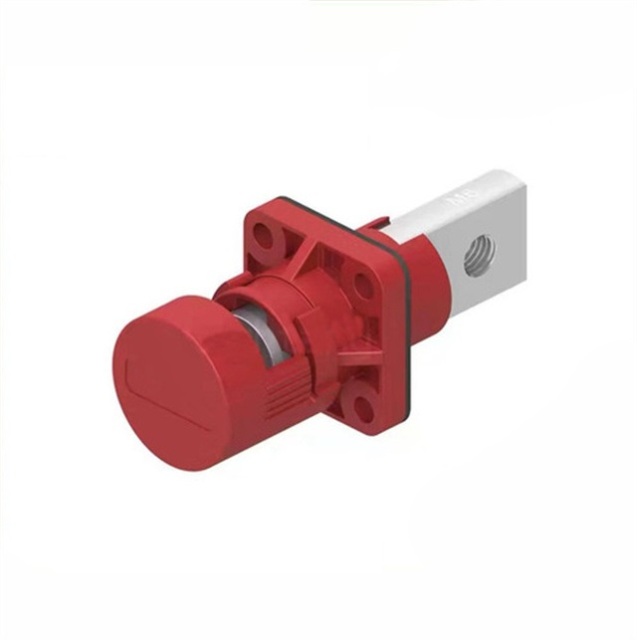

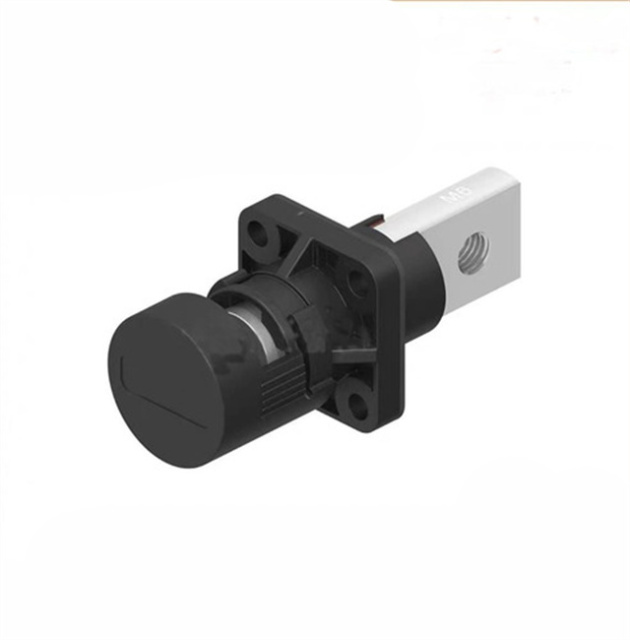

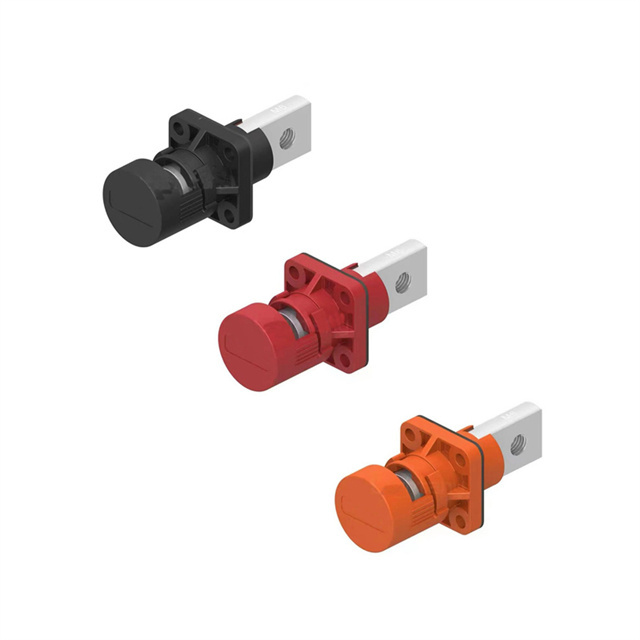

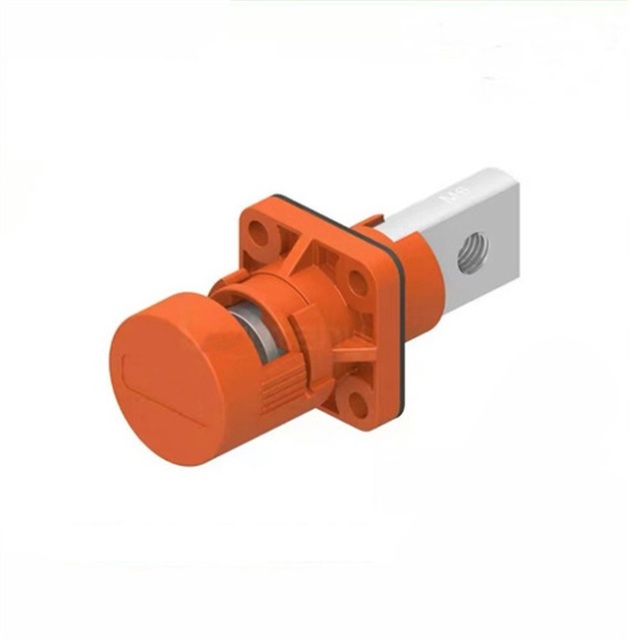

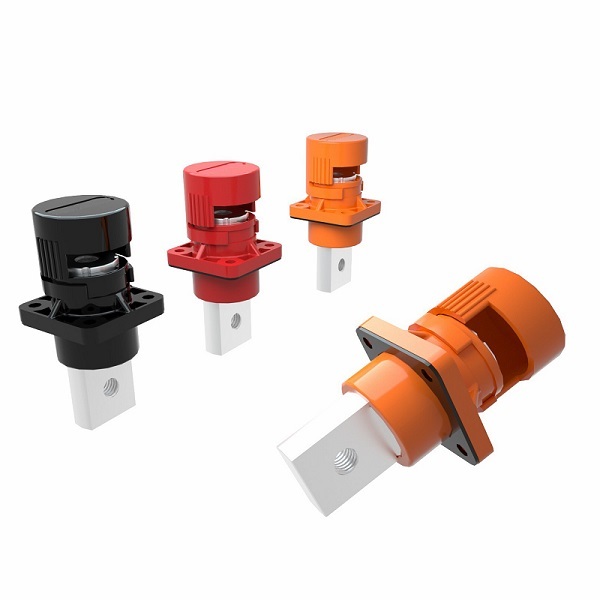

The copper bar type energy storage series terminal connector, have M6 and M8 thread specifications. The current of products of different sizes can meet 120A~350A, which can meet different customer requirements.
2. Product Parameter
| Rated Current | 120~350A |
| Rated Voltage | 1000V |
|
Contact Resistance |
0.1mΩ Max |
| Thread | M6/M8 |
| Type | Copper Bar |
| Conductor | T2 Copper |
| Shell | Nylon |
| Waterproof Level | IP67 |
| Temperature Range | -40℃~105℃ |
| Flammability | UL94V-0 |
| Application | Energy Storage, EV, HEV, Rail Mass Transit |
3. Express & Payment
4. Company Profile
5. Why Choose US!
We are an innovation driven company, we have a number of product design patents;
As long as there is demand in the market, we are willing to develop new products;
Advantages of composition control technology;
We have cast very good connector products and industrial cables, and adopted appropriate technology to ensure a smooth and defect free surface;
All our technological innovation is for one goal - the best quality, even if it means higher cost and lower productivity.
6. FAQ
