Energy Storage Power Conversion System
1. Product Introduction

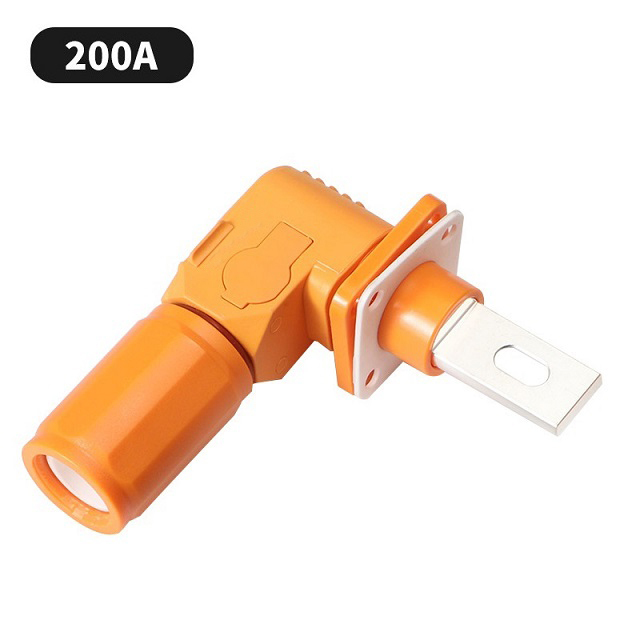

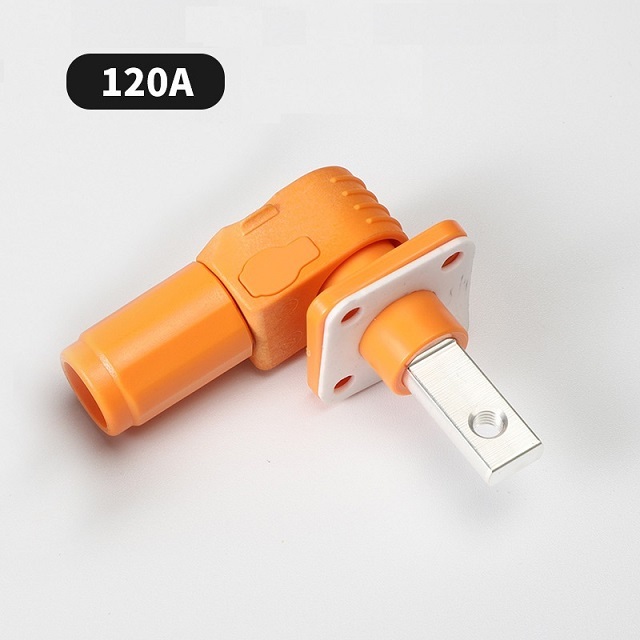

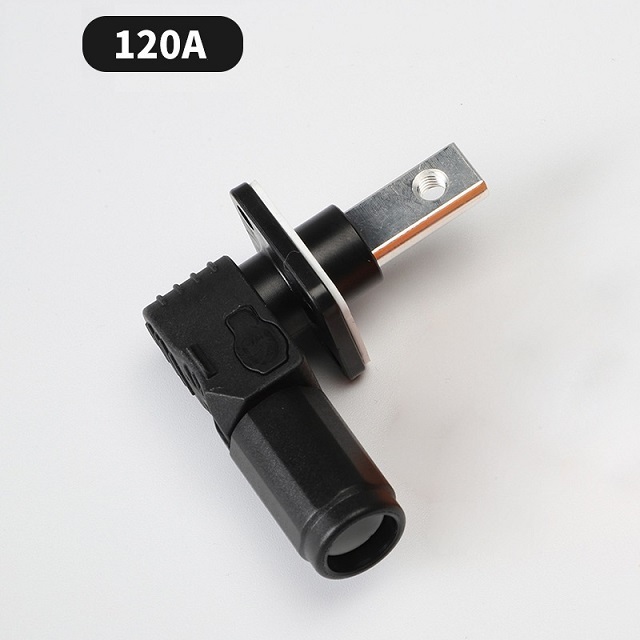

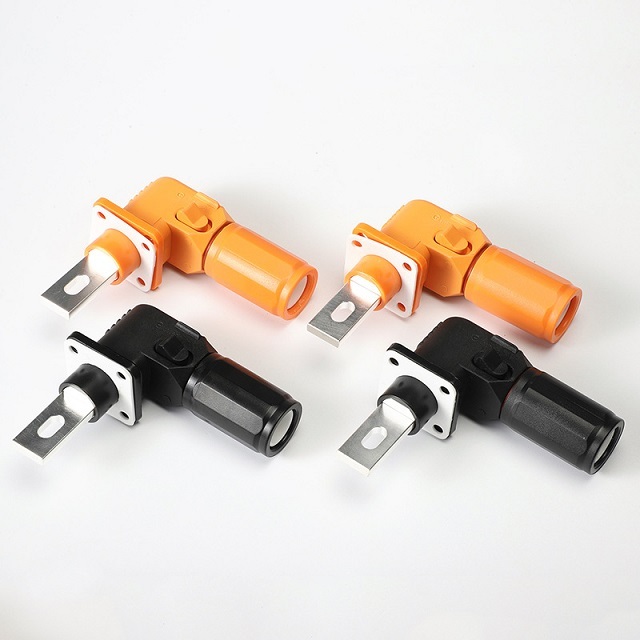

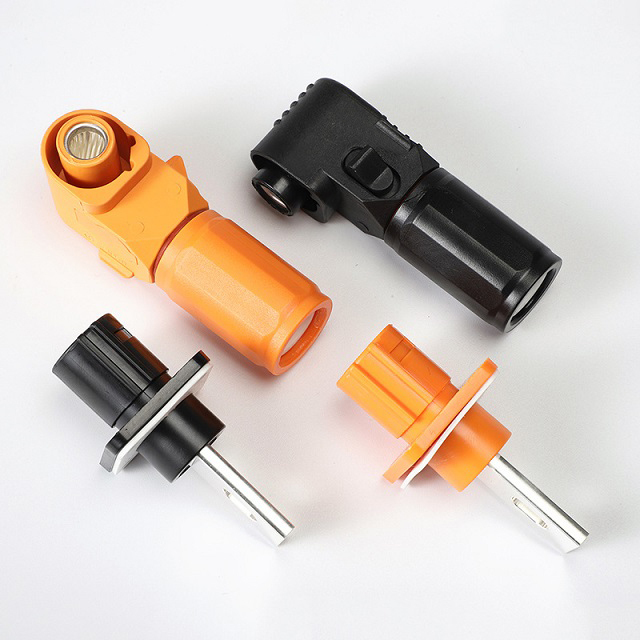

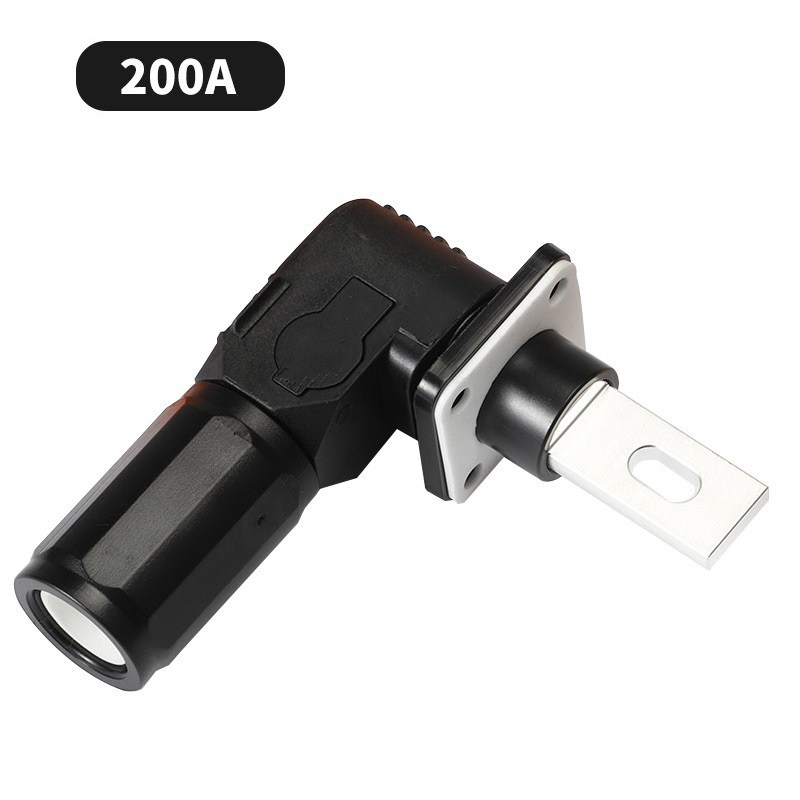

High current dc connector is small size, fast and convenient connection, using right-angle structure to save wiring space.
It has the function of preventing mis-insertion of positive and negative poles to prevent the risk of short circuit and arcing caused by mis-insertion. At the same time, it can be rotated 360°, which is convenient for multi-directional installation and outlet.
It adopts a built-in connection and locking mechanism, which can be operated by one hand and can be automatically locked.
It has excellent protection against electric shock.
2. Product Parameter


| Current(DC) | 120A, 200A |
| Voltage | 1500V |
| Dielectric Strength | 5000V |
| Temperature Range | -40℃~125℃ |
| Flammability Rating | UL94V-0 |
| Cable Diameter | 16/25m㎡(120A); 35/50m㎡(200A) |
| Contact Resistance | ≤0.5mΩ |
| Color | Orange, Black |
| Material | PA66/T2/PC-PBT |
| Service Life | 15 Years |
3. Express & Payment

4. Company Profile
Xiamen Leaka Electrical EquipmentCo., Ltd., established in 2015, is an experienced connector manufacturer. As a supplier of local automation products in China, we are committed to providing customers with cost-effective products and connector solutions.
Leaka has complete and advanced production equipment, testing equipment and experienced professional technical team. We continue to regard the development of new products and the improvement of new processes as the two key directions for the long-term development of the enterprise. The customized industrial harness and connector products provided by us are manufactured in strict accordance with the international standards of various technical agreements, and each production process and installation step of the products are strictly controlled to ensure that the delivered products meet and exceed the expectations of customers.
5. Why Choose US!
Customized--We are the manufacturer! sample &OEM&ODM are available!
Safety--We have own test chart, all of our products have been rigorously tested in the factory.
Certification--We have CE and quality management system certification.
High Quality --Our company uses the most advanced equipment to make the best quality products.
6. FAQ
Q1:Are you a manufacturer, trading company or a third party?
A1:We are a manufacturer with experienced R&D and sales team.
Q2:Where is your factory located?
A2:Our factory address is : No.101 Huizuo Road, Xinyang Street, Haicang District, Xiamen city, Fujian Province, China.
Q3:What is your order quantity, can you send me samples?
A3:The order quantity of our products is uncertain, depending on the nature of the product.
Q4:Which level of quality are your products?
A4:We have got CE, ISO, CCC, TUV certificate so far.
