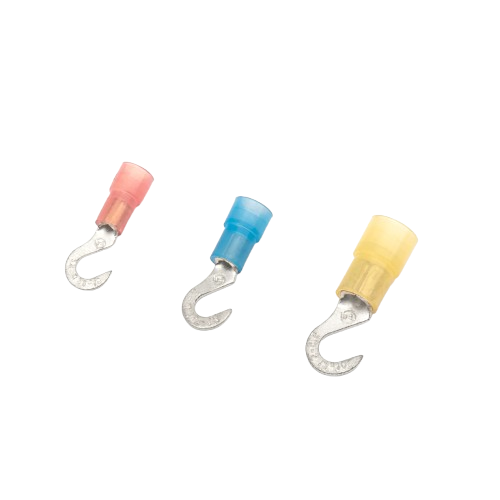

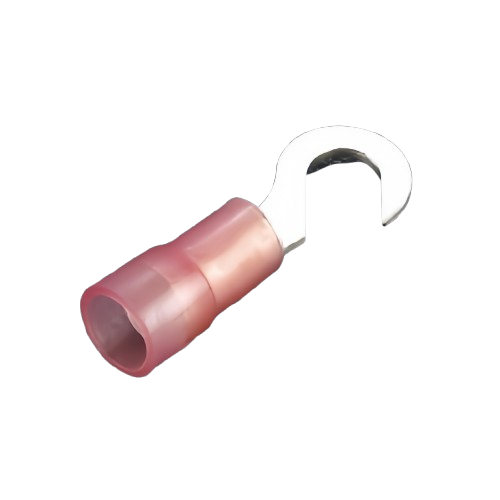

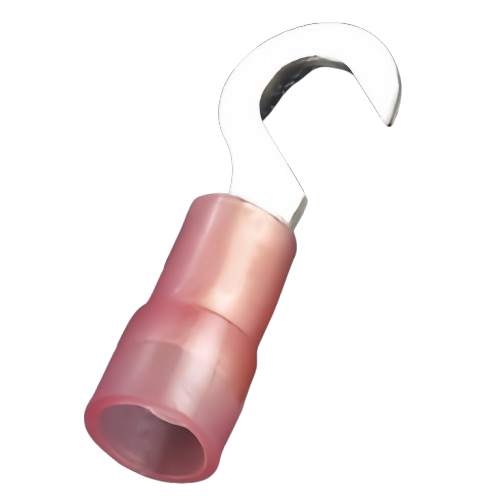

Products Description
1. Durable Construction:
This product features a sturdy nylon insulated design, ensuring long-lasting performance and protection against environmental factors. The copper material provides excellent conductivity, while the tinning surface treatment enhances its durability and resistance to corrosion.
2. Versatile Wire Compatibility:
The product is compatible with a wide range of wire sizes, from 10AWG to 26AWG, making it suitable for various applications and user preferences, including those specified by a user who requires a specific wire size.
3. High-Quality Certifications:
The product meets international safety standards, holding UL and CE certifications, as well as ROHS compliance, ensuring that it meets the needs of users who require a product that meets rigorous quality and safety standards.
4. Color Options:
The product is available in red, blue, and yellow, providing users with a range of color options to choose from, including the specific color required by a user who needs a particular hue.
5. Extended Warranty:
The product comes with a 5-year warranty, providing users with peace of mind and protection against defects or malfunctions, including those that may occur due to user error or misuse, as specified by a user who needs a reliable product.
| Type |
Crimp Terminal |
| Color |
Blue/Yellow/Red |
| Lead Section |
0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current |
Imax=19A/Imax=27A/Imax=48A |
| Material |
Copper |
| Insulation |
PA66 |
| Surface Treatment |
Matte tin plating |
| A.W.G |
22-16 AWG /16-14 AWG /12-10 AWG |
| Rated Voltage |
220V |
| Max. temperature resistance |
105℃ |
