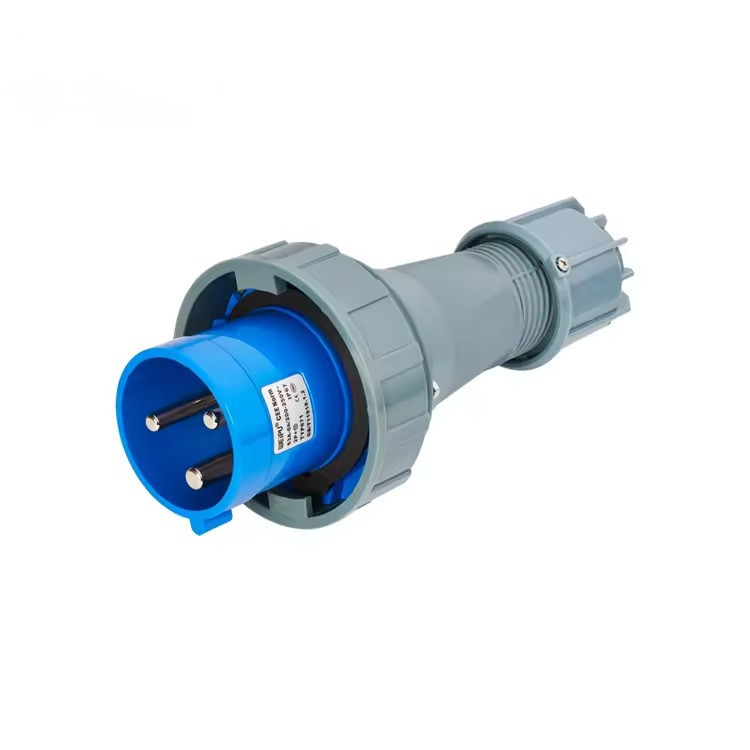

Technical SpecificationsIP44 IP67 Waterproof WEIPU IEC60309 CEE TYE 3Pin 4Pin 5Pin High Current Conenctor Blue Industrial Male Plug
| Coupling |
Bayonet |
| Protection level |
IP44/ IP67 |
| Shell material |
Nylon66 |
| Contact material |
Brass with nickel plating |
| Temperature range |
-25℃~ +85℃ |
| Rated Current |
16A/32A/63A/125A |
| Rated voltage |
220V/380V |
| Test voltage |
2500V |
As industrial plugs and sockets compliant with the IEC 60309 standard, the WEP TYE series is an indispensable device for applications requiring high safety, reliability, and professional power distribution.
1. Construction Sites and Temporary Power
- 1) Applications:
This is a classic application area. Construction sites are harsh environments, making electrical safety paramount.
- Applications:
Provide power connections for various power tools (such as rotary hammers, cutters, and mixers), temporary lighting systems, welders, and temporary distribution boxes.
2) Why it's suitable:
- IP44/IP67: Effectively protects against rain, mud, sand, and dust, ensuring safe power use outdoors and in harsh construction site environments.
- Mechanical Strength: The rugged housing withstands the bumps, crushing, and pulling of construction sites.
- Anti-Mistake: Voltage identification by color and pin number (e.g., blue for 250V, red for 380V) prevents 110V equipment from being mistakenly plugged into a 380V power source, protecting both personnel and equipment.
2. Factory Floors and Production Lines
1) Applications:
- Industrial manufacturing environments require extremely stable and secure power connections.
- Applications: Providing power interfaces for CNC machine tools, stamping equipment, injection molding machines, industrial fans, assembly lines, and robotic workstations.
2) Why it's suitable:
- High current carrying capacity (16A-125A): Meets the power requirements of most industrial equipment.
- Safety and reliability: The fully enclosed design protects workers from electric shock and prevents foreign objects such as metal debris from falling into the socket and causing short circuits.
- Easy to manage: Factories can implement intuitive power safety management by deploying different colored sockets in different areas (e.g., blue for single-phase equipment, red for three-phase equipment).
3. Outdoor Activities and Performances
1) Applications:
- Outdoor power use must take weather factors into consideration, and safety is paramount.
- Applications: Powering stage lighting, sound equipment, LED screens, and refrigerators/stoves at outdoor music festivals, concerts, exhibitions, and night market stalls.
2) Why it's suitable:
- Waterproof and rainproof: IP44 and above ratings easily withstand rain splashes, and IP67-rated products can even withstand brief immersion, ensuring activities aren't interrupted by weather.
- Durable: The rubber sheath and rugged exterior withstand the wear and tear of transportation, setup, and dismantling.
4. Infrastructure and Public Services
1) Applications:
- Ports and terminals: Provide a standard power interface for reefers and port handling equipment.
- Airports: Connect ground support equipment (such as aircraft charging units and baggage handlers).
- Sewage treatment plants and pumping stations: Humid environments with frequent washdowns make the TYE's high protection rating ideal.
- Massive shopping malls and supermarkets: Provide backup power interfaces for high-power equipment such as central air conditioners and refrigerated cabinets.
2) Why it's suitable:
Standardization and reliability. The IEC 60309 standard is widely adopted by ports and airports worldwide, ensuring compatibility and absolute security for equipment connections from different countries.
5. Agriculture and Horticulture
1) Applications:
Provides power for irrigation systems, ventilation systems, and fill lights in large agricultural greenhouses, as well as lawn mowers and trimmers used in landscaping.
2) Why it's suitable:
Resistant to outdoor humidity, mist, and dust, ensuring stable and secure agricultural power supply.
6. Data Centers and Computer Rooms
1) Applications:
Serves as input/output interfaces for precision air conditioners, large UPSs (uninterruptible power supplies), generators, and other equipment.
2) Why it's suitable:
High current carrying capacity and extremely high reliability are essential for ensuring uninterrupted power supply operation for critical facilities.
