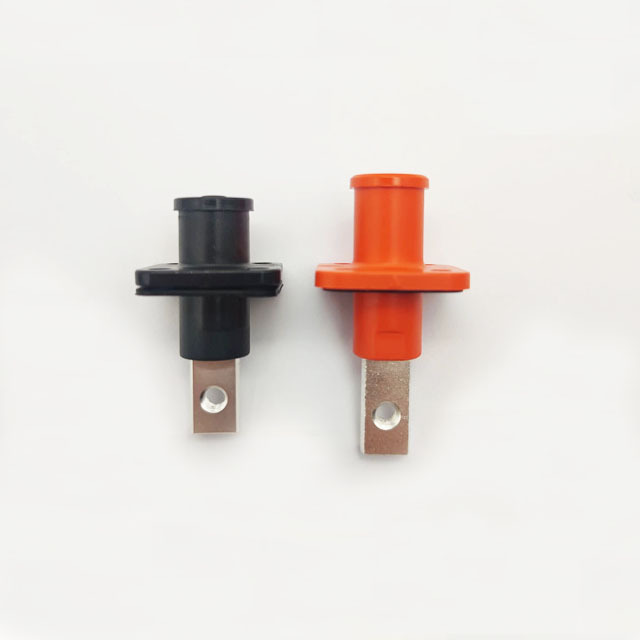

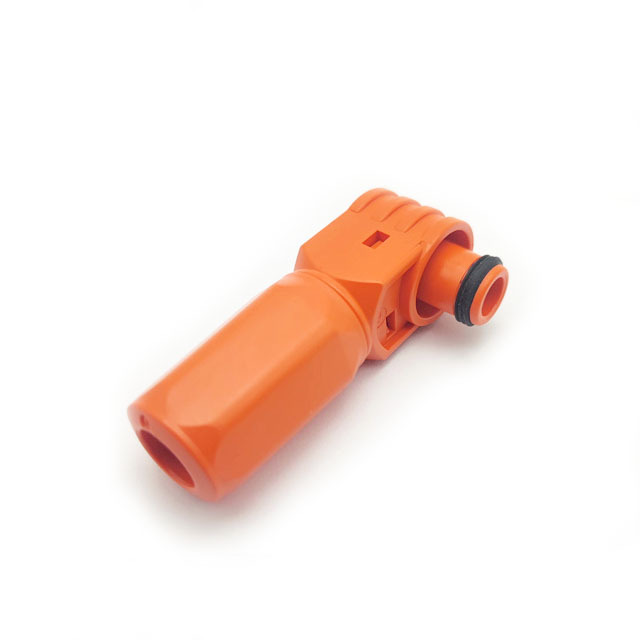

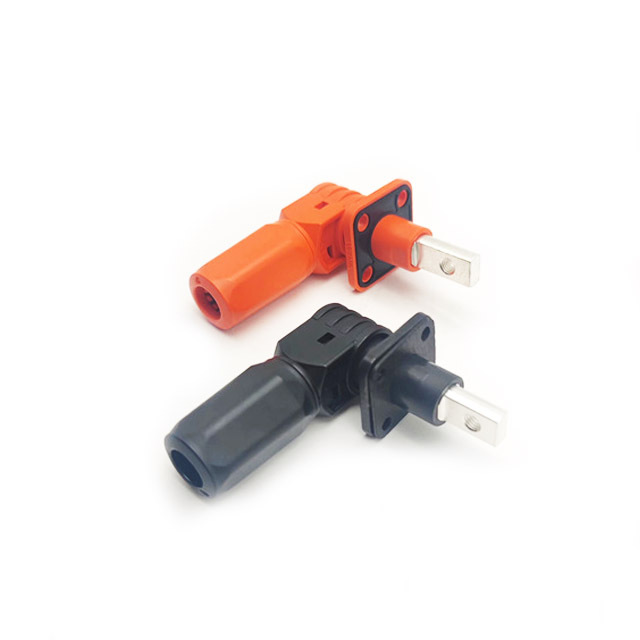

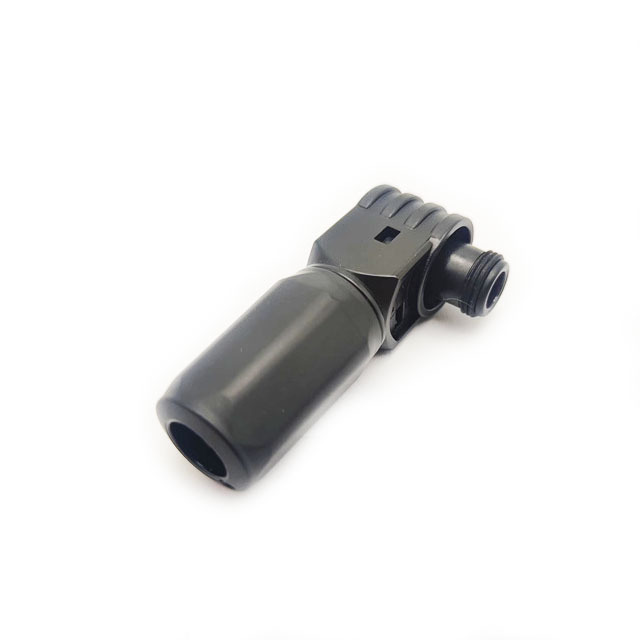

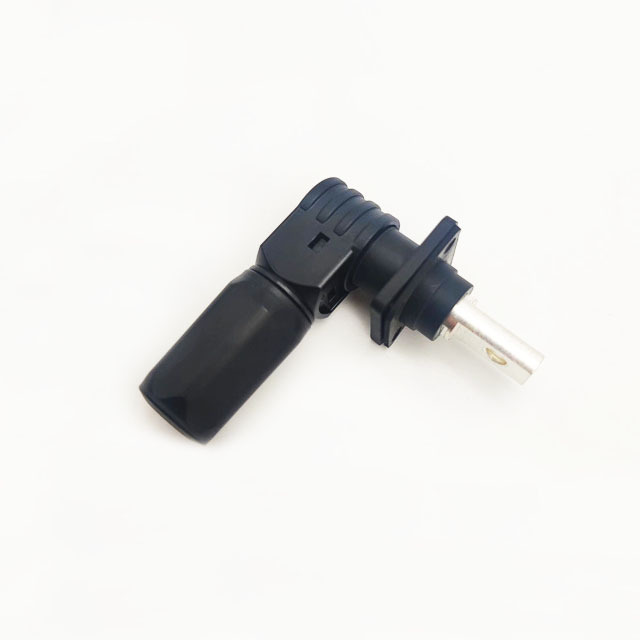

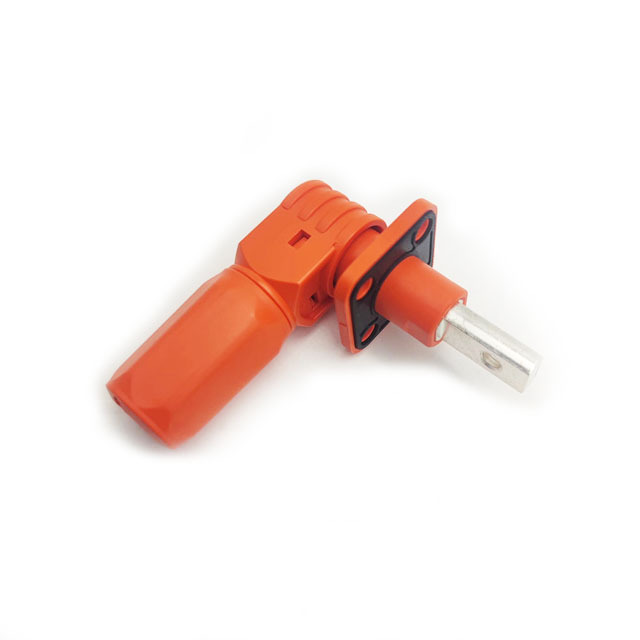

IP67 Energy Storage Connector Voltage
1. Product Introduction
The application of the energy storage electrical connector is to be exposed on automobiles and energy storage equipment, and it is convenient to use in a limited space and has reliable performance.
In addition, the single-core elbow of the connector has a 360° rotation lock function. Its compact design makes it suitable for many fields and connection is quick and easy. It is used in the field of electric vehicles and energy storage equipment, making it the first choice for low cost.
High current energy storage connector is used in user-side energy storage, grid-side energy storage, shore power energy storage, industrial and commercial energy storage, integrated solar storage and integrated wind storage.
2. Product Parameter
| Current(DC) | 120A, 200A |
| Voltage | 1500V |
| Dielectric Strength | 5000V |
|
Temperature Rise |
45K Max |
| Flammability Rating | UL94V-0 |
| Cable Diameter | 16~25m㎡(120A); 35~50m㎡(200A) |
| Contact Resistance | ≤0.5mΩ |
| Color | Orange, Black, Claret |
| Material | PA66/T2 |
| Wiring Mode | Crimp Connection |
| Protection Degree | IP67 |
3. Express & Payment
4. Company Profile
Xiamen Leaka Electrical Equipment Co., Ltd., established in 2015, is a high-tech enterprise in Xiamen City. It has successfully passed the environmental assessment and acceptance of the Environmental Protection Bureau. It has dozens of scientific and technological patents. The company has passed ISO9001:2015 system certification, and its products have passed CE, IP67 protection, REACH191 certification, The products meet the requirements of SGS and ROSH directives. Our company has also passed the on-site certification of TUV suppliers made in China. The quality reliability and technical standards of the products have reached the international and domestic advanced level of technology.
Our R&D and design capabilities:
Our company's R&D and design team has many years of professional product development and design experience, mainly in product design and process capabilities of electrical connections and sensors, related mold design capabilities, mechanical structure design capabilities, electrical control design capabilities, mechatronics design capabilities, And the mass production process design capabilities of connectors, the mass production process design capabilities of low-voltage communication wiring harnesses, and the mass production process design capabilities of high-voltage wiring harnesses. Mature use of a variety of computer software simulation design.
5. Why Choose US!
We are an experienced factory;
We have a variety of connector products and industrial cables for you to choose from;
We can print your logo on connector products;
We can customize colors and even styles according to your needs;
We can do OEM and ODM, also can provide sample service.
