IP67 self-locking waterproof male female panel mount m19 connector plug

No.M19-A
Unit price:USD2.87/piece Place of China:Fujian,China Certificate:TUV,CQC,CE Payment terms:100% T/T,Mastercard credit card,payoneer,e-Checking
GET A QUOTE
  • IP67 self-locking waterproof male female panel mount m19 connector plug
  • IP67 self-locking waterproof male female panel mount m19 connector plug
  • IP67 self-locking waterproof male female panel mount m19 connector plug
  • IP67 self-locking waterproof male female panel mount m19 connector plug
  • IP67 self-locking waterproof male female panel mount m19 connector plug

Description

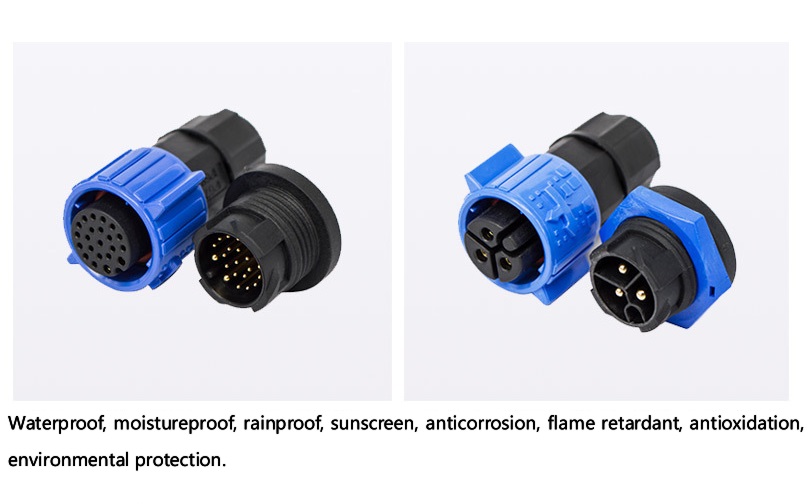

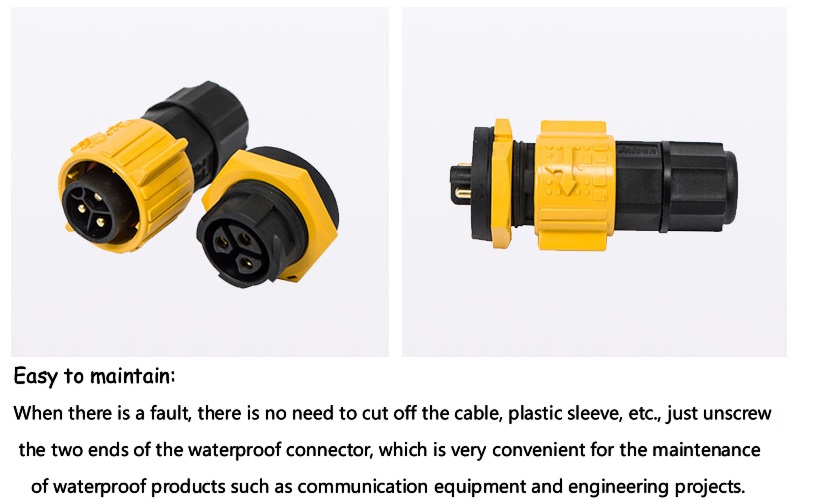

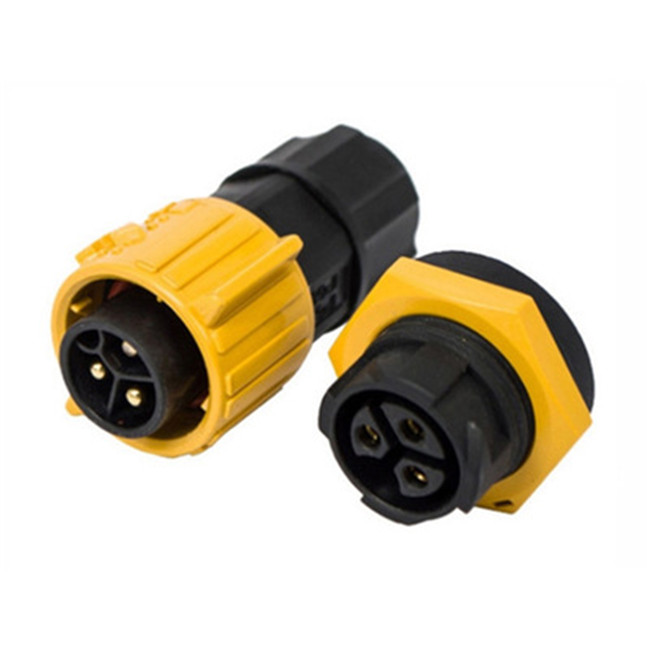

M19 IP67 waterproof self-locking male female panel mount plug connector

Color:yellow/blue
Wire diameter range:Φ4.5-Φ11
Contact plastic:Nylon V-0 flame retardant
Relative humidity:≤90%
Withstand voltage:AC/DC 1500V
Fire-proof level:94-V0
Working temperature:-40℃~+105℃
Contact resistance:≤10mΩ
Rated current:20A
Rated voltage:300V
Wiring method:welding wire type, screw lock wire

Download
