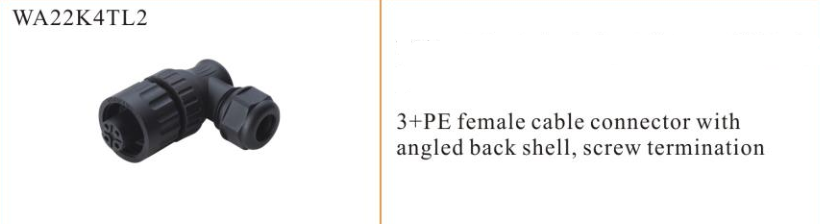

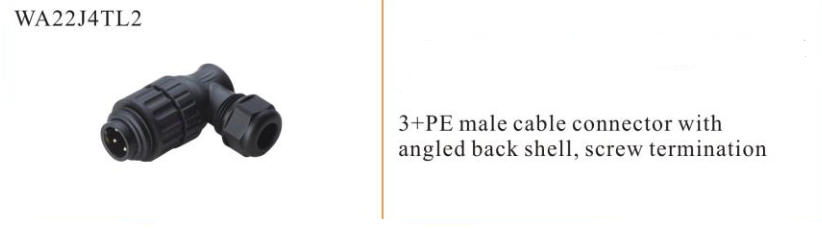

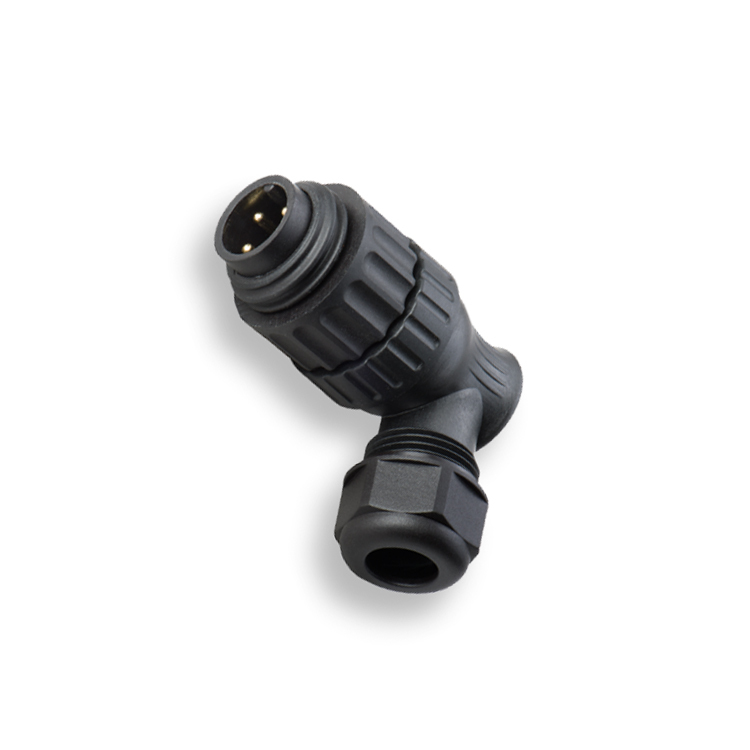

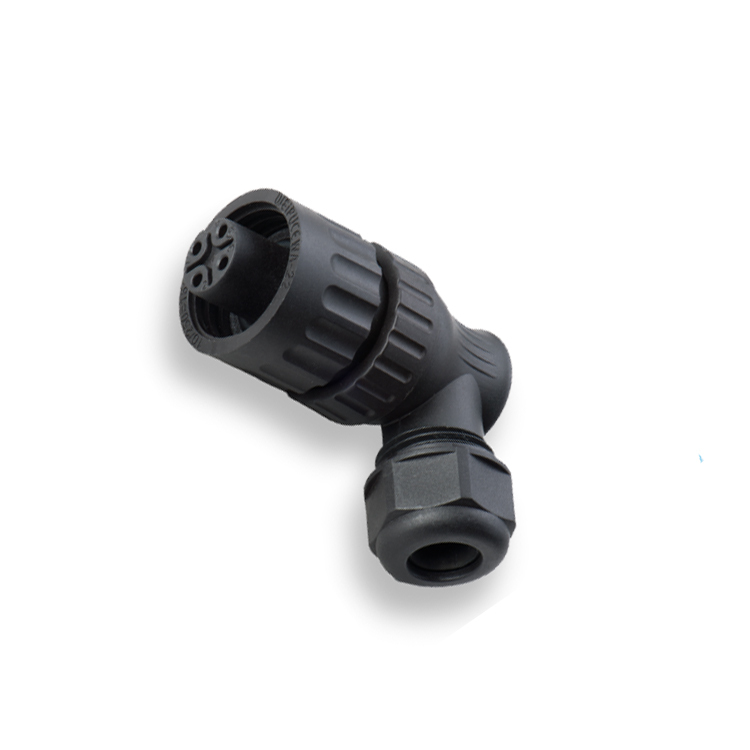

| Product name | IP67 WA22 series WA22J4TL2 WA22K4TL2 waterproof 3+PE 4 pin plug angled black shell cable connector |
| Wire size | ≤2.5m㎡/ 14AWG |
| Shell material | Nylon 66, fire resistance: V-0 |
| Contact material | Brass with gold plating |
| Rated current | 16A |
| Rated voltage | 400V |
| Insulation resistance | 2000mΩ |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 50000 pcs per month |
| Mating cycle | >500 |
| Temperature | -40℃~+80℃ |
| IP rating | IP68 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
