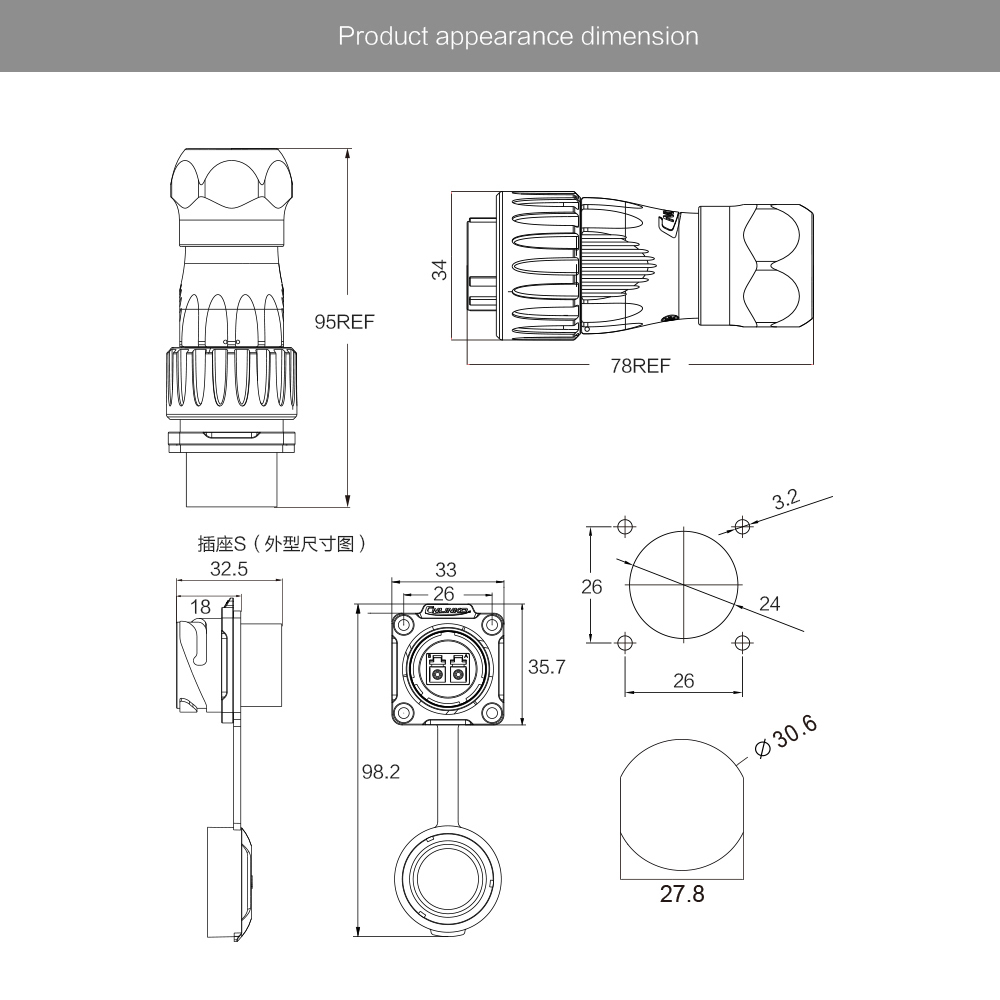

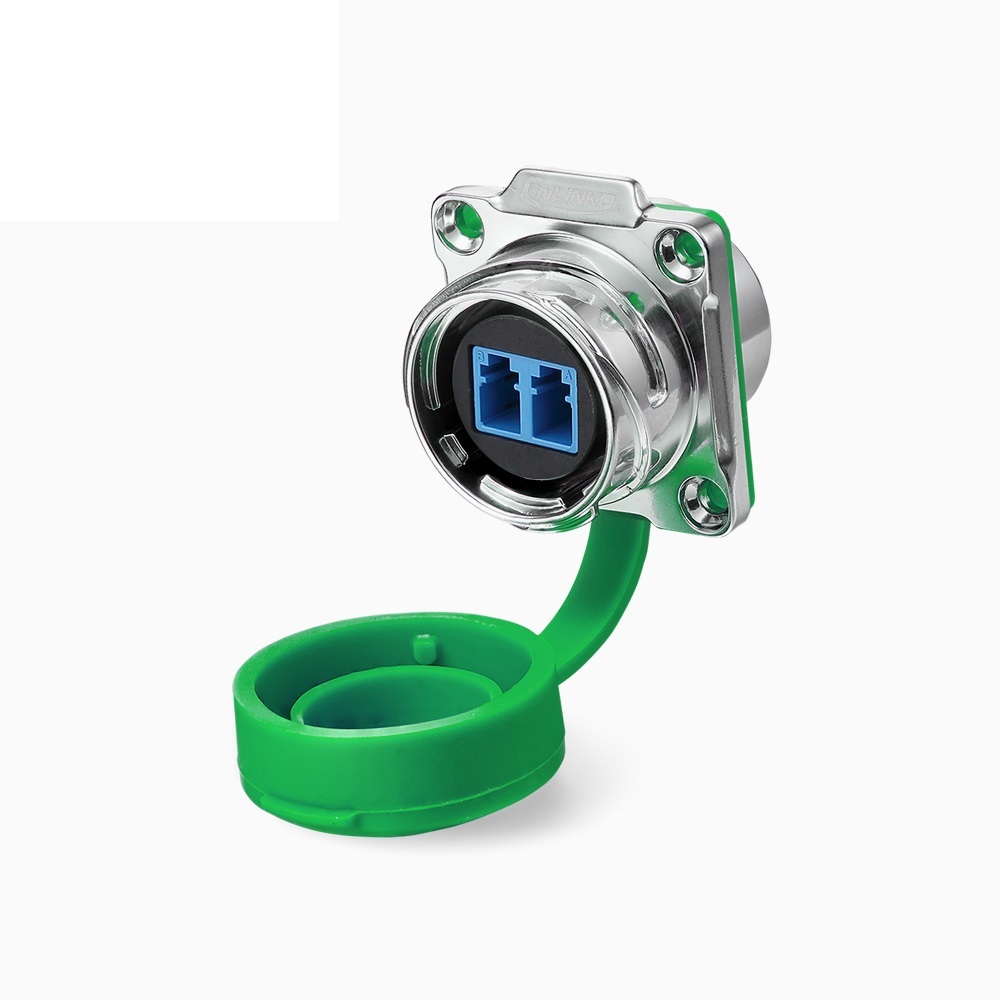

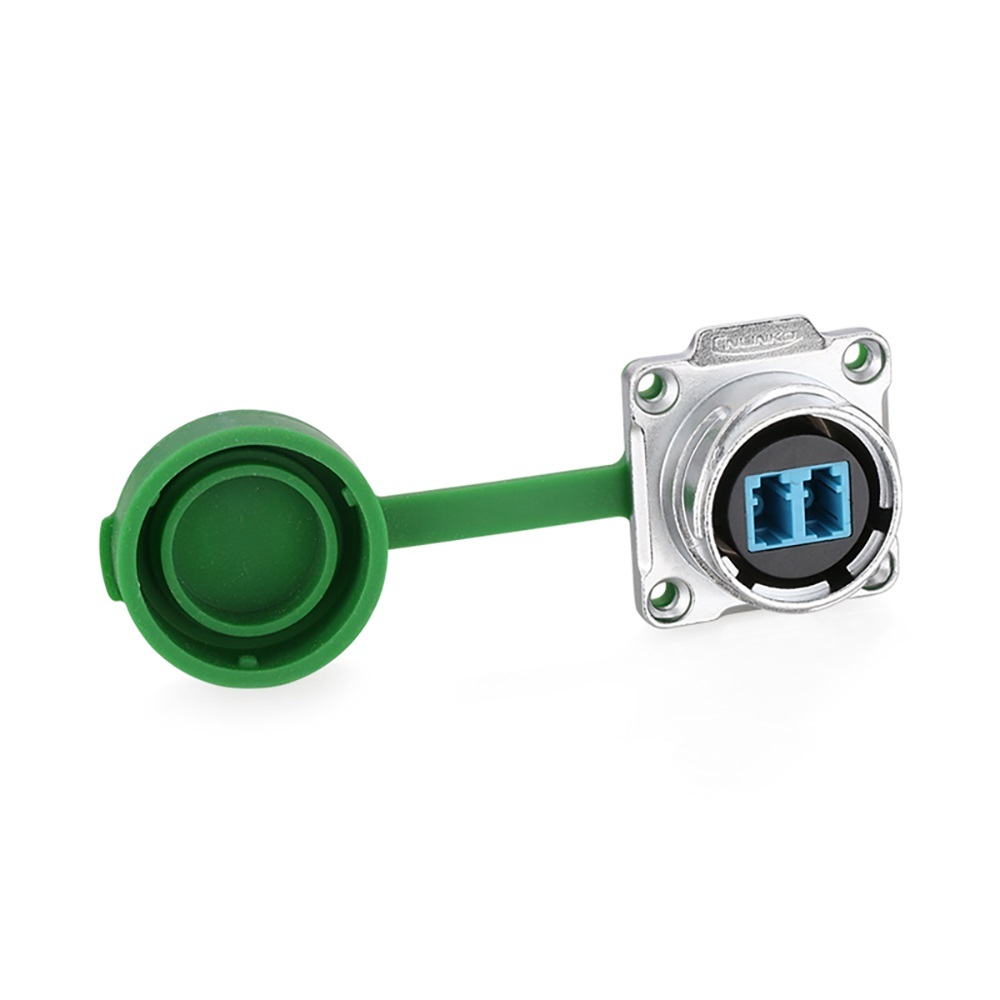

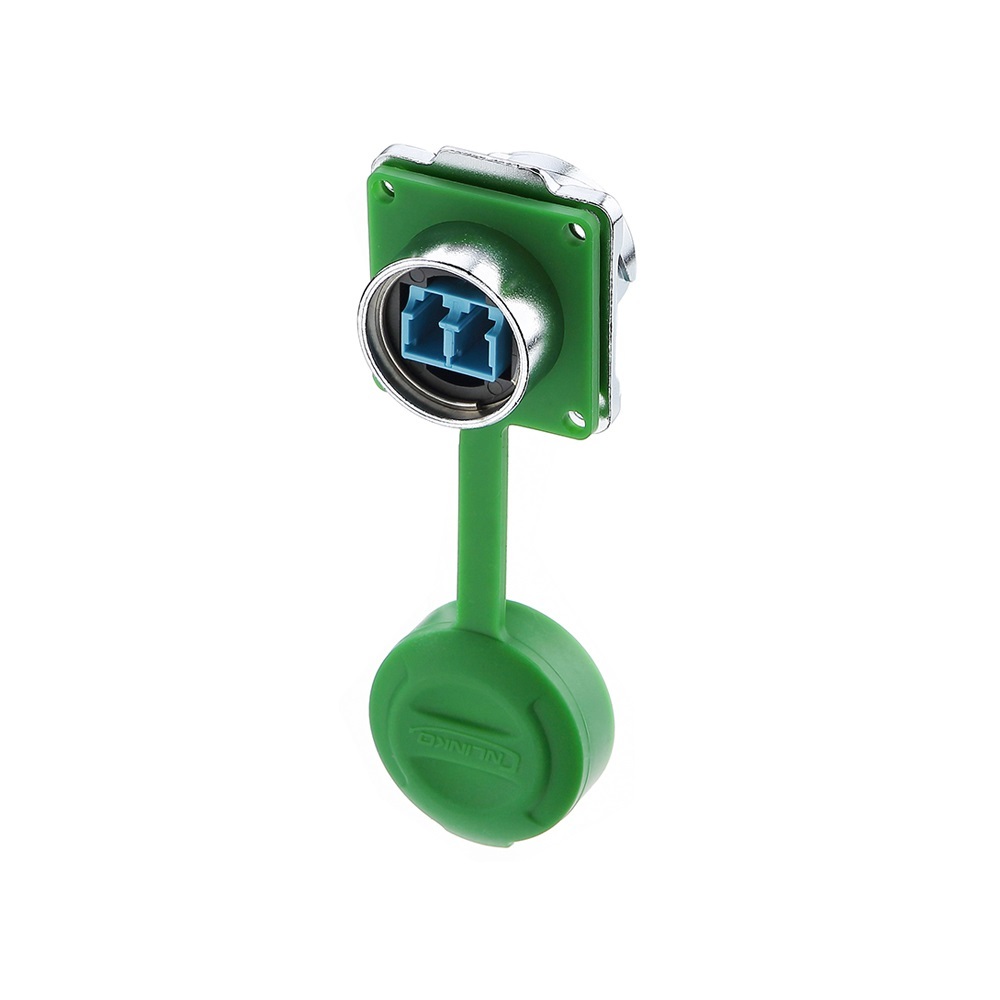

IP67 fiber optic connector jack supports 24mm mounting hole position;

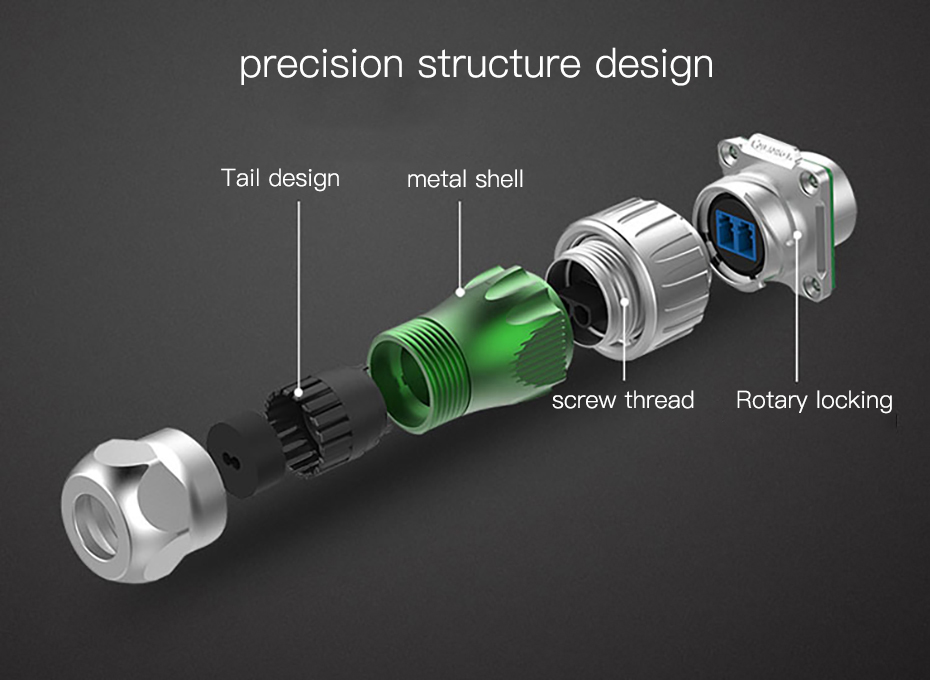

Adopt three-point spiral locking of military industry standard;
Alloy shell material can reduce electromagnetic signal and RF interference;

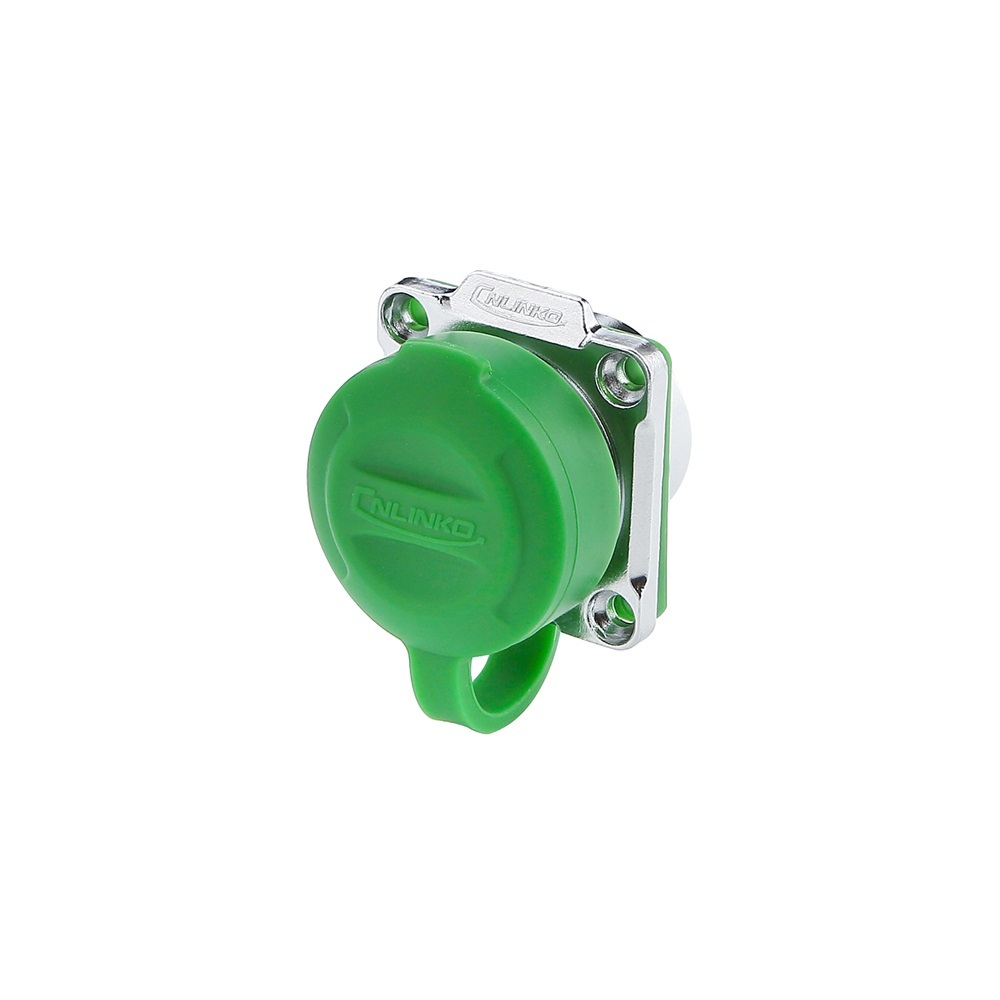

Dust cover made of metal and silica gel to meet different needs;
The protection grade of the connector in the connected state can reach IP67.
2. Product Specification
| Contact Number | 2 Pin |
| Insulation Resistance | ＞500mΩ |
| Protection Grade | IP65/IP67 |
| Coupling | Quick Bayonet Connection |
| Mating Cycle | ＞500 Times |
| Working Temperature | -40℃~80℃ |
| Shell Insulator Material | High Performance Engineerig Plastics |
| Metal | Zinc Alloy |
| Waterproof Ring | Silicon Gel |
| Flame Retardant | UL94-V0 |
4. Express & Paymet
A wide range of connector products are used in data, signal, optical fiber, power supply, industry, home decoration, food and pharmaceutical industries;
Years of experience in customizing products to meet different customer requirements;
Through a number of product certification systems, the quality is safe and reliable;
The whole process documentary service and customer satisfaction are our pursuit.
6. FAQ
