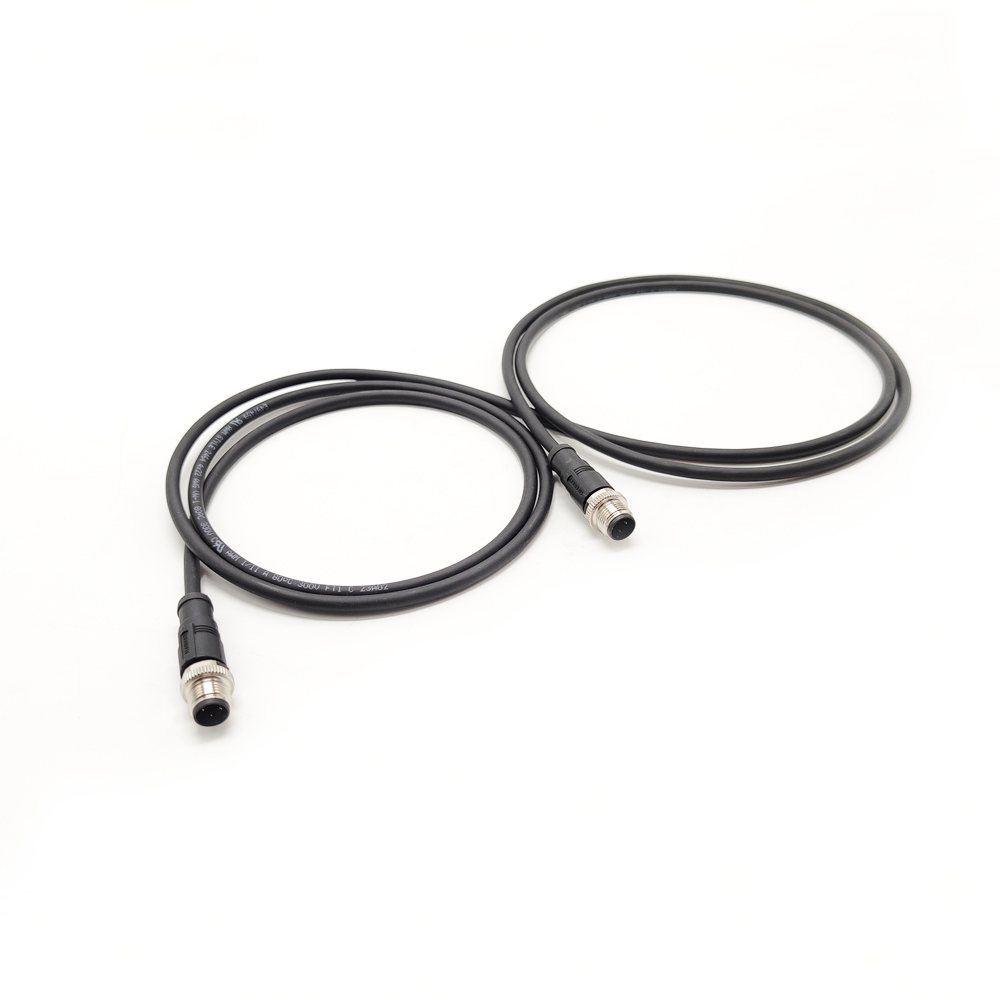

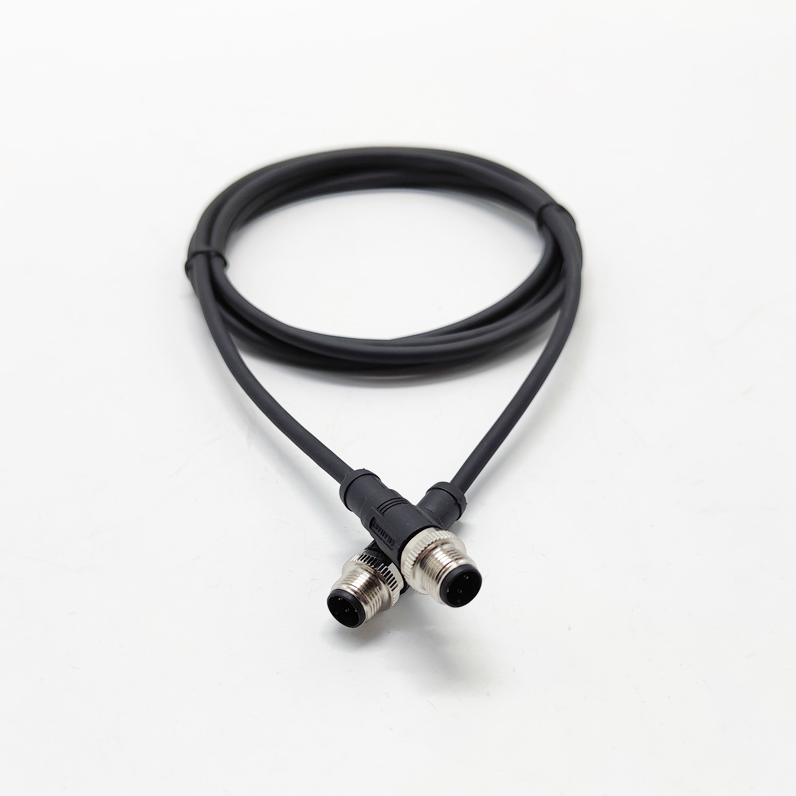

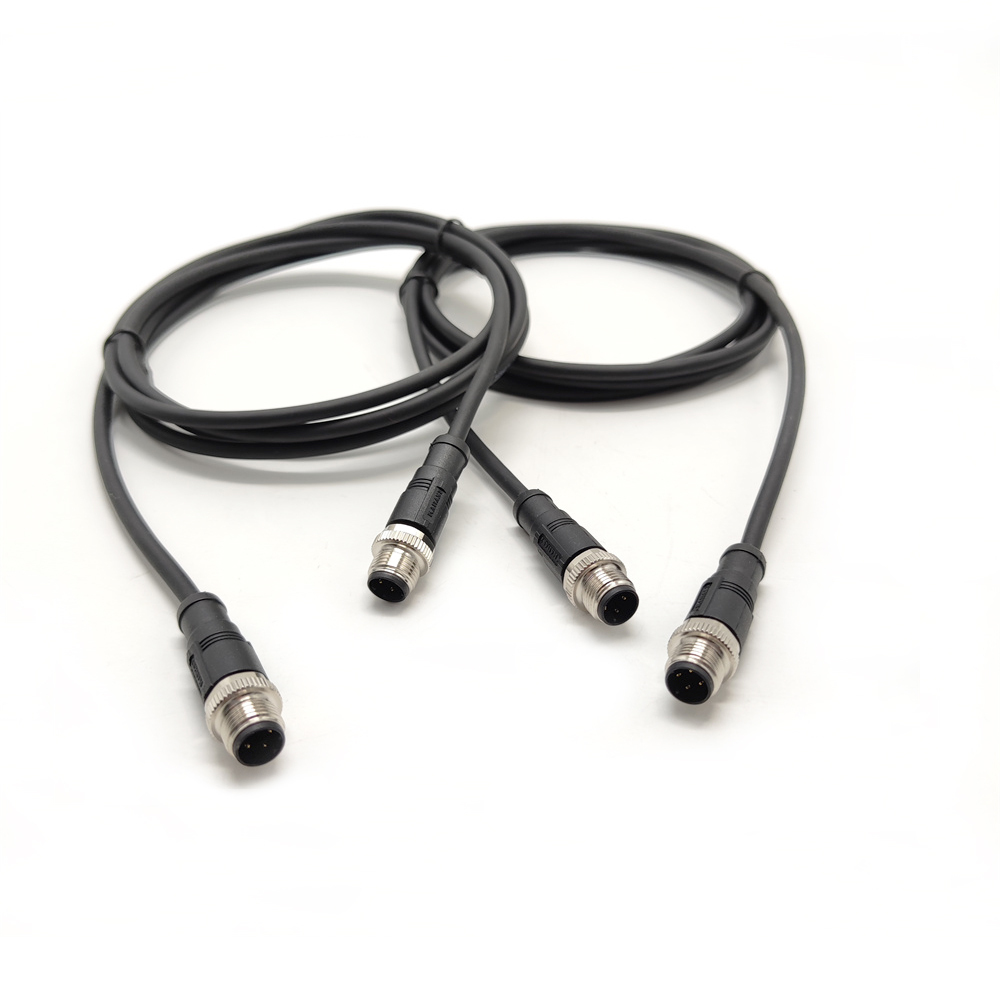

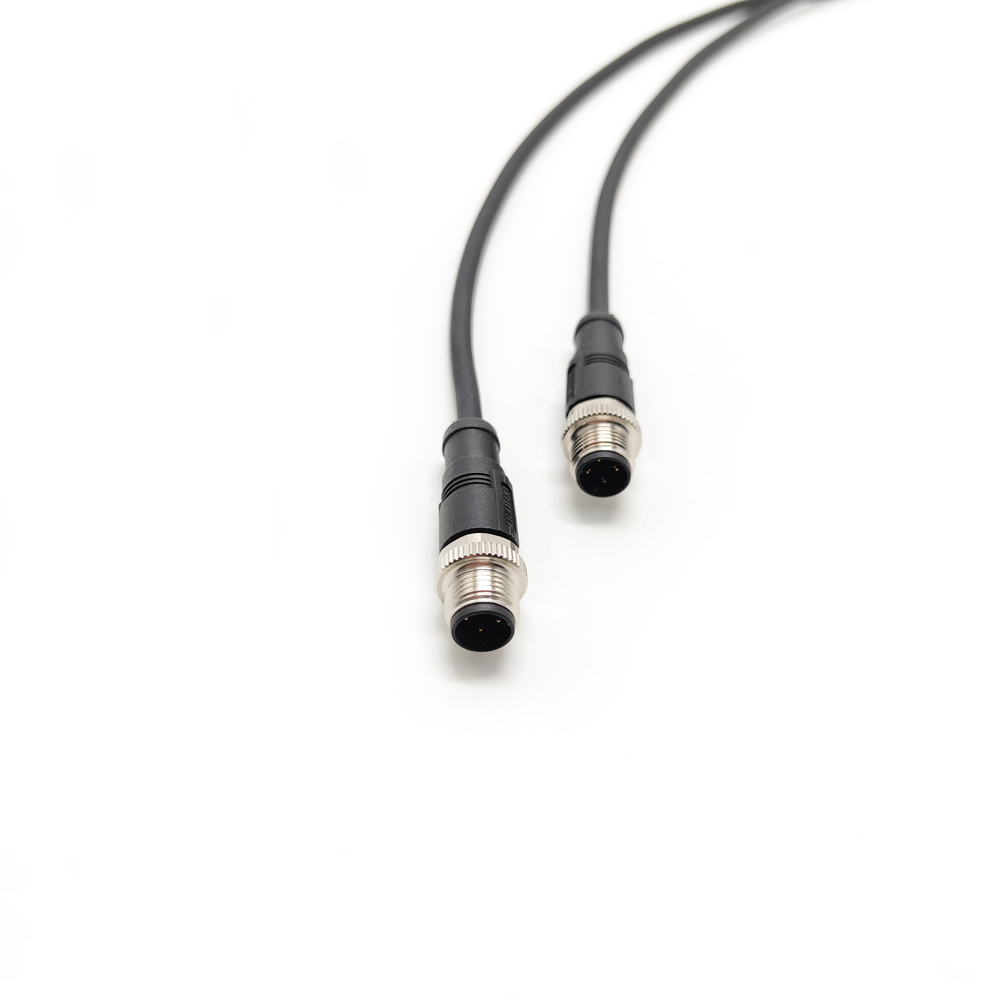

Manufacturers M12 4 Pin D Coded Cable Connector for Ethernet
1. Product Introduction
| Application | Industrial Ethernet |
| Insulated Resistance | ≥100mΩ |
| Number of Contacts | 4 or others |
| Contact Resistance | ≤10mΩ |
| Ethernet Rate | 100m Gbit/s |
| Connector Material: | TPU, PA, Copper Plated Gold |
| Rated Current | 4A |
| Cable Material | PVC / PUR |
| Rated Voltage | 250V |
| Temperature Range | -25℃~+85℃ |

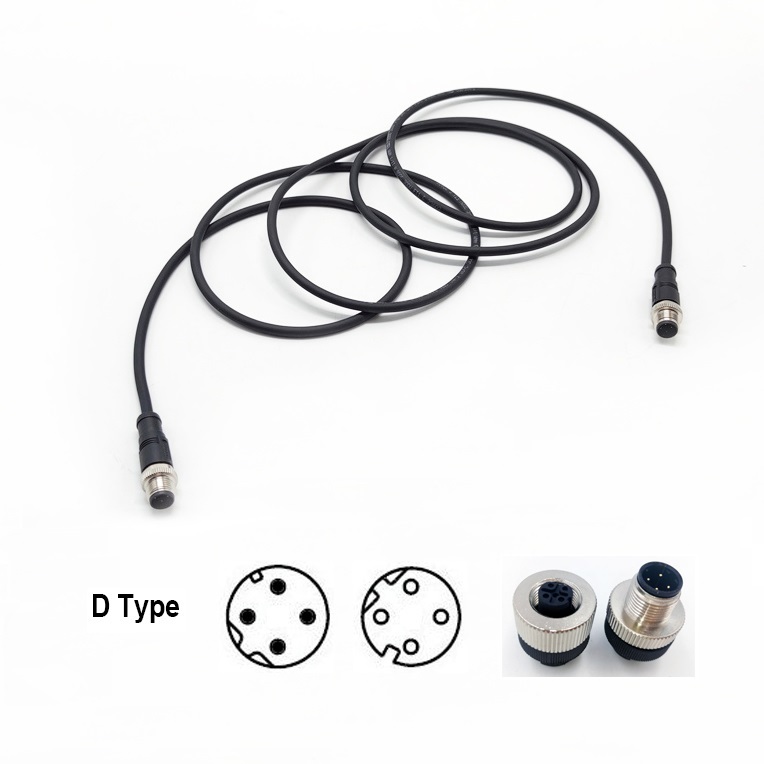

D-Code-M12 connector shall be used for industrial Ethernet with higher protection level. The D-code-M12 connector is used to distinguish the A-type code of sensor and brake wiring from the B-type code used by other field buses.Our M12 D coding cable connector uses high-quality raw material cables to ensure that Ethernet signals are not interfered by other signals during transmission and achieve the best transmission effect.

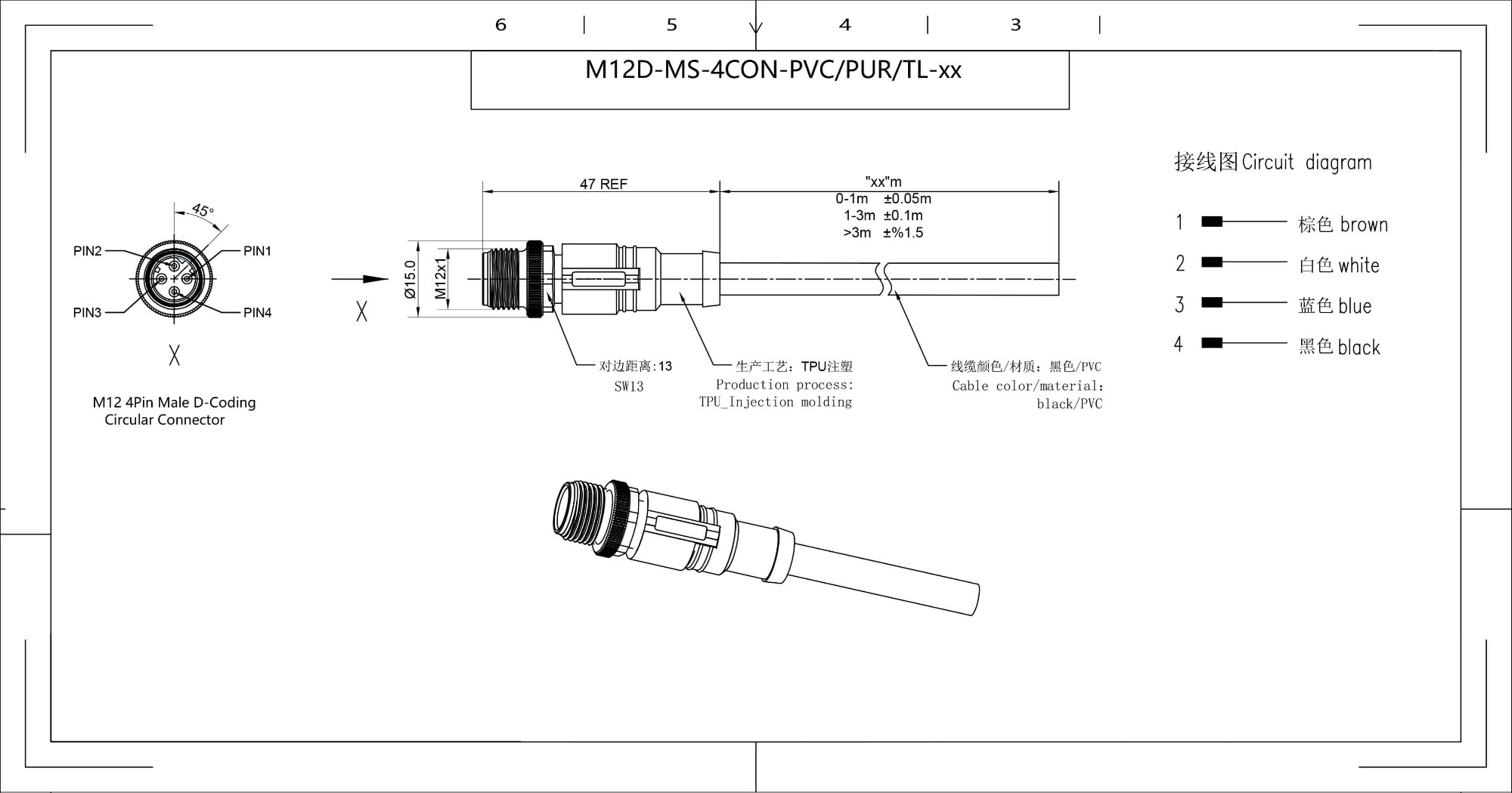

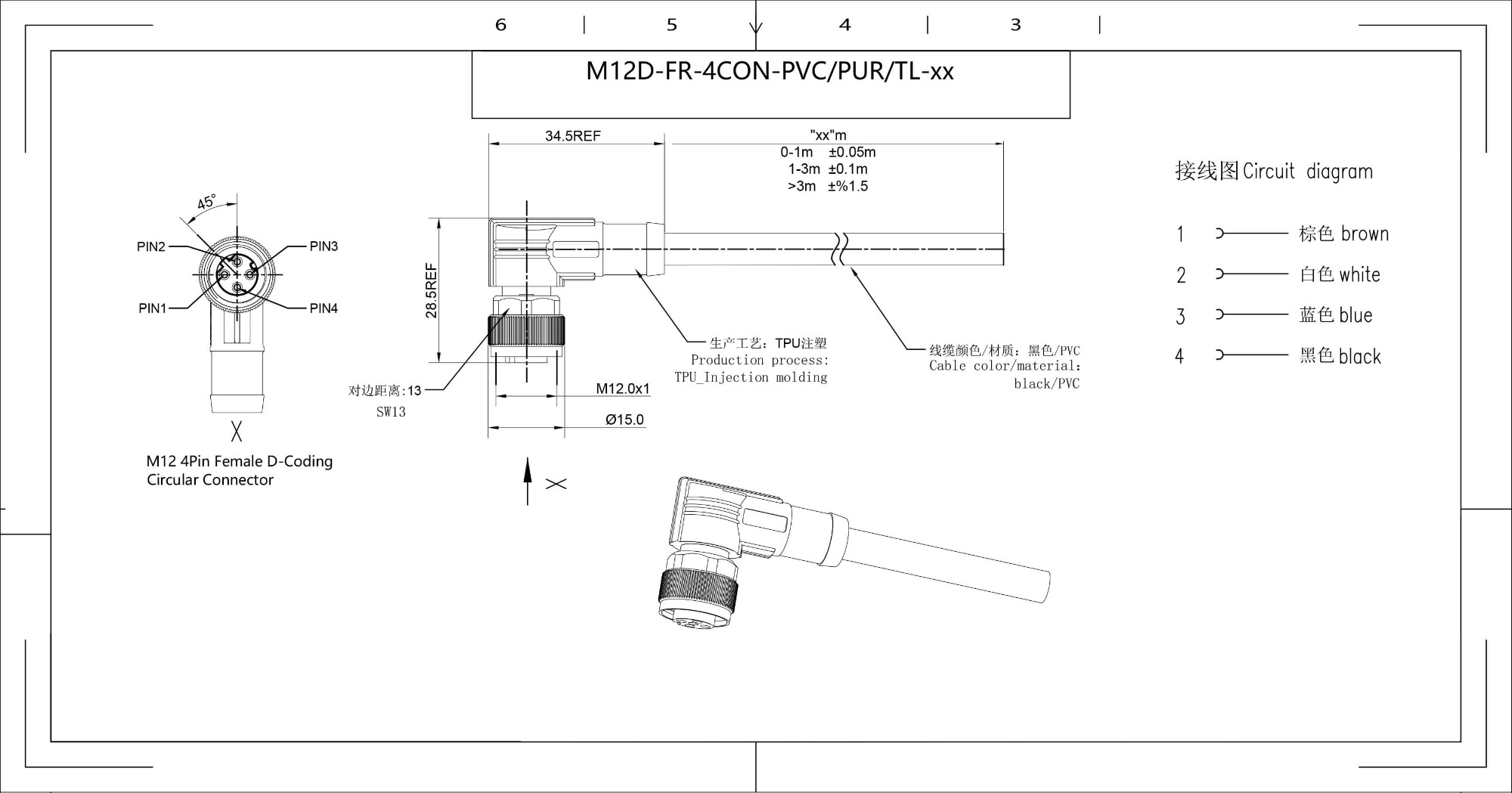

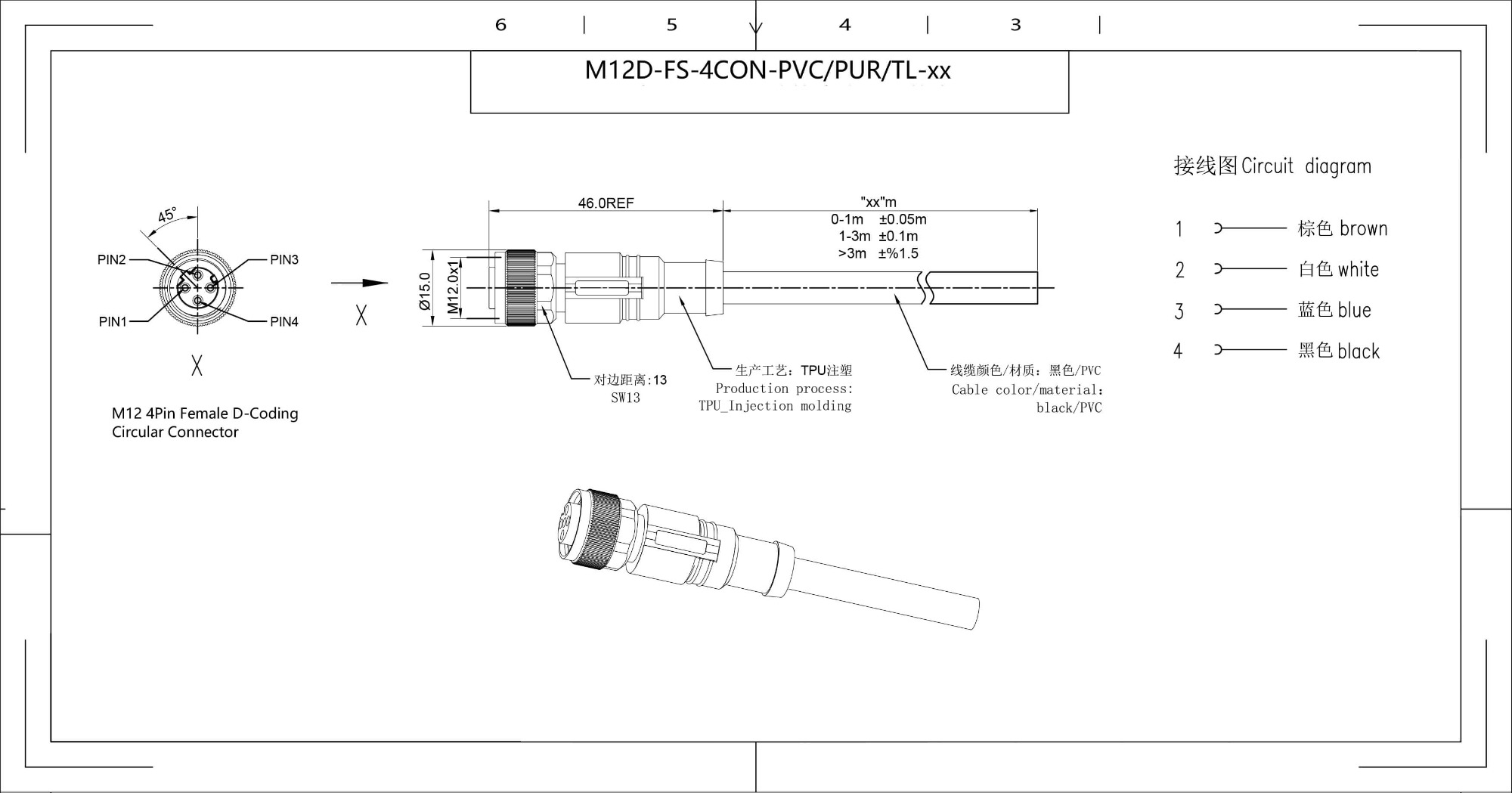

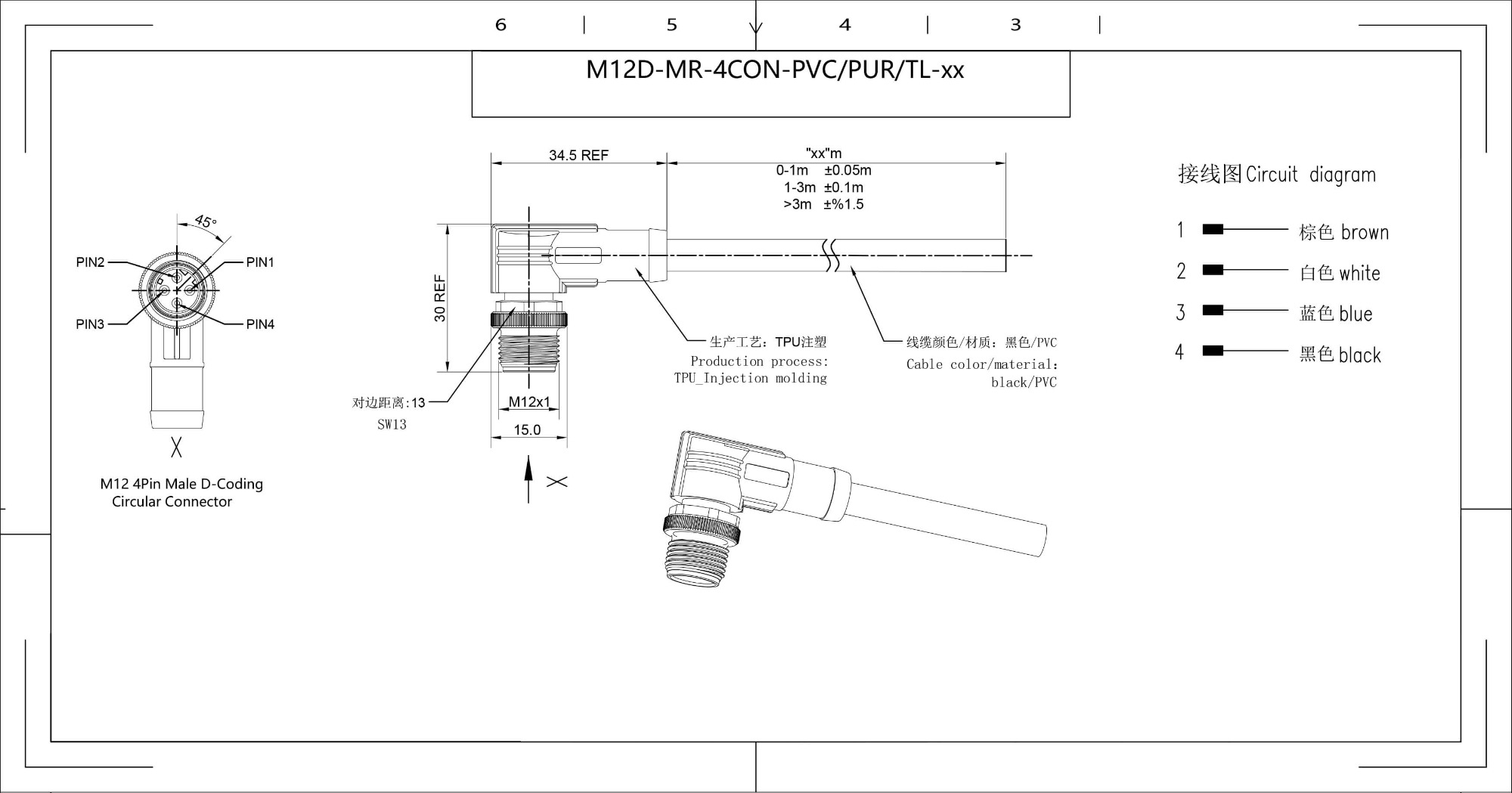

2. Product Parameters
3. Companny Profile

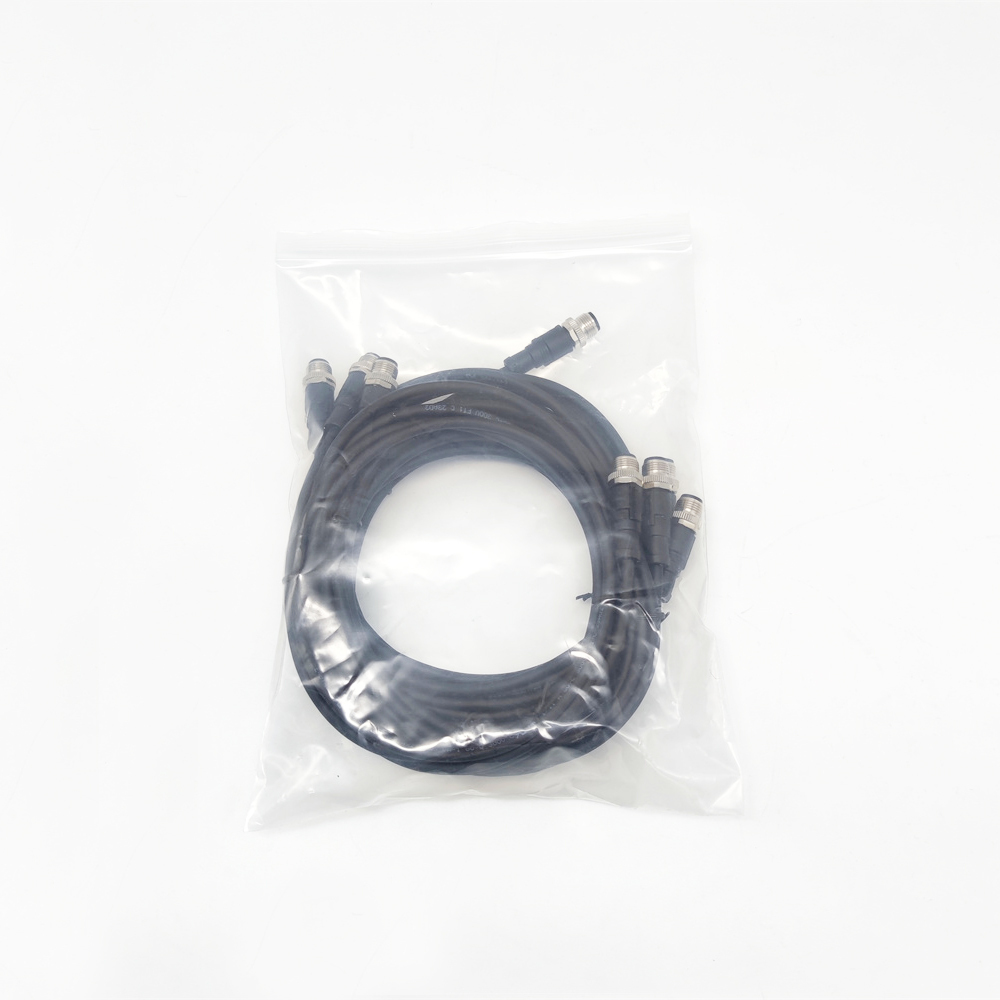

4. Express & Payment
5. Why Choose Us!
Strict contract auditing invloved all departments to assure the feasibility of each order;
Process design and validation before bulk production;
Strictly control on all raw and auxiliary materials, All raw materials reach the world advanced level;
On-site inspection to all processes, inspection record keep traceable for 3 years;
All inspectors are skilled with international certificates;
100% inspection of finished sprouts before shipment;
Advanced and complete testing and inspection equipment: NDT, metal Microscope, impact tester, hardness tester;
Regular training for inspection staff.
Product Advantages
Structural and Design Superiority for Reliable Integration
The M12 4 Pin D Coded Cable Connector exhibits a compact, modular design tailored for robust industrial Ethernet applications. Its TPU and PA housing materials contribute to mechanical stability and resistance against environmental stressors, aligning with requirements frequently specified by industrial circular connector manufacturers. The distinctive D-coding design facilitates straightforward system segregation, minimizing wiring errors in complex assemblies. Additionally, the cable options in durable PVC or PUR offer customization flexibility, enabling seamless integration into client-specific network configurations supported by trusted m12 connector manufacturers.
Optimized Performance with Enhanced User Efficiency
This connector ensures sustained signal quality by employing gold-plated copper contacts which maintain low contact resistance under harsh conditions, a critical factor for continuous industrial operations. With a wide operating temperature range and a secure locking mechanism, it supports industrial Ethernet at reliable 100 Mbps speeds, thereby reducing downtime and maintenance interventions favored by procurement managers. The availability of custom cable lengths and gauges further refines installation efficiency, systematically improving workflow integration when sourced through recognized wholesale circular connector specialists.
Use Scenarios
Factory Automation Systems Requiring Reliable Ethernet
In advanced factory automation settings, Ethernet-based communication networks demand connectors resilient to mechanical vibration, high temperatures, and electrical interference. The M12 4 Pin D Coded Cable Connector serves as a critical interface component, ensuring stable and error-free data transfer between programmable logic controllers and automated machinery. Its D coding prevents wiring crossovers between sensor and communication lines, meeting industry standards for system reliability. Integration into these environments enhances operational efficiency and complies with stringent automation connectivity protocols specified by leading industrial circular connector manufacturers.
Communication Systems in Electrically Noisy Industrial Environments
Industrial facilities often contend with electromagnetic interference affecting data transmission integrity. The robust construction and shielding capabilities of this m12 connector make it suitable for networking in such challenging contexts, providing enhanced immunity to noise and protecting signal fidelity. The connector's rated current and voltage parameters ensure safe operation within distributed control systems, enabling seamless incorporation into control room wiring or fieldbus networks. This solution facilitates reliable network performance compliant with industry-specific standards often demanded by wholesale circular connector suppliers.
What cable material options are available for the M12 4 Pin D Coded Cable Connector?
We offer the M12 Connector with cables made from PVC or durable PUR. Both materials are selected to meet industrial standards and ensure excellent flexibility and protection, fitting diverse applications requiring rugged industrial circular connector cabling.
Can I order custom cable lengths or wire gauges for this connector?
Yes, we provide customization for cable length beyond the standard 2m and wire gauge options based on your specifications. Our flexible production supports tailored solutions to match your project’s technical requirements for industrial circular connector manufacturers.
How do you ensure the M12 connector maintains signal integrity in harsh environments?
Our m12 connector features a D-coded 4-pin design with copper contacts plated in gold to reduce resistance and corrosion. High-grade TPU and PA housings protect signals against electrical interference and extreme temperatures between -25℃ and +85℃, ensuring stable Ethernet transmission.
What is the minimum order quantity and typical delivery time?
We require a minimum order quantity of 20 sets to maintain production efficiency and quality. Once order details are confirmed, we prioritize your shipment to meet industrial project timelines while ensuring consistent performance from our industrial circular connector manufacturers network.
