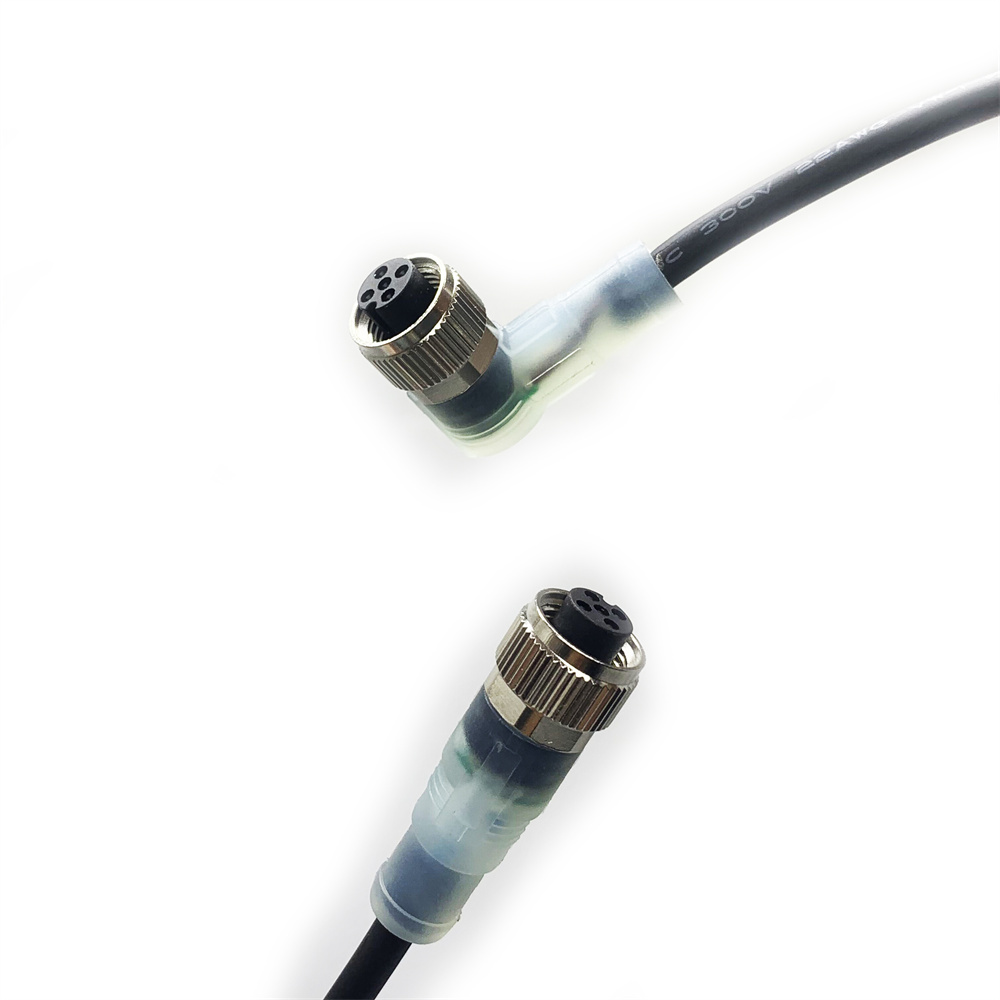

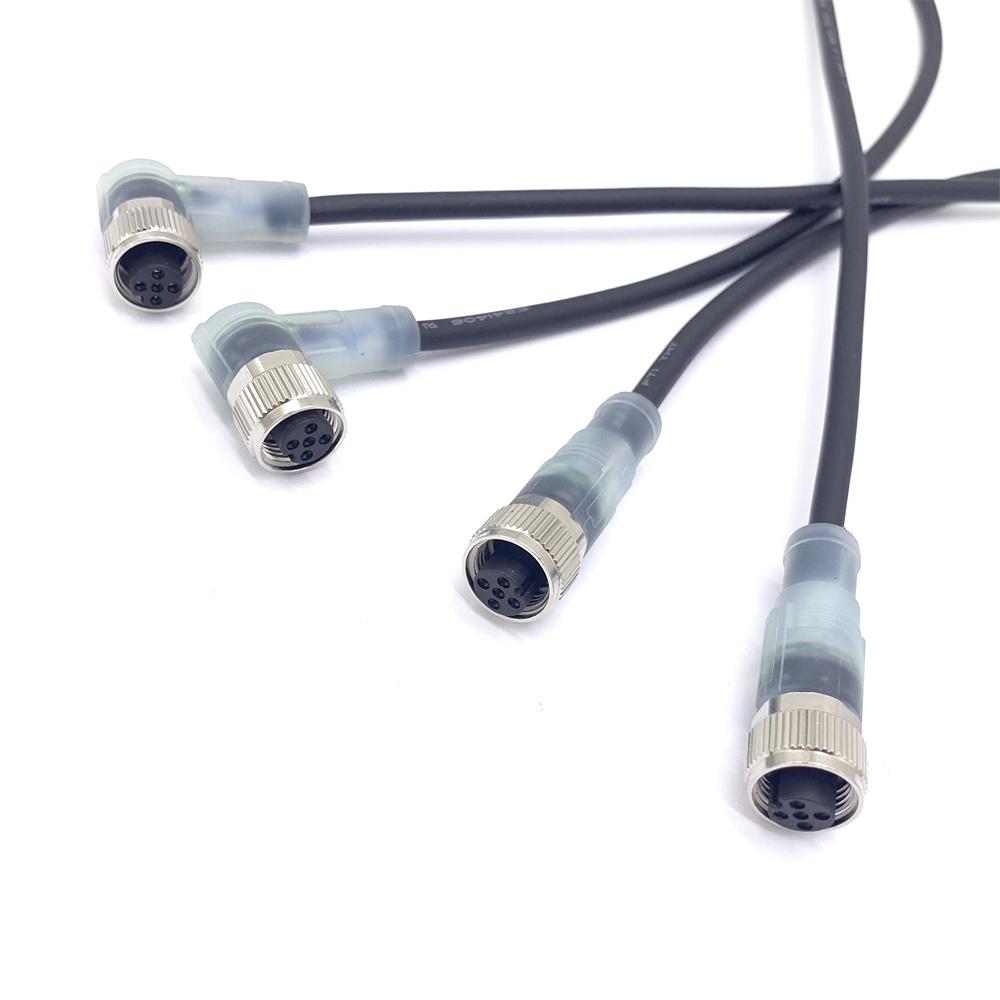

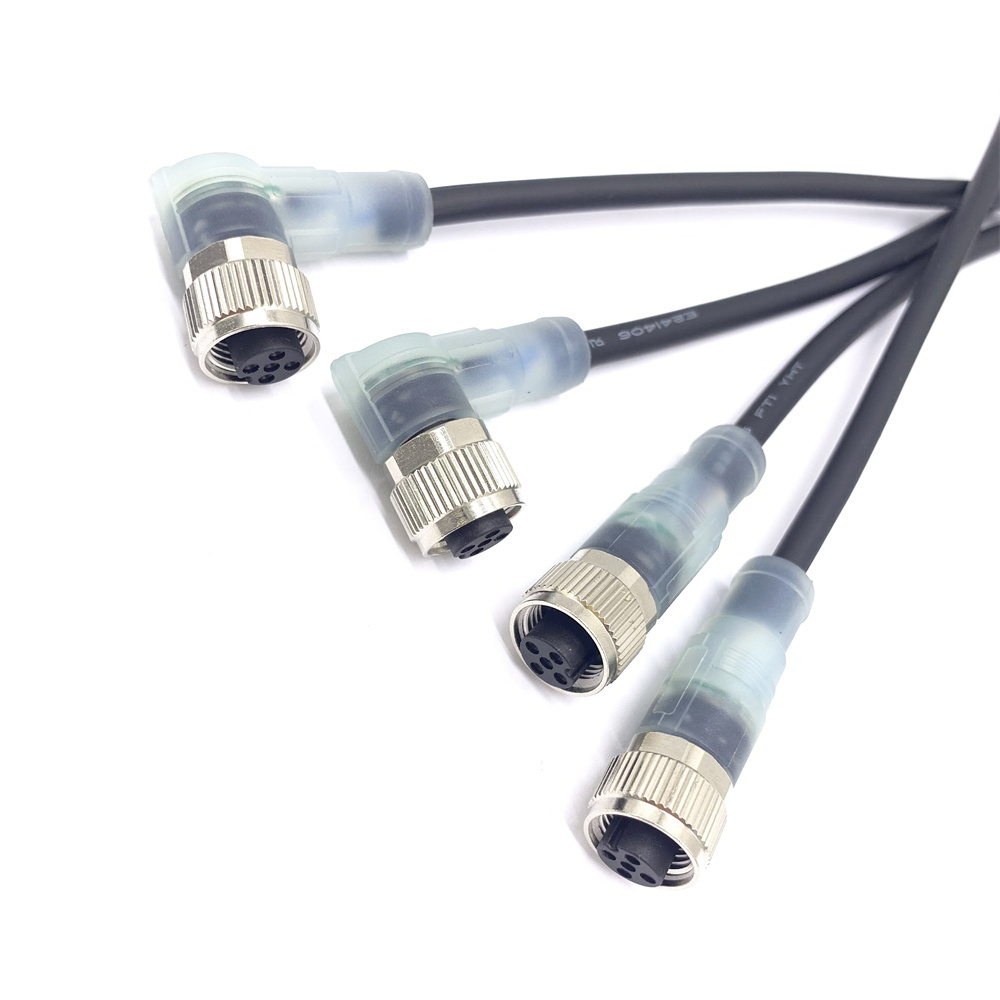

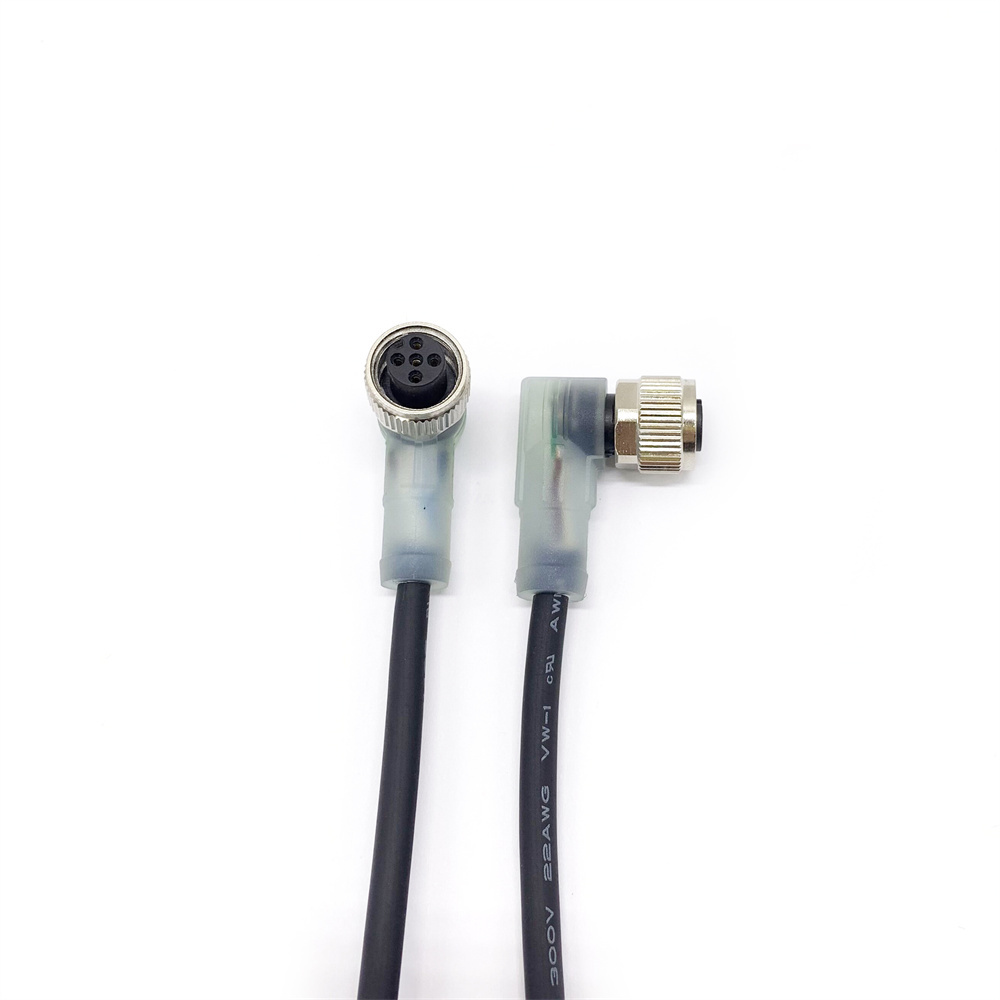

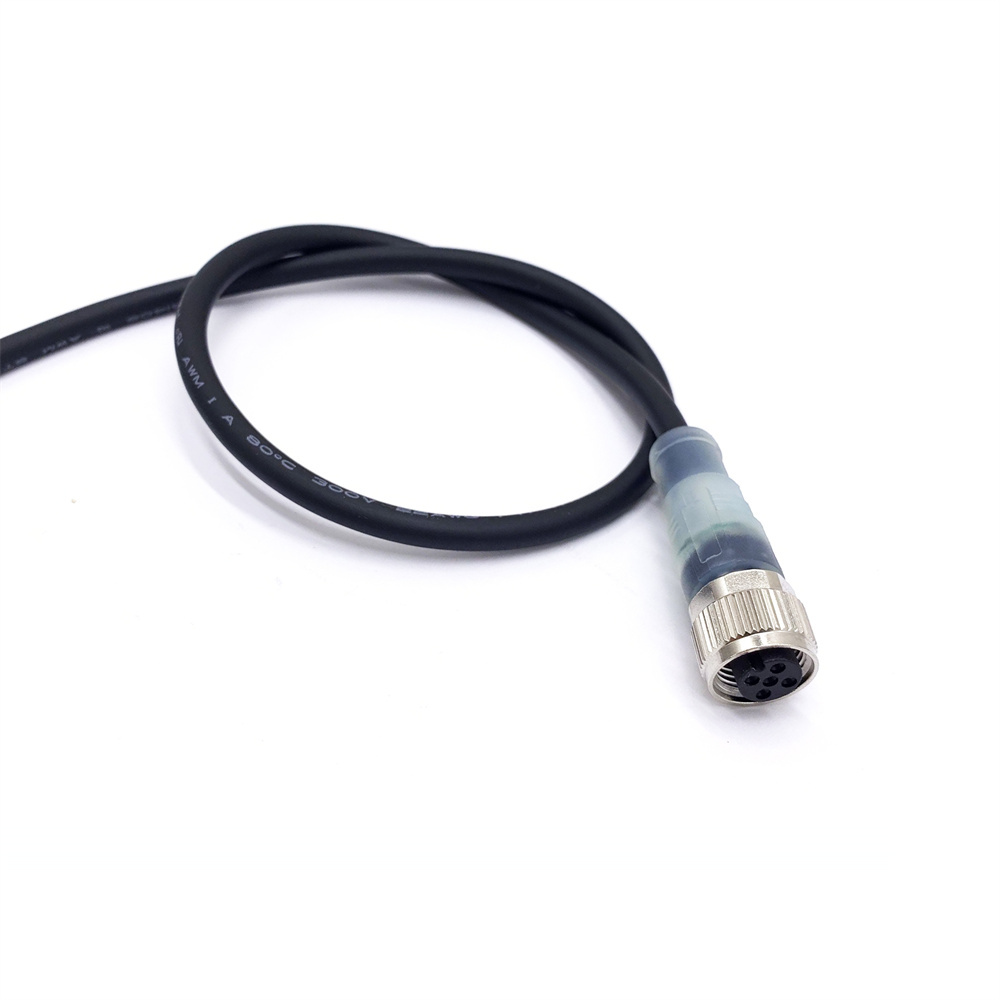

Agency M12 Connector 5 Pin With LED Indicator Light
Product Introduction m12 connector 4 5pin

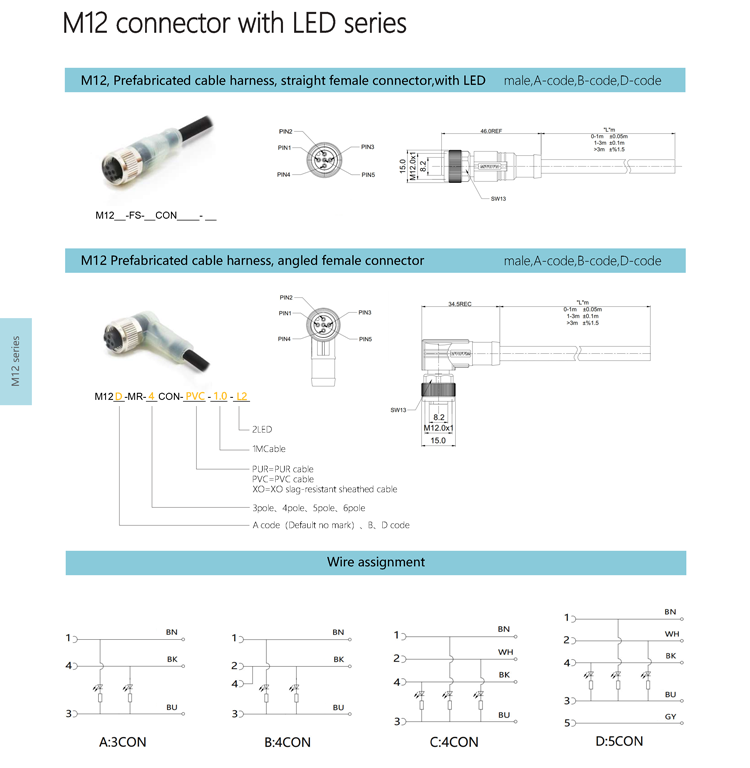

The M12 connector has LED indicator light, prefabricated cable one-piece connector, straight and curved. Cables are classified into shielded cables and non-shielded cables. In the cable material using PUR or PVC, M12 connector is field self-wiring type, according to the cable diameter is divided into: 4-6 mm, 6-8 mm, a small number of 2-4 mm or larger size of 10 mm. Core wire connection is screw pressing type.
Product Parameter
| Rated Current | 4A |
| Rated Voltage | 24V |
| Temperature Range | -25℃~+90℃ |
| Protection Degree | IP65/IP67 |
| Contact Resistance | ≤5mΩ |
| Insulating Material | PA/TPU |
| Cable Material | PUR/PVC |
| Contact Mtaerial |
CuSn, Plated with Ni or Au |
| Coding | A |
| Cable Diameter | 4.5mm |
| Wire Cross Section | 0.34m㎡ |
