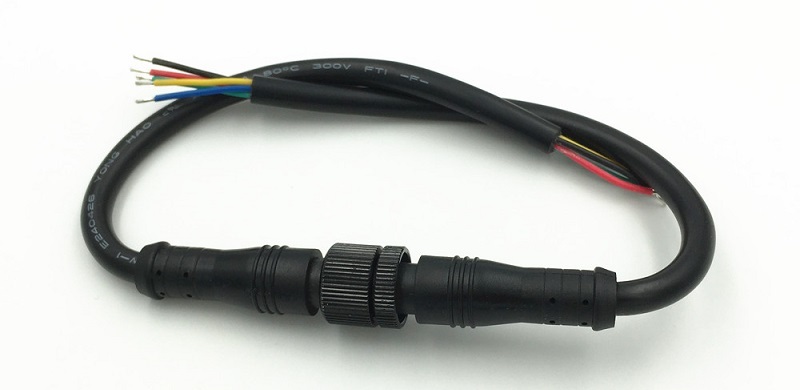

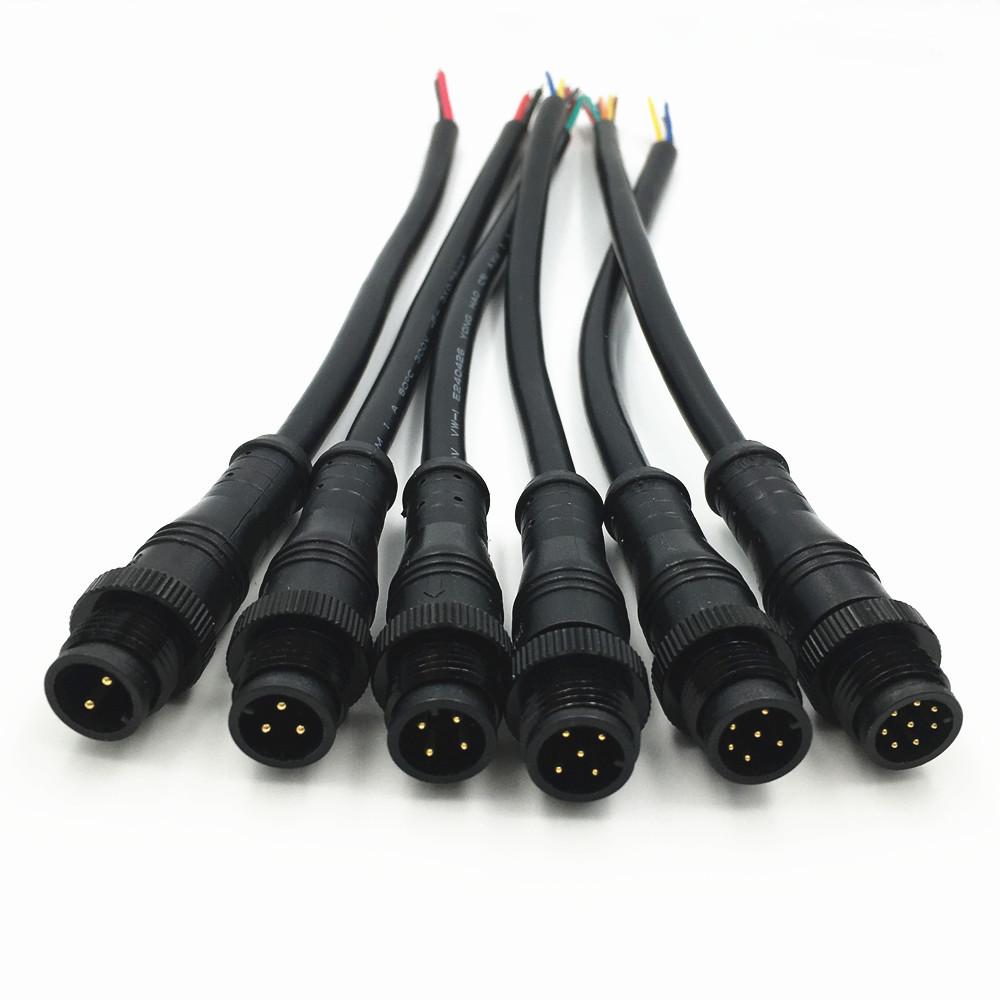

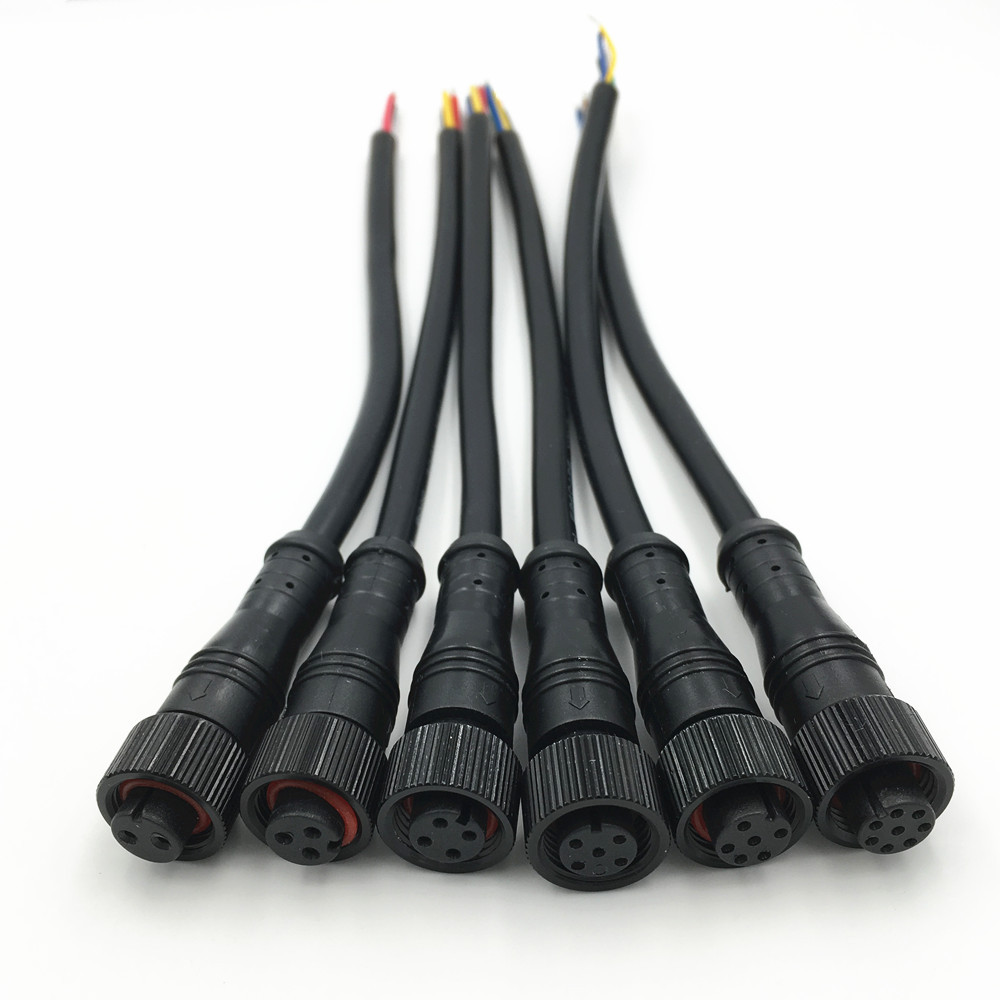

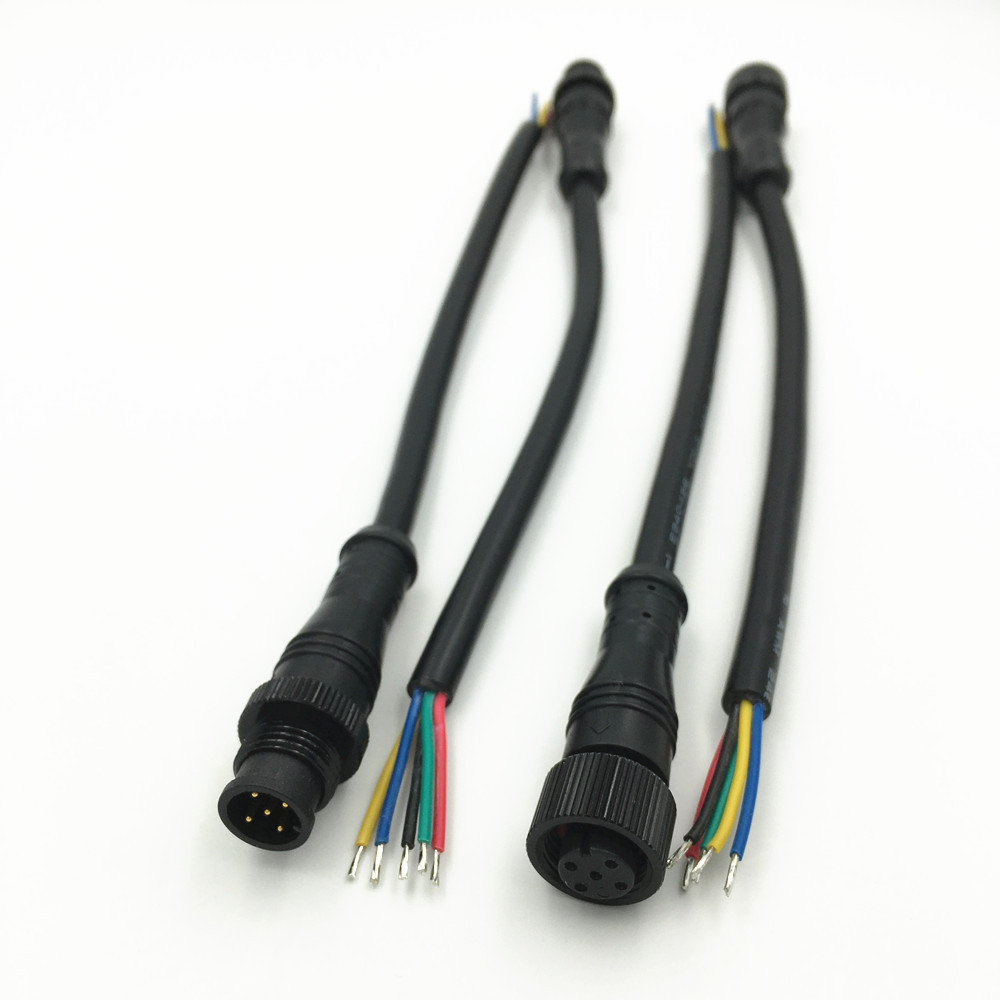

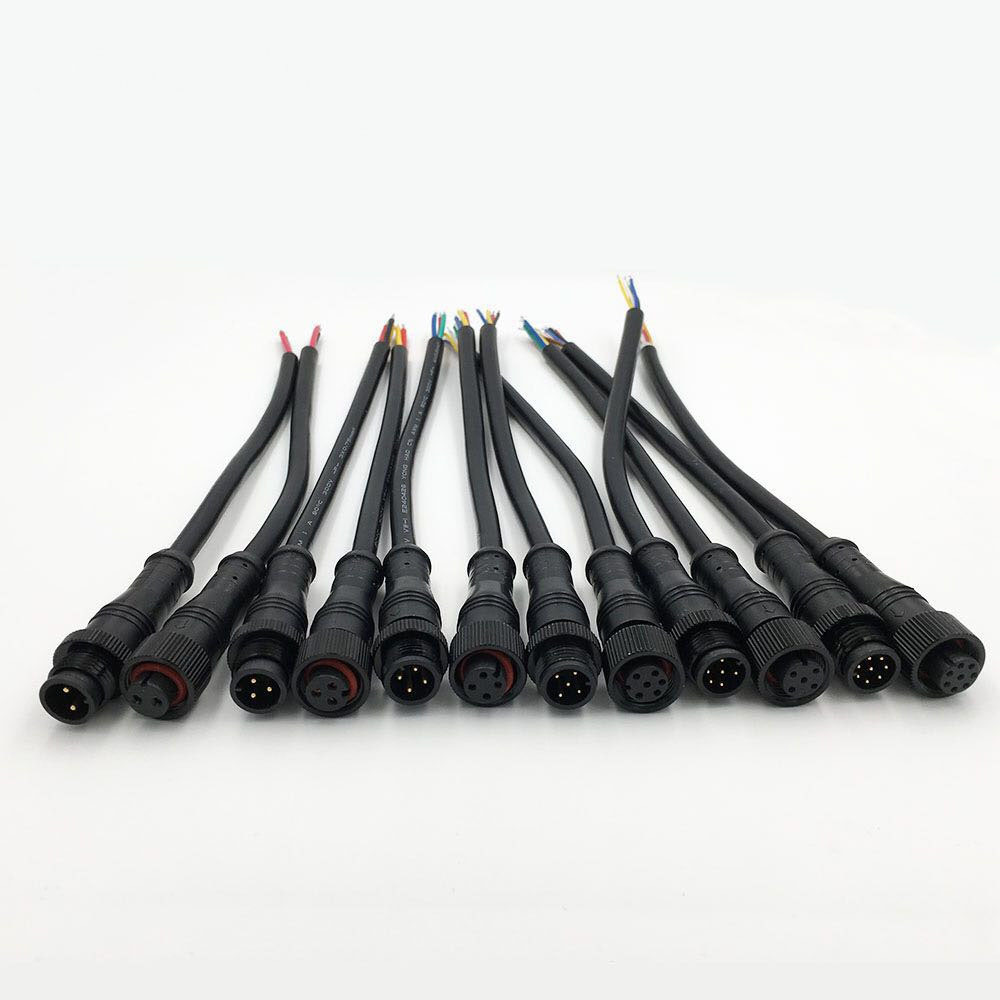

IP67 Waterproof M12 Circular Cable Connector
Product Introduction
1) High-quality raw materials: PVC, PBT, UV-resistant materials, etc.
The outer shell is made of PVC plastic, which is flame retardant, high strength, weather resistance and corrosion resistance;
The contact pin material is PBT, which has high heat resistance, toughness and fatigue resistance;
The cable core is made of copper, which has the characteristics of low resistivity, large current, low power loss, anti-oxidation and corrosion resistance.
2) High performance: flame retardant, cold-resistant and high-temperature resistant materials are used, with good waterproof and electrical properties, easy installation and easy handover. This M12 connector has the functions of waterproof, oil-proof, dust-proof, impact-resistant, scientific design, strong sealing and not easy to age.
3) Wide application: guardrail lights, landscape lights, outdoor projection lights, floodlights, etc.
Product Specifications
| Number of Contacts | 3/4/5/8/12/17Pins |
| Gender | Male/Female |
| Coding | 3/4/5Pin: A/B/D 8/12/17Pin: A |
| Contact resistance | ≤10mΩ |
| Insulation resistance | >100mΩ |
| Termiantion | Screw |
| Coupling | Threaded |
| Rated voltage | 3/4Pins: 250V 5Pins: 125V 8/12/17Pin: 60V |
| Rated Current | 3/4/5Pin: 4A 8Pin: 2A 12/17Pin: 1.5A |
| Contact Material | Copper Alloy Gold-plated |
| Shell Material | TPU |
| Insulation Material | PA |
| Cable Material | PUR/PVC |
| IP Rating | IP67 |
| Temperature Range | -25℃~+85℃ |
