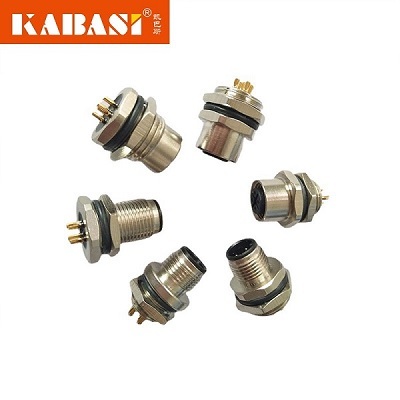

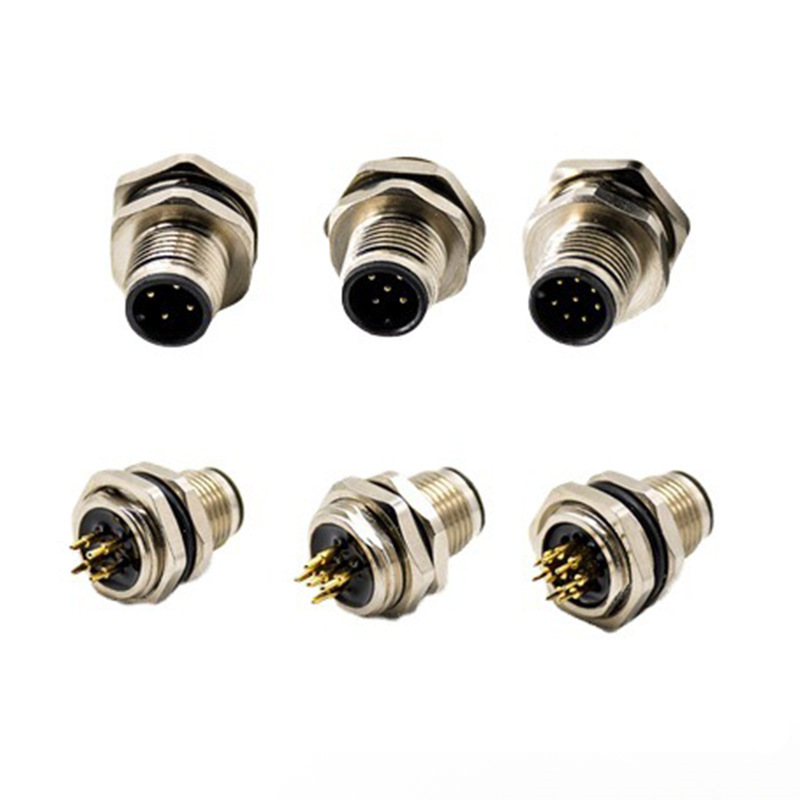

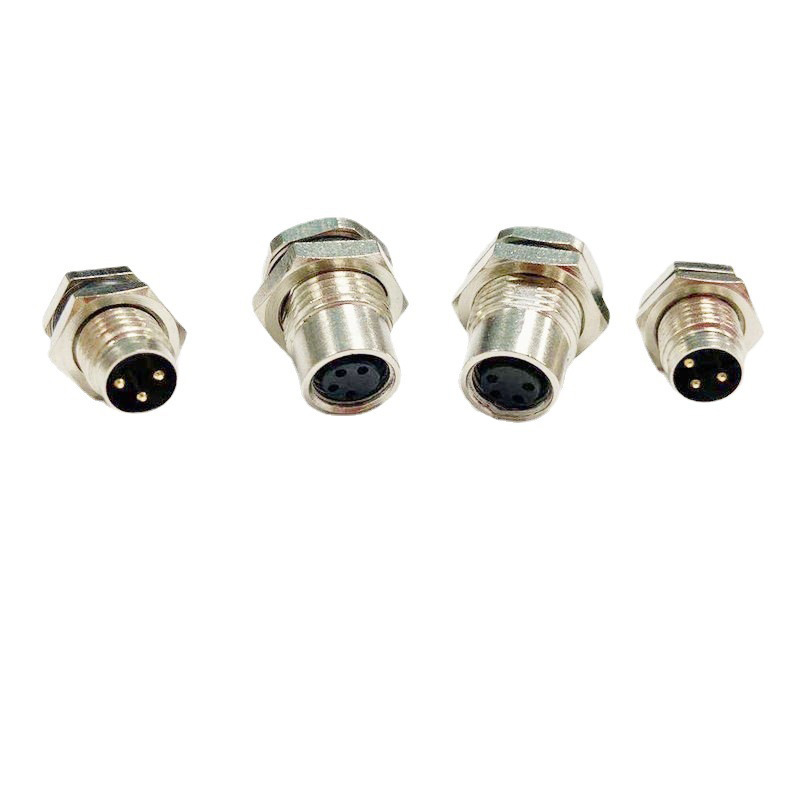

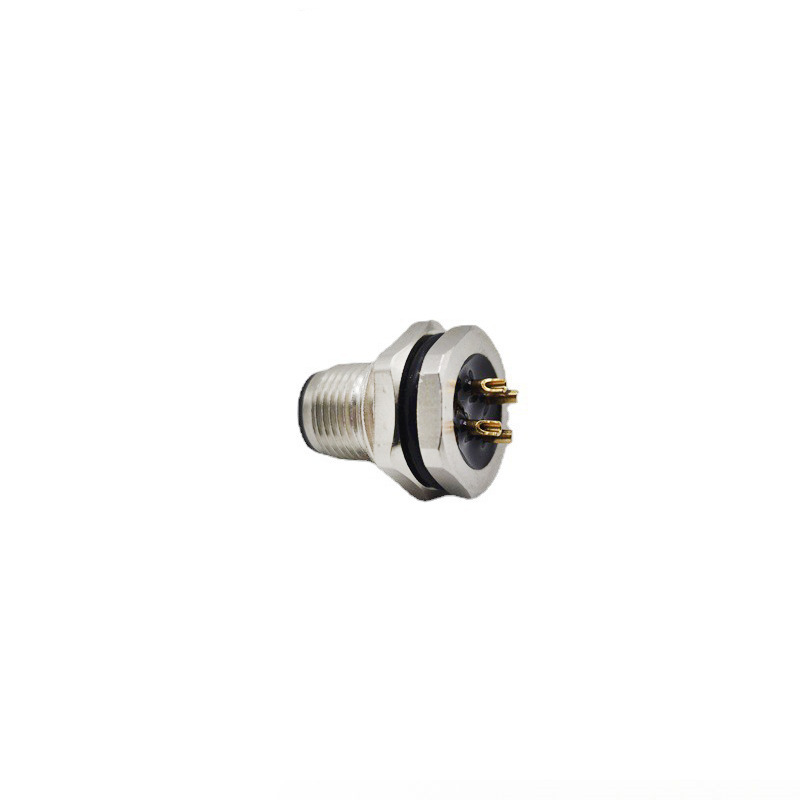

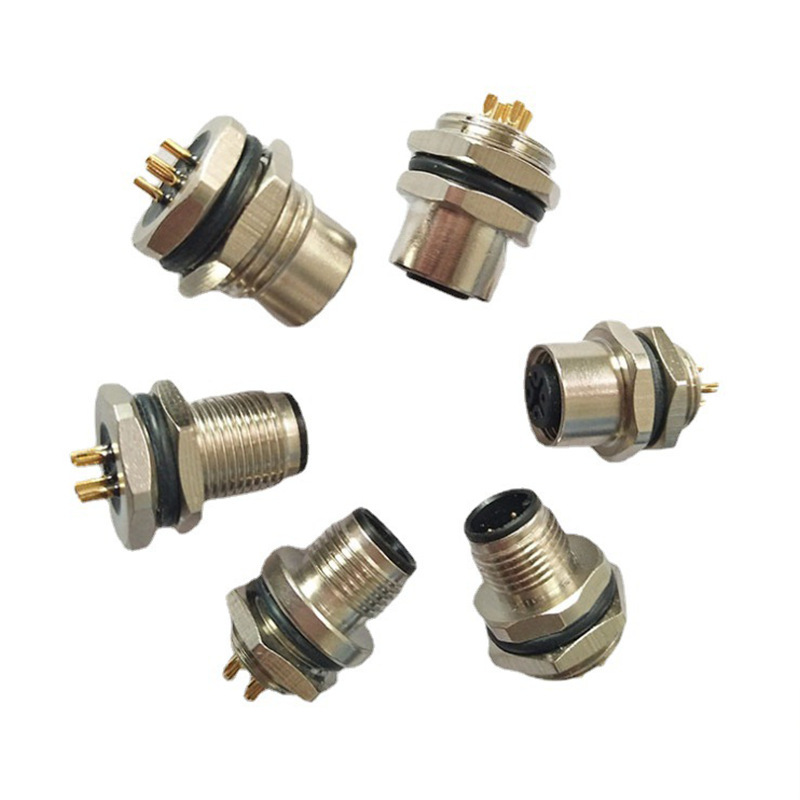

M12 Connector PCB Mount
1.Product Introduction
8 pin m12 connector is not only here,we have 4 pin,5 pin products in this series.
About the contact: The gold plating process is adopted at the socket, which makes the signal transmission more stable and the data transmission more secure.
Protective effect: The rubber core is filled with high-performance plastic and equipped with wire guard ring. The waterproof effect is more obvious and can reach IP67 / IP68 grade.
Fine production process: From mold design to material processing, hardware manufacturing, injection molding and other processes, we strictly control each part to create high-quality products.
2.Product Parameter
| Termination | Solder |
| Locking System | Screw |
| Wire Guage | Max 0.25m㎡ |
| Shell Protection | IP67 |
| Mechanical Operation | ＞100 Mating Cycle |
| Overvoltage Categories | Ⅱ |
| Material Group | Ⅲ |
3.Product Details
| Temperature Range | -25℃∽85℃ |
| Rated Voltage | 4 pin 250V, 5/8 pin 60V |
| Rated Current | 4 pin 4A, 5/8 pin 2A |
| Contact Resistance | ≤3mΩ |
| Contact Material | CuZn(Messing/Brass) |
| Contact Plating | Au(Gold) |
| Male Insert | PA(UL94HB) |
| Housing Cable Connector | Brass/Zinc Diecasting Nickel Plated |
4.Payment and Deliver
5.Company Profile
We are a connector manufacturer located in Xiamen, China, with experienced R & D team and mature production team, and our own sales and service team can solve problems for customers.
Our products are strictly controlled by professionals from material selection to delivery, to ensure the quality of products in the hands of customers.Our company has passed ISO9001:2015 quality system certification, and our products have passed a number of third-party certification.
In addition to the existing products, we can also customize products according to customers' needs to meet the different needs of different customers. Similarly, we also sell connector related products, such as M12 connector tools, harness and so on.
6.Our Advantages
We have many experience on OEM work.
We can customize special hardware as customer demand.
Variety types for selection, prompt deliver.
Well-equipped with extensive sales network.
Advanced Production equipment and production technique.
Competitive Price (Factory direct price) with our good service.
Different designs are available according to customer requests.
Excellent quality testing equipment, 100% inspection on critica.
