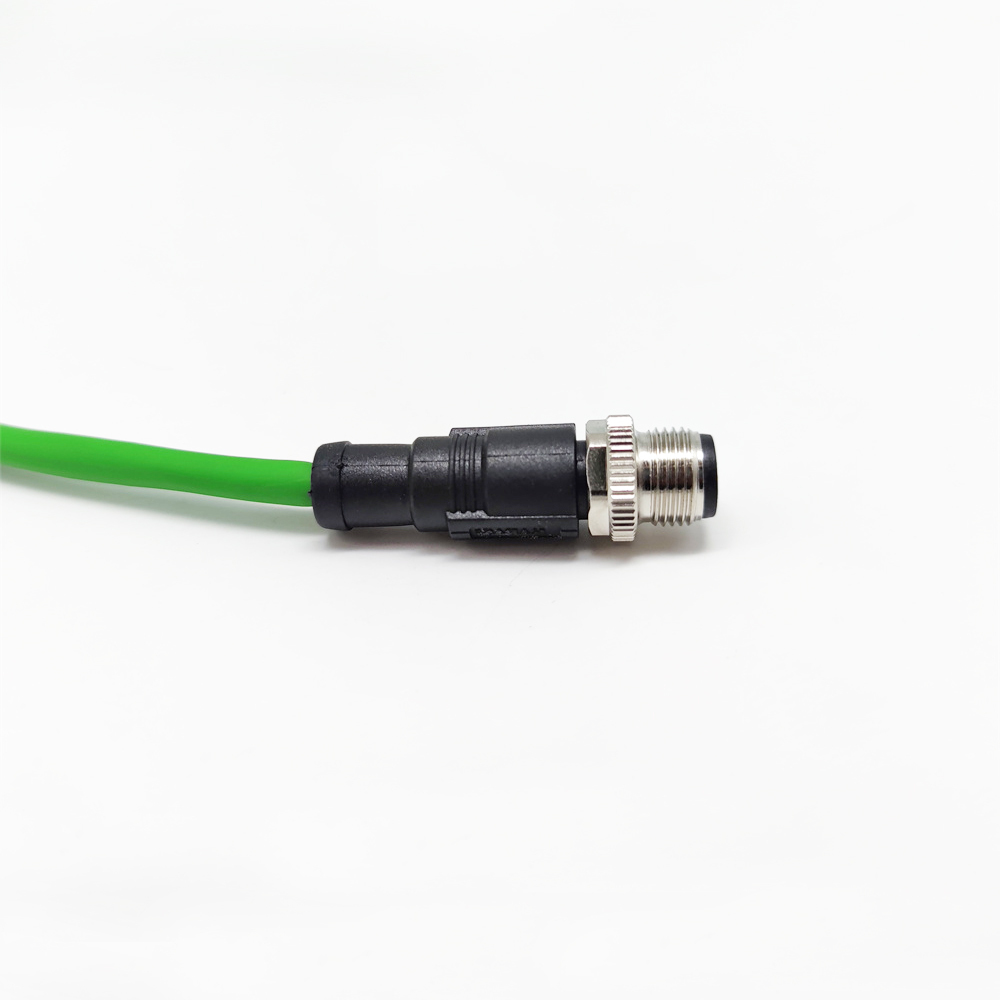

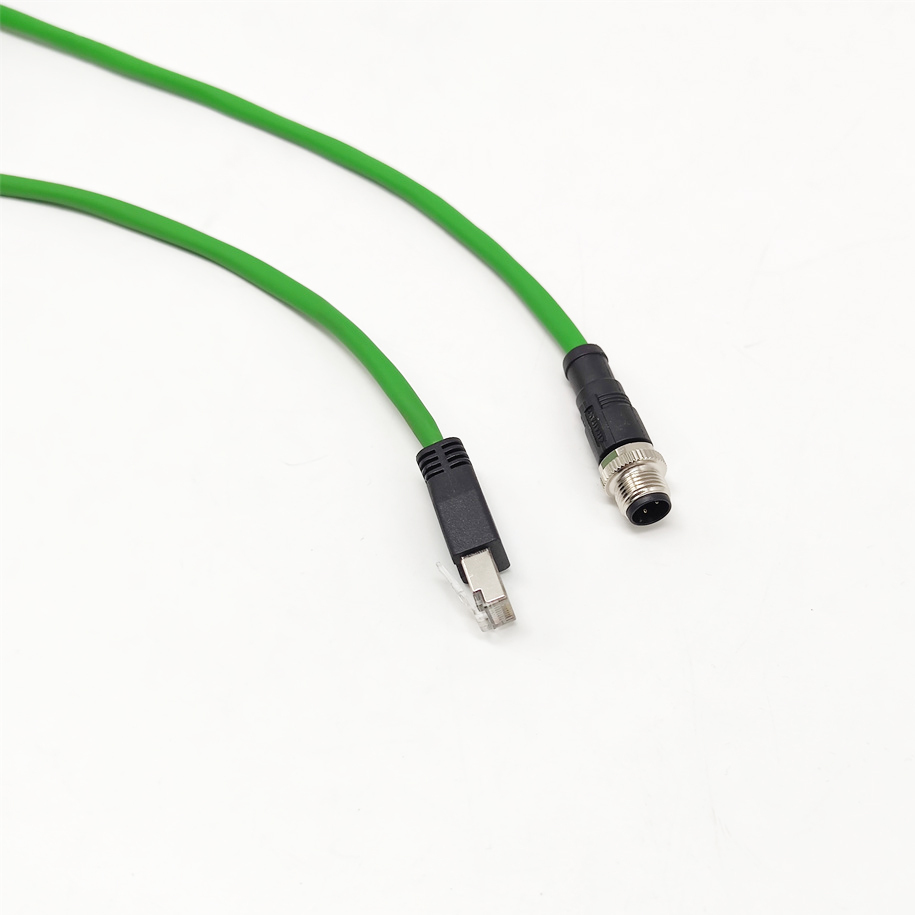

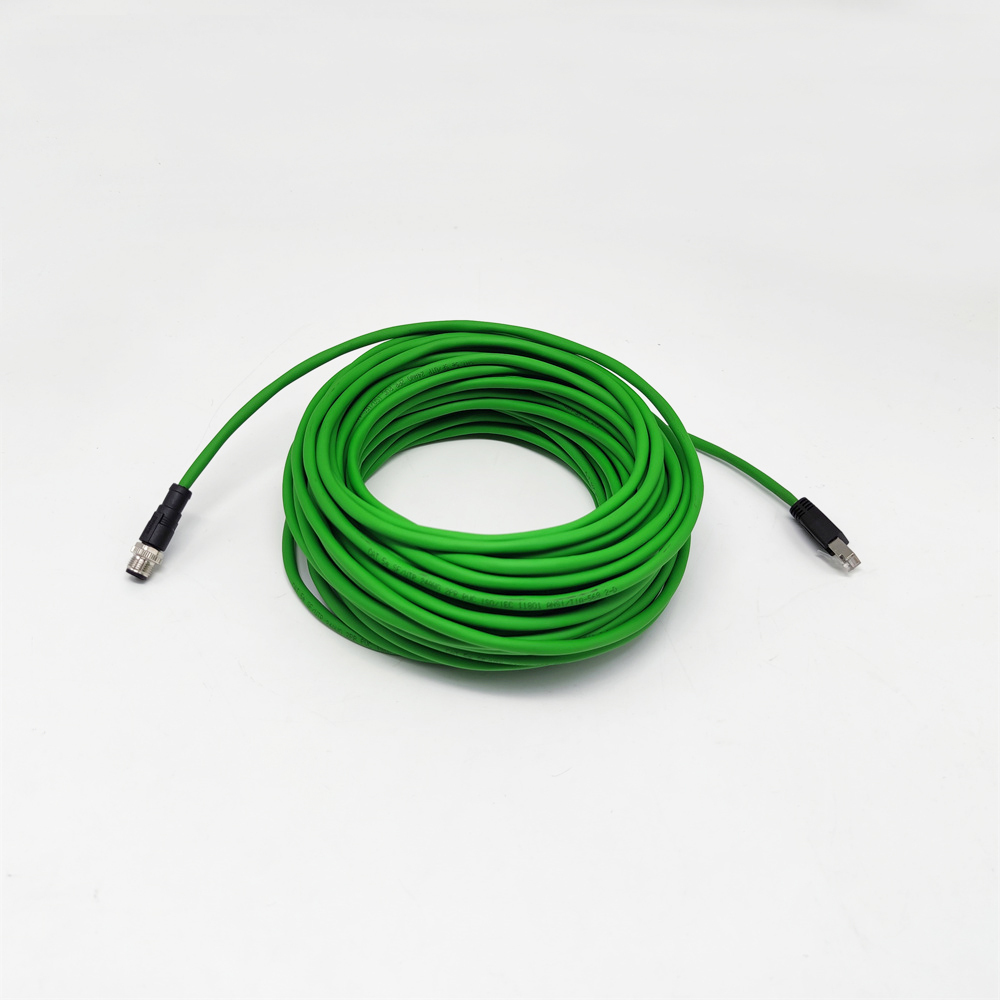

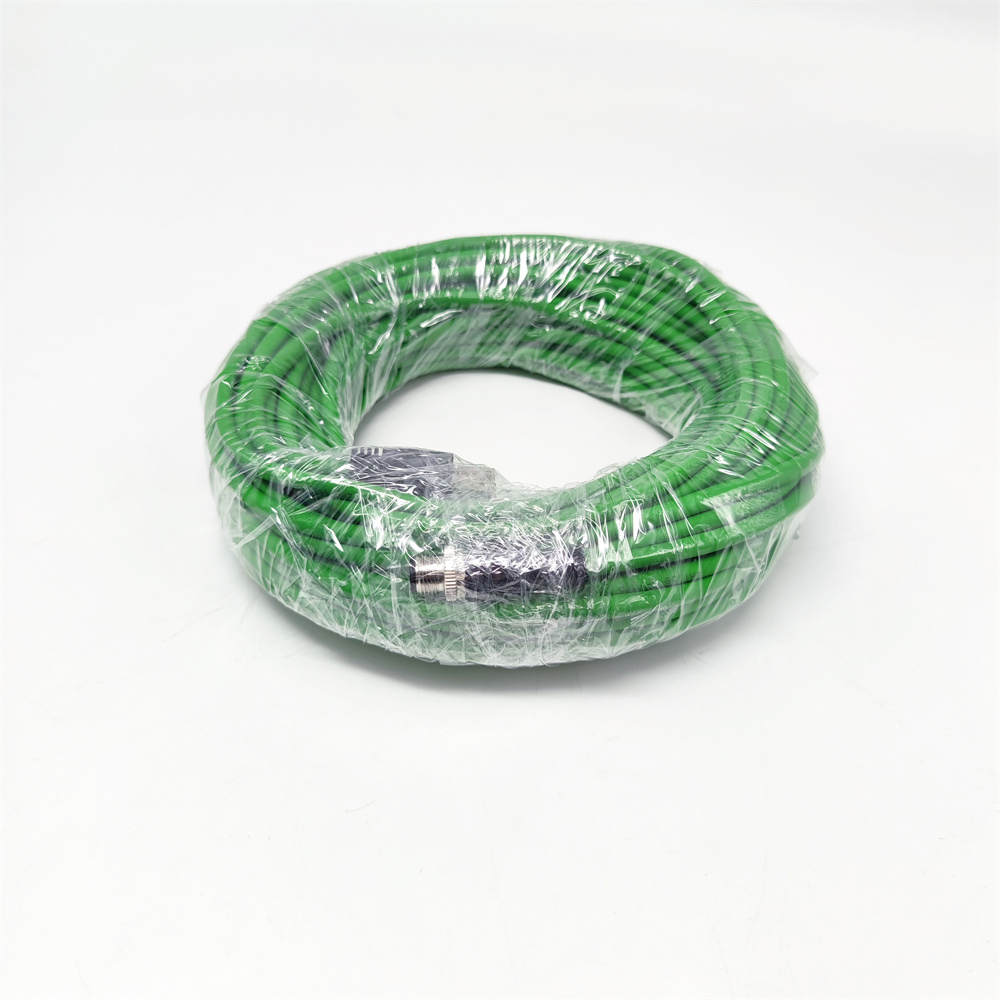

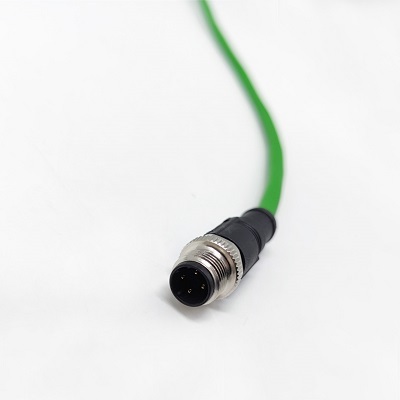

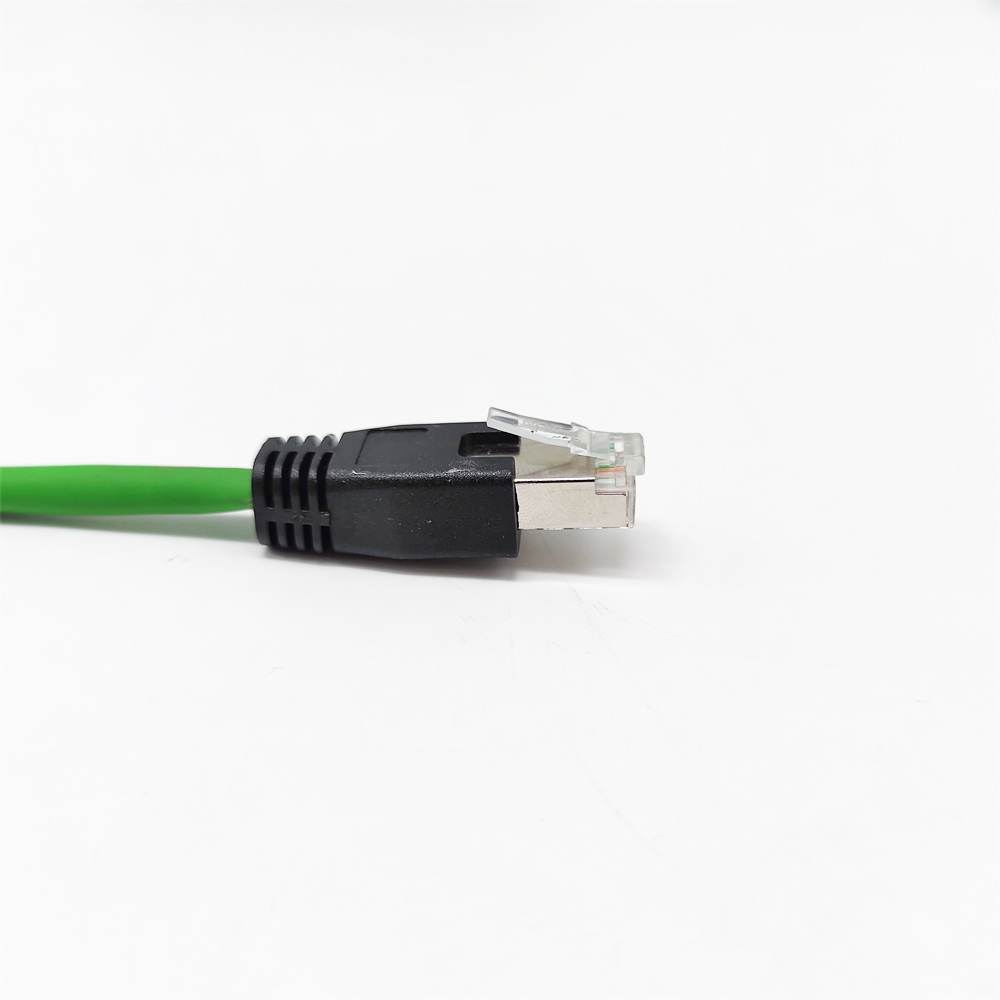

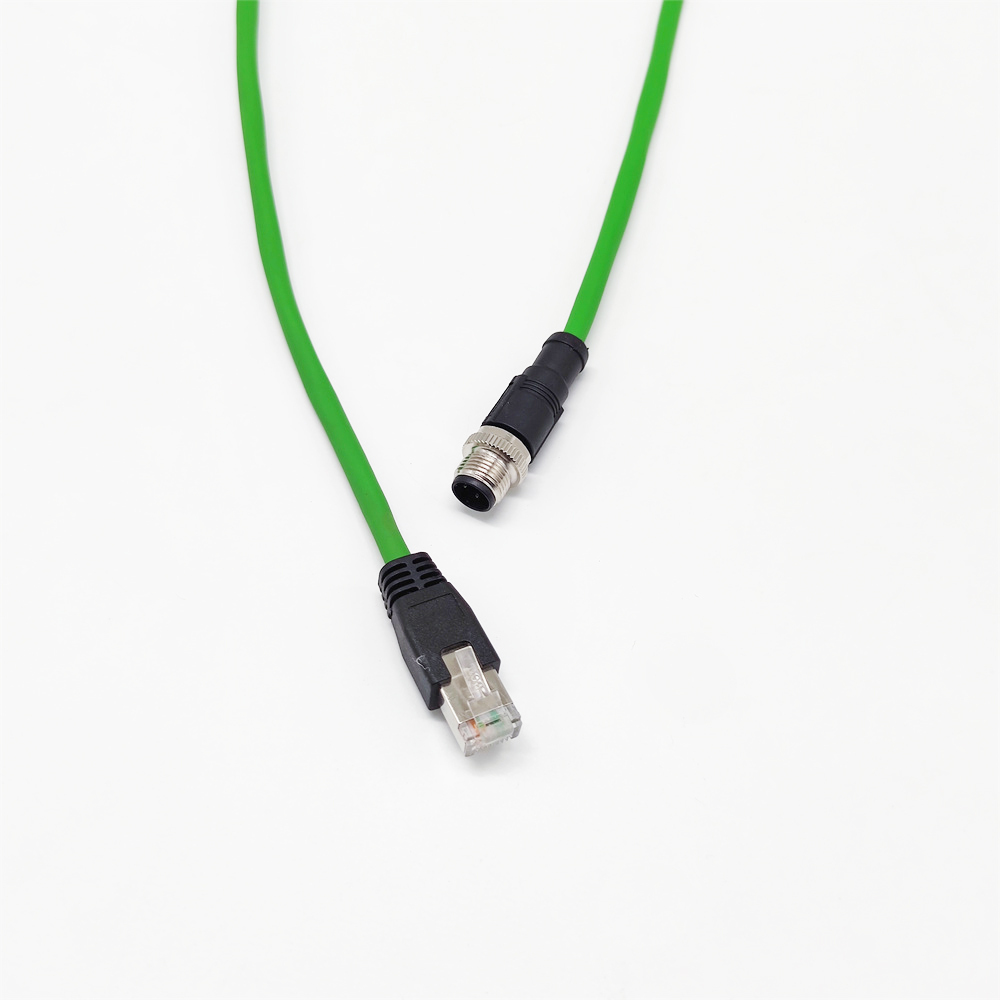

Factory M12 D-Code to RJ45 Ethernet Cable
1.Product Introduction
Profinet protocol connector M12 4-core D-type plug, D-code to RJ45 connection line, PROFINET bus communication. M12 circular connector double-end prefabricated cable connector is used for cable connector of industrial automation network technology and data.
This M12 to RJ45 connector is suitable for Ethernet Profinet. D-code data transmission rate is 100 Mbit CAT 5e cable. PROFINET is based on 100 Mbps full-duplex Ethernet. PROFINET not only defines functionality, but also defines passive network components, such as cables, connectors, etc. Communication can be conducted through copper or optical cable.
2.Product Parameters
| Application | Industrial Ethernet |
| Insulated Resistance | ≥100mΩ |
| Number of Contacts | 4 or others |
| Contact Resistance | ≤10mΩ |
| Ethernet Rate | 100m Gbit/s |
| Connector Material | TPU, PA, Copper Plated Gold |
| Rated Current | 4A |
| Cable Material | PVC / PUR |
| Rated Voltage | 250V |
| Temperature Range | -25℃~+85℃ |
