Field wireable connectors, also known as field-installable connectors, are essential components in the world of engineering and electronics. These tiny yet powerful connectors provide an easy and efficient way to join wires together without the need for specialized equipment or a professional electrician. The scope of their uses is vast, ranging from the medical industry to aviation and beyond.
Product Description
Adapted for Field Wiring Professionals and Technicians
The M12 connector delivers a streamlined, field-installable solution tailored for professionals engaged in industrial wiring and maintenance. Target users include electrical engineers and procurement managers seeking reliable, tool-free installation to accelerate project timelines and reduce downtime. This product from experienced industrial circular connector manufacturers caters to flexible wiring needs in diverse industrial environments, ensuring compatibility with existing systems. Its ease of use and adaptability make it an essential component for clients focused on operational efficiency and the seamless integration of connectivity solutions.
Technical Attributes Engineered for Reliable Connectivity
Engineered by established m12 connector manufacturers, this product features copper contacts combined with a threaded coupling system that guarantees secure mechanical and electrical connections. Operating within a voltage range of 12 to 24 volts and current between 1 and 2 amperes, it supports wire diameters of approximately 4.8mm. The connector operates reliably in temperature extremes from -20°C up to +105°C. Additionally, its customizable pin configurations, spanning 2 to 8 pins, provide precise adaptation to specific project requirements, ensuring optimal signal integrity and reduced failure rates within complex systems.
Versatile Applications in Industrial and Automation Sectors
This wholesale circular connector proves valuable in various applications such as field wiring for security camera setups, sensor connections in automated production lines, and maintenance tasks within industrial equipment. Its adherence to international standards ensures high compatibility with existing infrastructure. The robust design and environmental tolerance make it suitable for outdoor and harsh conditions typical in manufacturing plants, transportation, and energy sectors. Its adaptability facilitates efficient wiring harness assembly, enhancing system reliability and reducing operational costs across multiple industrial domains.
Product Advantages
Design and Integration Benefits from Leading Manufacturers
The M12 connector embodies the sophisticated design principles characteristic of top-tier industrial circular connector manufacturers. Its compact form factor combined with threaded coupling enhances mechanical stability during vibration-prone operations. The modular pin configuration options allow customization per specific circuit needs, reducing redundancy and facilitating system scalability. The use of high-conductivity copper contacts ensures consistent electrical performance, while the connector's design complies with stringent quality certifications, promoting trust in long-term deployment across industrial networks.
Operational Performance and Maintenance Efficiency
This m12 connector manufacturer’s product offers superior reliability and ease of use to end users in demanding field environments. Tool-free wiring and secure locking reduce installation time and operational errors. Its wide operating temperature range ensures consistent function in varying climatic conditions, minimizing maintenance frequency. Moreover, the connector’s durability and customizable configurations increase overall system uptime and flexibility, delivering measurable ROI through simplified maintenance processes and reducing the total cost of ownership in critical infrastructure projects.
Use Scenarios
Field Wiring in Surveillance and Security Systems
Within the security industry, the M12 connector supports rapid deployment and maintenance of CCTV and sensor networks. It enables efficient onsite assembly without requiring specialized tools, which is crucial in time-sensitive installations and emergency repairs. Its compatibility with industrial circular connector standards facilitates integration into existing wiring frameworks. Robust environmental tolerance guarantees signal continuity despite exposure to outdoor conditions. This connector thereby reinforces system reliability and operational readiness in surveillance infrastructures.
Automation and Sensor Networks in Industrial Manufacturing
In automated production environments, this wholesale circular connector serves as a reliable interface for sensor wiring and actuator connections. It withstands industrial stressors such as vibration, temperature fluctuations, and electrical interference. The customizable pin configurations and secure coupling support the precise wiring requirements of complex control systems. Integration with various industrial circular connector manufacturers’ ecosystem ensures component interoperability, enabling streamlined system design and maintenance, critical for maintaining continuous production and meeting stringent quality control standards.
product parameters
|
Material of Contact |
Copper |
|
Coupling |
Threaded coupling |
|
Temperature Range |
-20℃~+105℃ |
|
Contact |
4 Pins |
|
Usage |
Camera |
|

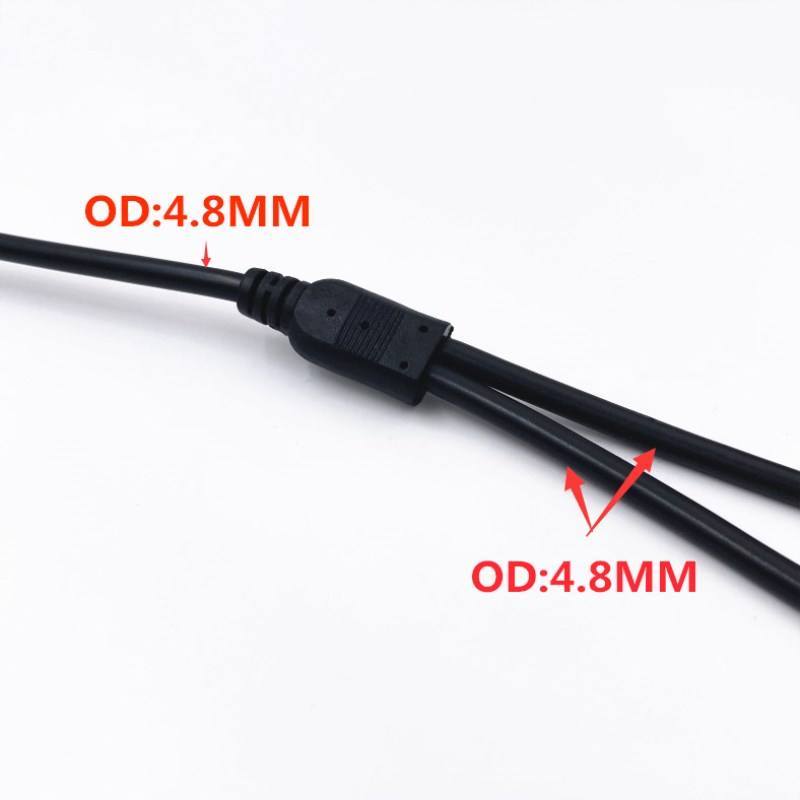

Cable Diameter |
4.8mm |
|
Working Current |
1-2A |
|
Working Voltage |
12-24V |
Field wireable connectors come in various shapes and sizes, enabling them to fit different kinds of wires with varying diameters. They are also versatile in terms of their application, whether it be for low voltage or high voltage wiring.

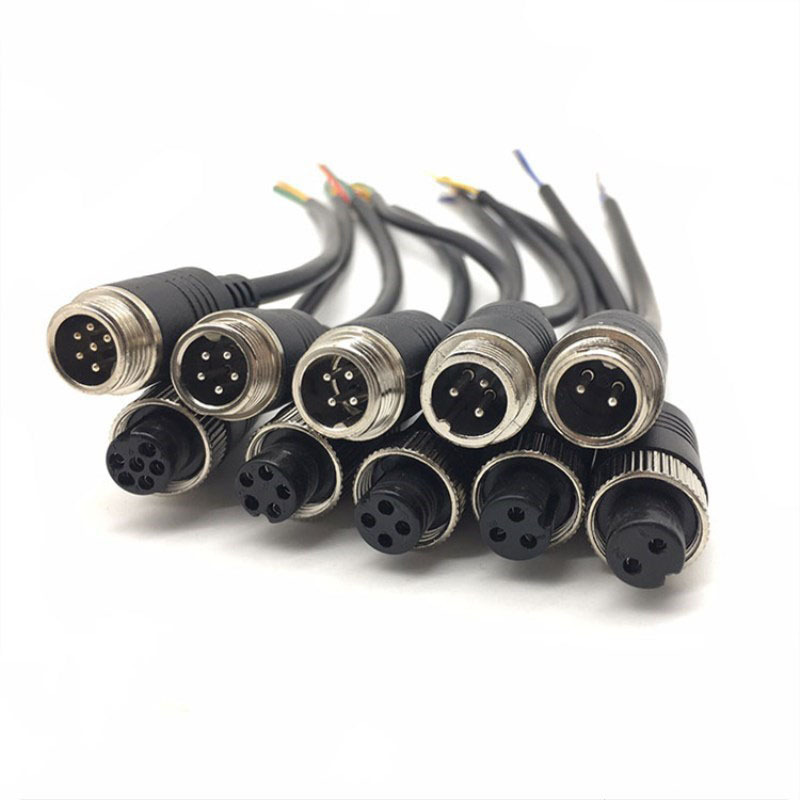

The company has m12 field installation connector cables that can be customized with various core counts and specifications, with 2/3/4/5/6/7/8 pins available.

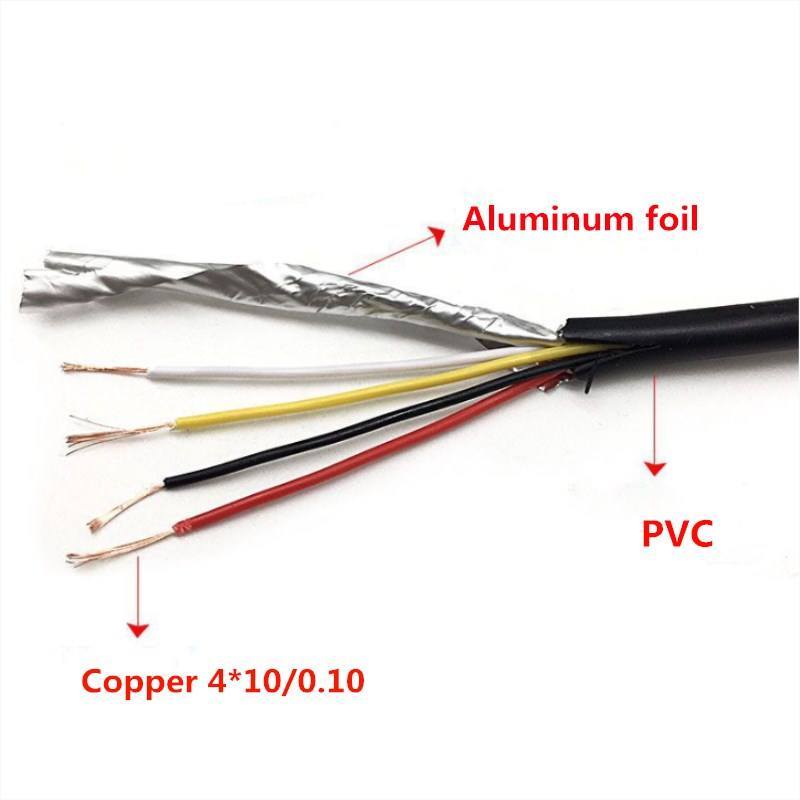

We are using PVC wire with shielding, the wire is made of copper, the strand count is 4*10, to ensure the quality requirements
Company Profile
Xiamen Leaka Electrical Equipment Co., LTD., founded in 2 0 1 5, and we have our own associated factory,which is an enterprise dedicated to the research, development and production of high-performance connectors and providing connectivity solutions.Our company is located in the No.101,Huizu Road,Haicang,Xiamen,Fujian,convenient transportation.Our company has a perfect quality management system, innovative r & D team, complete testing laboratory and enthusiastic service personnel, can provide customers with high quality products and competitive prices. Our main products include underwater connector,M5,M8,M12,M16,M19,M23 connector,push pull connector,aviation connector,circular connector, heavy duty connector and related wire harness products.Waterproof rating from IP65, IP67, IP68 to IP69K. which are widely used in industrial automation, sensors, Marine equipment, new energy, communication, lighting,LED display equipment, railway,and security and other fields. The company's products are made in strict accordance with international general standards and can be used interchangeably with major brand products,at the same time, we can also provide special customized services according to customer requirements. Our company has passed ISO9001:2015 quality system certification, and our products have passed a number of third-party certification. Our products are not only popular in China, but also exported to 56 countries and regions,received widespread praise.We warmly welcome customers from home and abroad to cooperate and create a better future.
We are a young team that already has considerable experience in the field of Electrical Connectors.
Richer Experience:Our products have been exported to more than 40 countries, such as Russia, Australia, USA, UK, Germany, Ukraine, Iran, Romania, Hungary, Mexico, Brazil, Chile, Canada, Spain, Colombia， etc. We have agents in the USA, Australia, Singapore, Kuwait, Russia.etc, so we can provide high service to our clients.
We focus on new product research and development, every year there are quite a lot of product patent certificates, innovation is our belief!
We have a professional team with technical knowledge and managerial experience. Our company has been through professional quality system certification, CE certification, SGS audit, TUV audit,So that we can guarantee the best quality of our products.
Various product testing equipment to ensure product quality, so that customers are more assured.
Our customers have a wider range of processing choices for transportation mode
By Express ( FedEx, UPS, DHL, TNT, EMS, etc... )
--- Advantage: Fast ( takes about 7 - 10 days in the delivery ), door to door
--- Disadvantage: A little expensive
By Air Transportation
--- Advantage: Fast ( takes about 8 - 12 days ), a little cheaper than Express.
--- Disadvantage: You need to take the goods from the airport by yourself.
By Sea ( Ocean ) Transportation
--- Advantage: Much cheaper than Express or Air transportation.
Disadvantage: Slow and you need to take the goods from your destination port by yourself.
Exhibitions
What materials are used in your M12 Field Wireable Connectors?
Our M12 connectors use copper contacts, ensuring reliable conductivity and durability in industrial applications. The connectors also feature robust threaded coupling for secure connections, meeting the high standards expected from M12 connector manufacturers.
Can I customize the pin configurations of the M12 Field Wireable Connector?
Yes, we provide tailored solutions with pin counts ranging from 2 to 8. This customization ensures the connector fits your specific wiring needs, aligning with our reputation as trusted industrial circular connector manufacturers.
Do I need special tools or skills to install the M12 Field Wireable Connector on-site?
No specialized tools or electricians are required. Our connectors are designed for easy field installation to support quick and reliable assembly, which is ideal for maintenance or on-site wiring adjustments.
What shipping options do you offer for international customers?
We offer express delivery (FedEx, UPS, DHL, TNT, EMS), air transport, and sea freight. Express is fastest but pricier, air is cost-effective but requires airport pickup, and sea is economical with slower transit. We assist with logistics for smooth delivery.
