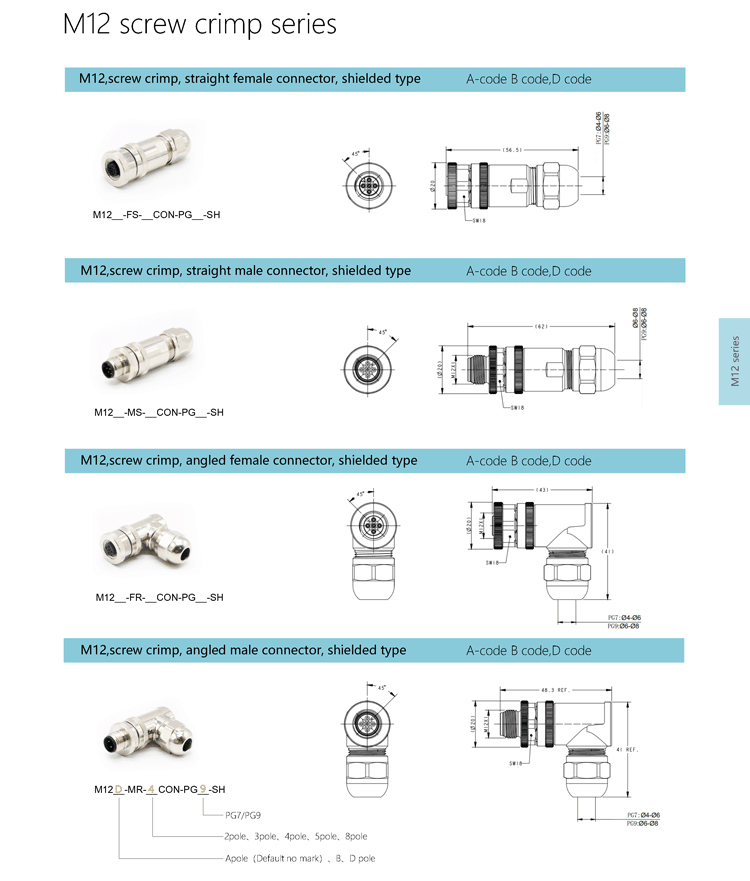

IP 67 waterproof straight elbow screw connection PG type female cable plug metal M12 shielded connector 4 5 8 pin

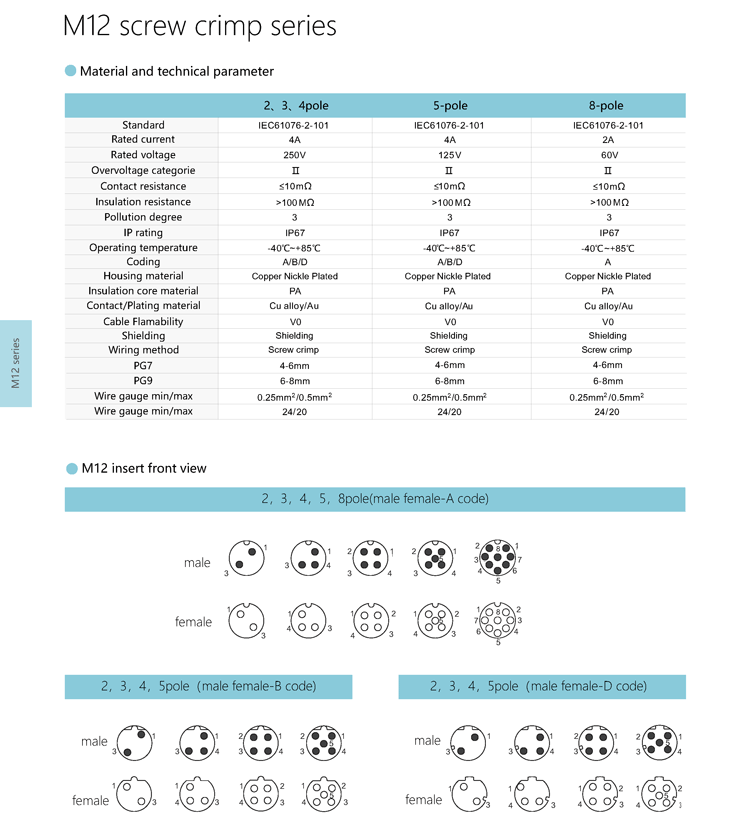

Name |
M12 shield connector
|
|
Size
|

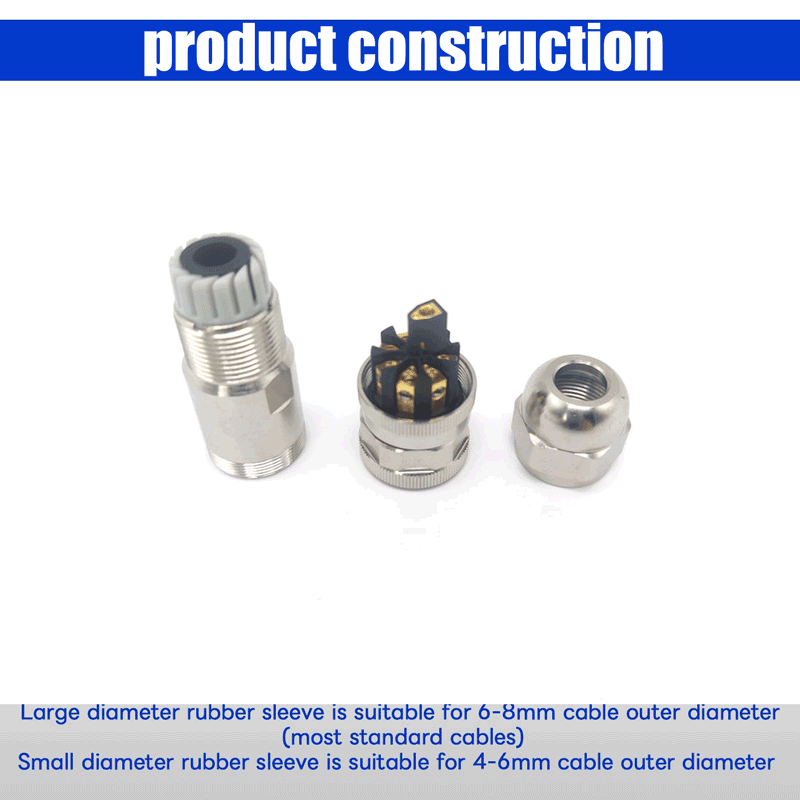

PG7/PG9
|
|
Rated current
|
max 4A
|
|
Temperature
|
-25 °C-85 °C
|
|
IP rating
|
IP67
|
|
Type of connection
|
Screw connection
|

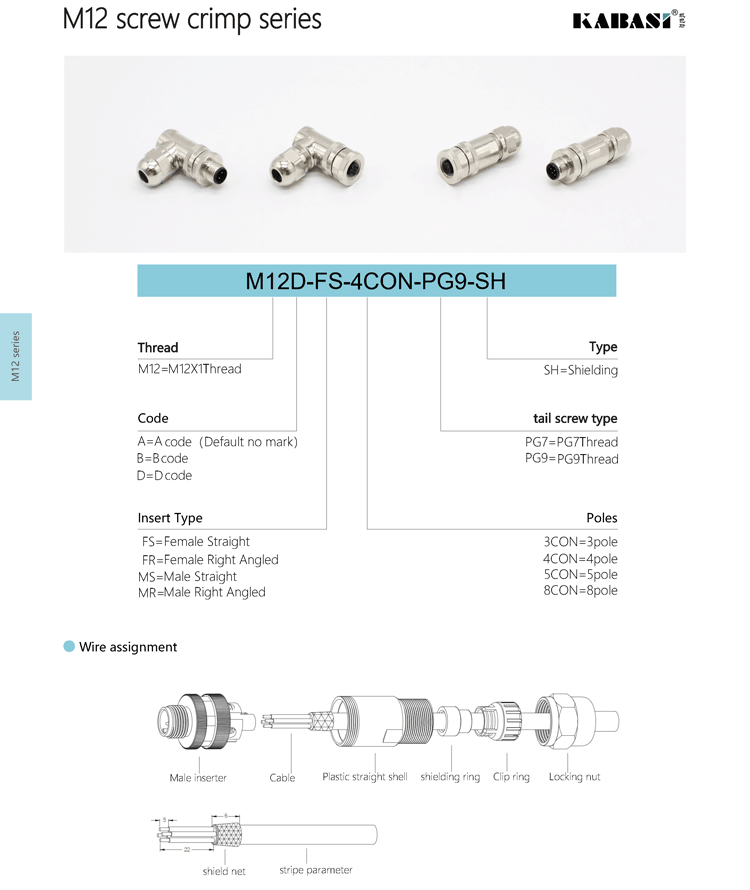

* 【M12 Connector】M12 Field Wireable Connector,A Code,4Pin,Male+Female,Straight,For Cable,Screw-Joint,Shield,IP67 Waterproof.

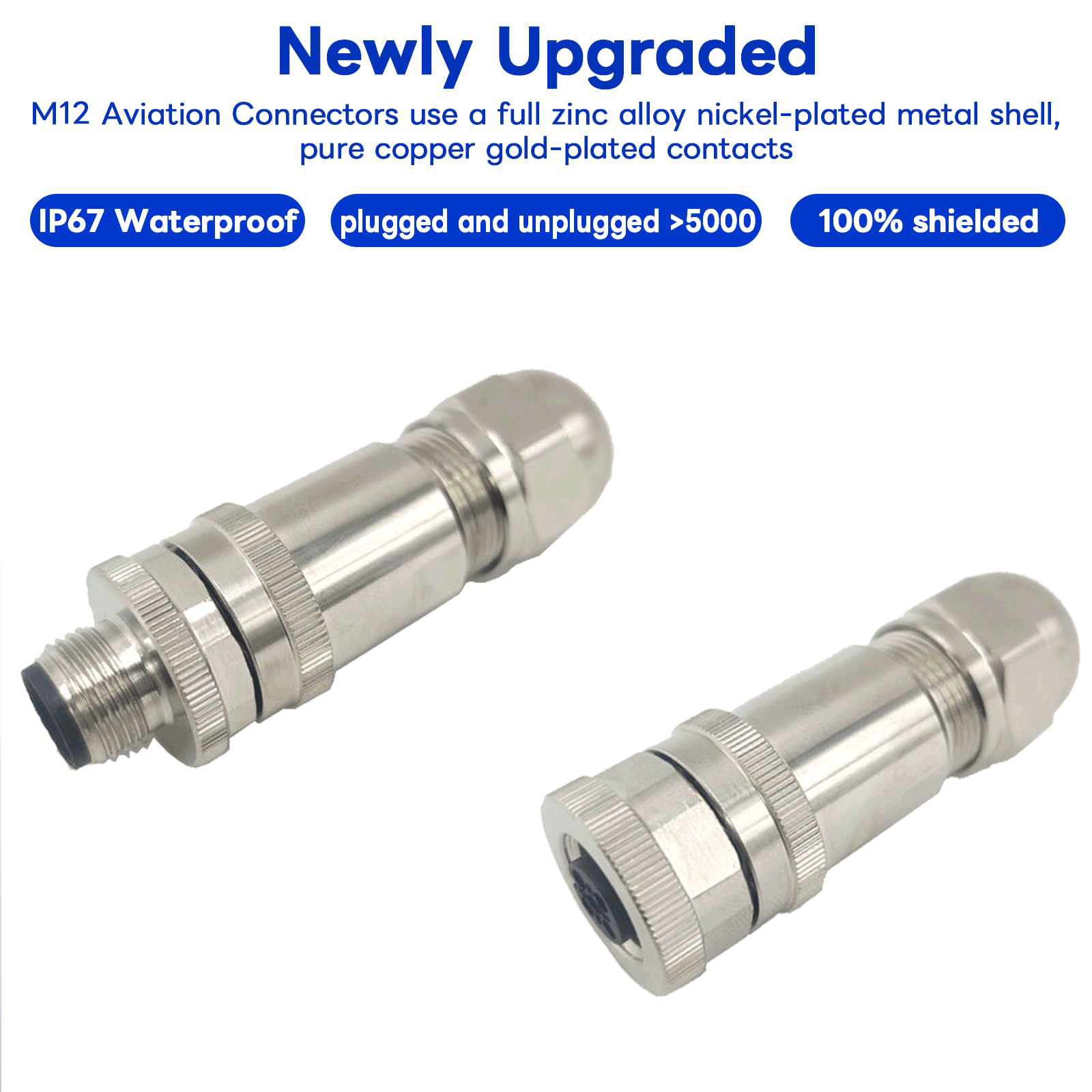

* 【High Quality-Ungrade】Newly Upgraded—M12 5-Pin Male+Female Circular Aviation Connectors use a full zinc alloy nickel-plated metal shell,more resistant to pressure and corrosion & longer service life. Thread locking mechanism, anti-vibration locking design, 12mm threaded connector. The waterproof automation connector uses pure copper gold-plated contacts, which has a smaller resistance and can be plugged and unplugged 5,000 times, while ensuring the stability and reliability of data and signals.
* 【Easy to Use】12mm Aviation Wire Connector Plug:Easy quick connect and disconnect coupling;No tools required for installation and removal,M12 Cable Plug provide quick and easy connection between field devices and terminal connections,flexible and convenient plug-and-play.Allowing you to freely combine and match to complete the work efficiently and quickly.Even for
non-technical personnel, can be easily installed and replaced.

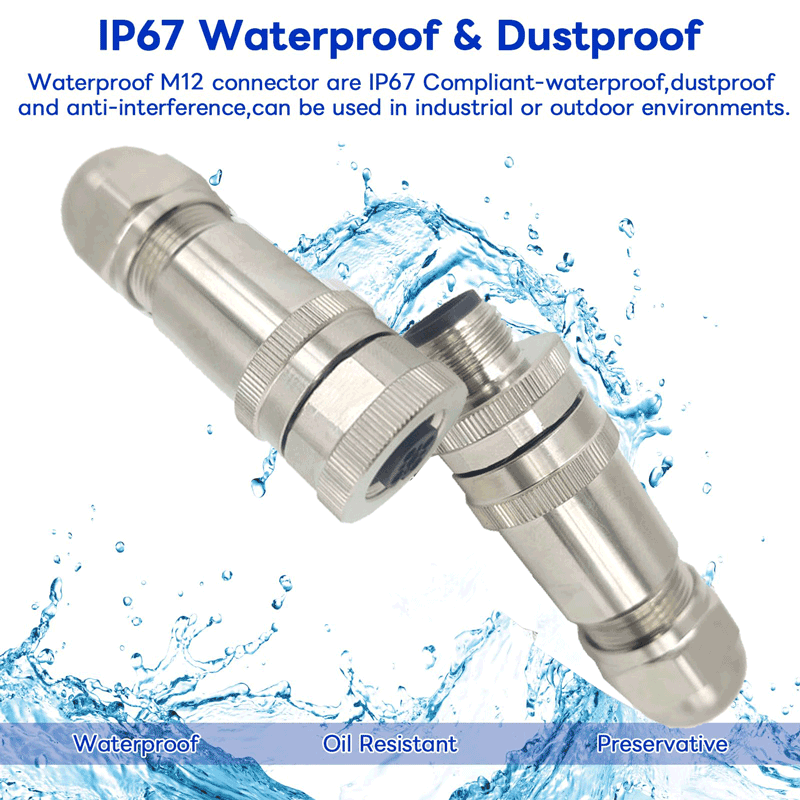

* 【IP67 Waterproof】Waterproof 12mm aviation wire connector are IP67 Compliant-waterproof,dustproof and anti-interference,can be used in industrial or outdoor environments. Silicone sealed waterproof+threaded connection provides perfect waterproof/dustproof,prevents the network parts from moisture,dirt rain snow and insects,and achieves a high-quality connection.
* 【Application】The 12mm Industrial Circular Connector widely used in signal electronic connector of aviation,computer,various kinds of instruments and industrial cameras,electric bicycles,factory automation,can be easily connected to proximity switches,photoelectric barriers,flow monitoring devices,sensor devices and ctuator devices and field bus components.

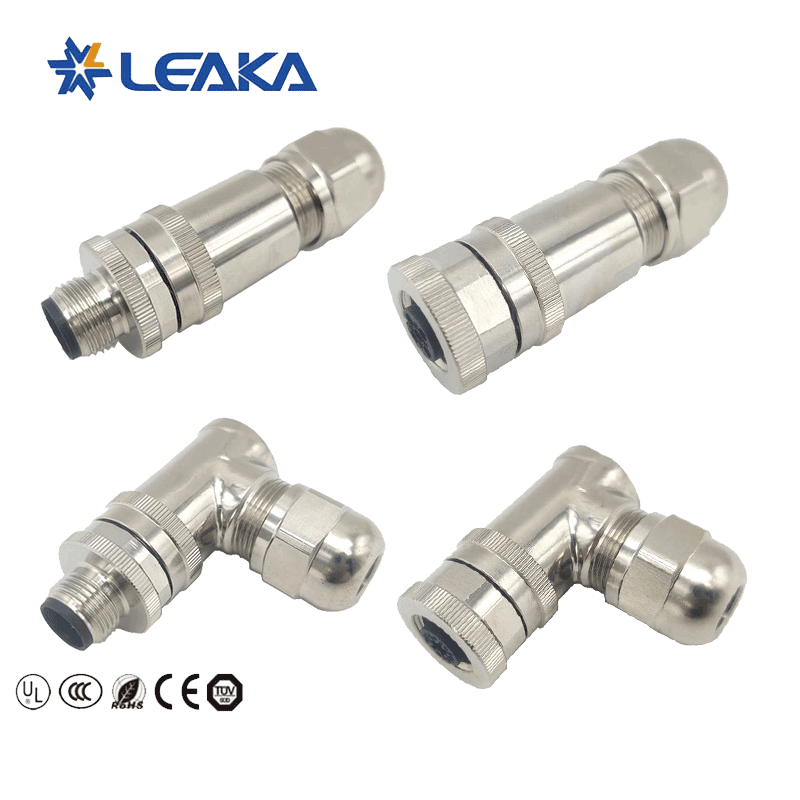

We have a variety of styles and core counts of M12 shielded series aviation plugs and sockets, if you need, welcome to send inquiry!
