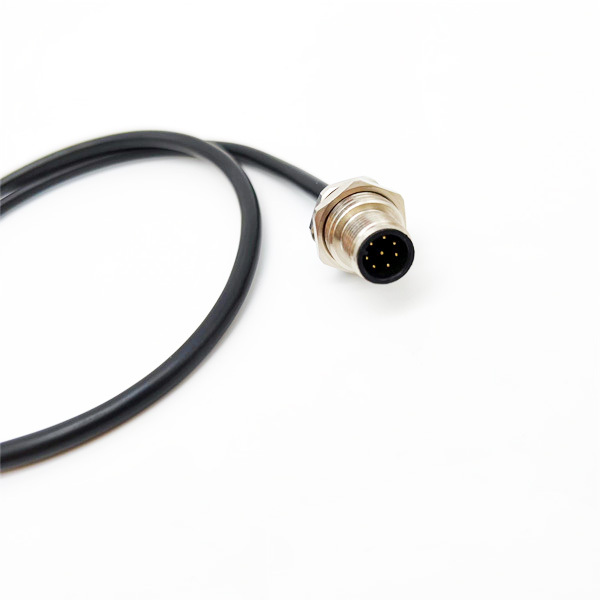

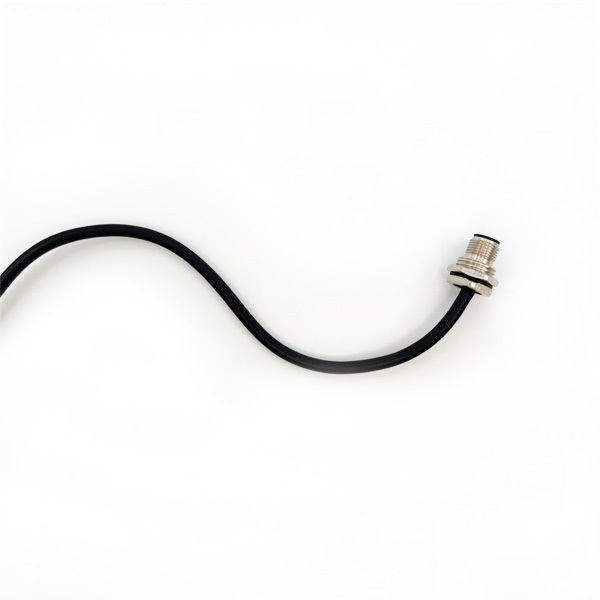

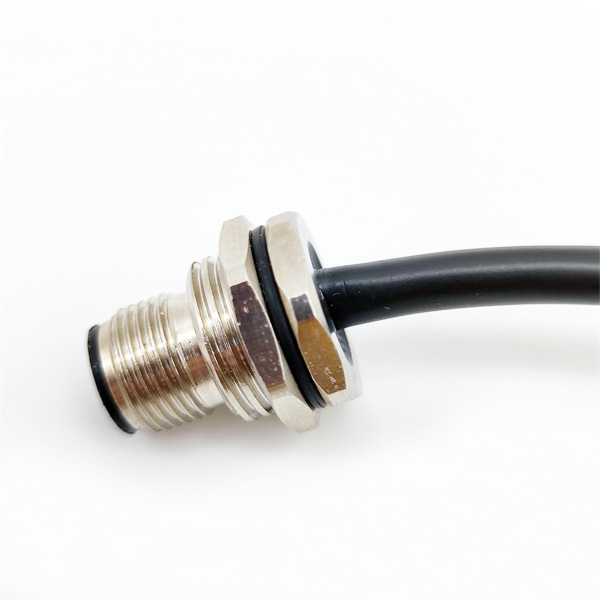

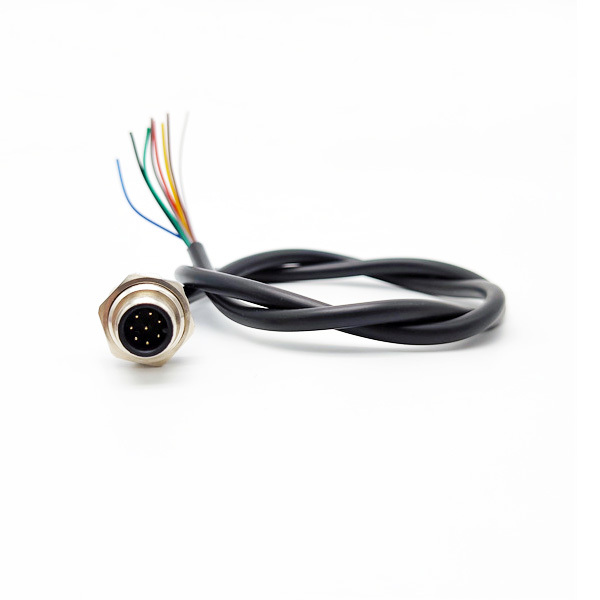

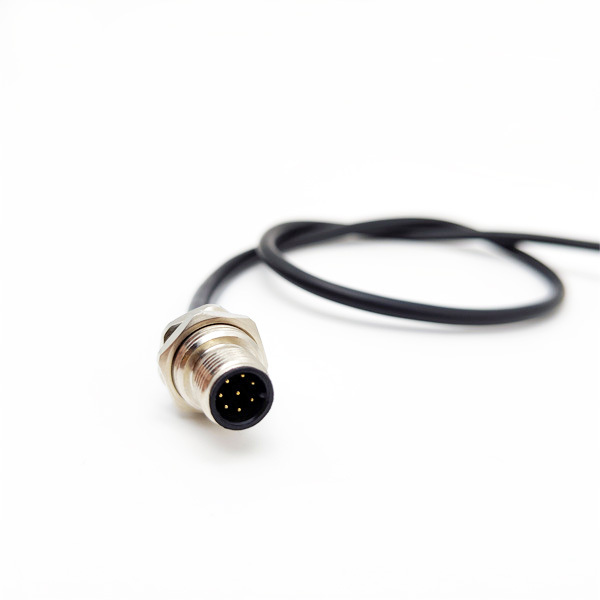

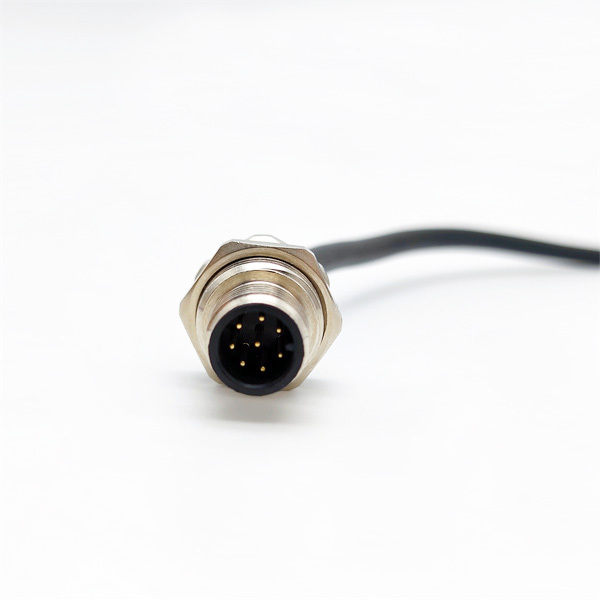

M12 Panel Mount Flange Socket Sensor Wire Connector

Dealers Flange Socket Panel Mount Sensor Wire Connector M12

1. Product Introduction m12 wire connector

M12 panel mounted sockets are die cast connectors suitable for use in enclosures or for custom wiring configurations. They are modular in design and have panel mounted functions, which help to keep the cables clean and orderly. They can be easily replaced in areas where cables are easily damaged or frequently replaced.

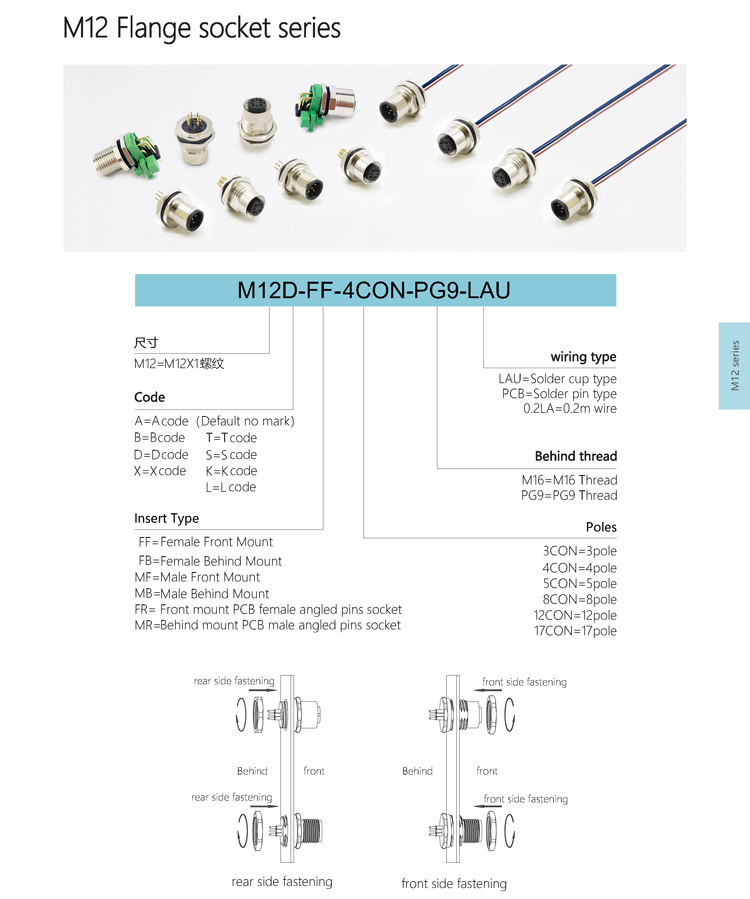

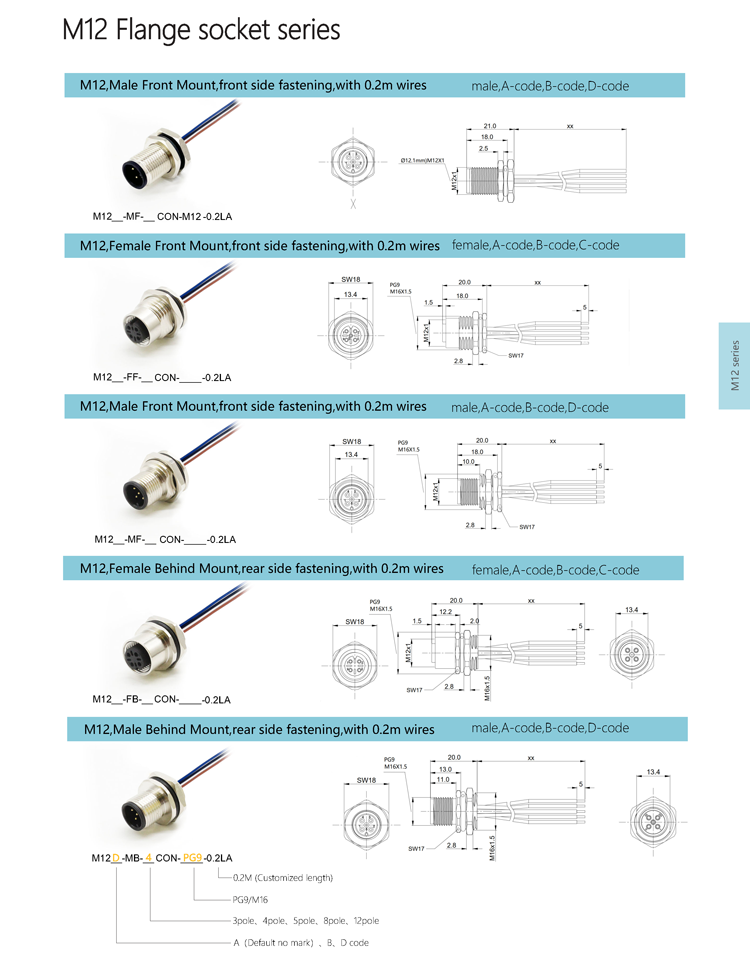

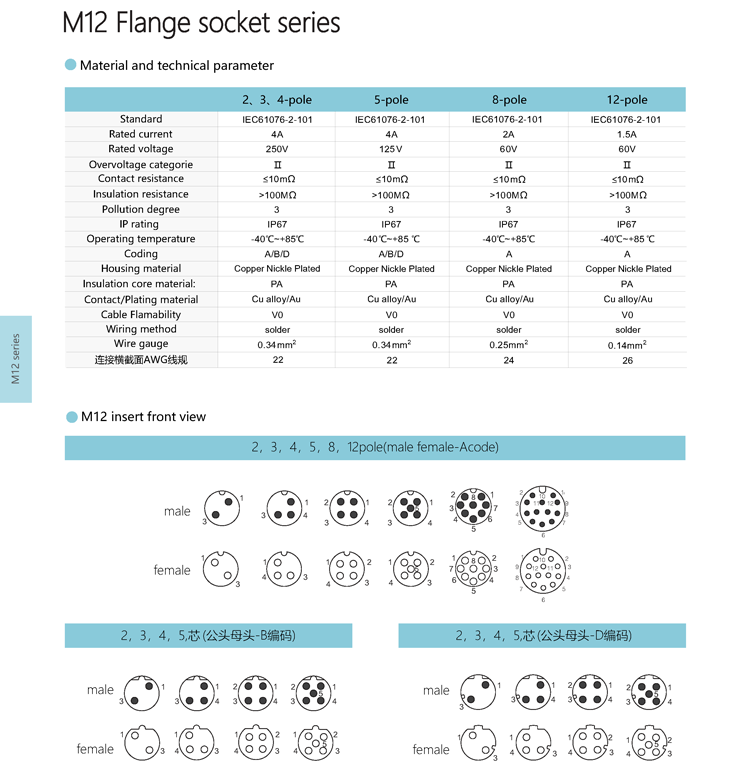

2. Product Parameters M12 Bulkhead Connectors

3. Companny Profile

4. Express & Payment

Product Advantages

Modular Design and Durable Construction

The M12 Panel Mount Flange Socket incorporates a robust die-cast design promoting structural integrity and long service life under demanding industrial conditions. Its modularity supports panel-mounted installation, ensuring secure mechanical retention and organized cable routing. Copper-gold plated contacts embedded within a protective PVC/PUR housing offer enhanced corrosion resistance and electrical performance. With multiple pin configurations and termination options, it enables flexible system architecture, meeting the exacting standards upheld by wholesale circular connector suppliers and m12 connector manufacturers.

Optimized Performance and Ease of Integration

Engineered for optimal electrical performance, this connector guarantees consistent contact reliability and minimal signal loss, crucial in sensor applications requiring precise data transmission. The threaded coupling mechanism delivers secure mating that resists loosening from vibration or accidental disconnection, reducing maintenance intervals. Customizable cable lengths align with specific installation layouts, simplifying integration into automated control panels. This combination of usability and technical reliability secures its position as a preferred solution among top industrial circular connector manufacturers.

Use Scenarios

Industrial Sensor Panel Integration in Automated Manufacturing

In automated factory environments, precise sensor connectivity is critical for process accuracy and equipment safety. The M12 Panel Mount Flange Socket is deployed within control panels to establish robust sensor wiring networks that withstand continuous operational vibrations and thermal fluctuations. Its threaded coupling and corrosion-resistant contacts maintain stable electrical connections, ensuring real-time signal fidelity. The design aligns with system engineering protocols for modular sensor installation and rapid field servicing, representing a favored choice among industrial circular connector manufacturers to support scalable automation solutions.

Custom Wiring Harnesses for Process Control Systems

Within process automation facilities, the need for reliable, easily maintainable wiring configurations is paramount. This flange socket serves as a vital interface in custom harness assemblies, enabling secure panel mounting of sensor cables that are often subjected to mechanical strain and environmental exposure. Its compatibility with multiple pin counts facilitates diverse sensor types, while termination versatility ensures precise assembly according to engineering specifications. By incorporating this m12 connector, system integrators achieve enhanced workflow efficiency and compliance with international connectivity standards championed by established m12 connector manufacturers.

FAQ

What are the main materials used in the M12 Panel Mount Flange Socket Sensor Wire Connector?

Our M12 connector features copper-gold plated contacts for excellent conductivity, combined with durable PVC or PUR shells. This blend ensures reliable performance in industrial applications, fitting the quality expected from top industrial circular connector manufacturers.

Can you customize the pin configuration and cable length on the M12 connectors?

Yes, we offer flexible options including 3, 4, 5, 8, and 12 pin configurations. Cable lengths can also be customized to meet specific installation needs, supporting tailored solutions for your projects using our M12 connector series.

How do I install the M12 Panel Mount Flange Socket to ensure secure and stable connections?

Installation involves panel mounting the flange socket with threaded coupling for stable connection integrity. The connector also supports screw or solder terminations, allowing flexible wiring options to fit your sensor or automation system requirements.

What is your typical lead time and minimum order quantity for wholesale circular connectors?

We usually require a minimum order quantity of 100 pieces for efficient production. Our factory’s streamlined process ensures prompt delivery, meeting the demands of industrial buyers seeking quality wholesale circular connector solutions.
