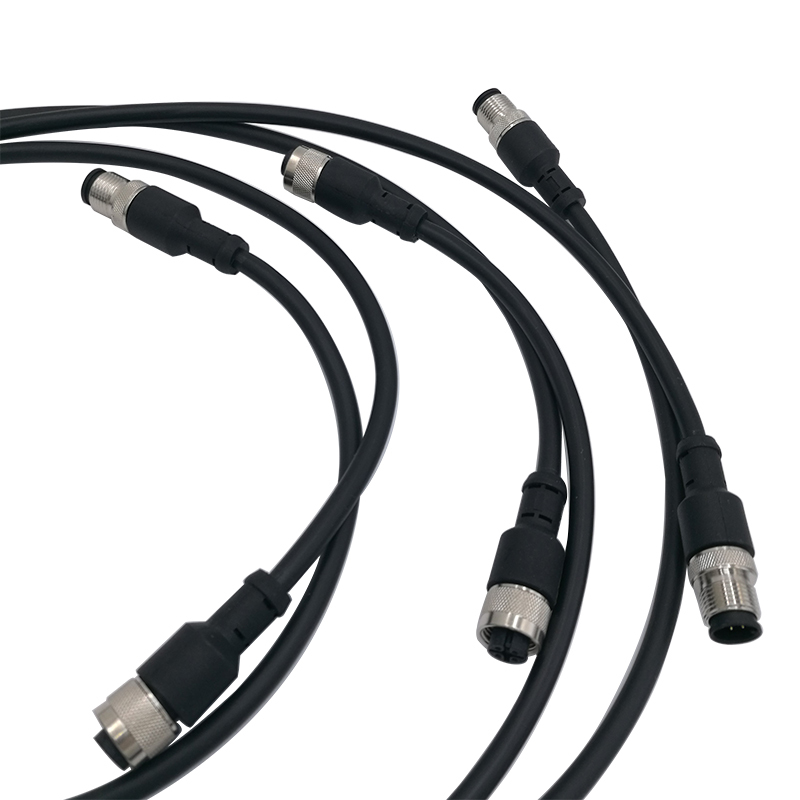

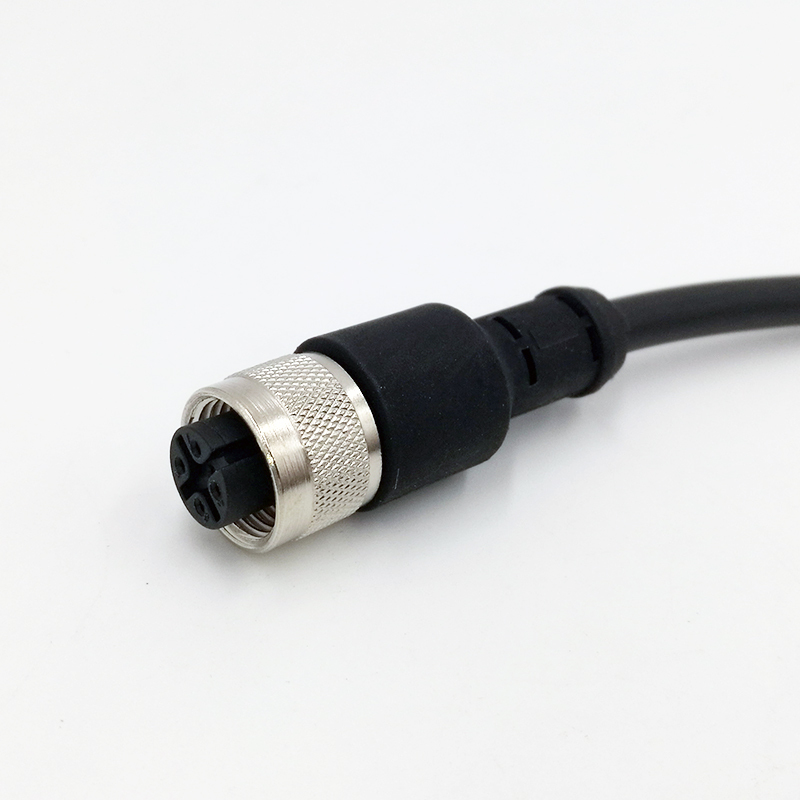

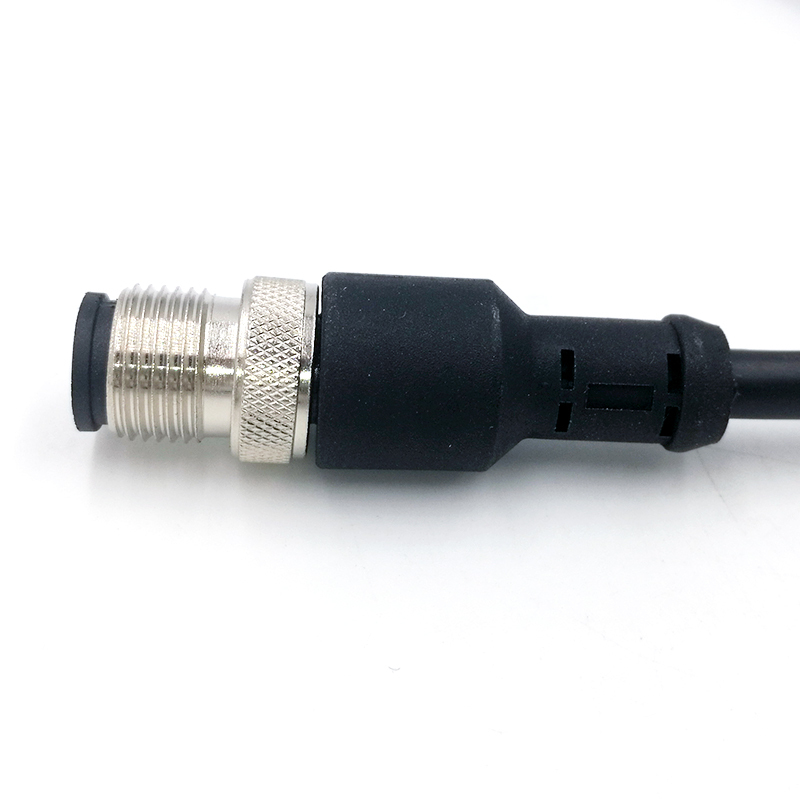

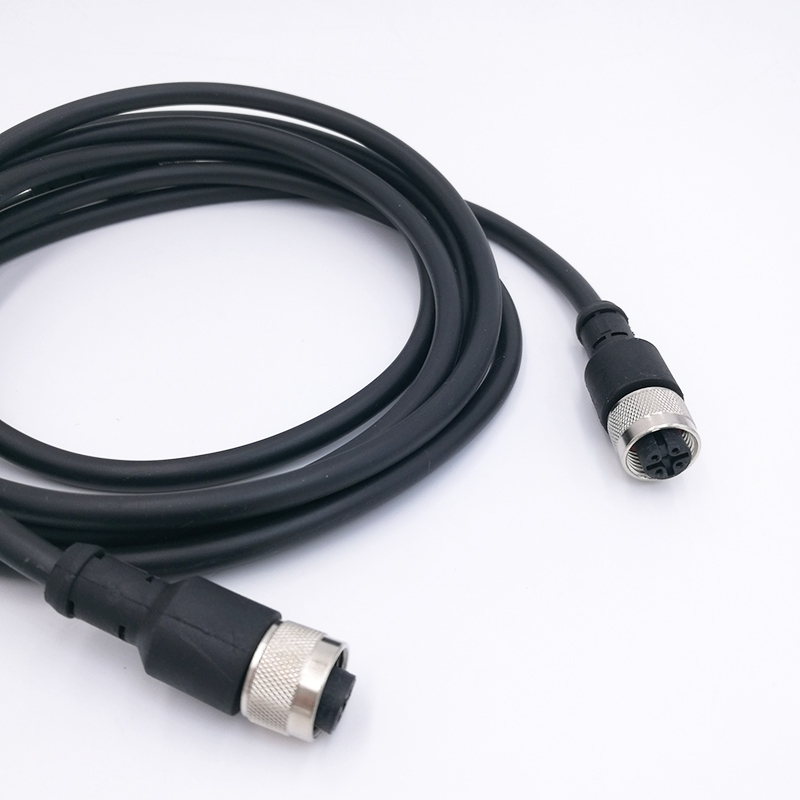

Agency M12 PVC PUR Straight Angle Female Male Electrical Cable Connector
1. Product Introduction
The Coaxial cable connector kit of M12 is a circular connector with 12mm locking thread, which is mainly used in factory automation applications of actuators, sensors, industrial Ethernet and fieldbus. M12 connectors are designed for flushing and corrosive environments. They are equipped with 3, 4, 5, 8 or 12 pins. The user must select the correct number of pins for a particular application. Sensor and power applications require 3 and 4 pins; PROFINET and Ethernet require 4-pin and 8-pin; Fieldbus, can bus and DeviceNet usually use 4-pin and 5-pin; 12 pins for signal requirements. Our M12 connector system provides a complete solution, including connector and cable components. M12 connectors can be used in many applications, including agriculture, alternative energy, communications, factory automation, measurement and control, robotics and transportation.
Precision Connectivity for Industrial Integration

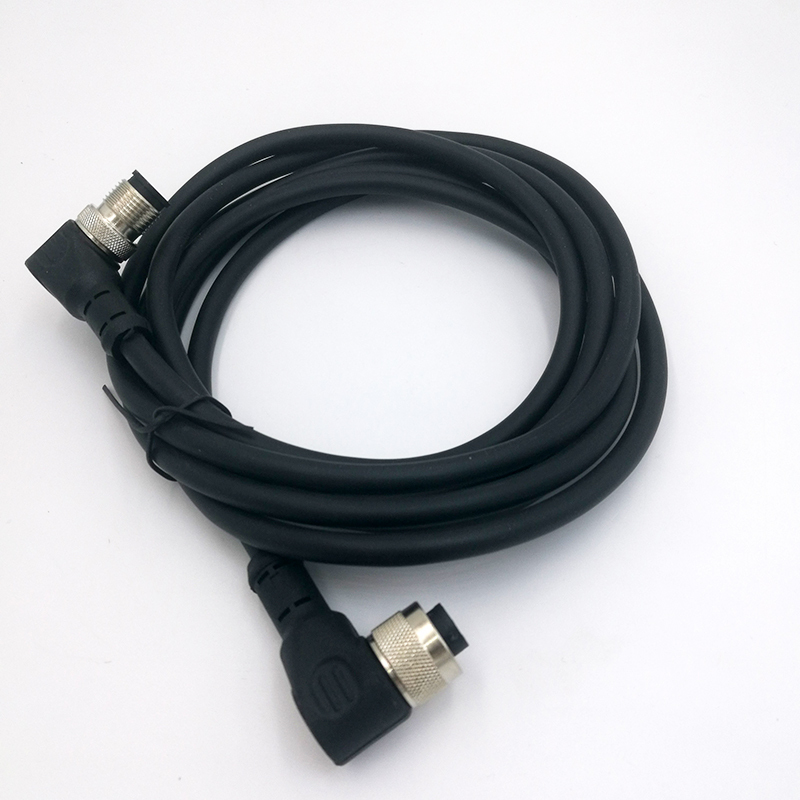

This m12 right angle male female plug is engineered to provide robust and secure connections within complex industrial environments. Primarily targeted at system integrators, automation engineers, and procurement managers, this connector from an established industrial automation connector supplier integrates seamlessly into control cabinets and field installations. Its straight angle design facilitates wiring in confined or obstructed spaces while maintaining consistent signal integrity. By offering multiple pin configurations and adaptable cable lengths, this m12 pvc pur cable connector serves diversified equipment communication and power transmission demands in factory automation lines and sensor arrays.
Constructed with high-performance materials including PVC and PUR wire insulation safeguarded by a durable PA66 connector housing, the m12 pvc pur cable connector withstands mechanical stress, temperature fluctuations (-25℃ to 85℃), and corrosive industrial atmospheres. Rated at IP67, the connector ensures complete protection against dust ingress and water immersion, meeting stringent application requirements. The gold-plated contacts optimize electrical conductivity and reduce contact resistance, supporting a rated current of up to 4 amps. Designed with a 12mm locking thread mechanism, it guarantees vibration-proof connections critical for operational continuity. Customizable cable lengths from 0.5m and 1m increments enable precise adaptation to installation layouts.
This m12 right angle male female plug is widely deployed in industrial automation and networking scenarios, connecting sensors, actuators, fieldbus interfaces, and Ethernet equipment. Its design is particularly suited for environments demanding waterproof and corrosion-resistant cabling solutions, contributing to minimized downtime and enhanced maintenance cycles. System integrators benefit from the product’s interoperability with established M12 standards, streamlining inventory management and replacement procedures. As an integral product from a reputable industrial automation connector supplier, this connector supports factory automation, robotics, and transportation machinery applications, delivering dependable electrical interface solutions that align with international quality protocols.
2. Product Parameter
| Type | BNC |
| Material | PA66 |
| Wire Material | PVC or PUR |
| Contact Plating | Au |
| Termination | Overmold |
| Rated Current | 4A |
| Number of Contact | 4,5,8 Pins |
| Temperature Range | -25℃∽85℃ |
| Protection Degree | IP67 |
| Wire Length | 0.5m or 1m or customized length |
3. Company Profile
Xiamen LEAKA Electrical Equipment Co., Ltd., founded in 2015, has an experienced factory, professional R & D, production team and sales team.Focus on the R & D, production and sales of connector products. The company's products are made in strict accordance with international general standards and can be used interchangeably with major brand products,at the same time, we can also provide special customized services according to customer requirements.
Our company has passed ISO9001:2015 quality system certification, and our products have passed a number of third-party certification. Our products are not only popular in China, but also exported to 56 countries and regions,received widespread praise.We warmly welcome customers from home and abroad to cooperate and create a better future.
4. Packing, Deliver and Payment
5.Our Advantages
Product quality control and delivery time is strictly controlled;
Direct manufacturing factory offering competitive price;
All the inquiries will be replied within 12 hours;
OEM & ODM service are available;
Providing first-class after-sales services to the customers.
6. Why Choose US?
We are the experienced factory of connectors field in Fujian province ,china .
Quality Control through the whole Manufacturing process.
General Inspection on fixing before Packing. Our hardware all passed CE.
Many other Designs for you to choose and we can Accept a small amount order. Your interests can be fully Guaranteed.
After you make order, we will Follow up the whole process and Update it to you. Collecting goods, Loading containers and Tracking goods transport information for you.
FAQ
What cable lengths do you offer for the m12 pvc pur cable connector?
We provide standard cable lengths of 0.5m and 1m for our m12 pvc pur cable connector, and we also offer custom length options to meet your specific installation requirements. Customization ensures optimal fit for your industrial automation applications.
Can this m12 right angle male female plug withstand harsh environments?
Yes, our m12 right angle male female plug features IP67 waterproof protection and rugged PVC and PUR wire materials, making it resistant to dust, moisture, and corrosion in demanding industrial conditions.
Are the pins configurable to suit different electrical needs?
Absolutely. Our connector supports 4, 5, or 8-pin configurations, allowing you to select the appropriate pin count for your power and signal transmission requirements within industrial automation connector systems.
Do you offer technical support for installation and compatibility?
We provide expert assistance to ensure proper installation and compatibility with your existing systems. Our team guides you through applying the right industrial automation connector supplier solutions tailored to your project needs.
