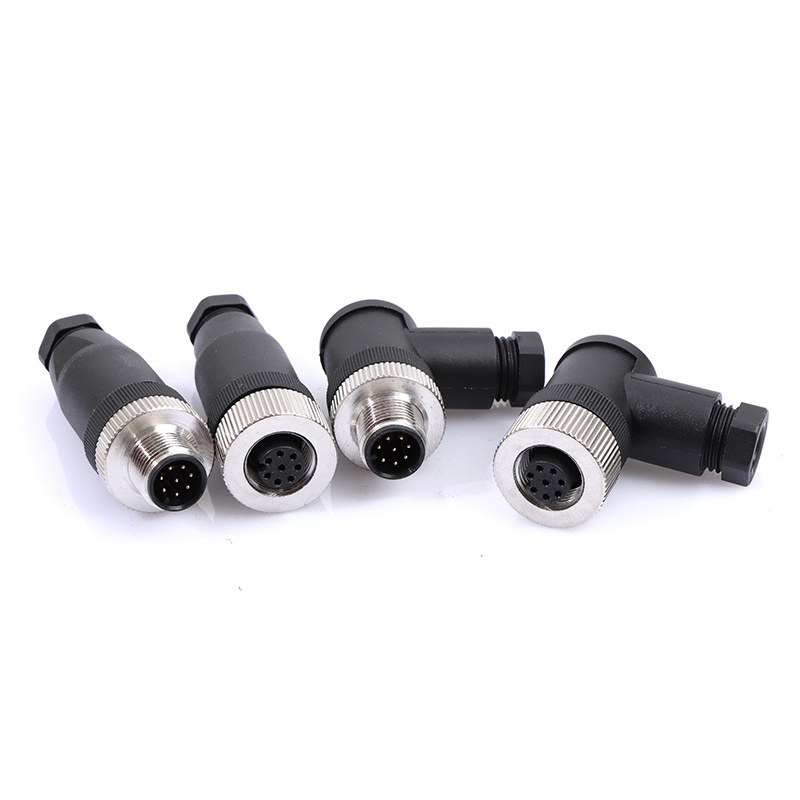

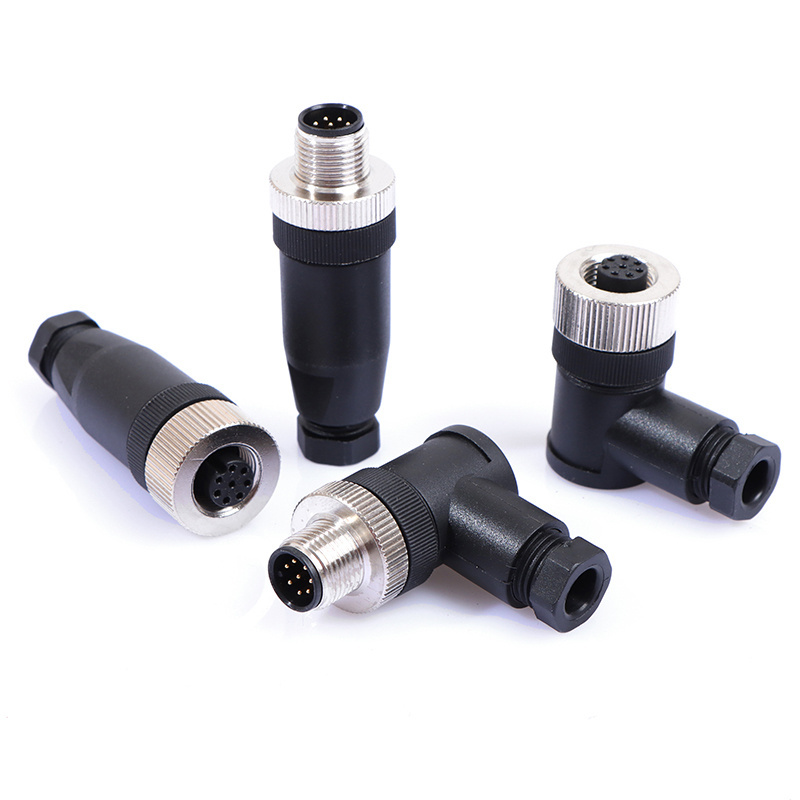

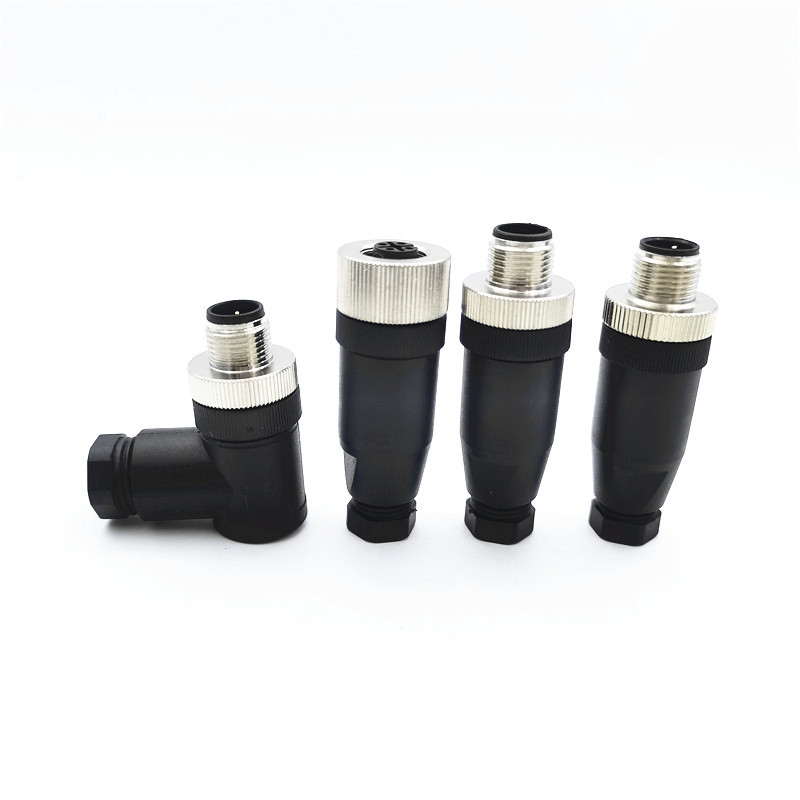

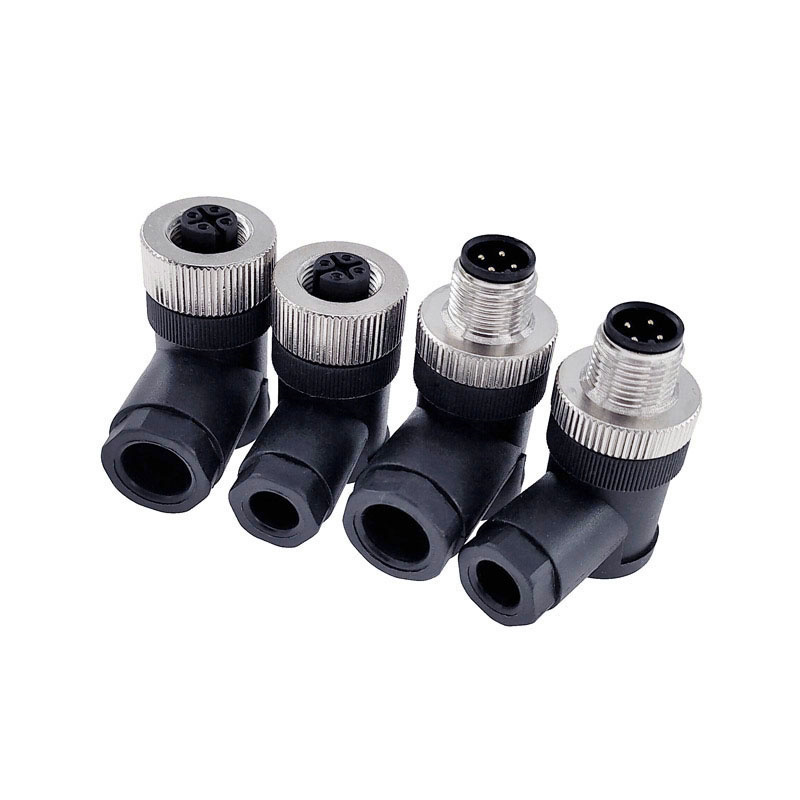

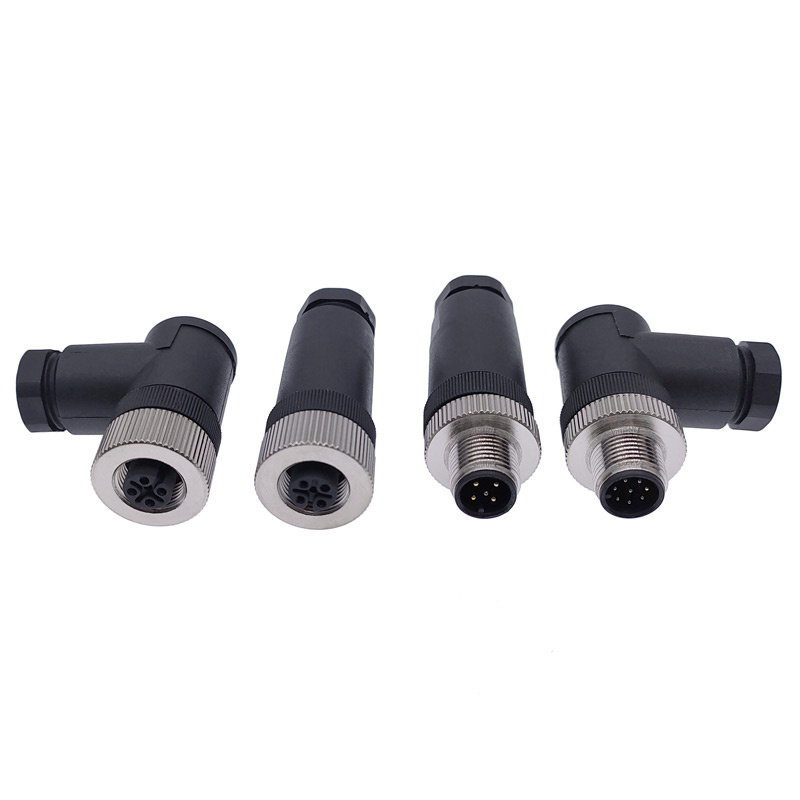

Wholesale M12 Waterproof Sensor 4 5 8 Pins Connector
1.Product Introduction m12 Screw crimp connector
IP67 waterproof connector of M12 was not available for printed circuit board until the birth of M12 connector with surface mount termination. Surface mount termination helps to miniaturize field equipment. The solid pins enable it to pass through the batch packaging and the corresponding feeding process using vibrating bowl. Another packaging method is coil packaging.
The basic modular design concept creates connectors with various installation heights and different pin types. Based on the needs of users, the provided termination methods include surface mounting, crimping or through-hole reflux technology, in which surface mounting technology is the standard. The black insulator of the connector is made of high-temperature plastic, so there is no problem in all conventional surface mount welding procedures.

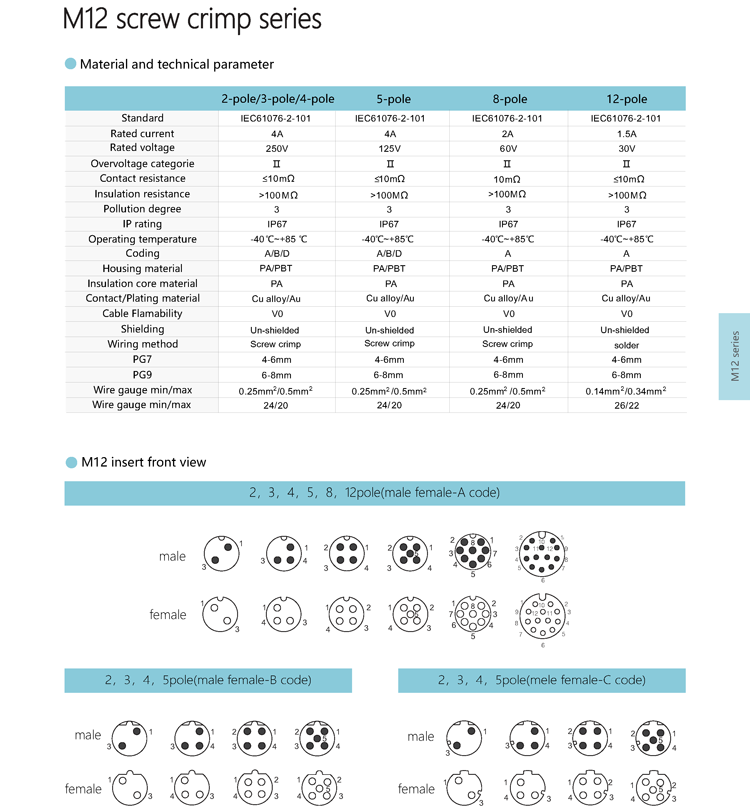

2.Product Specification connector m12
| Number of Contact | 4,5,8 Pins |
| Termination | Screw |
| IP Grade | IP67 |
| Working Temperature | -25℃∽85℃ |
| Shell Material | PA66+GF20% |
| Cable Diameter | PG7: 4-6mm; PG9: 6-8mm |
| Contact Material | Copper(Silver/Gold Plated) |
| Rated Current | Max 4A |
| Mating Cycle | ≥500 Times |
3.Payment & Shipping
4.Company Profile
Xiamen LEAKA Electrical Equipment Co., Ltd., an experienced connector manufacturer, is located in the beautiful coastal city of Xiamen, China. It covers an area of 3500 square meters and has more than 100 employees. Among them, there are 20 R & D and production teams, and they own a sales team to provide services for customers in the early, middle and late stages of shopping.
Our main products include M8 and M12 circular connectors, waterproof auto electrical connectors, rectangular connectors, waterproof connectors, sensing connectors, watertight connectors and connector harnesses. Our products are strictly checked by employees from the selection of raw materials to the delivery of finished products, so as to ensure that the products delivered to customers are very reliable. Therefore, our products are exported to many countries in the world.
5.Why Choose US!
Easy to install
The product is reliable and the service life is prolonged
Strict quality management system
Superior equipment
Professional services
OEM / ODM services
High quality products
1) Varieties and types for selection
2) Competitive price
3) Prompt delivery
