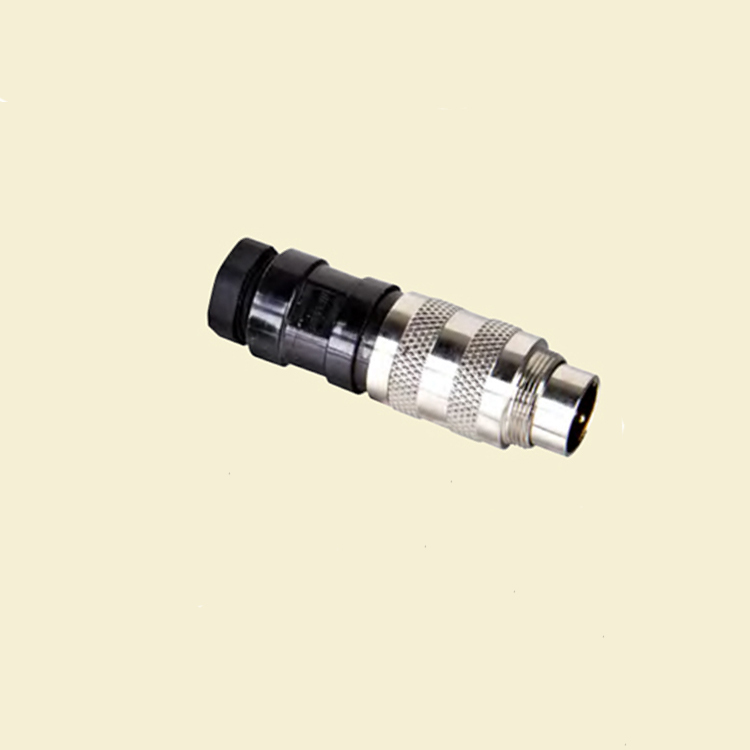

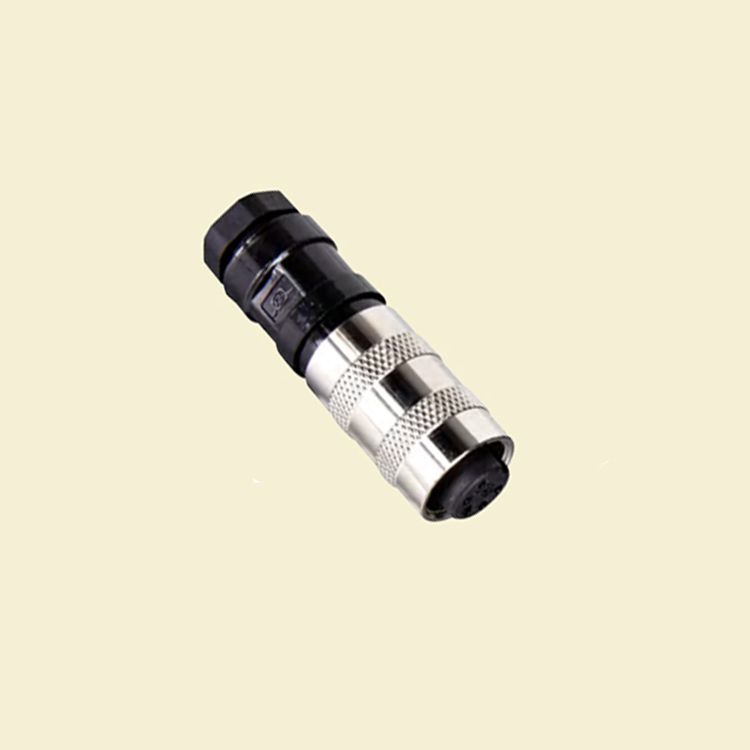

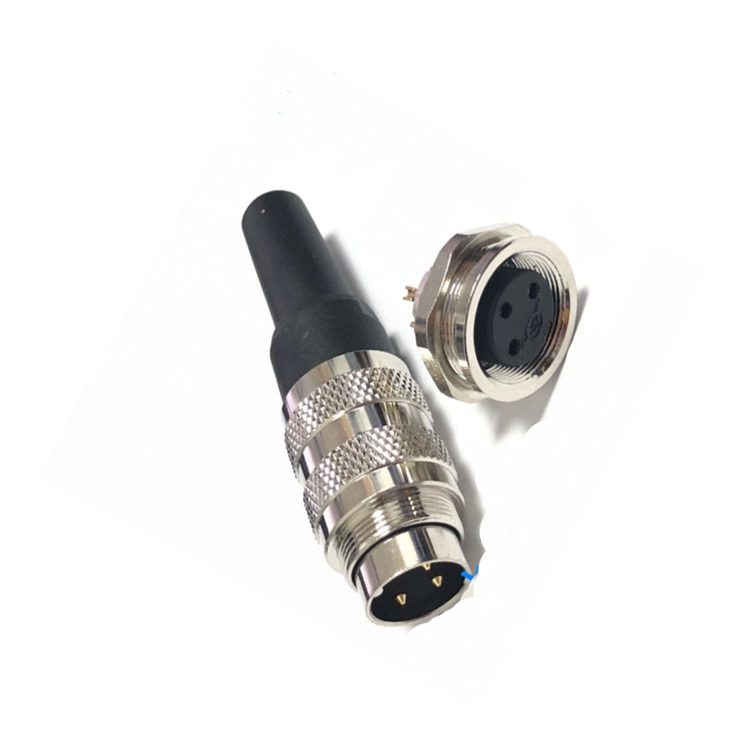

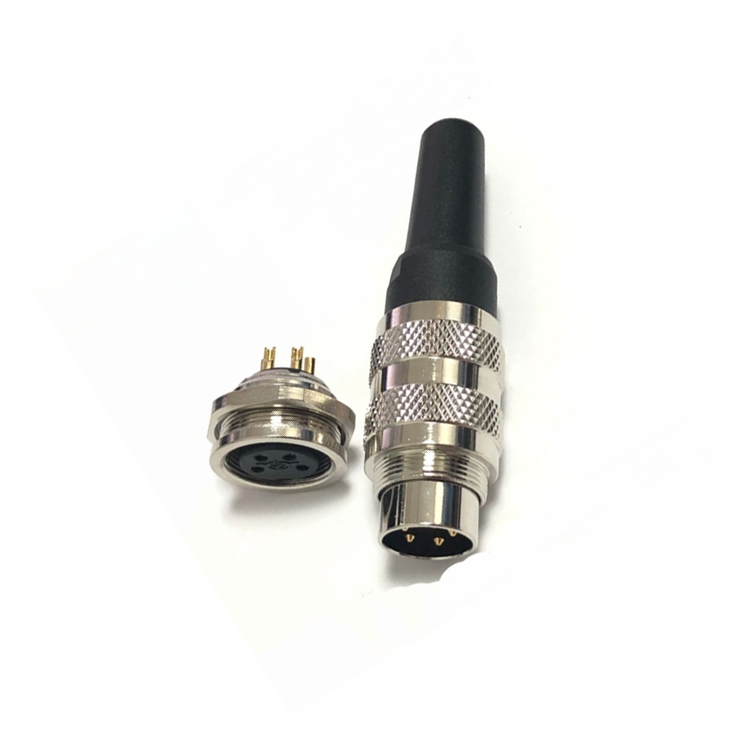

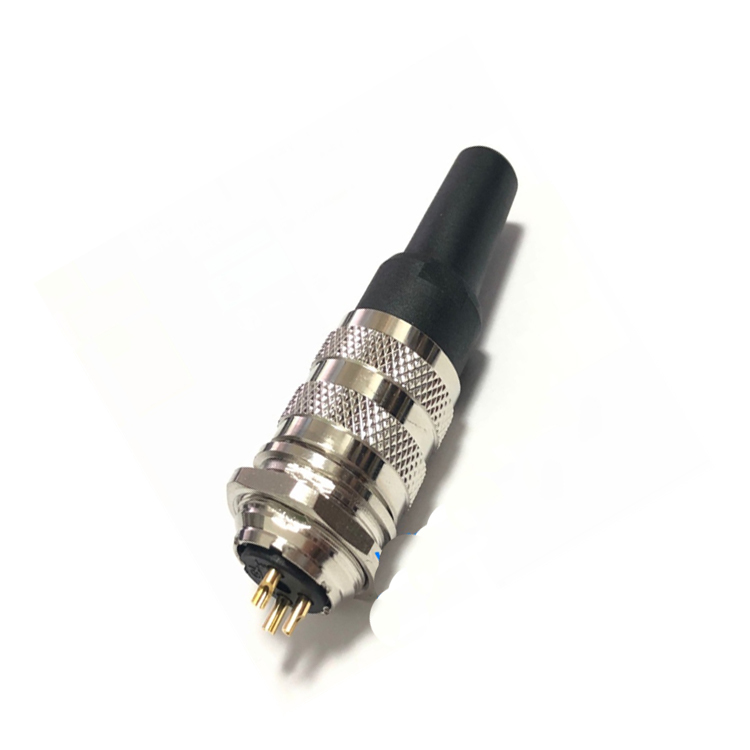

Manufacturers IP65 electrical metal straight circular plug socket m16 series PG type female male waterproof cable connector
| Wire diameter range | Φ6mm~Φ8.5mm |
| Coupling | Threaded coupling |
| Insert material | PA66+GF20% |
| Shell material | Zinc alloys with nikelplate PA66+GF20% |
| Contact material | copper(silverplated/gold) |
| Current rating(A) | 7A |
| Voltage resistance | 200v |
| Termination |
solder |
| Features | high quality,safety and stability |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 50000 pcs per month |
| Mating cycle | >500 |
| Temperature | -40℃~+85℃ |
| IP rating | IP65/IP67 |
| Flame rating | UL94-V0 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
