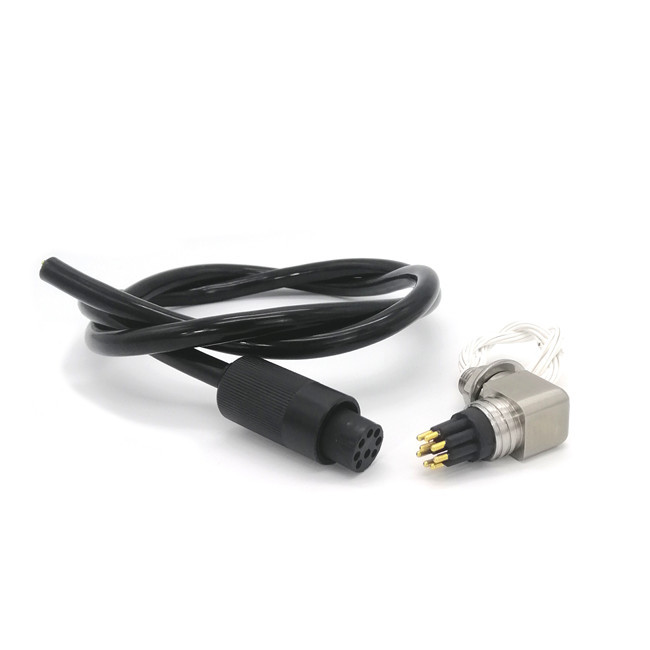

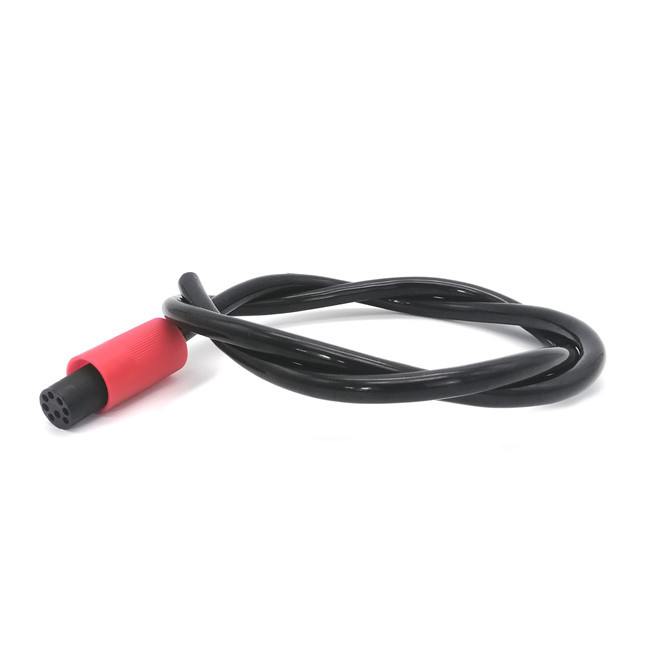

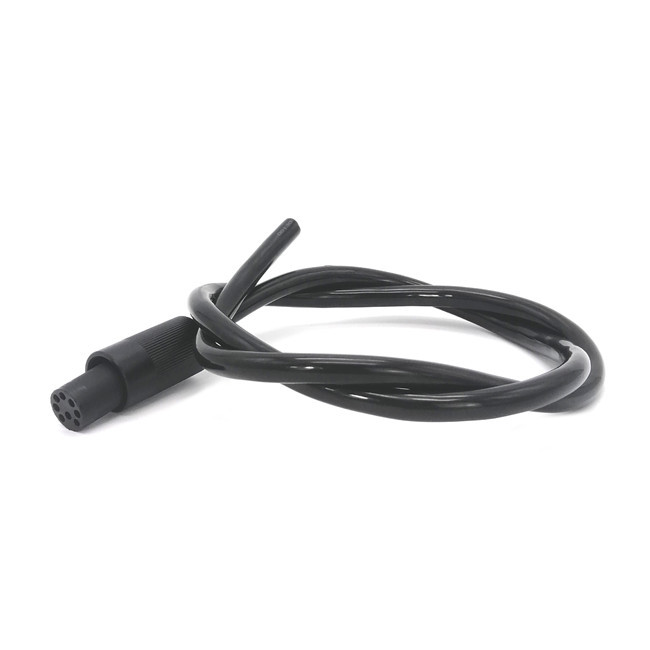

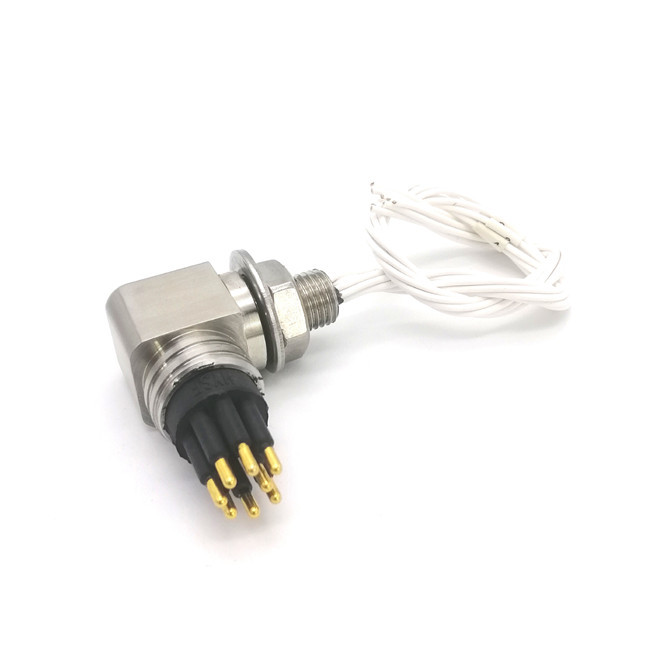

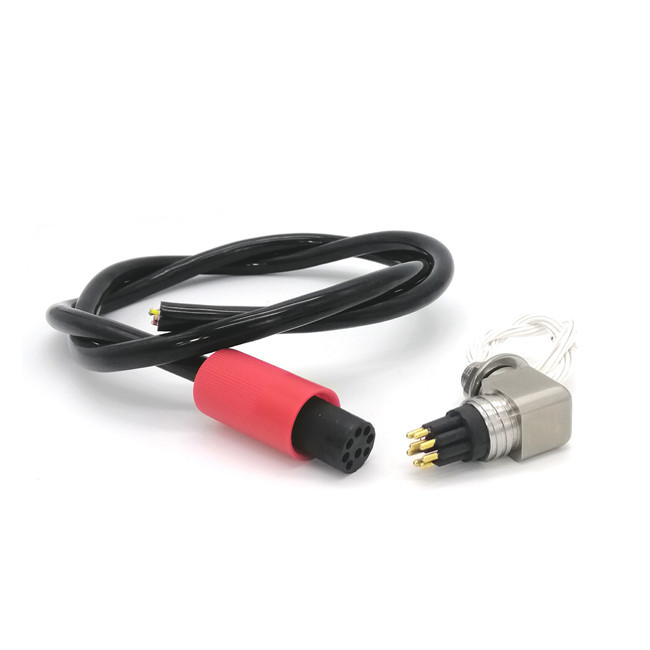

MCIL8F MCBHRA8M SEACON underwater connector

Name: MCIL8F MCBHRA8M SEACON underwater connector
Brand: Xiamen Leaka Electrical Equipment Co., Ltd
SKU: MCIL8F MCBHRA8M
Availability: InStock
Rating: 5 (1 reviews)

No.MCIL8F MCBHRA8M

The watertight connector of MCIL8F MCBHRA8M 8pin Micro Right Angle Underwater connector series female cable male seat can reach a working water depth of 7000 meters. The bulkhead connector shell material is made of 316L stainless steel.

GET A QUOTE

Description

Dealer IP68 8Pin MCIL8F MCBHRA8M SEACON professional underwater network cable connector

Model Number:	MCIL8F MCBHRA8M
Application:	Power
Gender:	Female/Male
Pins:	8P
Water depth:	7000 meters
Withstand voltage:	600V
Resistance:	200MΩ
Current:	5A
Installation thread:	7/16-20UNF
Working temperature:	(-50℃-100℃)
Certificate:	TUV CE CCC
Times of insertion and extraction:	>500 times
Contact material :	Brass with gold plating
MOQ:	1 sets

Product Description

Water depth 7000 meters

Withstand voltage 600v

Resistance 200MΩ

Current 5A

Working temperature (-50℃-100℃)

Certificate TUV CE CCC

Installation requirement: within the range of 25mm diameter around the mounting screw hole,the end face roughness is above Ra1.6
Note: Be sure to wipe the conductive silicone oil before plugging and unplugging.When pulling out,pull out straight,do not twist left and right,do not pull the cable directly,the cable should avoid acute corner bending.When using the bulkhead joint,make sure the joint does not tilt.External force,all joints are prohibited from excessive exposure to heat or direct sunlight
