Custom mil std connectors Servo Connector Female to Male Adapter
1. Product Introduction

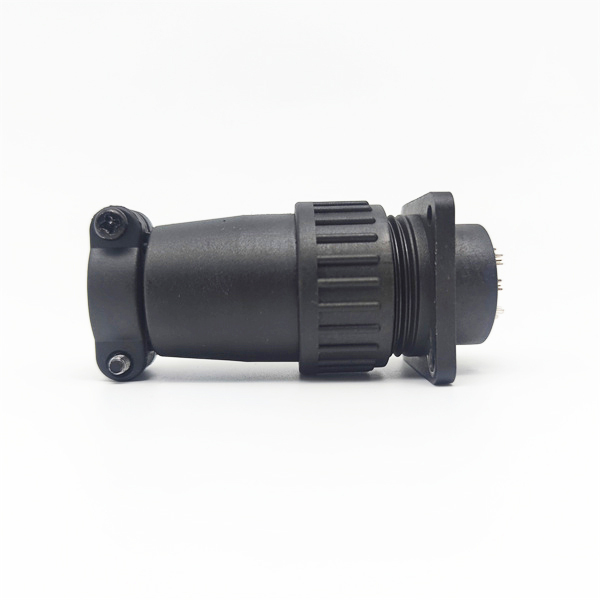

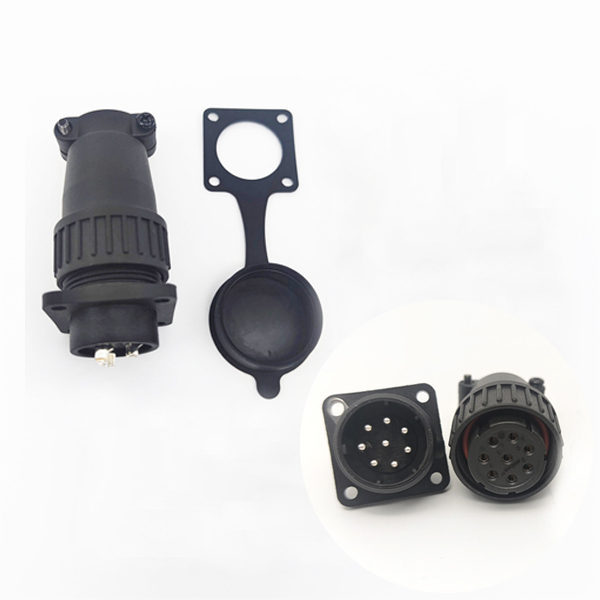

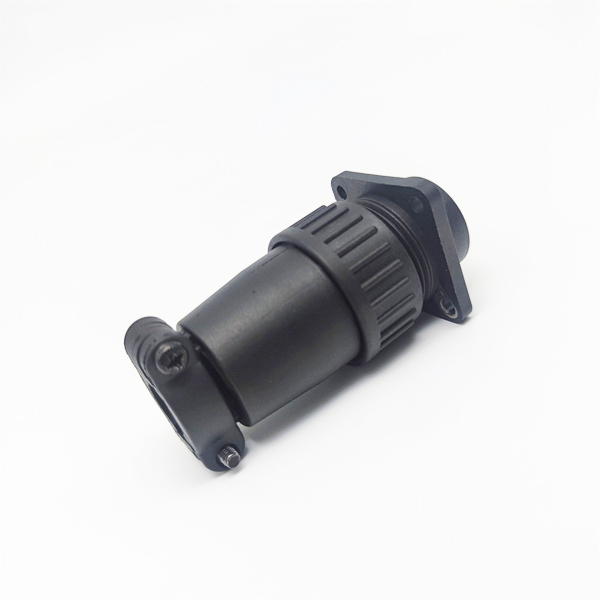

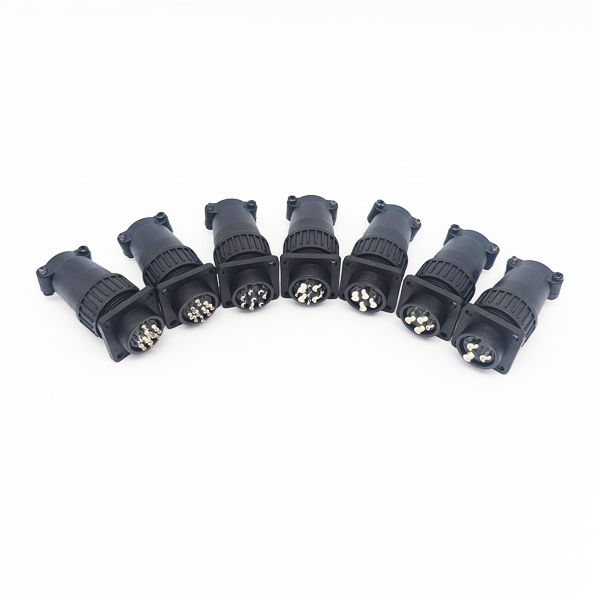

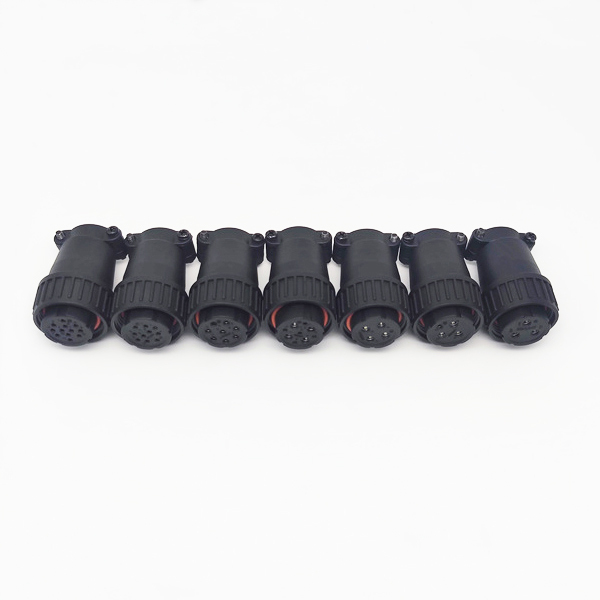

Servo encoder connector YD28 series straight aviation plug, also available in elbow form. There are many connector cores, which can be used for different devices. The diameter of the opening size is 28mm, the shell is made of nylon material, with strong waterproof, oil proof, high temperature resistance, corrosion resistance, prolong the service life of the product.
According to your needs, we can accept a large number of products customized to meet your special needs for products.
2. Product Specification
| Coupling | Threaded |
| Termination | Solder |
| Mating Cycle | 500 |
| Temperature Range | -40℃∽85℃ |
| Rated Current | 10A 25A |
| Working Voltage | 500V |
| Withstand Voltage | 1500V |
| Contact Resistance | ＜1/3mΩ |
| Insulation Resistance | ＞500mΩ |
