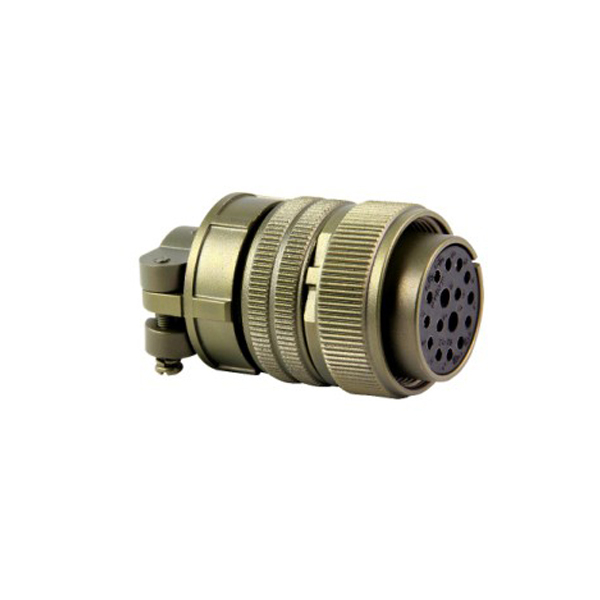

Crafted to adhere to rigorous U.S. military standards, the MS3106 10SL-4 connector features a high-grade aluminum alloy shell with an olive drab chromate coating over cadmium plating, providing exceptional corrosion resistance—including 500 hours of salt spray resistance—and superior mechanical strength to withstand impacts, abrasions, and harsh chemical exposures common in military and outdoor environments. The internal insulator is made of resilient neoprene, ensuring high dielectric strength, arc resistance, and vibration resistance, while maintaining structural integrity even under extreme temperature fluctuations. At the core of its reliable electrical performance are silver-plated copper alloy contacts, which minimize contact resistance (as low as 6 mΩ), resist oxidation, and guarantee consistent conductivity over a minimum of 500 mating cycles, significantly extending the connector’s service life and reducing maintenance needs in critical applications.

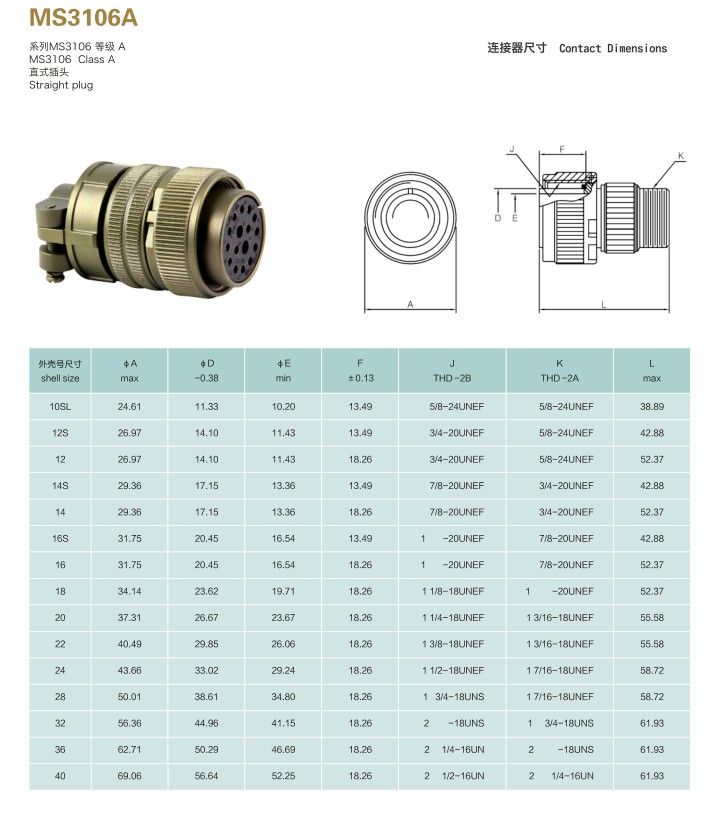

A defining feature of the MS3106 10SL-4 US military standard connector is its exceptional environmental sealing and operational versatility. With an IP65 to IP67 ingress protection rating (depending on configuration), it provides reliable protection against dust ingress and temporary water immersion, making it suitable for both indoor and outdoor military installations, including shipboard and ordnance applications. The connector adopts a threaded coupling design with a secure coupling nut, enabling precise, tool-assisted connection and disconnection while ensuring a vibration-resistant fit—critical for maintaining stable connections in military vehicles, aircraft, and ground support equipment. It is configured as a straight plug with a 10SL shell size and 10SL-4 insert arrangement, featuring 2 contacts of size 16S, designed for solder cup termination, compatible with wire sizes ranging from 16 AWG to 22 AWG.
Engineered for extreme performance, the MS3106 10SL-4 military connector operates within a wide temperature range of -55°C to +125°C (-67°F to 257°F), maintaining stable electrical performance in frigid arctic conditions and high-heat environments such as engine bays or aerospace applications. It boasts impressive electrical specifications, including a rated current of 13A to 22A (depending on operating temperature) and a maximum voltage rating of up to 700VDC/500VAC, making it suitable for both low-power signal transmission and medium-to-high power electrical connections. The connector also features single key and keyway polarization to prevent incorrect mating, a critical safety feature for military applications where connection errors could lead to equipment failure or safety hazards.
Versatility and compliance are key strengths of the MS3106 10SL-4 US military standard connector. It fully complies with MIL-DTL-5015 and MIL-C-5015 specifications, meeting the strict quality and performance requirements of the U.S. military and aerospace industries, and is classified with ECCN EAR99 for export compliance. This connector is widely used in a variety of critical applications, including military ground support equipment, aerospace systems, shipboard installations, defense electronics, communication systems, and industrial machinery that requires military-grade durability. It is compatible with corresponding MS3102 series receptacles, providing a complete, reliable connectivity solution for complex military and industrial systems.
In summary, the MS3106 10SL-4 US military standard connector stands out as a rugged, reliable, and high-performance mil-spec circular connector, engineered to meet the most demanding requirements of military and industrial applications. It seamlessly combines corrosion-resistant aluminum alloy construction, silver-plated contacts, IP65-IP67 environmental protection, and strict MIL-DTL-5015 compliance, ensuring uninterrupted connectivity in extreme conditions. For professionals and businesses seeking a trusted military-grade connector that delivers consistent performance, durability, and compliance, the MS3106 10SL-4 is the definitive choice. Its SEO-optimized, keyword-rich content ensures it is easily discoverable on Google, connecting users with the high-reliability mil-spec connectivity solution they need for critical operations.
