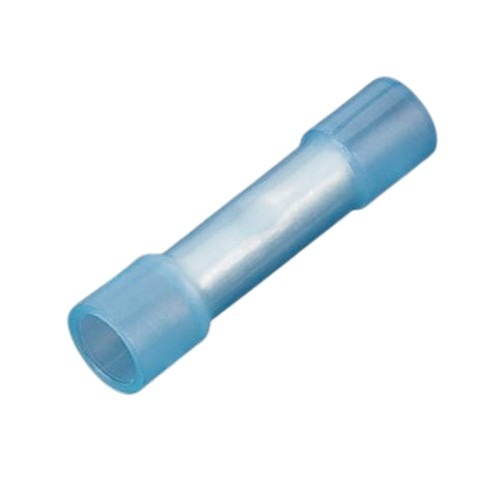

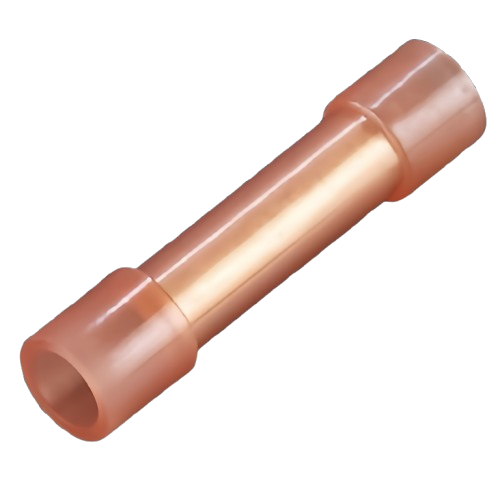

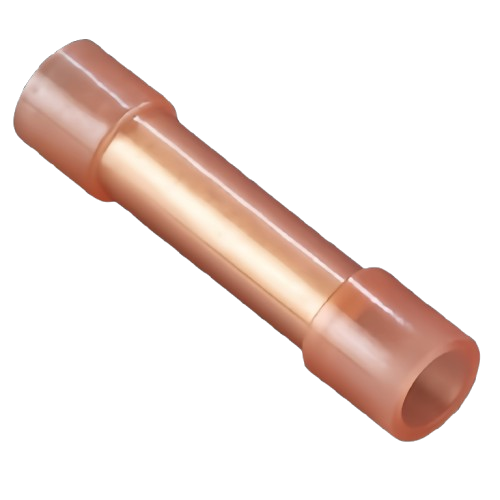

Products DescriptionThe copper tube is embedded in the customized nylon insulating sheath to produce an intermediate terminal that allows two lines to be quickly connected in series. This is the
nylon fully insulated butt splice connector.
It can easily connect two lines. The customized copper tube can fix the wire well after crimping to prevent it from falling off, and achieve a good wiring effect. The high-quality insulating sheath can protect the wire and prevent leakage. It replaces the traditional electrical tape and makes wiring safer and more convenient.
In addition, this series of products all meet the environmental protection RoHS certification standards of the SGS organization and the CE certification standards.
| Type |
Crimp Terminal |
| Color |
Blue/Yellow/Red |
| Lead Section |
0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current |
Imax=19A/Imax=27A/Imax=48A |
| Material |
Copper |
| Insulation |
PA66 |
| Surface Treatment |
Matte tin plating |
| A.W.G |
22-16 AWG /16-14 AWG /12-10 AWG |
| Rated Voltage |
600V |
| Max. temperature resistance |
105℃ |
Products Application
1. Automotive Industry
- Butt splice terminal cable lugs are used to connect wires in the vehicle's electrical system, such as those for the lighting system, including headlights, taillights and dashboard lights. They ensure a reliable connection to maintain the normal operation of these lighting components.
- In the automotive power supply system, butt splice connectors are used to connect the wires from the battery to various electrical components and control units, enabling the efficient transmission of electrical energy.
2. Residential Electrical Wiring
- When installing or repairing electrical circuits in homes, butt splice connectors are often used to connect wires in outlets, switches and light fixtures. They provide a secure and convenient way to join wires and ensure the safety and stability of the home electrical system.
- For extending or repairing electrical wires in the walls or ceilings, butt splice connectors offer a practical solution. They allow electricians to connect new wires to existing ones without the need for complex soldering or other time-consuming techniques.
