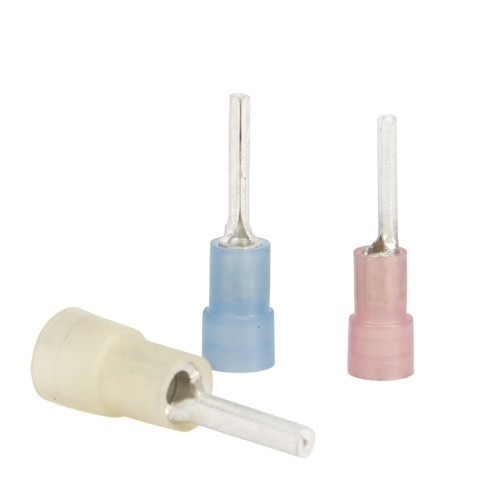

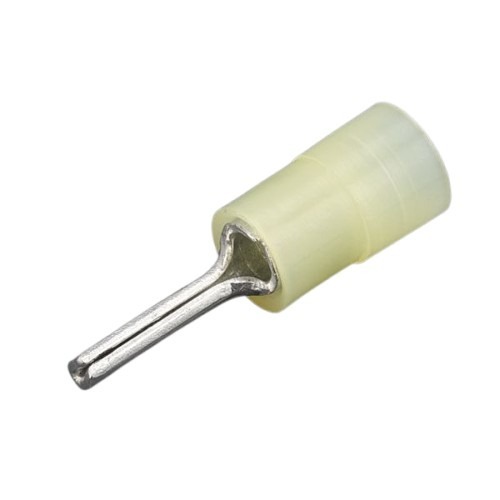

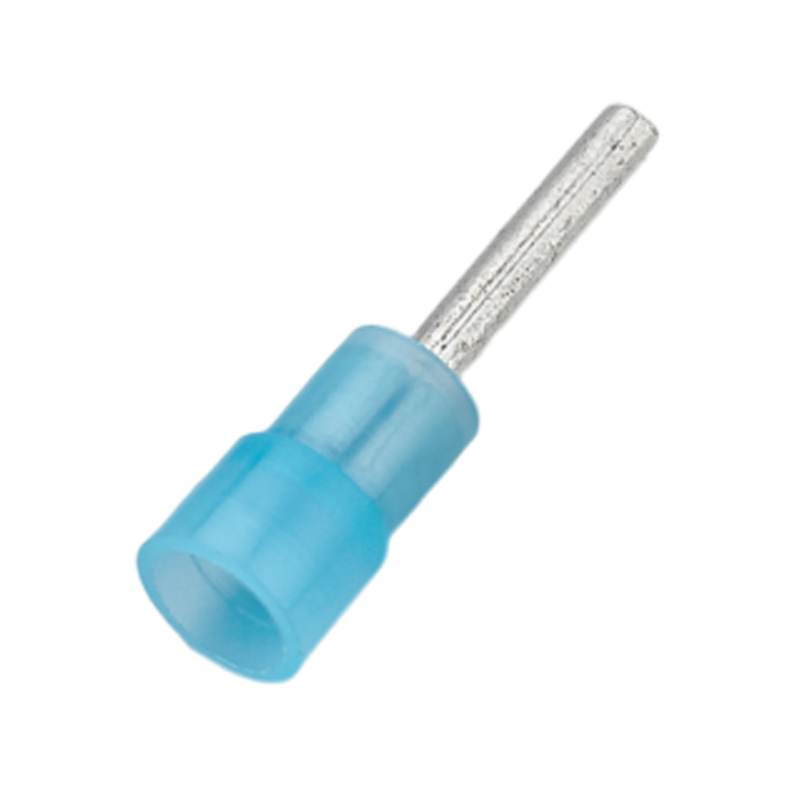

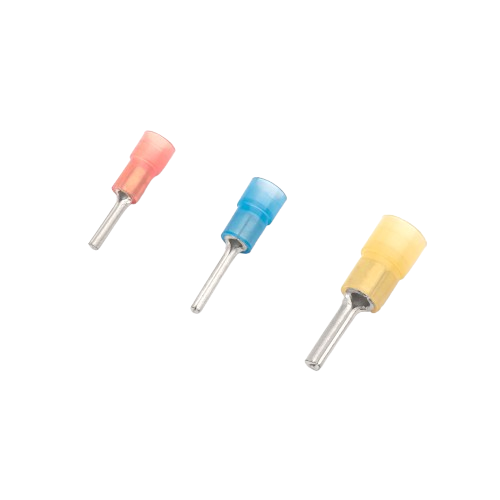

Products DescriptionPin-type cold-pressed terminal is an electrical connection device used to connect the end of a wire or conductor to connect it to other electrical devices or circuits. This type of terminal has a pin-shaped design and is usually made of metal, such as copper or aluminum. They are usually used in low voltage and low current applications, such as electronic equipment, instrumentation, communication equipment, etc.
| Type |
Crimp Terminal |
| Color |
Blue/Yellow/Red |
| Lead Section |
0.5-1.5mm² /1.5-2.5mm² / 4-6mm² |
| Max Current |
Imax=19A /Imax=27A /Imax=48A |
| Material |
Copper |
| Insulation |
PA66 |
| Surface Treatment |
Matte tin plating |
| A.W.G |
22-16 AWG /16-14 AWG /12-10 AWG |
| Max. temperature resistance |
105℃ |
Products Application
1. Electronic equipment:
Commonly used in various electronic equipment, including computers, mobile phones, TVs, stereos, etc. They can be used to connect wires on circuit boards to provide stable electrical connections.
2. Instruments:
Suitable for various instruments, such as measuring equipment, laboratory equipment, etc. They can be used to connect sensors, probes, measuring instruments, etc. to ensure accurate signal transmission and measurement.
3. Communication equipment:
In the field of communication, pin-type cold-pressed terminals are widely used in telephone systems, network equipment, wireless communication equipment, etc. They are used to connect wires, optical fibers, etc. to ensure reliable signal transmission and communication connections.
