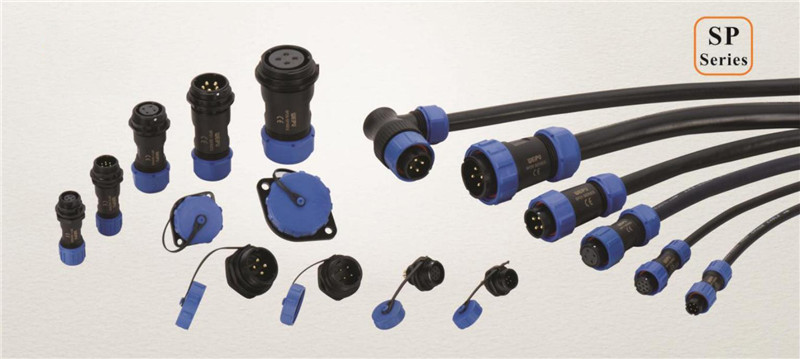

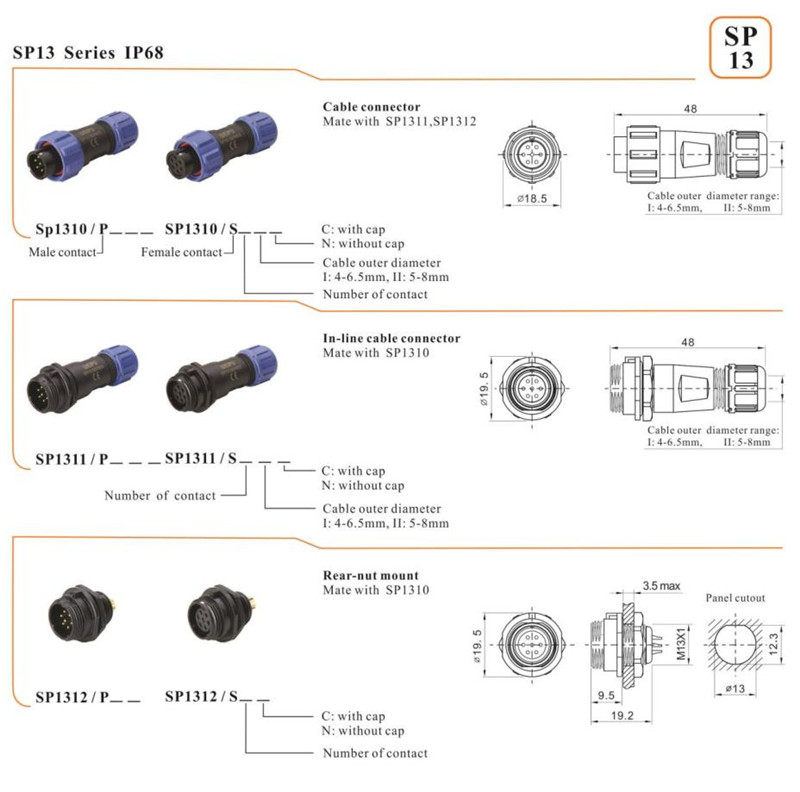

| Product name | plastic male SP1312 P series socket weipu ip68 2 3 4 5 6 7 9 pins rear nut mount connectors |
| Wire size | 0.785m㎡-2m㎡/ 14AWG-18AWG |
| Coupling | Threaded |
| Shell material | PC, Nylon66, fire resistance: V-0 |
| Contact material | Brass with gold plating |
| Insert material | PPS, max temperature 260℃ |

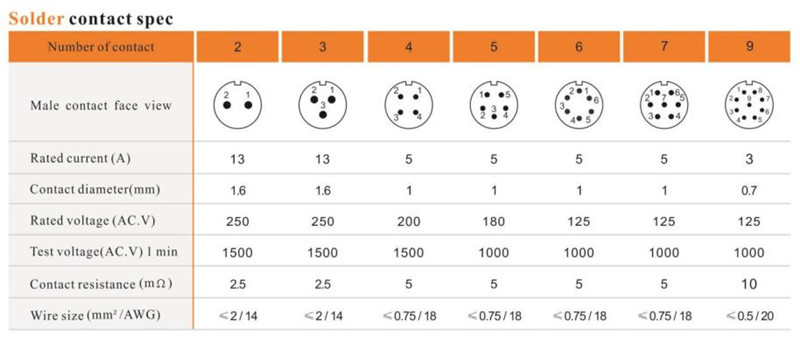

| Rated current | 13A,5A,3A |
| Rated voltage | 250V,200V,180V,125V |
| Insulation resistance | 2000mΩ |
| Contact resistance | 2mΩ,5mΩ,10mΩ |

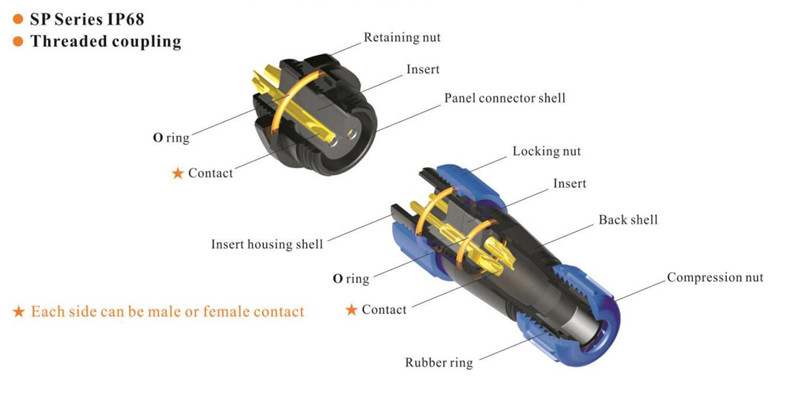

| Features | weatherproof, stable, secure, threaded coupling |
| Certificate | UL,CE,CCC,ISO |
| Supply ability | 50000 pcs per month |
| Mating cycle | >500 |
| Temperature | -40℃~+80℃ |
| IP rating | IP68 |
| Flame rating | UL94-V0 |
| OEM | Yes,we accept |
| Delivery time | 3-45 days depends on buying stockage or OEM order |
